Extender HDMI 4 K on Cat 5 and/ 6 / 6 cable up to 70 m HDBaseT-Lite - ATEN IDATA VE- 801

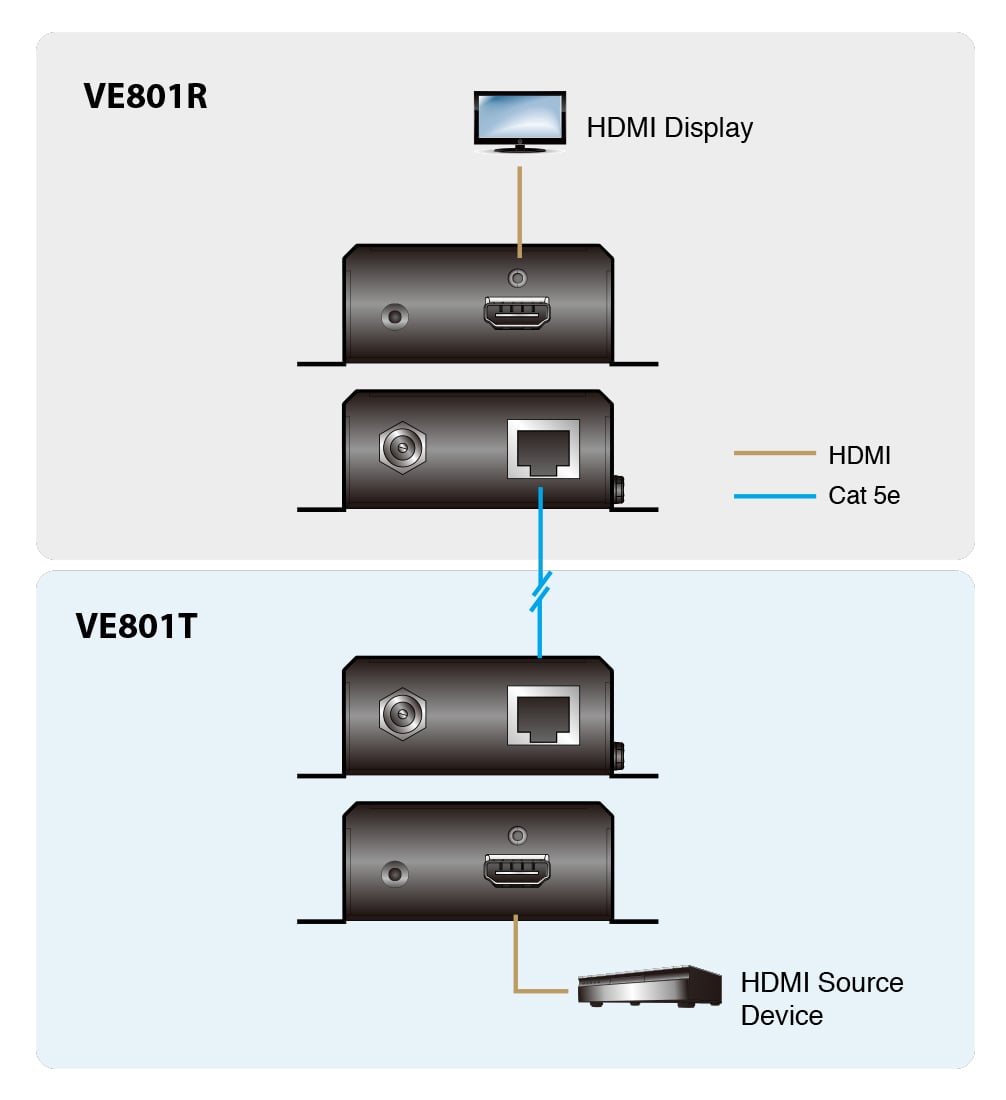

The VE 801 HDMI HDBaseT-Lite Extensor increases the distance of the HDMI signal to 70 m from the HDBaseT source via an Ethernet cable network Cat 5 and/ 6 / 6 a.

It supports HDMI features including 3 D, Deep Color and 4 K image resolutions, as well as Dolby Digital 5.1 , DTS HD audio and HDCP compatibility.

The all-inclusive design of the VE 801 offers an easy way to mount the device in any position.

The side panel has non-slip handles that help avoid accidental fall during installation of the unità.

The handles also allow you to see the status LED indicators.

IDATA VC- 801 è perfect for digital entertainment centers or any installation that requires the extension over long distances of a higher HDMI video quality.



Features

• Connectivityà HDBaseT – increases the distance of an HDMI connection via a Cat 5 and/ 6 / 6 cable to


• HDBaseT Anti-block – resists signal interference during high quality video transmission via HDBaseT technology


• Configure optimal EDID settings for smooth display with high quality à and to use the best resolution on different screens


• Mountable on rack



Technical specifications

• Video Input



- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

- Max distance: 1,8 meters

• Video output



- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

• Video



- Max. frequency of data: 10,2 Gbps (3,4 Gbps per lane)

- Pixel clock max.: 340 MHz

- Conformità:

HDMI (3 D, Deep Color, 4 K)

HDCP compatible

CEC (Consumer Electronic Control)

- Resolution/distance max.:

Up to 4 K to 35 m (Cat 5 and/ 6) / 40 m (Cat 6 a);

1080 p a 60 m (Cat 5 e/ 6) / 70 m (Cat 6 a)

* 4 K supported:

4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 ): Up to 4 K at 35 m (Cat 5 and/ 6) / 40 m (Cat 6 a);

• Audio



- Input: 1 x HDMI type A female (black)

- Output: 1 x HDMI type A female (black)

• Feeding



Connectors: 1 x CC (black) connector with lock

- Consumption:

5 V CC, 4,23 W (receiver).

5 V CC, 1,85 W (transmitter).

• Environment



- Operating temperature: 0 - 50 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 40 - 85 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Weight: 0.25 kg

- Dimensions (L x P x A): 9.86 x 8.70 x 3.00 cm



Package contents

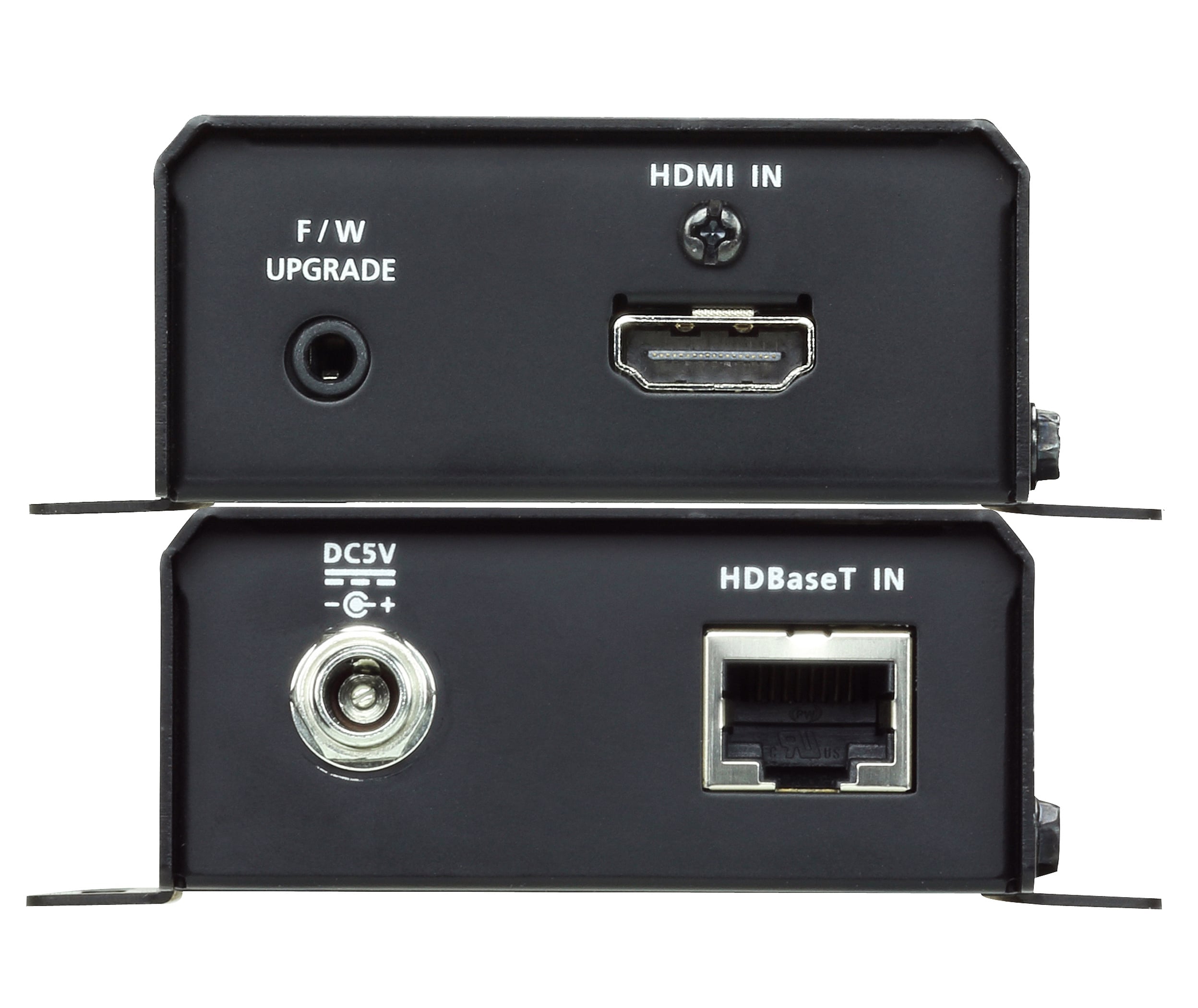

• 1 x Extensor (Transmitter) VE 801 T HDMI HDBaseT-Lite

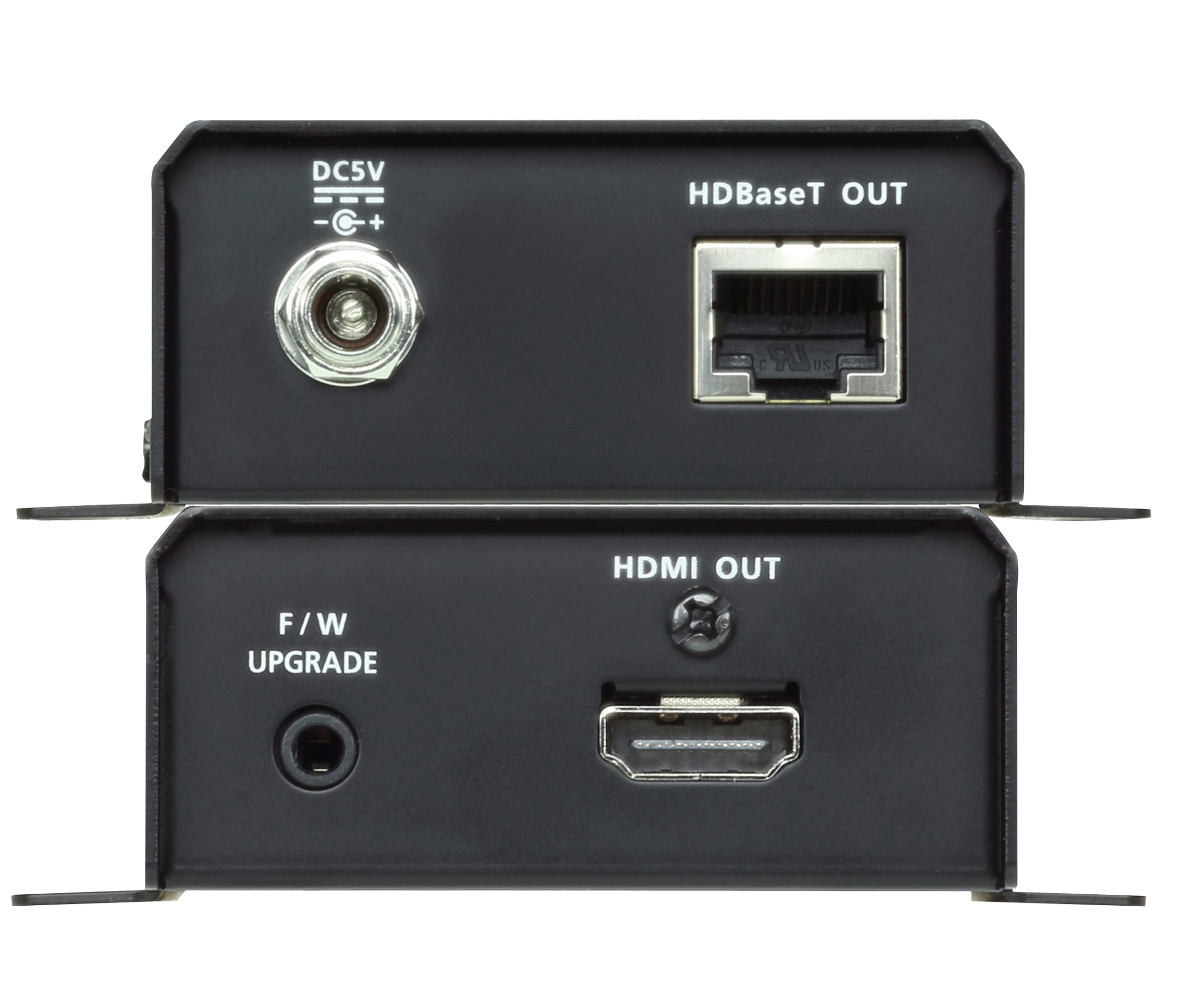

• 1 x Extensor (Receiver) VE 801 R HDMI HDBaseT-Lite


• 2 x 0 AD 6 - 1 F 05 - 26 EG power adapters


• 1x User instructions
