HDBaseT Extensor HDMI Class with POH 4 K at 100 m VE 1812 - Aten IDATA VE- 1812

€525.64
Tax included €430.90 excl. VAT

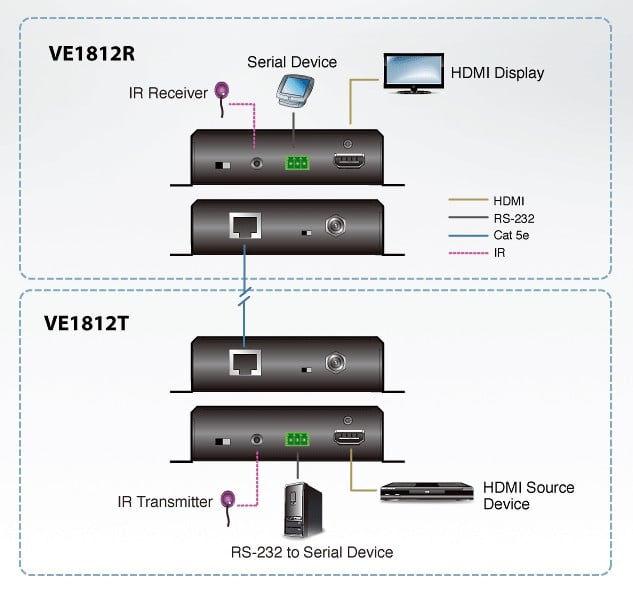

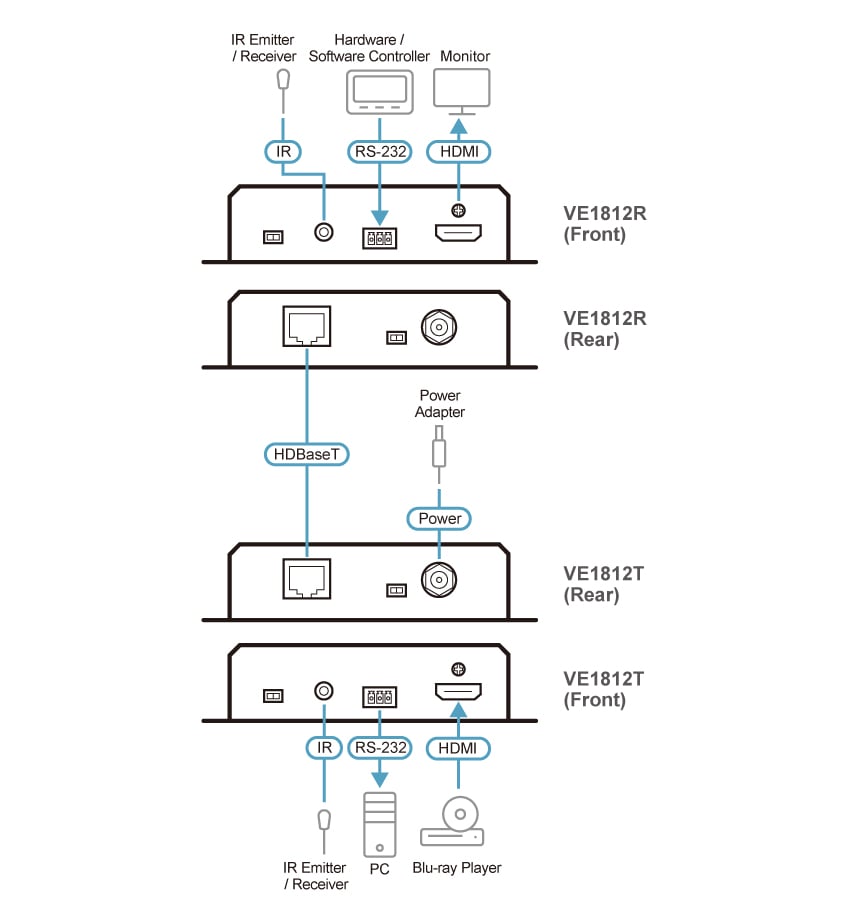

HDBaseT Extensor HDMI Class with POH for transmission 4 K up to 100 m via Cat 6 a. Supports long distance mode 150 m at 1080 p, RS- 232 and bidirectional IR, installable rack.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • HDBaseT Extensor HDMI Class with POH

  • Connectivityà HDBaseT – increases the distance of an HDMI connection via a Cat 5 and/ 6 / 6 cable to

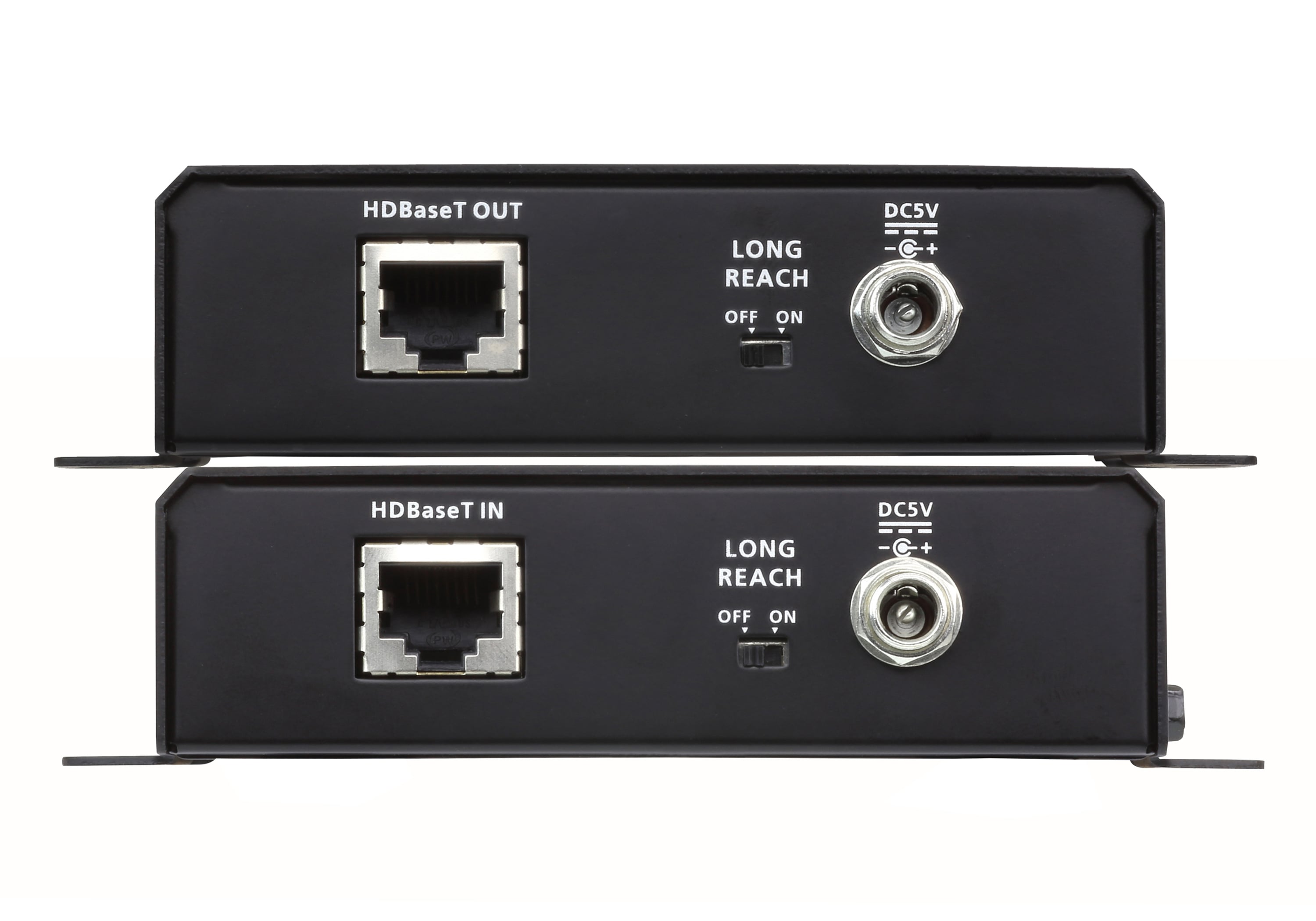

  • Supports long distance HDBaseT – mode up to a maximum flow rate of 150 meters to 1080 p

  • Transmission HDMI 4 k x 2 k at a distance up to 100 m via 6 Cat cable to or ATEN 2 L- 2910 Cat 6

  • HDBaseT Anti-block – resists signal interference during high quality video transmission via HDBaseT technology

  • POH (Power over HDBaseT) – provides power from the transmitter to the long distance receiver via a Cat 5 and/ 6 / 6 cable to

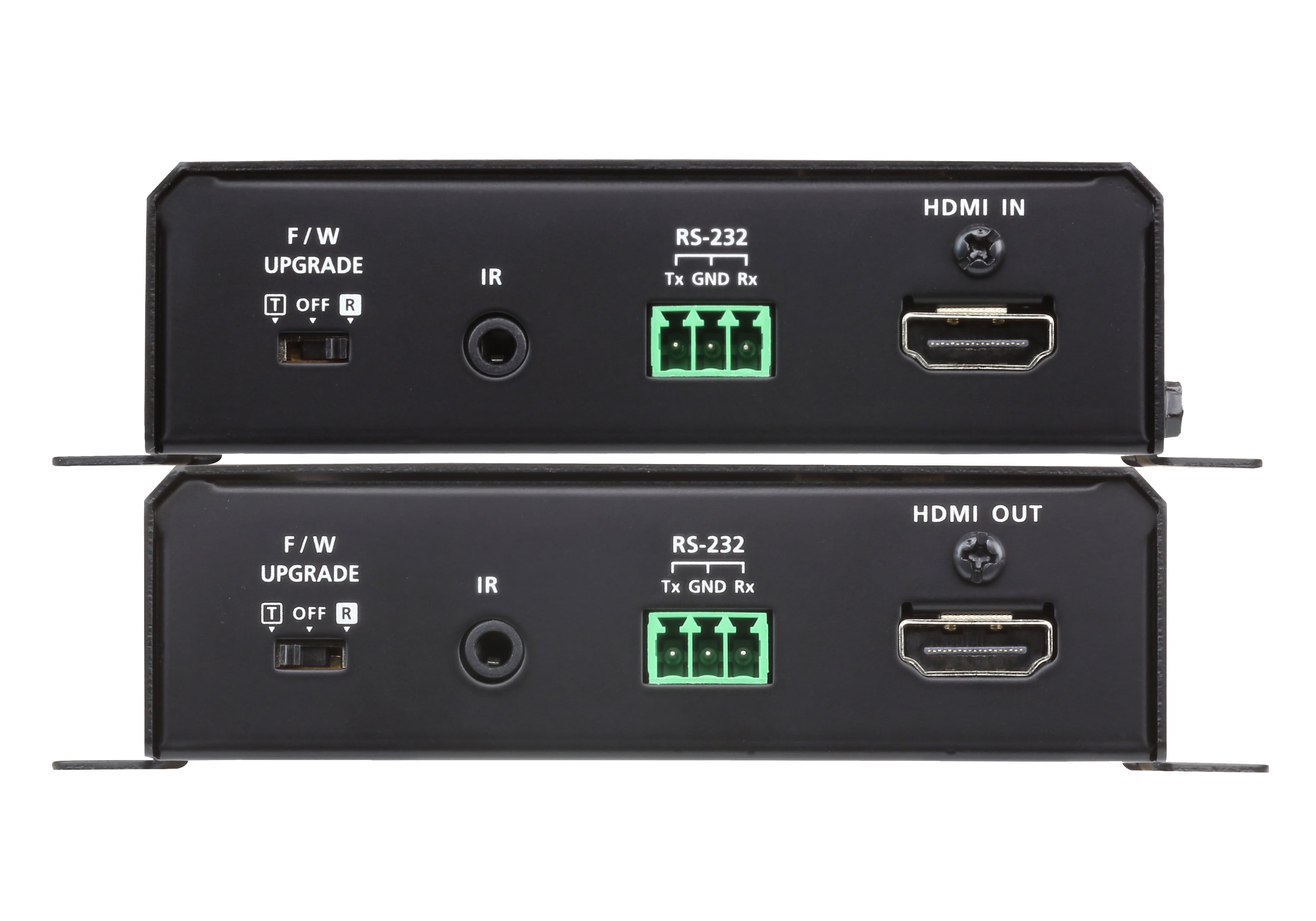

  • RS- 232 bi-directional channel – allows connection to serial terminals or serial devices, e.g. touch screens and barcode scanners

  • Bi-directional IR channel – bi-directional IR protocol provided by an IR port; IR transmission is processed in one direction at a time

  • Installed to rack



Video Input

  • Interfaces: 1 x HDMI type A female (black)

  • Impedance: 100

  • Max. distance: 1,8 m



Video output

  • Interfaces: 1 x HDMI type A female (black)

  • Impedance: 100



Video

  • Maximum frequency 10,2 Gbps data (3,4 Gbps per line)

  • Pixel clock max. 340 MHz

  • Conformityà HDMI (3 D, Deep Color, 4 K)

  • HDCP compatible

  • Consumer Electronics Control (CEC)

  • Maximum resolution/distance: up to 4 K to 70 m (Cat 5 and/ 6) / 100 m (Cat 6 a); 1080 p to 100 m (Cat 5 and/ 6 / 6 a)


* 4 K supported:

4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )



Audio

  • 1 x HDMI female type A output (black)



Monitoring

  • RS- 232   Connector: 1 x Terminal block, 3 poles

  • Velocità in baud: 19200 , Data Bit: 8 ,

  • Stop Bit: 1 , no parità and flow control

  • IR 1 x female mini stereo connector (black)



Environmental features

  • Operating temperature: 0 - 40 °C

  • Storage temperature: - 20 - 60 °C

  • Humidità: 0 - 80% relative humidityà without condensation



Physical characteristics

  • Structure: metal

  • Weight: 0.47 kg

  • Dimensions (L x L x A) with bracket: 14.04 x 12.30 x 3.00 cm

  • Dimensions (L x L x A) without bracket: 13.60 x 10.10 x 2.90 cm



Package contents1 x HDBaseT HDMI VE 1812 transmitter with POH

  • 1 x HDBaseT HDMI VE 1812 receiver with POH

  • 1 x power supply 0 AD 9 - 1 F 05 - 30 EG

  • 1 x 2 XRT- 0004 G IR transmitter

  • 1 x 2 XRT- 0003 G- 1 IR receiver

  • 2 x RS- 232 terminal blocks

  • 1 x user instructions

  • Brand
  • Reference
    IDATA VE-1812
  • EAN13
    4719264645792
