HDMI HDBaseT-Lite Class B receiver 70 m with Scaler - Aten IDATA VE- 805 R

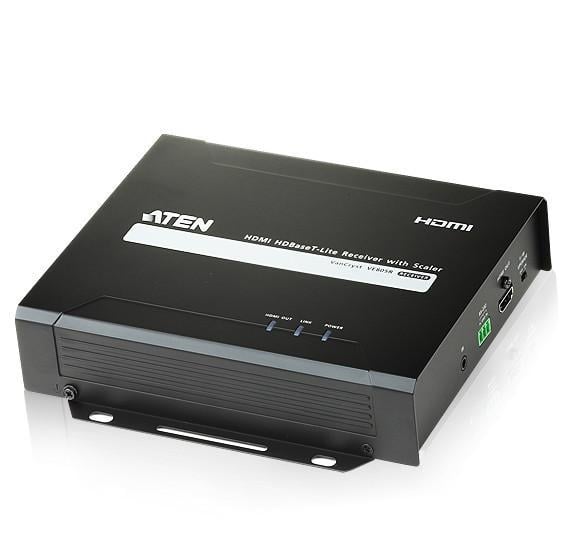

The Aten VE 805 R HDMI HDBaseT-Lite Receiver with scaler can be combined with ATEN HDMI HDBaseT products to extend HDMI display up to 60 m from the HDMI source device using a single Cat 5 and/ 6 a cable.

Thanks to the built-in scaler, the VE 805 R supports the display scaling function of different video resolutions. When combined with an ATEN VM 8514 HDBaseT output card, it supports video wall integration and Seamless Switch™ functions. In addition, the VE 805 R è with RS- 232 and IR signal pass-throughs that allow RS- 232 and IR channels to be controlled either remotely to unità local or from local to unità remotely, for bidirectional control of the source or display device.



Features

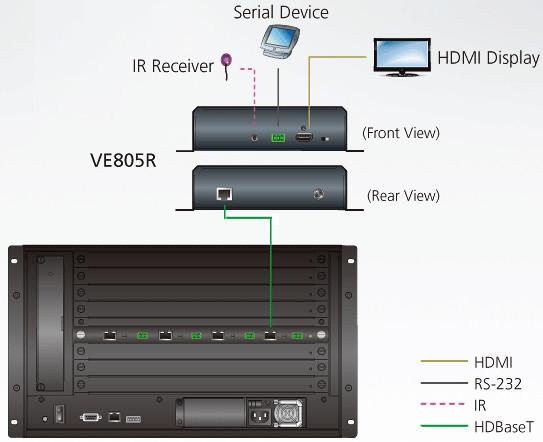

• Connectivityà HDBaseT: extends the connection distance between the 8514 HDBaseT VM outputs and an HDMI screen via a single 5 and/ 6 Cat cable to


• HDBaseT Anti-blocking: resists signal interference during video transmission with high quality through HDBaseT technology


• RS- 232 bi-directional channel: allows connection to serial terminals or serial devices, e.g. touch screens and barcode scanners


• Scaler: features the scaling function to seamlessly integrate a video wall with various output formats


• Seamless Switch & trade;:allows fast switching (close to zero seconds), continuous video transmissions, real-time switching and stable signal transmissions*


• Video wall: allows the configuration of video wall profiles available for screen layouts customizable through the simple web user interface of tip type and click*


• Two-way IR channel: IR transmission is processed in one direction at a time**


• Mountable on rack



Note:

* Seamless Switch & trade; and video wall functions are available when the VE 805 R è used with the VM 8514 .

** Supports the full frequency of IR signals from 30 KHz to 60 KHz; however the IR receiver cable included with the package supports only from 30 KHz to 56 KHz.



Technical specifications

Video input:


- Interfaces: 1 x RJ- 45 female (silver)

- Impedance  100

Video output:


- Interfaces 1 x HDMI type A female (black)

- Impedance 100

Video:


- Max. frequency of data 6,75 Gbps (2,25 Gbps per lane)

- Pixel clock max. 225 MHz

- Conformityà: HDMI (3 D, Deep Color), HDCP 1.4 compatible, HDBaseT compatible

- Maximum resolution/distance up to 1080 p to 60 m (Cat 5 and/ 6); 70 m (Cat 6 a)

Control:


- RS- 232 : 1 x Prisoner screw connector, 3 poles

- IR: 1 x Mini stereo jack female (black)

Feeding:


- Connectors: 1 x DC connector (silver)

- Consumption: 5 V CC, 9,5 W

Switches:


- Firmware update: 1 Sliding support

Environment:


- Operating temperature: 0 - 50 °C

- Storage temperature - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

Proprietà physical


- Structure: Metal

- Weight 0.83 kg (1.83 lb)

- Dimensions (L x P x A): 18.18 x 16.92 x 4.20 cm



Package contents

1 x Receiver Aten VE 805 R HDMI HDBaseT-Lite with scaler

1 x 0 ADP- 1 F 05 - 26 EG Power adapter

1 x 2 XRT- 0003 G IR IR transmitter

1 x 2 XRT- 0004 G IR Receiver IR

1 x Terminal lock

1x User instructions
