Extensor on USB LAN Cat 5 4 ports - Aten IDATA UEH- 4102

L Extensor on LAN USB 2.0 to 4 ports UEH 4102 integrates the patented technology ExtremeUSB® which allows users to extend the cable limit beyond the standard 5 meters for peripheral USB devices.



UEH 4102 offers the real 2.0 USB extension up to 480 Mbps on a Gigabit Ethernet LAN. Local and remote units are pre-associated with each other via the MAC address. No è need to be associated during installation.



A real plug-and-play solution, the UEH 4102 è compatible with all major operating systems, and supports all USB devices, such as keyboards, mouse, interactive boards, unità flash, hard drives, audio devices, web cameras and any other USB device. The UEH 4102 offers reliable and high quality data communication that takes full advantage of the capabilities à USB 2.0 standard.



Features

• Extends USB transmission on a Gigabit Ethernet LAN network


• ExtremeUSB® – supports transparent 2.0 USB signals and real plug-and-play (no software or drivers needed)


• Pre-associated network configuration via MAC address to make installation easier. No association required


• Supports automatic connection connection between local and remote units via DHCP

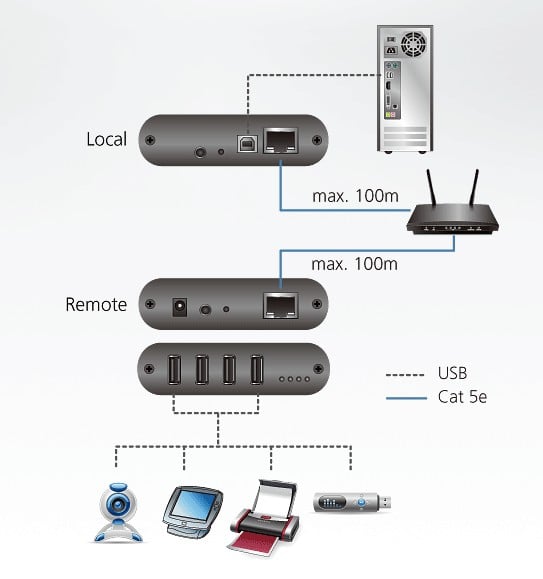

• Up to 100 m between extender and switch and between switches using CAT 5 and/ 6 / 7 cables


• Works with all USB devices -unità flash, keyboards, mouse, webcam, interactive whiteboards and more


• Works with all major operating systems: Windows®, OS X® and Linux®

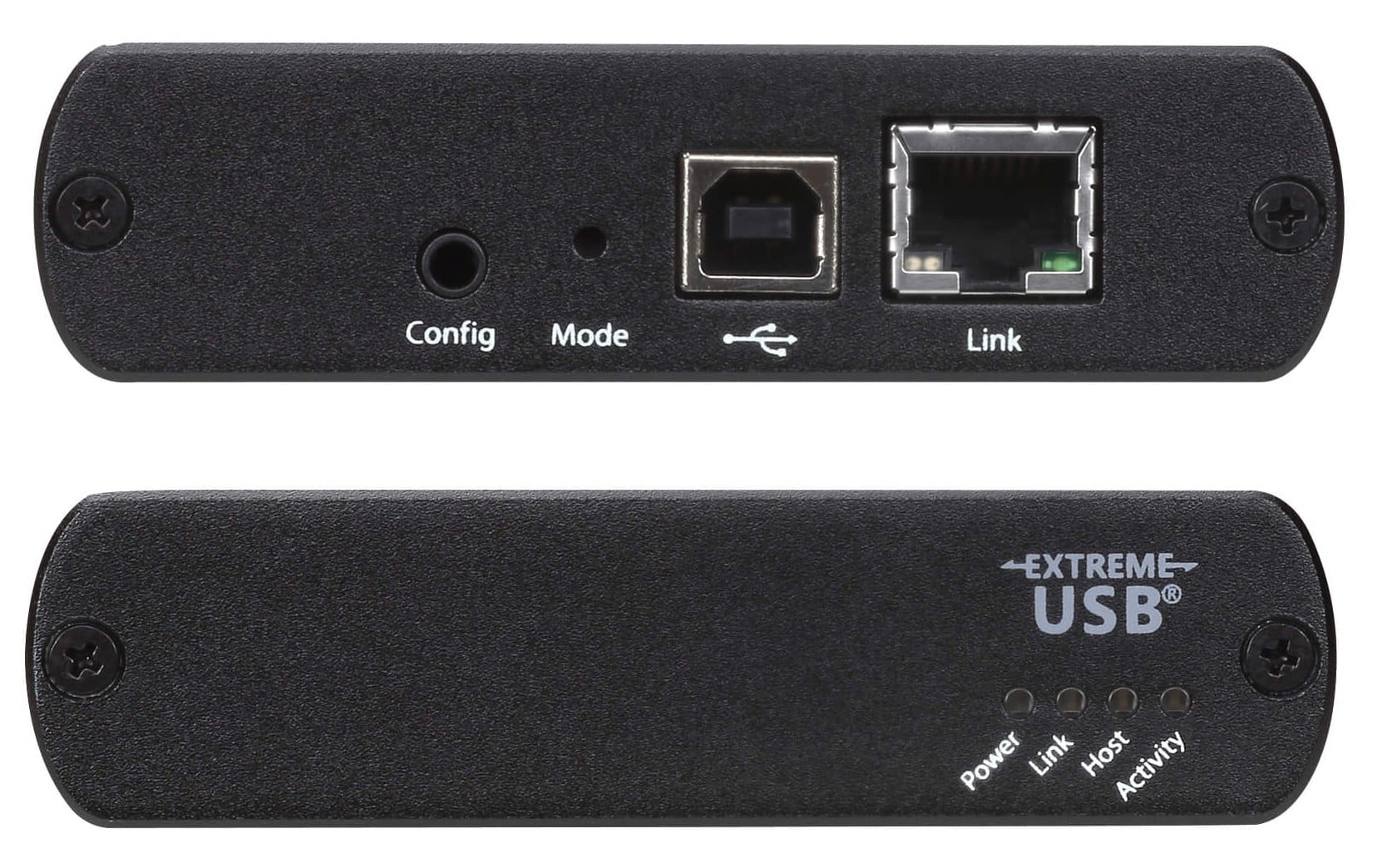

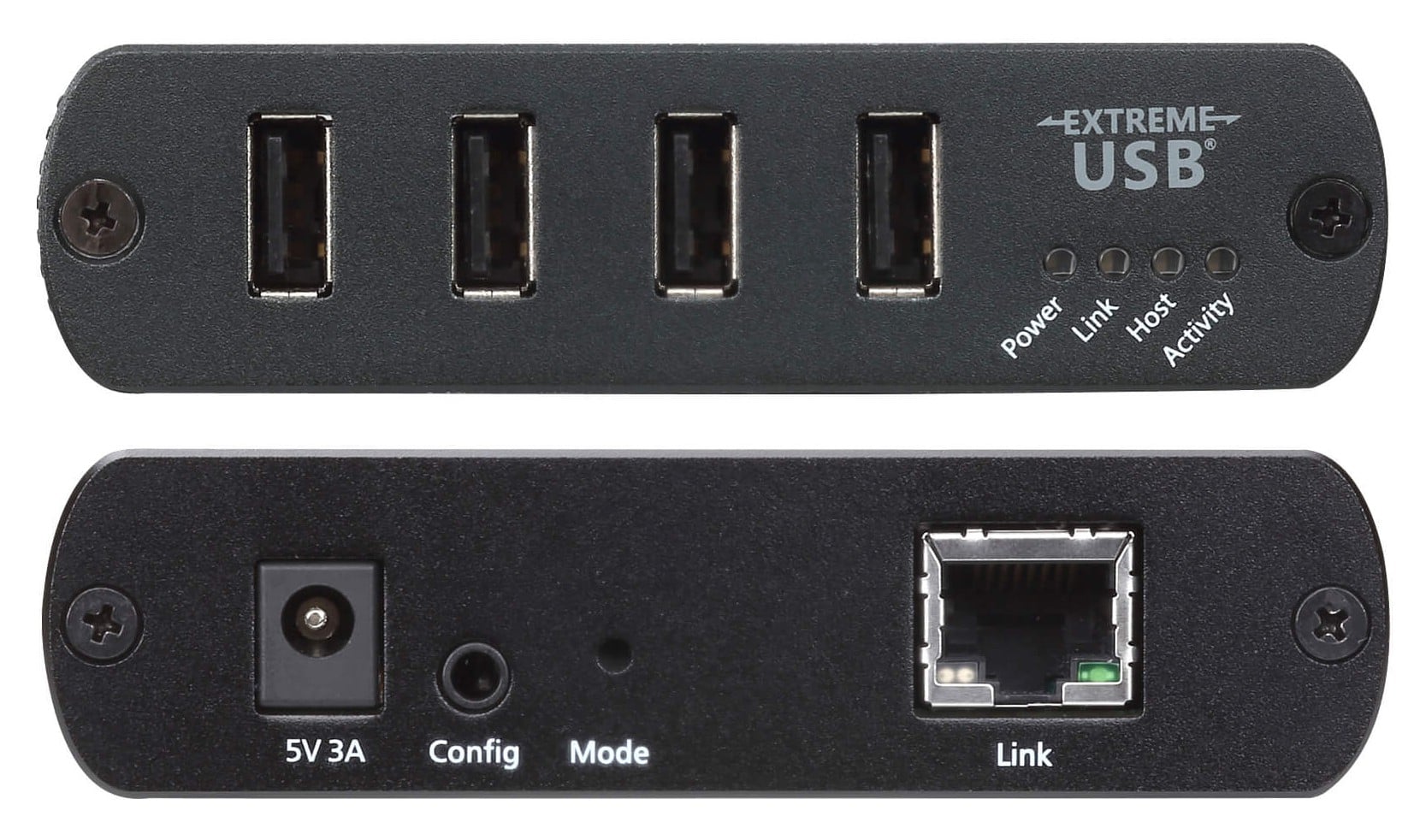

Connectors

• USB/emsp; 1 x female B-type USB port  4 x female A-type USB port


• Connection  1 x Gigabit Ethernet female  1 x Gigabit Ethernet female


• Power supply  N/D  1 x DC power jack



Technical specifications

• USB specifications: USB 2.0 for speed à high/complete/low


• Supported USB devices: 4


• Consumption: self-powered 5 V CC, 15 W, BTU


• Network Protocol: Ethernet 10 / 100 / 1000 BASE-T (for better performance we recommend Ethernet 1000 BASE-T) Ethernet 10 / 100 / 1000 BASE-T (for better performance we recommend Ethernet 1000 BASE-T)



Environmental features

• Storage temperature: - 20 ° - 70 °C 


• Humidità  0 - 80 % relative humidity, without condensation 


• Operating temperature: 0 ° - 50 ° C



Dimensions

• Width: 10,00 cm


• Depthà: 7,60 cm


• Height: 2,60 cm

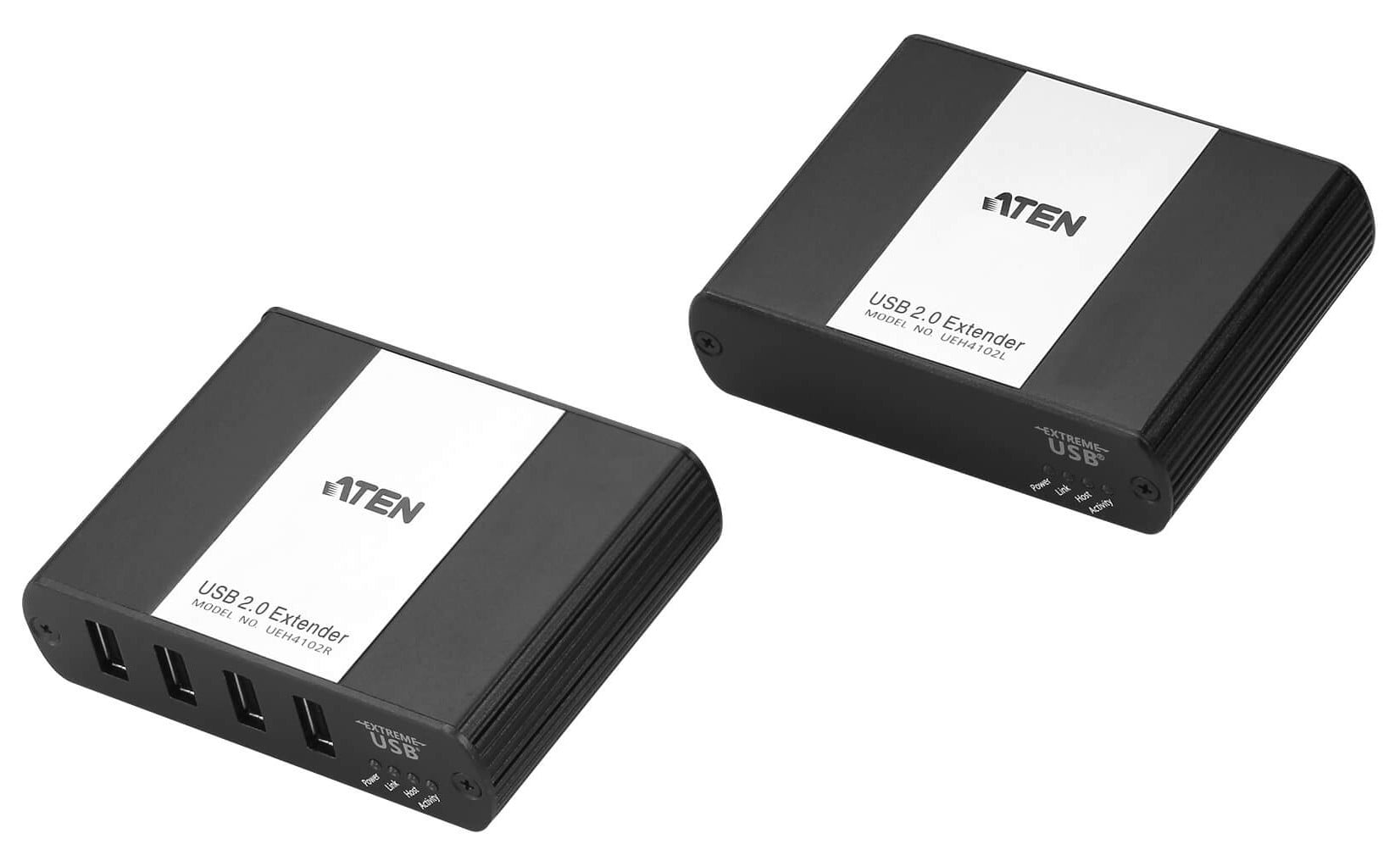

Package contents

• 1 x UEH 4102 L extender on LAN USB 2.0 Cat 5 to 4 ports (Unità local)


• 1 x UEH 4102 R extender on LAN USB 2.0 Cat 5 to 4 ports (Unità remote)


• 1 x 0 AD 9 - 1 B 05 - 30 EG power adapter


• 1 x LIN 6 - 04 U 1 -V 1 BG USB cable 2.0 type A to type B


• 1 x user instructions
