Extensor KVM USB DVI HDBaseT 2.0 1920 x 1200 100 m - Aten IDATA CE- 620

The most recent KVM USB DVI HDBaseT™ 2.0 Aten CE 620 integrates HDBaseT™ 2.0 technologies to offer a highly reliable transmission of video, audio, USB and RS- 232 signals available on the market. CE 620 offers high quality DVI video signals, digital audio to 2 channels PCM, USB 2.0 and RS- 232 up to 100 meters from the source computer using a single Cat 5 and/ 6 cable. With the simple installation of a cable that can support various signals, Aten CE 620 è ideal for applications where è need remote convenient access, in places such as transportation control centers, medical facilities, industrial plants and extended work stations.



Features

• Connectivity Technology; HDBaseT™ 2.0



- Extends video, audio, USB and RS- 232 signals via a single Ethernet cable

- EDID Buffer for trouble-free ignition and high quality visualization

- Improved bit error detection and correction to withstand signal interference during high quality video transmissions

• Qualityà longer-distance video



- Modelità standard HDBaseT™ up to 1920 x 1200 to 100 m

- Modelità long distance HDBaseT™ up to 1920 x 1080 to 150 m

• Switching mode ` long distance — from modeà standard to modeà long distance HDBaseT™ in a moment


• Integrated 2.0 USB ports — ensure fast transmission speeds à for peripherals


• Supports digital PCM audio to 2 channels — ensures high quality audio transmissions


• Supports PC Reactivate function via push button or shortcut


• ESD protection 8 KV/ 15 KV integrated (contact voltage 8 KV; air voltage 15 KV)



Note: Aten CE 620 does not support HDCP

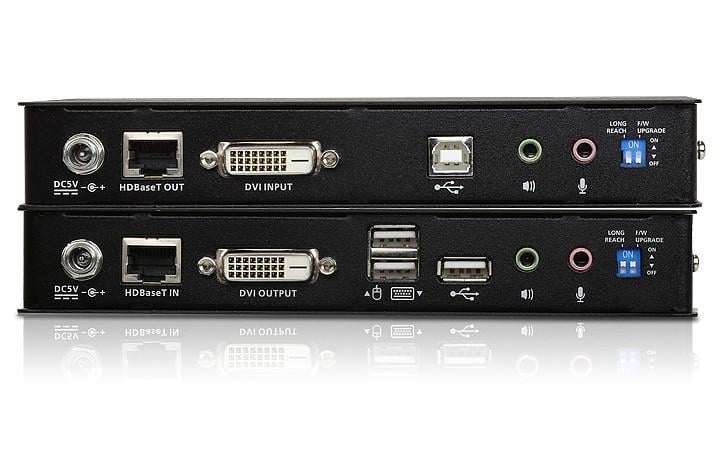

Connectors

• Console ports  



unità local: N/D 

unità remote:

1 x DVI-D female (white)

3 x USB type A female

1 x Jack mini stereo female (green)

1 x Jack mini stereo female (pink)

• KVM & Ports



local unità

1 x DVI-D female (white)

1 x USB type B female (white)

1 x Jack mini stereo female (green)

1 x Jack mini stereo female (pink)

unità remote: N/D

• RS-232:



unità local: 1 x DB- 9 female (black) 

unità remote: 1 x DB- 9 male (black)

• Feeding:



unità local: 1 x CC connector with block 

unità remote: 1 x CC connector with block

• Unità a Unità: 



unità local: 1 x RJ- 45 , female (black) 

unità remote: 1 x RJ- 45 , female (black)



LED

• Feeding


• Link


• Video output



Environmental features

• Operating temperature: 0 – 40


• Storage temperature: - 20 – 60


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 18.20 cm


• Depthà: 12.28 cm


• Height: 2.87 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x Extensor KVM USB DVI HDBaseT 2.0 Aten CE 620 L (Unità local)


• 1 x Extensor KVM USB DVI HDBaseT 2.0 Aten CE 620 R (Unità remote)


• 1 x 2 L- 7 D 02 U set of cables KVM DVI customized


• 2 x 0 AD 6 - 1 F 05 - 26 EG power supplies


• 2 x mounting kit


• 8 x bearings


• 1 x user instructions
