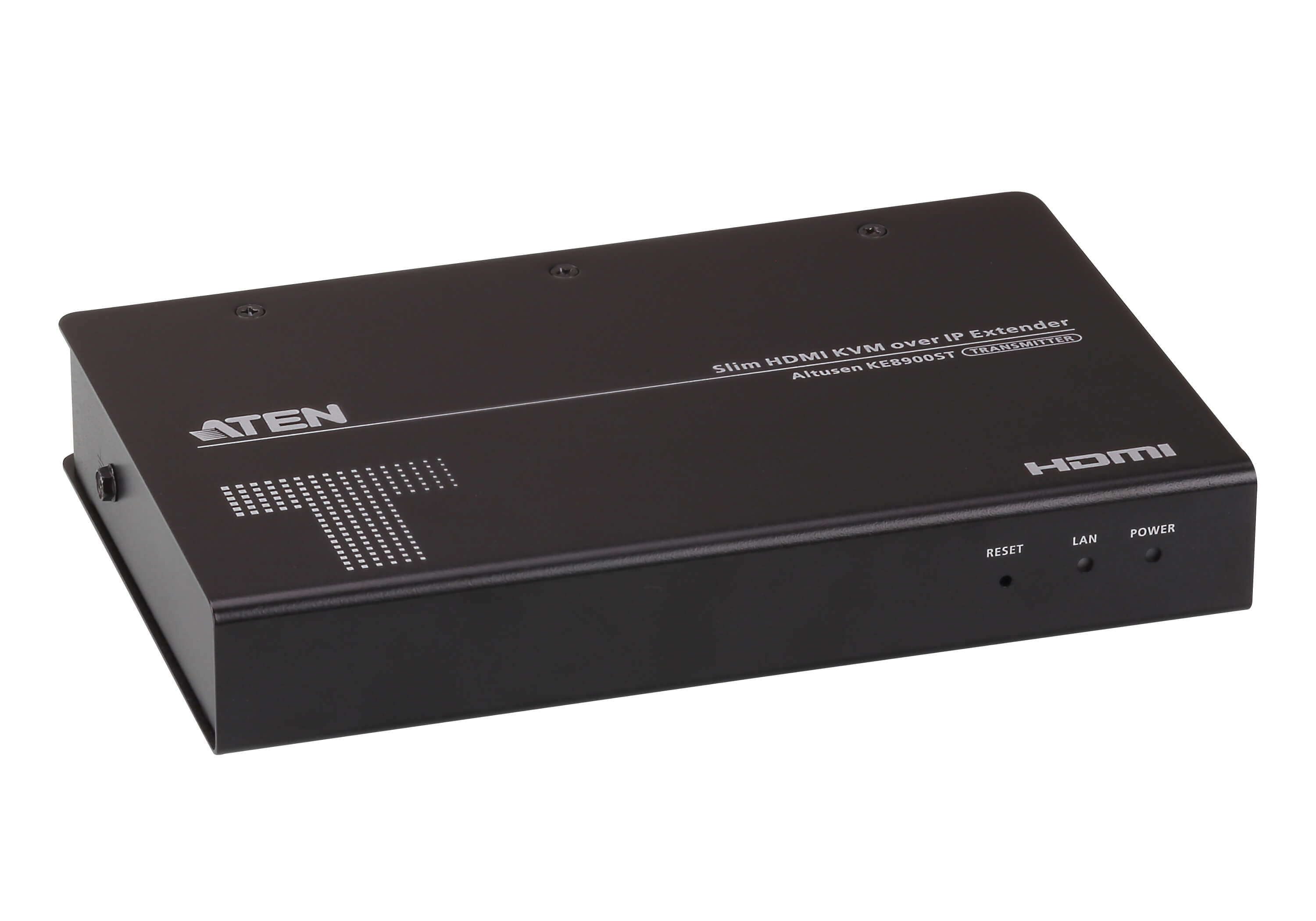

KVM over IP HDMI single display transmitter - Aten IDATA KE- 8900 ST

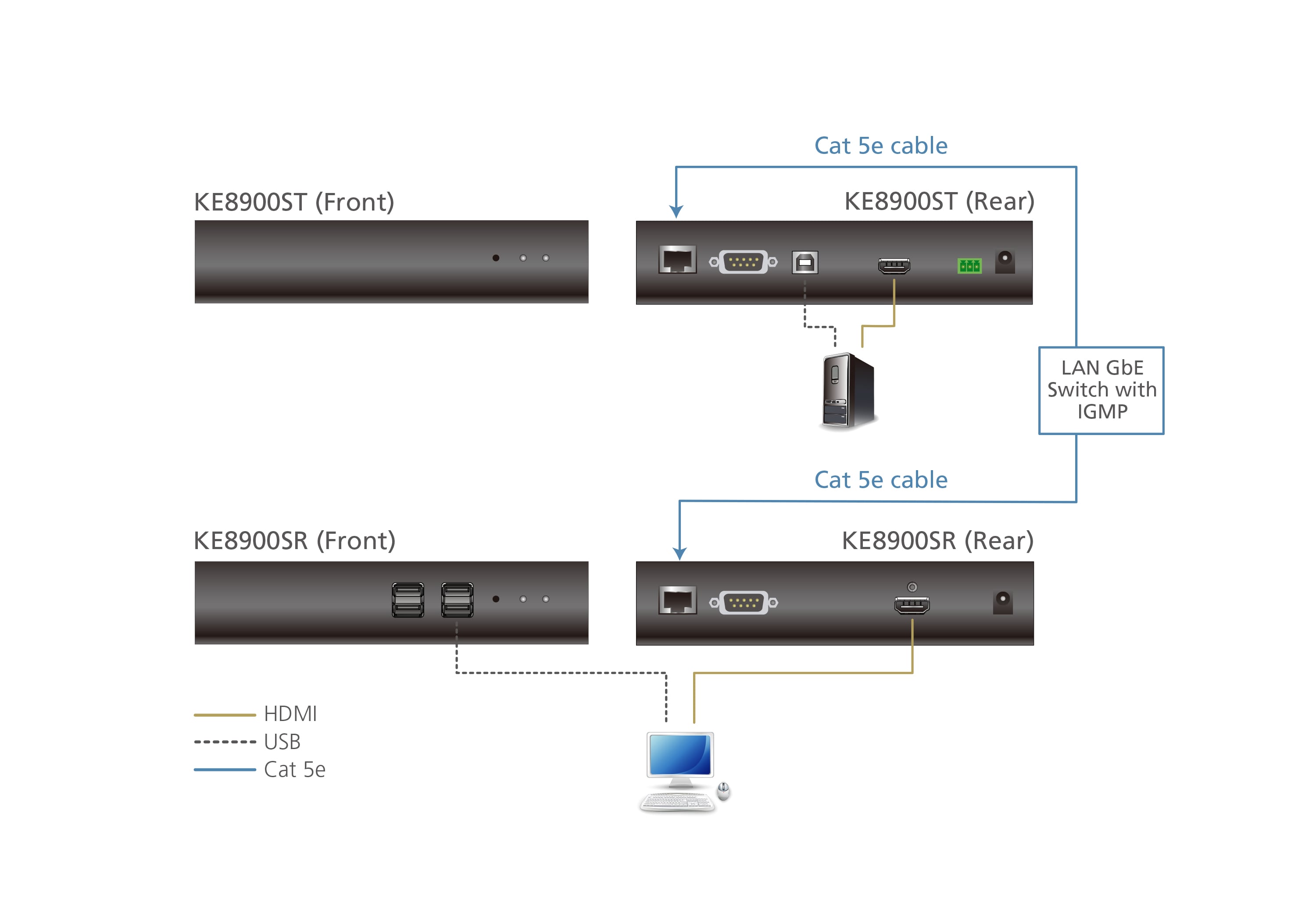

The KVM over IP HDMI KE 8900 S è a pair of transmitter (KE 8900 ST) / receiver (KE 8900 SR) based on high-performance IP compact and reliable that allows you to access a computer system from a remote USB console (USB keypad, USB mouse, HDMI monitor) via an Intranet; users can place computers in a safe environment at controlled temperature, isolated from the user's workstations. KE 8900 ST or KE 8900 SR canò be associated with any KE* series receiver or transmitter to achieve a solution that saves money on the budget.

The KE 8900 ST supports HDMI video input from a computer while the KE 8900 SR supports an HDMI monitor output to offer video resolutions up to 1920 x 1200 and qualityà video compression integrated and loss-free with minimal latency. The extender also supports Virtual Media function and RS- 232 serial commands. In addition to a DC power jack, the KE 8900 ST transmitter includes an additional CC terminal block to make it more ù convenient to install.

The KE 8900 ST can be placed on a desk, mounted on the wall or on the back of a rack thanks to its mounting design saves space on 0 U rack. You can also use the KE 8900 S as a multipoint/multipoint point extender/multipoint point extender, or integrated into a matrix KVM over IP (multipoint) system when combined with the KE (CCKM) Matrix Management Software, so as to offer more ù flexible applications in different network environments.

The KE extender offers different configuration methods, such as the local receiver OSD, the KE matrix management software or the RS- 232 /Telnet text menu. The KE extender also offers improved security features such as support for AES encryption for secure video/keyboard/mouse/USB data transmissions and RADIUS/LDAP/AD or remote user authentication to offer an additional level of security in connection.

When integrated with the KE Matrix Management Software, the KE extender supports other advanced features such as boundless switching, quick exchange, video wall, multi-view, profile planning, automatic KE series extenders detection on the same subnet to make installation and configuration faster, as well as authentication and permission by username/password. Consult the CCKM web page for more information.

Whether during configuration, monitoring, administration, control or extension of computer access, the KVM matrix over IP è system that adapts to an endless variety of workspaces and workstation settings, as well as providing solutions in the transmission sectors, control center, multimedia, production and many other areas where è request the matrix extension.



Hardware

• The advanced processor offers loss-free and low latency video transmissions up to 1920 x 1200 at 60 Hz; depthtà color 24 -bit


• Supports standard HDMI resolutions from 640 x 480 to 1920 x 1200 / Support for USB virtual media


• Conforms with HDMI 1.4 to and HDCP 1.4


• Auto-MDIX: automatically detects cable types


• ESD protection 8 KV/ 15 KV integrated and overvoltage protection 1 KV


• Slim, lightweight and fanless design for silent and energy efficient operations


• Supports connection via Gigabit Ethernet port


• Mountable on rack (with optional kit) and wall

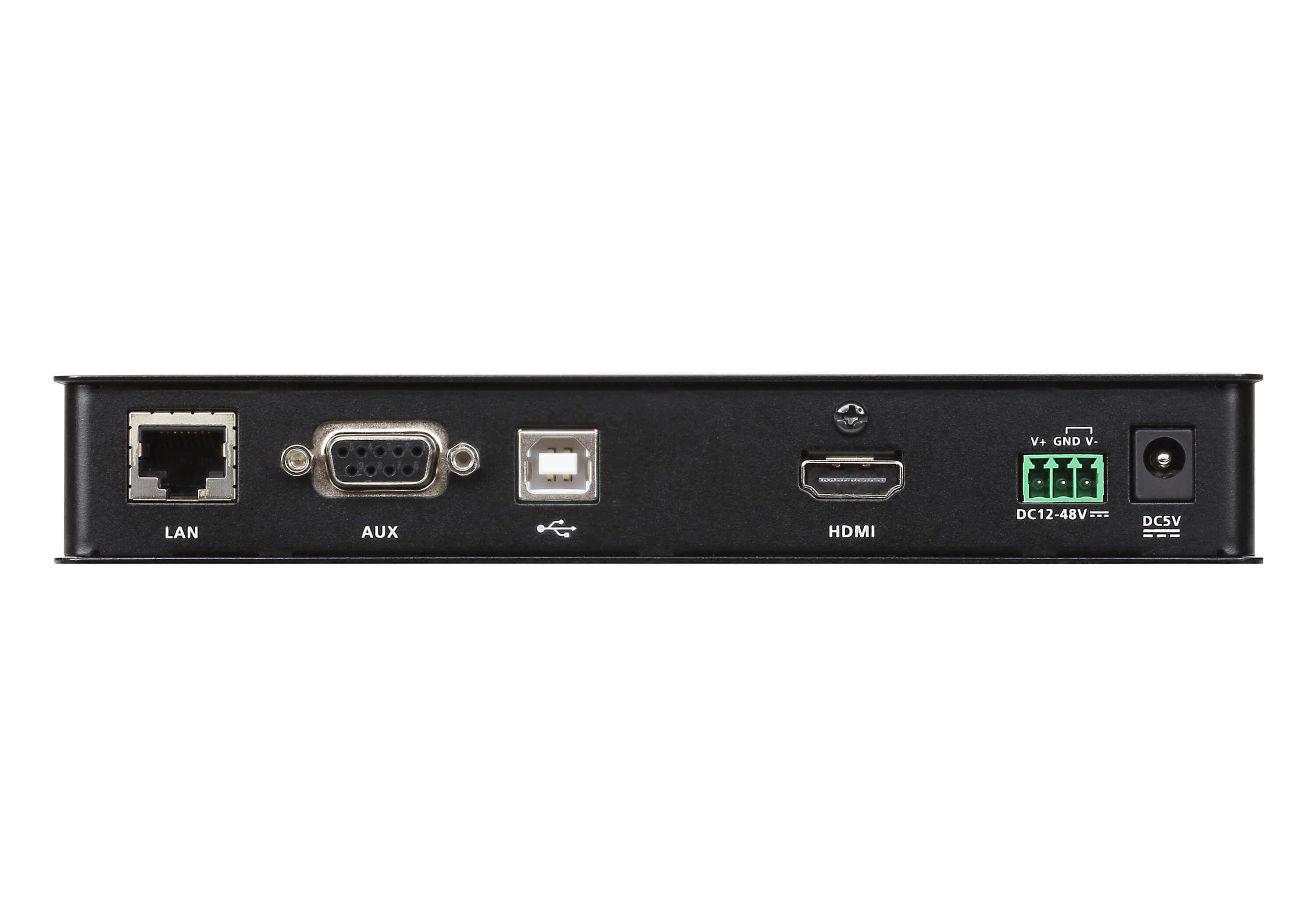

Available doors  

• 1 x female type B USB (white)


• 1 x female HDMI (black)


• 1 x DB- 9 female (black)


• Power supply:  1 x DC connector (black) + 1 x 3 pole terminal block connector (green)


• Doors LAN:  1 x RJ- 45 10 / 100 / 1000 Mbps



Management

• Remote access to computers on KVM installation via Intranet


• OSD (On Screen Display) on the receiver to configure both unitsà Tx/Rx


• EDID Expert™: select the optimal EDID settings for trouble-free ignition and high quality à display


• Video compression level: allows to increase/reduce qualityà video to adjust it to the most appropriate network band


• CLI: administrators can control all KE devices via RS- 232 or Telnet by emitting commands


• RS- 232 serial port: allows you to connect to a serial terminal for text menu, CLI or serial devices such as touch screens and barcode scanners


• Compatible with all Aten KE series devices



Security

• Dedicated LAN port for direct KE connections: can & grave; be isolated from the business network


• Secure data transmission: AES encryption to protect video/keyboard/mouse/data transmission


• Supports TLS industry standard protocol (Transport Layer Security)



Other Functions

• Virtual Media allows you to transfer data, patch your operating system, install software and perform diagnostic tests


• Supports drivesà DVD/CD USB 2.0 , USB mass storage devices, PC hard drives and ISO images


• Supports a smart/CAC card reader



Advanced functions (Only through the KE Matrix Management Software (CCKM))

• Flexible connections: allows multiple connections with extender and matrix for multiscreen installations and video walls


• Push and Pull: to share content immediately with just one click


• Quick exchange: Switch between different remote video resolutions on a local display within 0,3 seconds


• Boundless Switching: Just move the mouse cursor over the screen limits to switch to different receivers


• Video walls: create more ù video walls up to 8 x 8 (maximum 64 screens) in each layout


• Advanced planning: improves efficiency and savings by allowing connections based on time and date


• Virtual Transmitter: to transmit independently video, audio, USB and serial sources


• Supports both internal and external authentication: External authentication supports LDAP, Active Directory, RADIUS and TACACS+


• Advanced User Authorisation Settings: Administrators can set four ways à of access permissions on Tx devices for collaboration or to avoid interference between users


• User permissions and configurable group for access and control of KE devices


• The transmitter groups up to 4 series of KE transmitters to support multi-screen applications



Physical/environmental characteristics

• Operating temperature  0 - 50 °C


• Storage temperature - 20 - 60 °C


• Humidità  0 - 95 % relative humidity, without condensation


• Proprietà physical


• Metal structure


• Weight 0.65 kg (1.43 lb)


• Dimensions (L x P x A)  18.20 x 11.75 x 2.87 cm



Package size

• 1 x KE 8900 ST transmitter KVM over IP HDMI with single thin display


• 1 x LIN 5 - 28 V 1 -V 11 G cable USB HDMI KVM (HDMI, USB, Audio; 1,8 m/ 6 ft)


• 1 x 0 AD 6 - 1005 - 26 EG power supply


• 1 x mounting kit


• 1 x 0 X 12 - 0017 - 700 G HDMI Lockpro


• 1x User instructions
