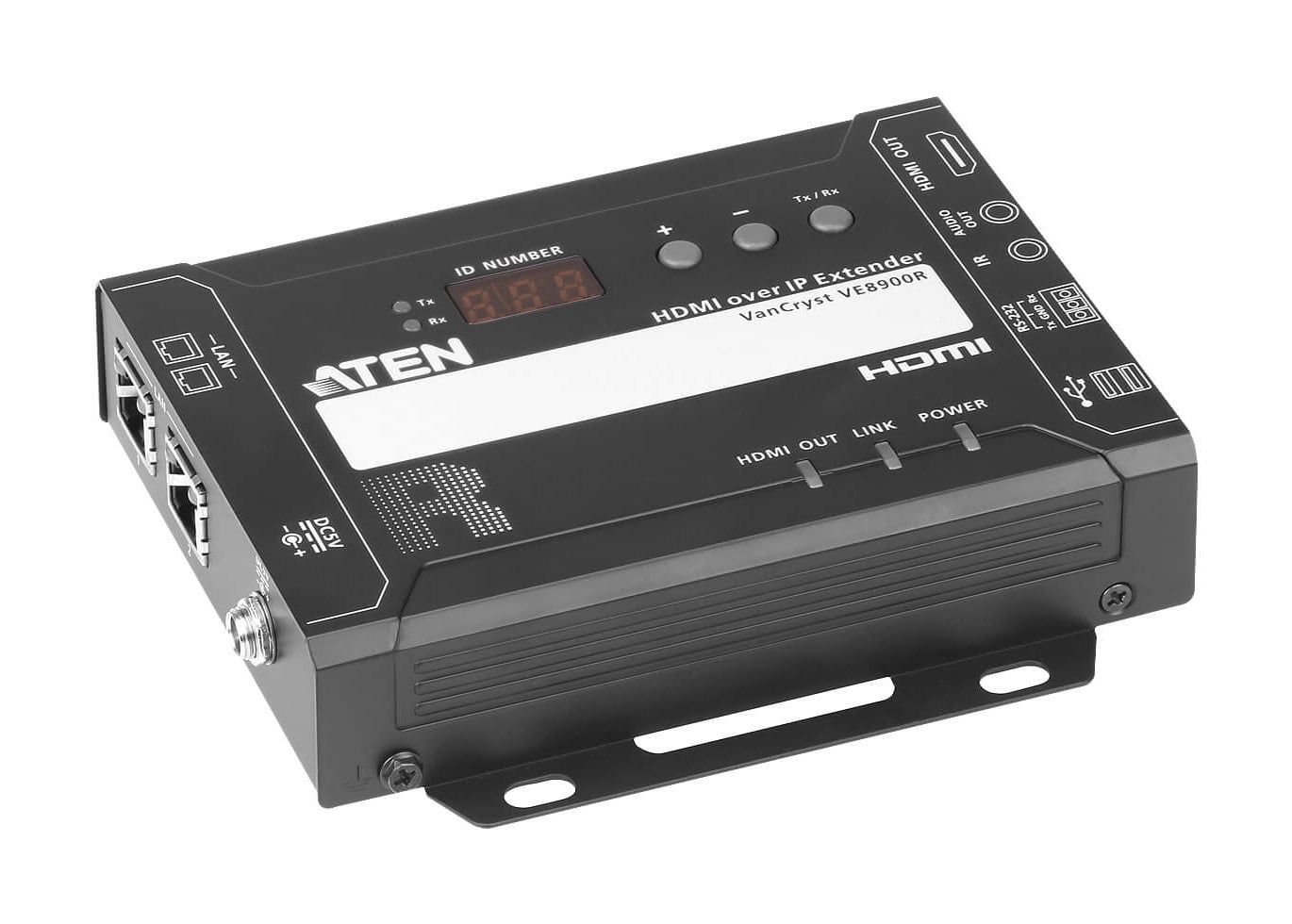

HDMI receiver over IP VE 8900 R - Aten IDATA VE- 8900 R

The Video over IP VE 8900 R receiver offers 1080 p AV signals without loss of data at low latency at long distance via a standard Gigabit network.

It offers an effective solution for digital signage, easy to use and cost-effective that directly solves the challenges facing system integrators during the implementation of AV over IP systems:

- scalabilityà and flexibilityà without limits;

- no complex IP configuration;

- no additional PC server or software;

- get the most with little thanks to the daisy connection.

Designed to meet today's demand for large-scale and multi-screen 1080 p signal transmission, è designed to make configuration and use easier. The IP VE 8900 R è Video over receiver is the ideal product for a wide range of environments, such as fairs, airports, university campuses, conference centres and shopping malls.



Features

• Light compression with ultra low latency:



- Offers high quality videos without loss up to 1080 p

- Provides exceptional quality à video through advanced video compression technology without loss

- EDID Expert™ selects optimal EDID settings for smooth display with high quality à and better video resolution on different monitors

• Scalability ` and flexibilityà unlimited:



- Extends AV connections from a simple point-to-point configuration to a multipoint-to-multipoint via LAN without distance limitations

- Offers multi-functionality à in extenders, splitters, switch matrix, video walls and applications with daisy connection

- Coordinatable with the most recent 4 K displays and the 1080 screens p. The integrated scaler automatically scales the input video signal to match the maximum resolution of the connected display devices

• No complex IP configuration:



- Simplified configuration that does not require any IT experience or further training

- trouble-free exchange of input sources via push buttons on top panel

• No additional PC server or software:



- Supports web graphical interface for device management

- No additional PC server or software/driver needed

• Connection to daisy*



- Connect più display via a single port to use each port of the network switch and maximize its value

- Easy à expansion, wiring and system implementation without using too many network switches and reducing the necessary cables

- Perfect for large-scale distribution to cover hundreds of meters, for example in hospital facilities, airports, university campuses, stations, shopping centres and exhibition centres

* In relation to network architecture it is recommended to connect to daisy up to 30 unità

• Support for video wall



- Support video walls up to 8 x 8 (64 display)

- Supports horizontal or vertical orientation (rotation of 90°) of displays

- Allows you to easily exchange layout profiles, preview and drag video sources through the intuitive web graphical interface

• Integrated/non-integrated audio support



- Audio streaming can be extracted from the HDMI stream and sent to a separate audio signal

• Multiple control channels



- Multiple control methods, the system can be managed by Ethernet or push buttons on the top panel

- Connectivityà USB, USB port 2.0 allows connection of devices such as keyboard, mouse, unità flash, printer and other USB devices

- Two-way IR channel, IR transmission is processed in one direction at a time

- RS- 232 channel , the RS- 232 bi-directional serial port allows the connection of peripherals such as touch screens and barcode scanners



Technical specifications

• Video output



- Interface: 1 x HDMI type A female (black)

- Impedance: 100 Ohm

• Video



- Max. data frequency: Average 150 ~ 500 Mbps

- HDMI conformations

- HDCP compatible

- Maximum resolution/distance: up to 1080 p a 100 m (Cat 5 e/ 6 , point-to-point)

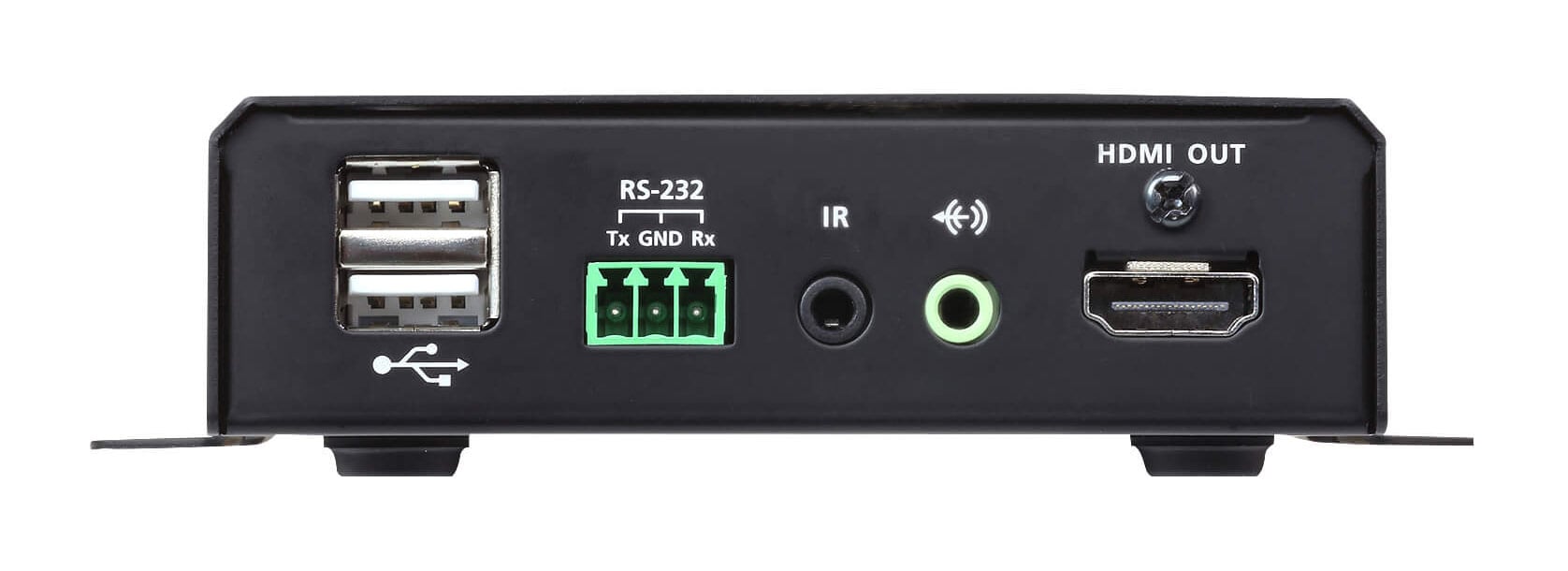

• Audio output



- 1 x HDMI type A female (black)

- 1 x Mini female stereo connector (green)

• Monitoring



- IR: 1 x female mini stereo connector (black)

- RS- 232 : Connector: 1 x Terminal block, 3 poles

- Velocità in baud: 19200 , Data Bit: 8 ,

- Stop Bit: 1 , no parità and flow control

- 2 x USB type A female (black)

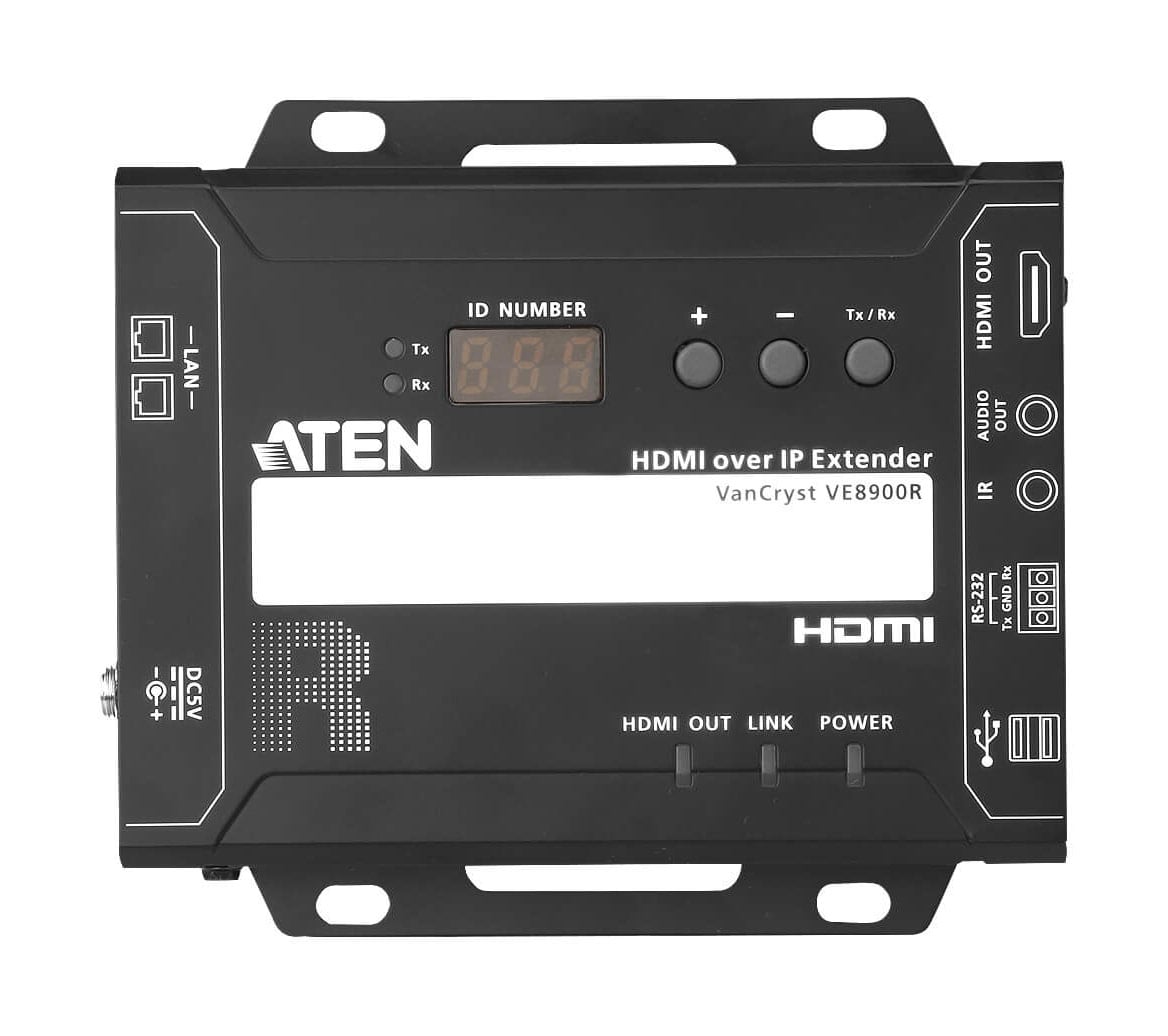

• Buttons



- Selection ID number: 3 x Push buttons

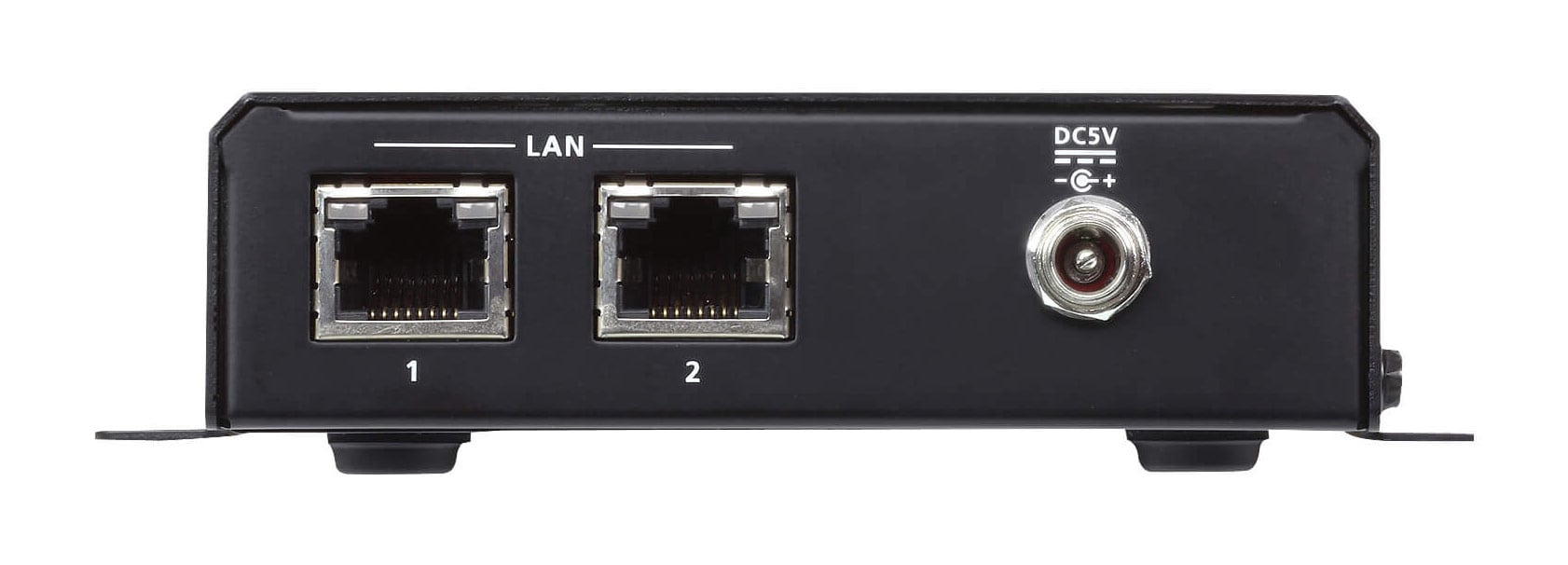

• Connectors



- Power supply: 1 x CC (Black) connector with lock

• Consumption



- DC 5 V: 4.28 W: 41 BTU

• Environmental features



- Operating temperature: 0 - 40 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Dimensions (L x L x A) with bracket: 14.02 x 12.30 x 3.06 cm

- Dimensions (L x L x A) without bracket: 13.60 x 10.10 x 2.96 cm



Package contents

• 1 x HDMI over IP receiver


• 1 x RS- 232 terminal block


• 1 x 5 V power adapter


• 1x User instructions
