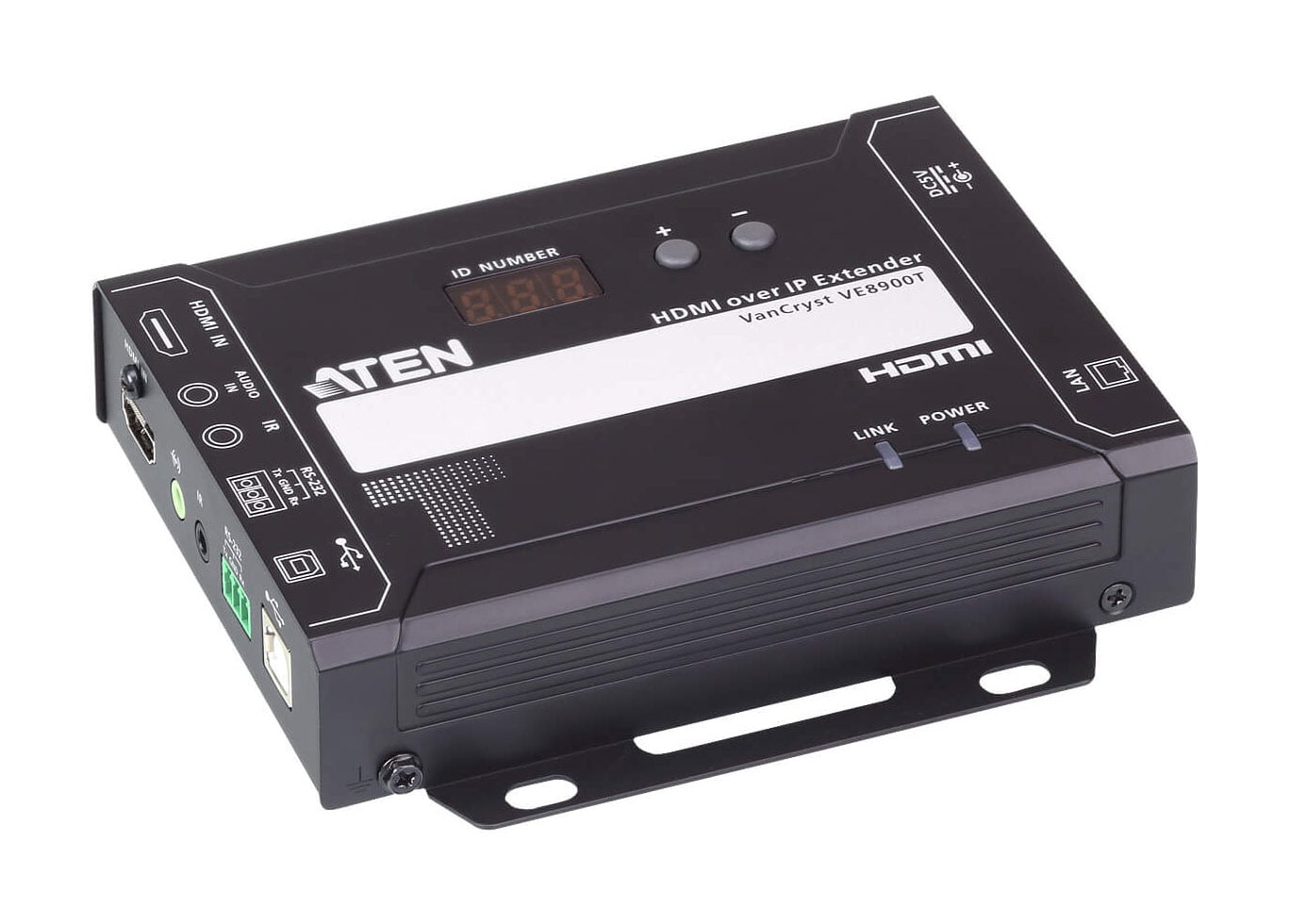

HDMI transmitter over IP VE 8900 T - Aten IDATA VE- 8900 T

The Video over IP VE 8900 T transmitter offers 1080 p AV signals without loss of data at low latency at long distance via a standard Gigabit network.

It offers an effective solution for digital signage, easy to use and cost-effective that directly solves the challenges facing system integrators during the implementation of AV over IP systems:

- Scalabilityà and flexibilityà unlimited

- No complex IP configuration

- No additional PC server or software

- Get the most with little thanks to the daisy connection.

Designed to meet today's demand for large-scale and multi-screen 1080 p signal transmission, è designed to make configuration and use easier. This IP è Video over transmitter is the ideal product for a wide range of environments, such as fairs, airports, university campuses, conference centres and shopping malls.



Features

• Light compression with ultra low latency:



- Offers high quality videos without loss up to 1080 p

- Provides exceptional quality à video through advanced video compression technology without loss of ATEN

- EDID Expert™ selects optimal EDID settings for smooth display with high quality à and better video resolution on different monitors

• Scalability ` and flexibilityà unlimited:



- Extends AV connections from a simple point-to-point configuration to a multipoint-to-multipoint via LAN without distance limitations

- Offers multi-functionality à in extenders, splitters, switch matrix, video walls and applications with daisy connection

• No complex IP configuration:



- Simplified configuration that does not require any IT experience or further training

- trouble-free exchange of input sources via push buttons on top panel

• No additional PC server or software:



- Supports web graphical interface for device management

- No additional PC servers, control boxes or software/drivers needed

• Get more ù with less thanks to daisy connection*



- Connect più display via a single port to use each port of the network switch and maximize its value

- Easy à expansion, wiring and system implementation without using too many network switches and reducing the necessary cables

- Perfect for large-scale distribution to cover hundreds of meters, for example in hospital facilities, airports, university campuses, stations, shopping centres and exhibition centres

* In relation to network architecture it is recommended to connect to daisy up to 30 unità.

• Video wall mount:



- Support video walls up to 8 x 8 (64 display)

- Supports horizontal or vertical orientation (rotation of 90°) of displays

- Easily exchange layout profiles, preview and drag video sources through the intuitive web graphical interface

• Integrated/non-integrated audio support:



- Separate audio signal can be integrated into the HDMI stream

• Multiple control channels:



- Multiple control methods, the system can be managed by Ethernet or push buttons on the top panel

- Connectivityà USB, USB port (USB 2.0) allows connection of devices such as keyboard, mouse, unità flash, printer and other USB devices

- Two-way IR channel, IR transmission is processed in one direction at a time

- RS- 232 channel , the RS- 232 bi-directional serial port allows the connection of peripherals such as touch screens and barcode scanners



Technical specifications

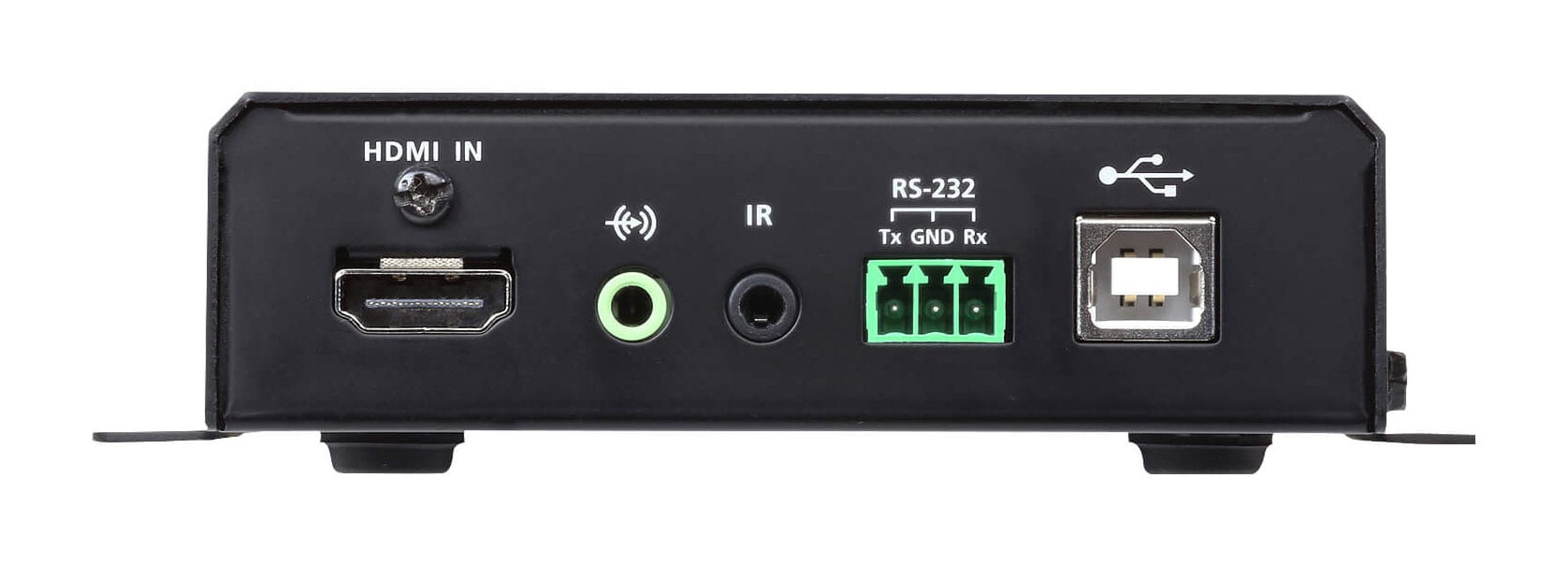

• Video Input



- Interface: 1 x HDMI type A female (black)

- Impedance: 100 Ohm

- Max. distance: 1,8 m

• Video



- Max. data frequency Average: 150 ~ 500 Mbps

- conformità HDMI

- HDCP compatible

- Maximum resolution/distance up to 1080 p a 100 m (Cat 5 e/ 6 , point-to-point)

• Audio input:



- 1 x HDMI type A female (black)

- 1 x Mini female stereo connector (green)

• Controls:



- IR: 1 x female mini stereo connector (black)

- RS- 232 : 1 x Connector Terminal lock, 3 pole; speedà in baud: 19200 , Data bit: 8 ; stop bit: 1 , no parità and flow control

- 1 x female type B USB (white)

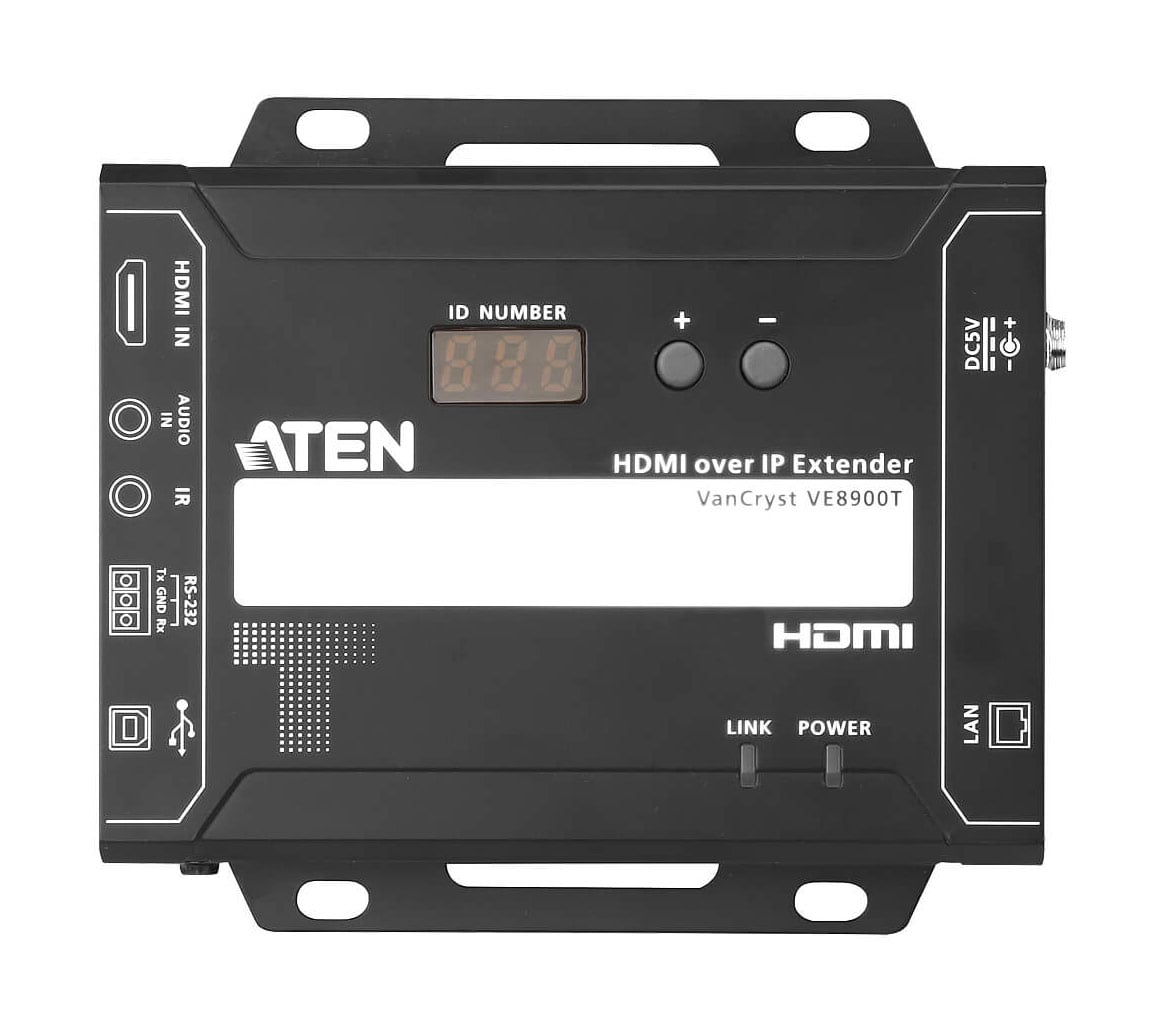

• Buttons:



- Selection ID number: 2 x Push buttons

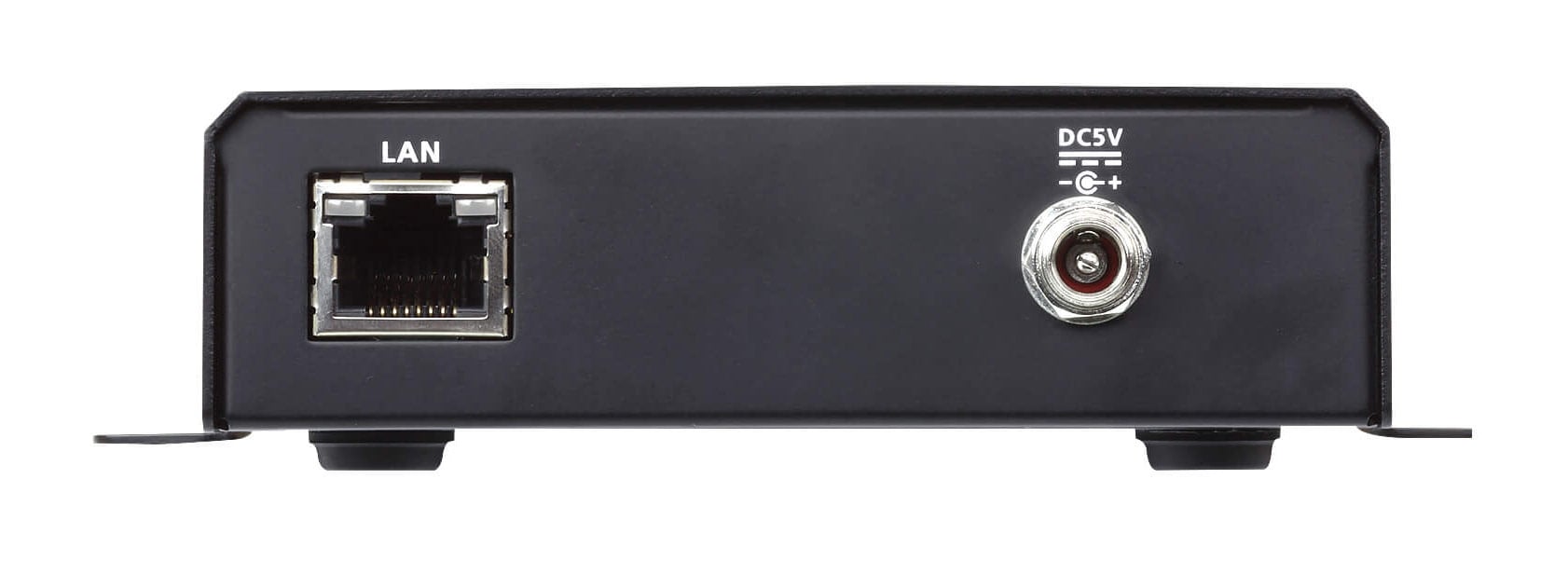

• Feeding:



- 1 x CC (Black) connector with lock

• Consumption:



- DC 5 V: 3.07 W: 14 BTU

• Environmental characteristics:



- Operating temperature: 0 - 40 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical:



- Structure: Metal

- Dimensions (L x L x A) with bracket: 14.02 x 12.30 x 3.06 cm

- Dimensions (L x L x A) without bracket: 13.60 x 10.10 x 2.96 cm



Package contents

• 1 x HDMI over IP transmitter


• 1 x RS- 232 terminal block


• 1 x 5 V power adapter


• 1x User instructions
