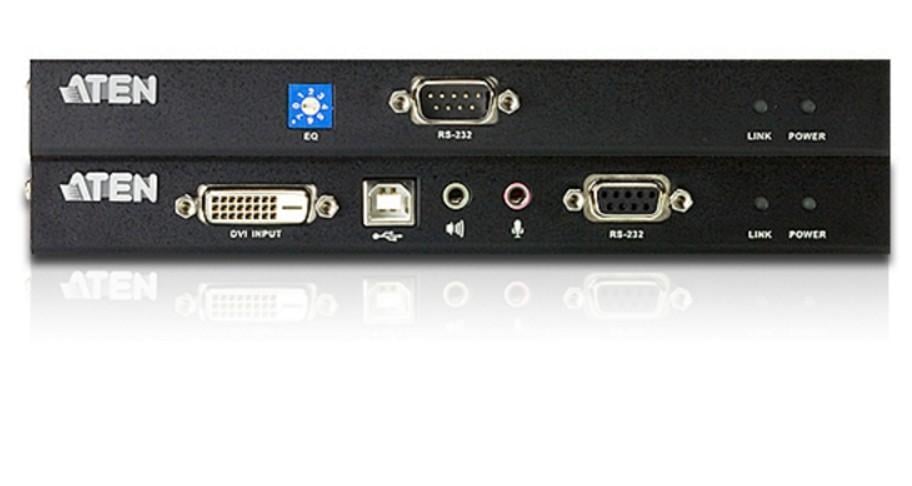

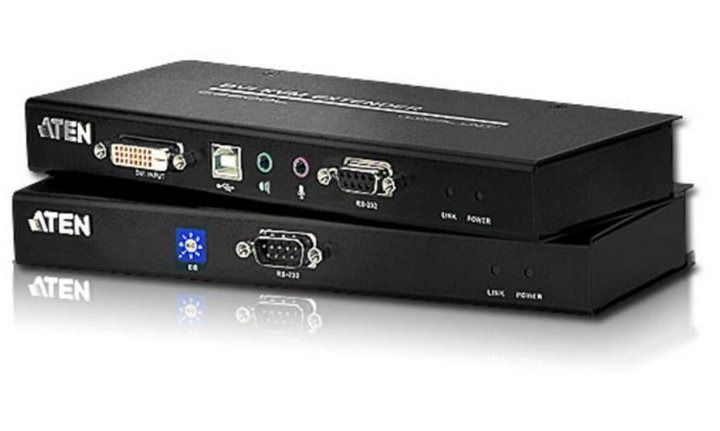

Extensor KVM USB DVI with audio and RS- 232 60 m - Aten IDATA CE- 600

IDATA CE- 600 è a KVM DVI and USB extender with RS- 232 serial function. It allows you to control more ù computers with a remote console (USB keyboard, monitor and mouse). Since it allows you to access a computer system from a remote console, the CE 600 è perfect for any type of installation where the console is placed in conveniently accessible places while the system must reside in a safe place, away from dust and dirt of the floors or hostile environments such as a construction site. Ciò allows you to distribute the equipment over wider distances.

CE 600 uses a Cat 5 and (DVI Single Link) cable to support video resolutions up to 1920 x 1200 *



* The second 5 Cat cable is used for HDCP, RS-232 and microphone signals.



Features

• Unità remote and local connectable with a maximum distance of 60 m with a Cat 5 cable and


• It allows access to a computer or a KVM installation from a remote console (up to 60 m)


• It is equipped with ATEN technology, which allows the transmission by cable Cat 5 and


• The second 5 Cat cable is used for HDCP, RS-232 and microphone signals.


• Manual compensation control to adjust signal power to compensate distance


• RS- 232 serial ports: allow the connection of serial devices such as touchscreen and barcode scanners (velocità by 115200 bps)


• Equipped with audio - supports speakers and stereo microphone


• Protection 8 KV/ 15 KV ESD built-in (contact voltage 8 KV; aerial voltage 15 KV)


• Supports wide screen formats


• Qualityà higher video up to 1920 x 1200 @ 60 Hz to 30 m; 1024 x 768 @ 60 Hz to 60 m for crystal images even at long distance


• Hot link


• Installed to rack


• Easy to install – does not require – è software sufficient to connect cables to devices


• Firmware Update



Technical specifications

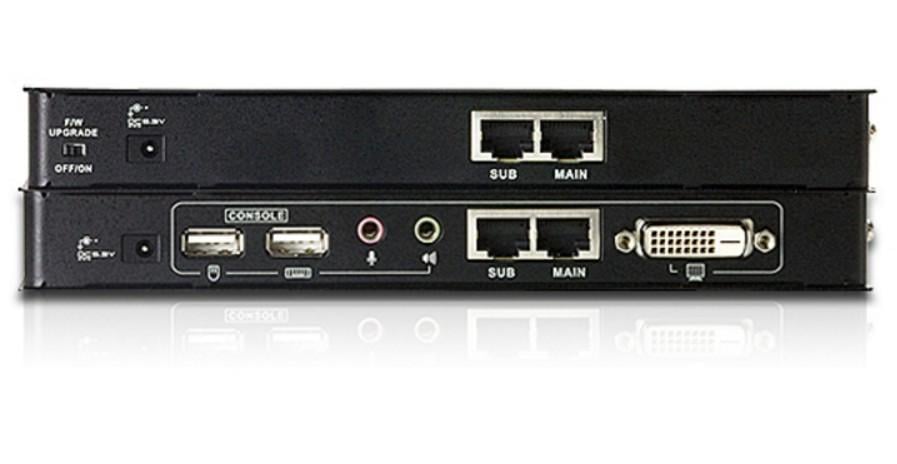

• Connector ports to the console:



- Keyboard: 1 USB type A female (white)

- Video: 1 DVI-D female (white)

- Mouse:  1 USB type A female (white)

- Speakers: 1 female mini stereo connector (green)

- Mic: 1 female mini stereo connector (pink)

• KVM port connectors:



- Video: 1 female DVI-D (white)

- Speakers: 1 female mini stereo connector (green)

- Mic: 1 female mini stereo connector (pink)

- USB: 1 female USB type B (white)



Environmental features

• Operating temperature: 0–50°C


• Storage temperature: - 20 – 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 20.20 cm


• Depthà: 8.68 cm


• Height: 2.50 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 Extensor KVM DVI CE 600 L (unità local)


• 1 Extensor KVM DVI CE 600 R (unità remote)


• 1 Cable set KVM USB DVI-D Single Link 2 L- 7 D 02 U from 1,8 m


• 2 Power supplies 0 AD 6 - 1605 - 03 EG


• 1 Mounting kit


• 1 User guide
