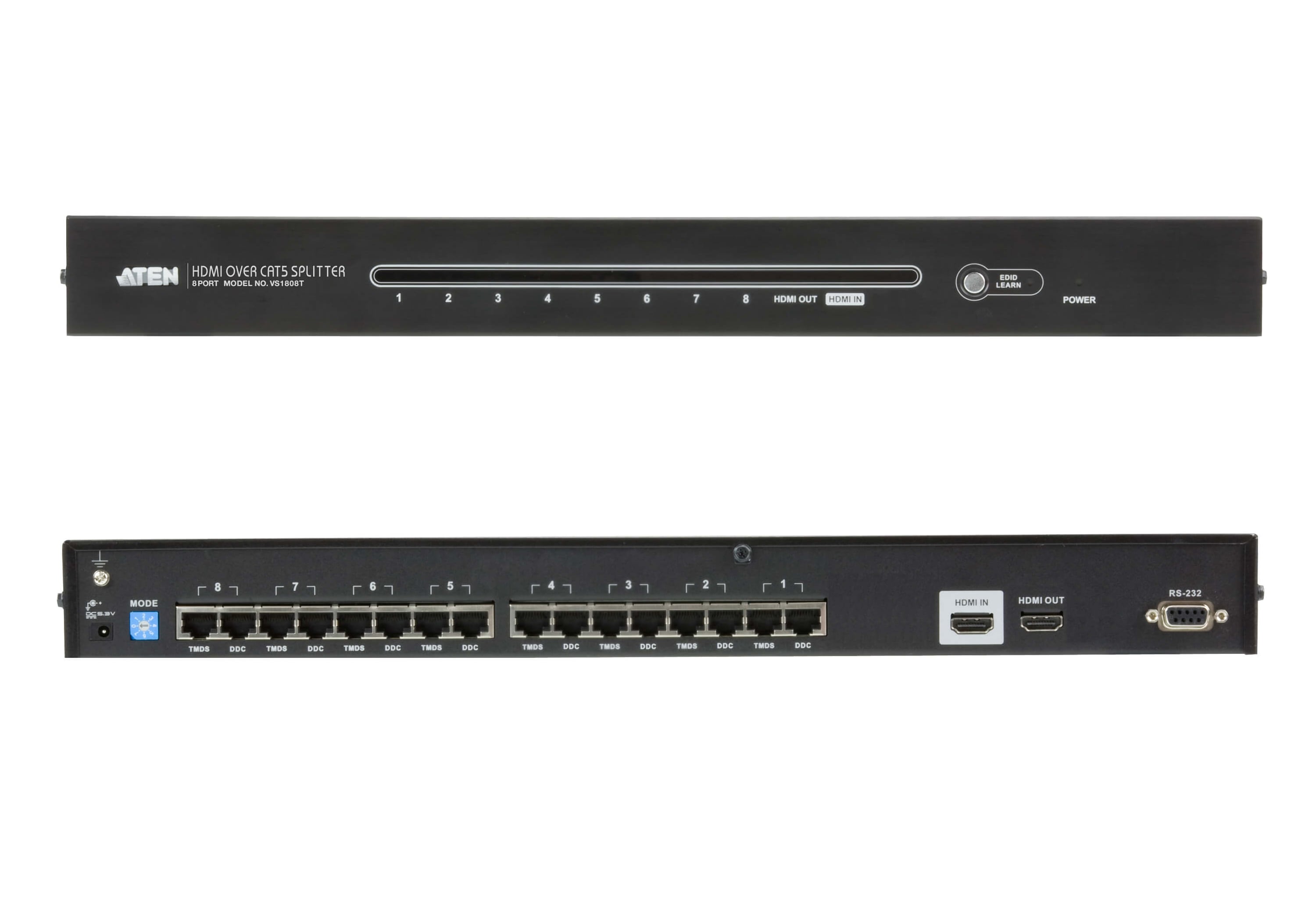

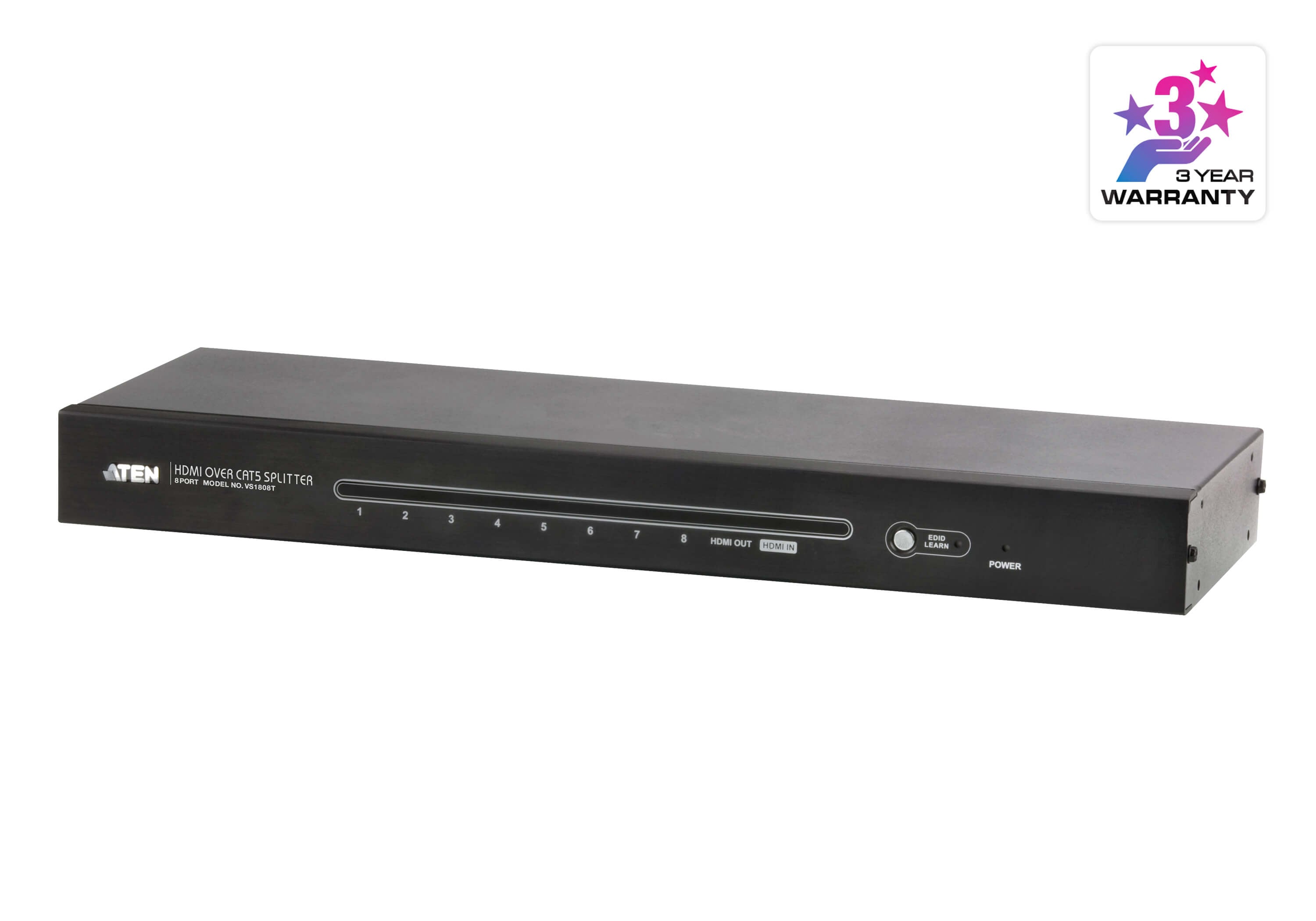

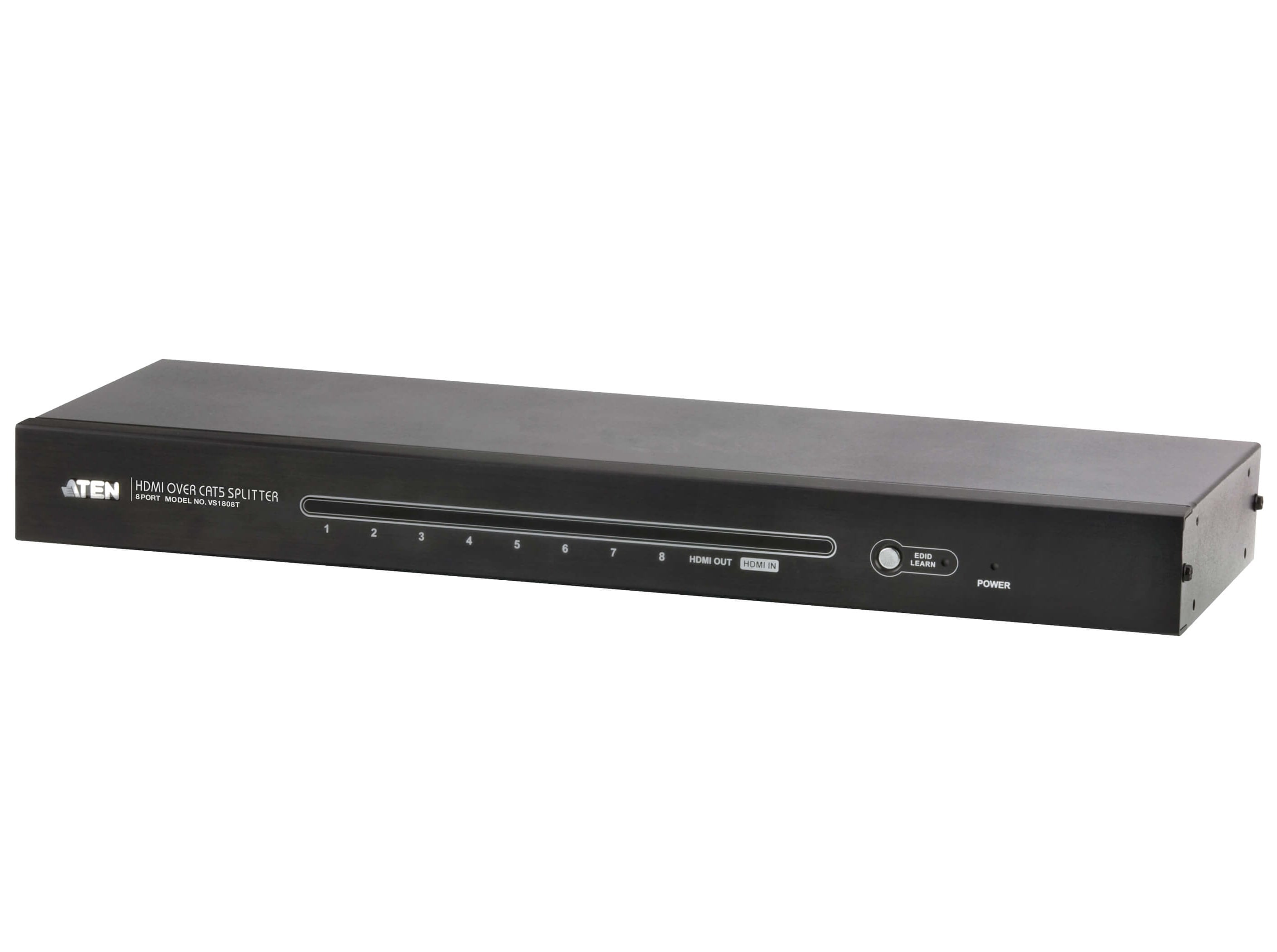

Splitter HDMI Cat 5 8 Doors 60 m - Aten IDATA VS- 1808 T

The HDMI Splitter IDATA VS- 1808 T on Cat. 5 è a splitter designed to connect a source to 8 long distance screens. By integrating the recommended compatible receivers, the HDMI Splitter VS 1808 T on Cat. 5 can ò represent a complete solution ideal for any professional A/V installation that requires the transmission of multimedia content to different destinations located about 60 m from the source.



The perfect VS 1808 T è solution for a wide range of applications:

• Digital signage at the point of sale or at the fair


• Transmission of information in public (news, arrivals/departures of aircraft/trains)


• Sports events


• Rooms for theatre events and conferences


• Structure of company training



Features

• From an HDMI input to 8 outputs HDMI by cable Cat. 5 E


• Maximum screen distance up to 60 m


• Supports HDMI (3 D, Deep Color)


• Supports Dolby True HD and DTS HD Master Audio


• Local HDMI output


• HDCP compatible


• The Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to the remote control

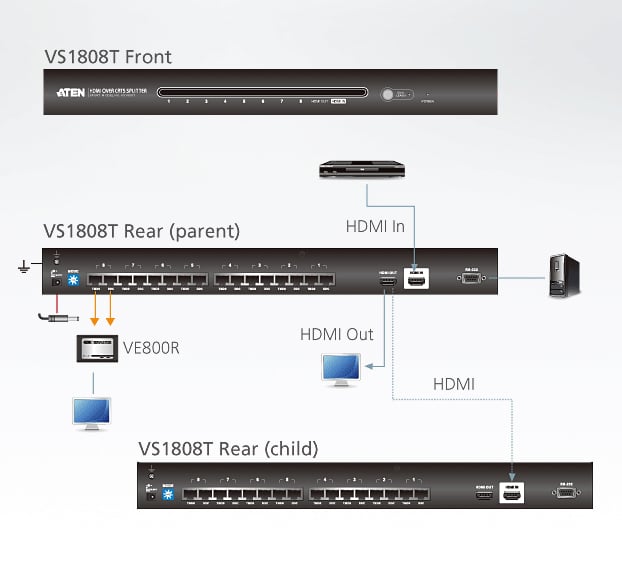

• Possibility of cascade connection up to three levels


• Superior video quality: HDTV resolutions from 480 p, 720 p, 1080 i and 1080 p (1920 x 1080 )


• Selection of the mode; EDID


• Mountable in rack



Connections

• Video input:



Interfaces: 1 x HDMI type A female (black)

Impedance: 100 Ω

Maximum distance 1,8 m

• Video output:



Interfaces:

1 x HDMI type A female (black) - Local exit

8 x RJ- 45 female

Impedance: 100 Ω



Video

• Maximum frequency data  6,75 Gbps (2,25 Gbps per lane)


• Pixel clock max. 225 MHz


• conformità HDMI (3 D, Deep Color)


• HDCP compatible


• CEC (Consumer Electronics Control)


• Maximum resolution up to 1080 p (depending on the receiver connected)


• Maximum distance up to 60 m (depending on the receiver connected)



Audio

• Input: 1 x HDMI type A female (black)


• Output: 1 x HDMI type A female (black)



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 43,72 cm


• Depthà: 15,78 cm


• Height: 4,40 cm



Package contents

• 1 x HDMI Splitter Over Cat. 5 VS 1808 T to 8 ports


• 1 x Power supply 0 AD 8 - 1605 - 24 M 1


• 1 x Set of feet (4 pcs)


• 1 x Mounting kit


• 1x User guide
