Extensor USB 2.0 Cat 5 4 doors up to 50 m - Aten IDATA UCE- 3250

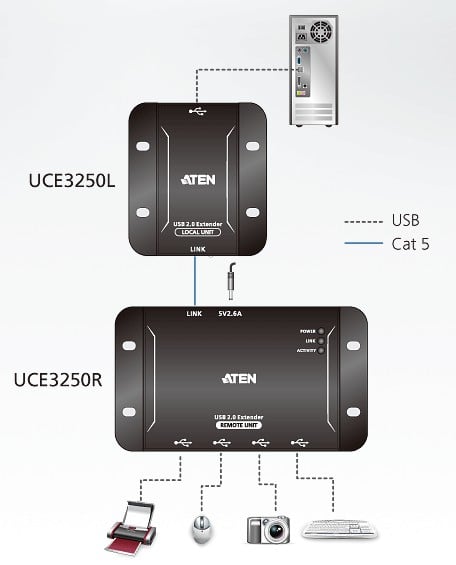

The USB 2.0 Cat 5 to 4 ports UCE 3250 è a two-unit device that can be used by USB hub and USB extender. The unità UCE 3250 can connect a maximum of 4 USB peripherals from a distance of up to 50 meters from the computer via an Ethernet cable Cat 5 / 5 and / 6 .



The UCE 3250 transmits data via signal packets with maximum compatibility and retains the integrityà data over long distances. The power supply on the unità UCE 3250 remote helps to offer sufficient power to any USB device type, such as unità flash, keyboards, mouse, webcam, scanner, or printers, etc.



Thanks to the metal housing, this high quality USB extender offers a quick and flexible solution for industrial applications. In addition, the compact size and integrated wall mounting allows space-saving installation.



Features

• High-Speed USB 2.0 with speed à data transfer up to 480 Mbps


• Extension distance up to 50 m via 5 / 5 and/ 6 Cat cable


• Receives up to 4 USB devices of all types – unità flash, keyboards, mouse, webcam, scanner, printers and more


• Metal mechanical parts with wall mounting to support industrial implementation


• Supports Windows®, OS X® and Linux®


• Plug-and-play



Technical specifications

• Connectors

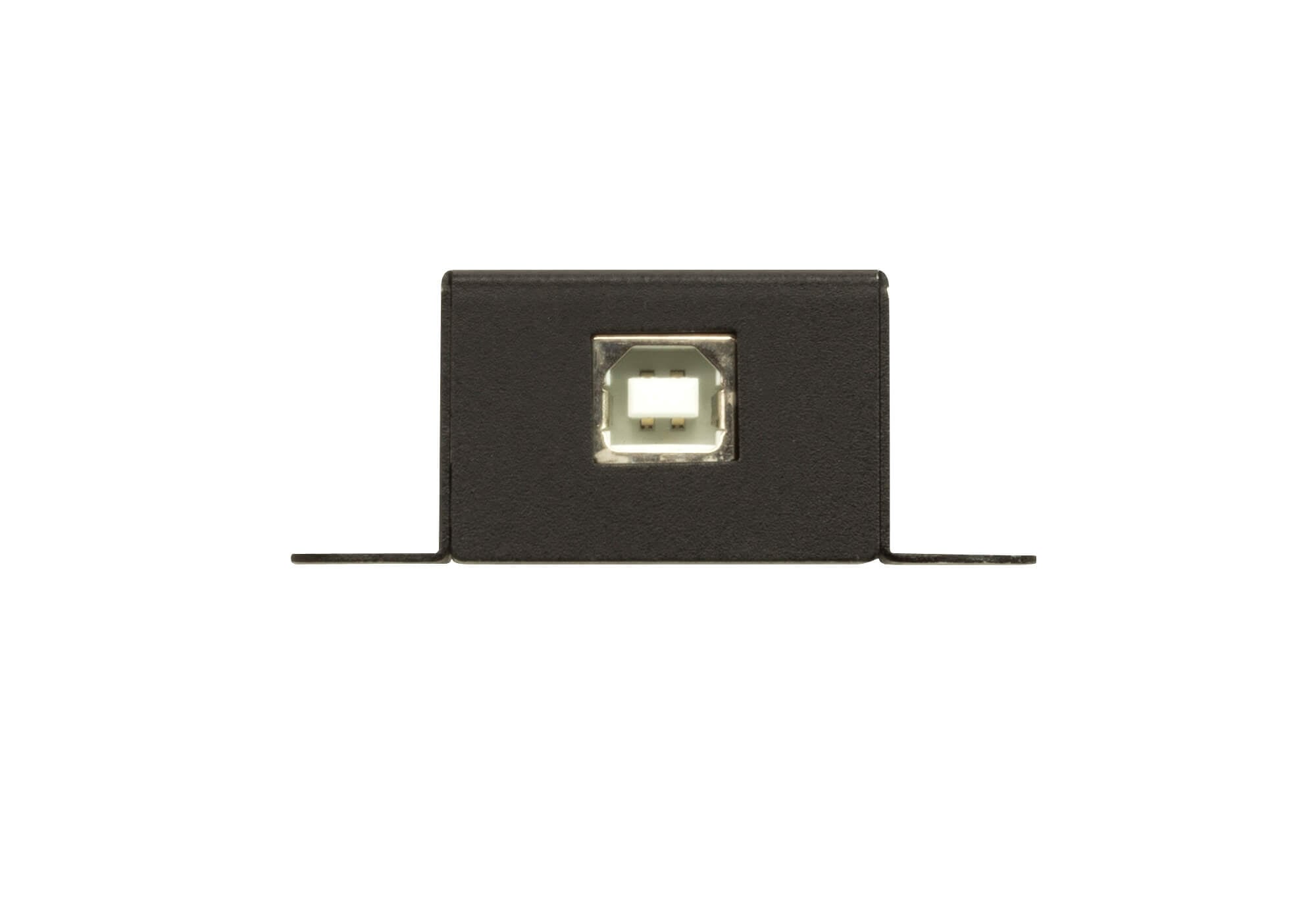

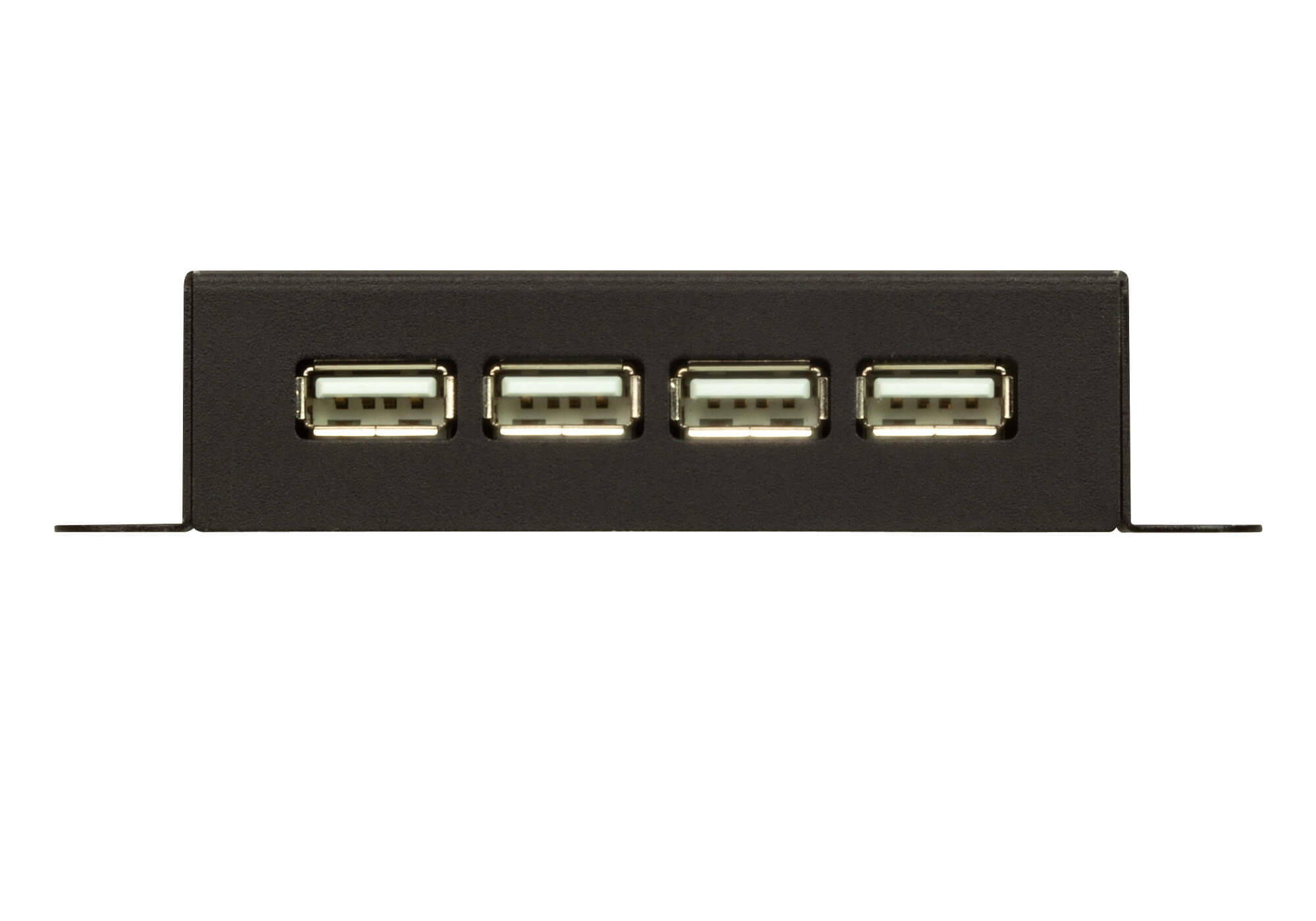

USB port: 1 x female type B USB & 4 x female type A USB

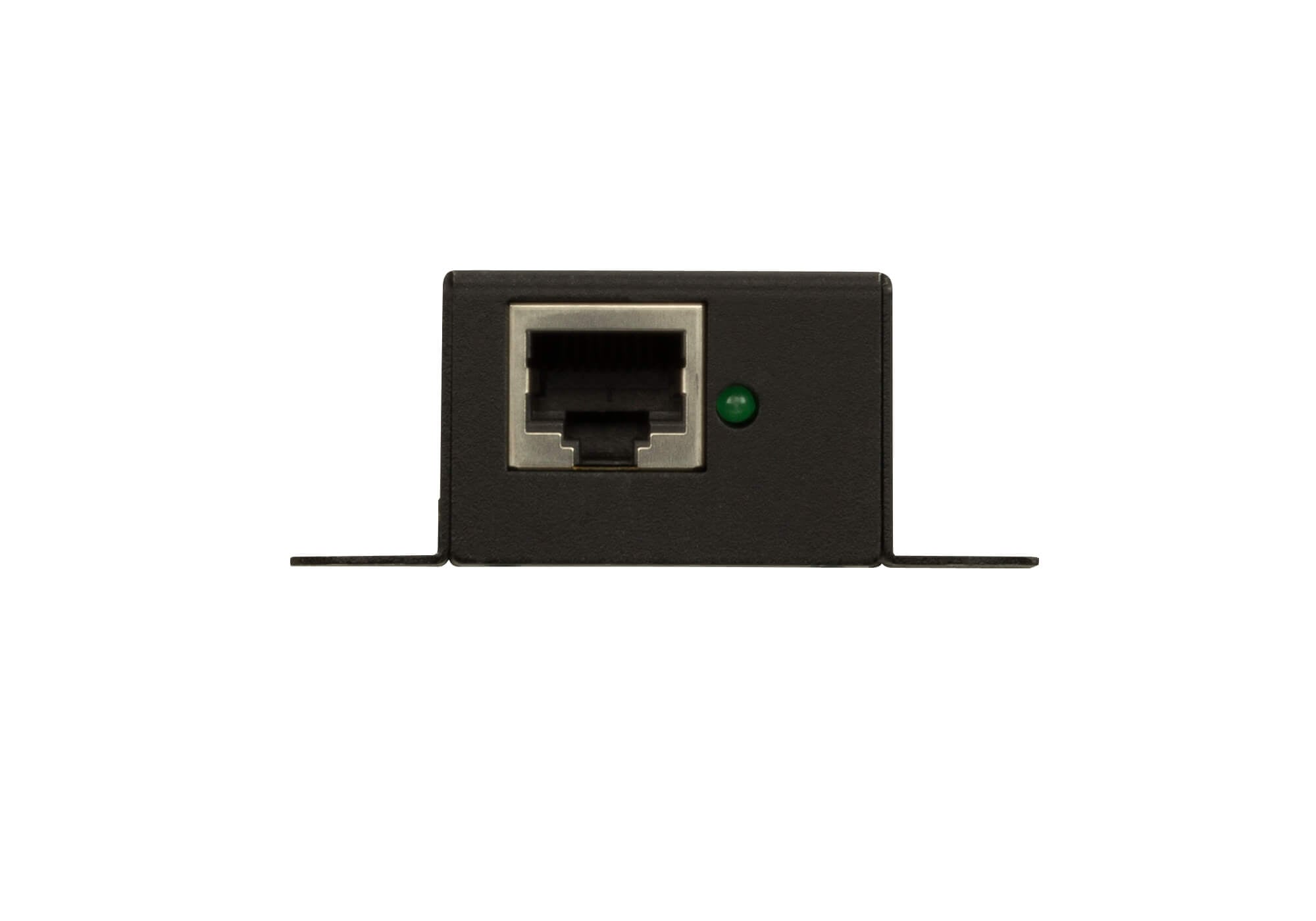

Connection: 1 x RJ 45 female  1 x RJ 45 female

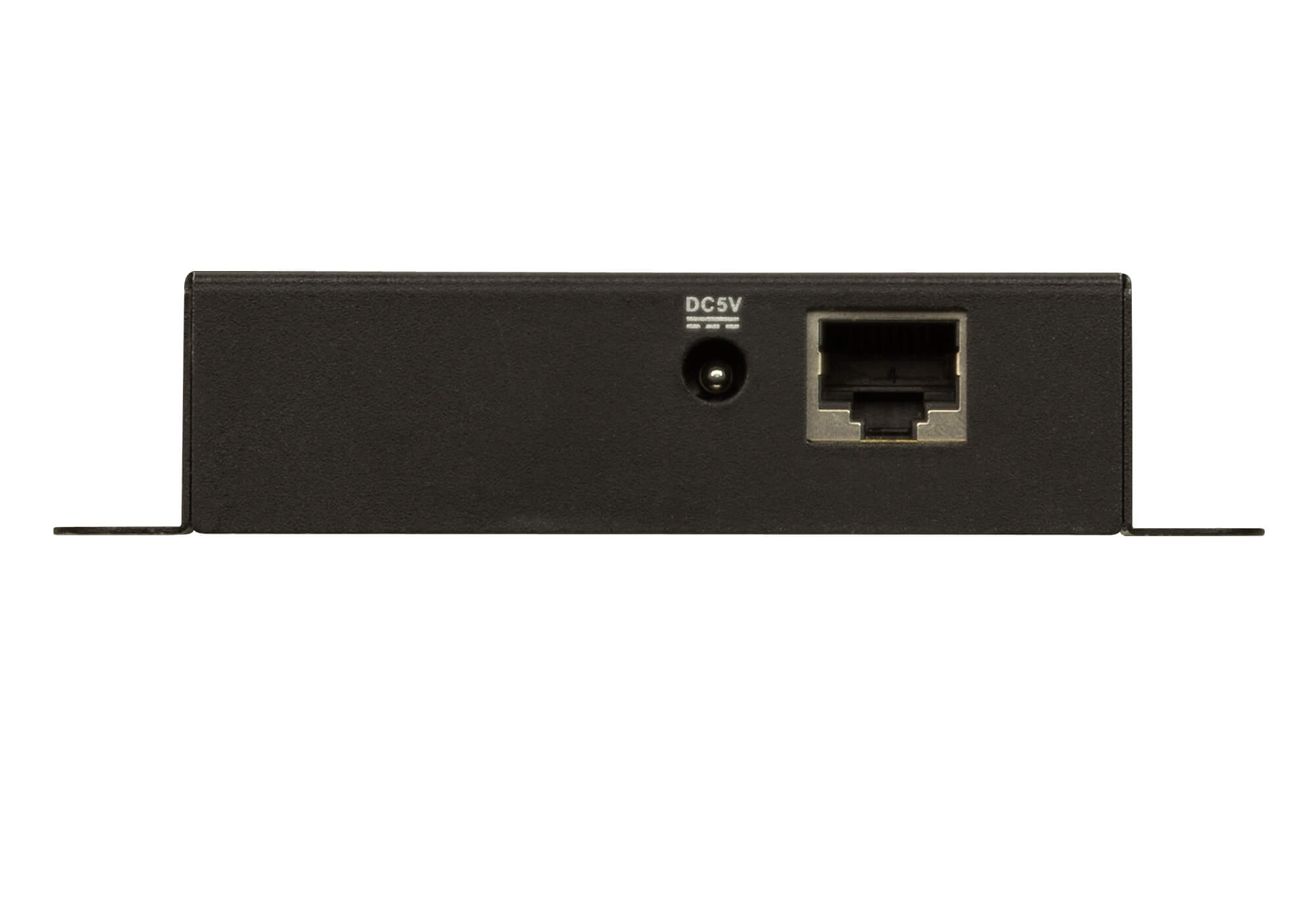

Power supply: N/D  1 x DC connector

• USB Specifications: 2.0 / 1.1 speedà High / Full / Low  2.0 / 1.1 speedà High / Full / Low


• Supported USB devices: N/D  4 devices


• Consumption:



Powered by bus 

Auto-powered – 5 V, 13 W



Environmental features

• Operating temperature: 0 – 50 °C


• Storage temperature: - 20 – 70 °C


• Humidità: 0 – 80 % relative humidity without condensation



Dimensions

• 6,70 x 6,02 x 2,37 cm


• 6,33 x 11,04 x 2,41 cm



Package contents

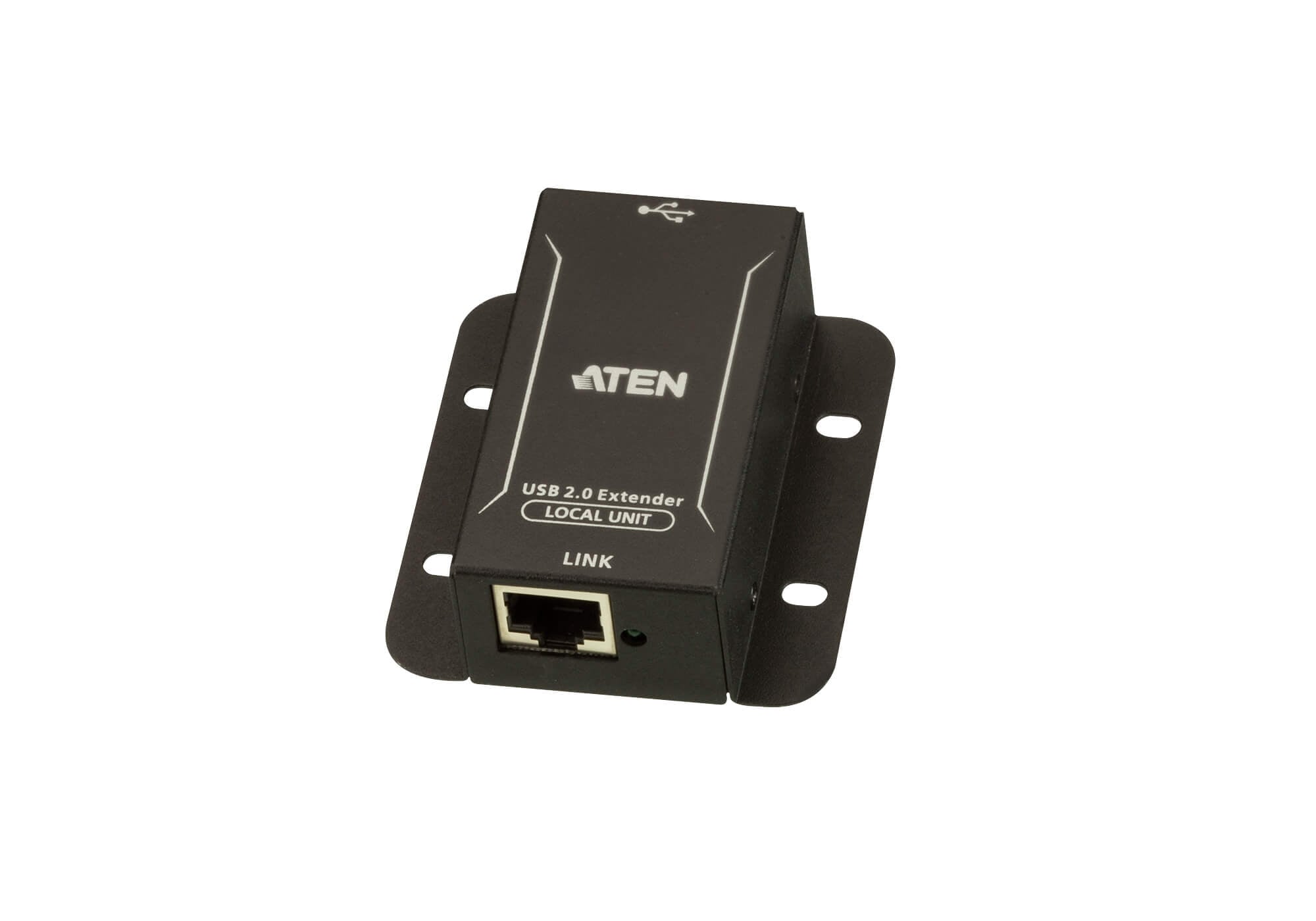

• 1 x UCE 3250 L USB extension unit 2.0 CAT 5 to 4 ports (Unità local)

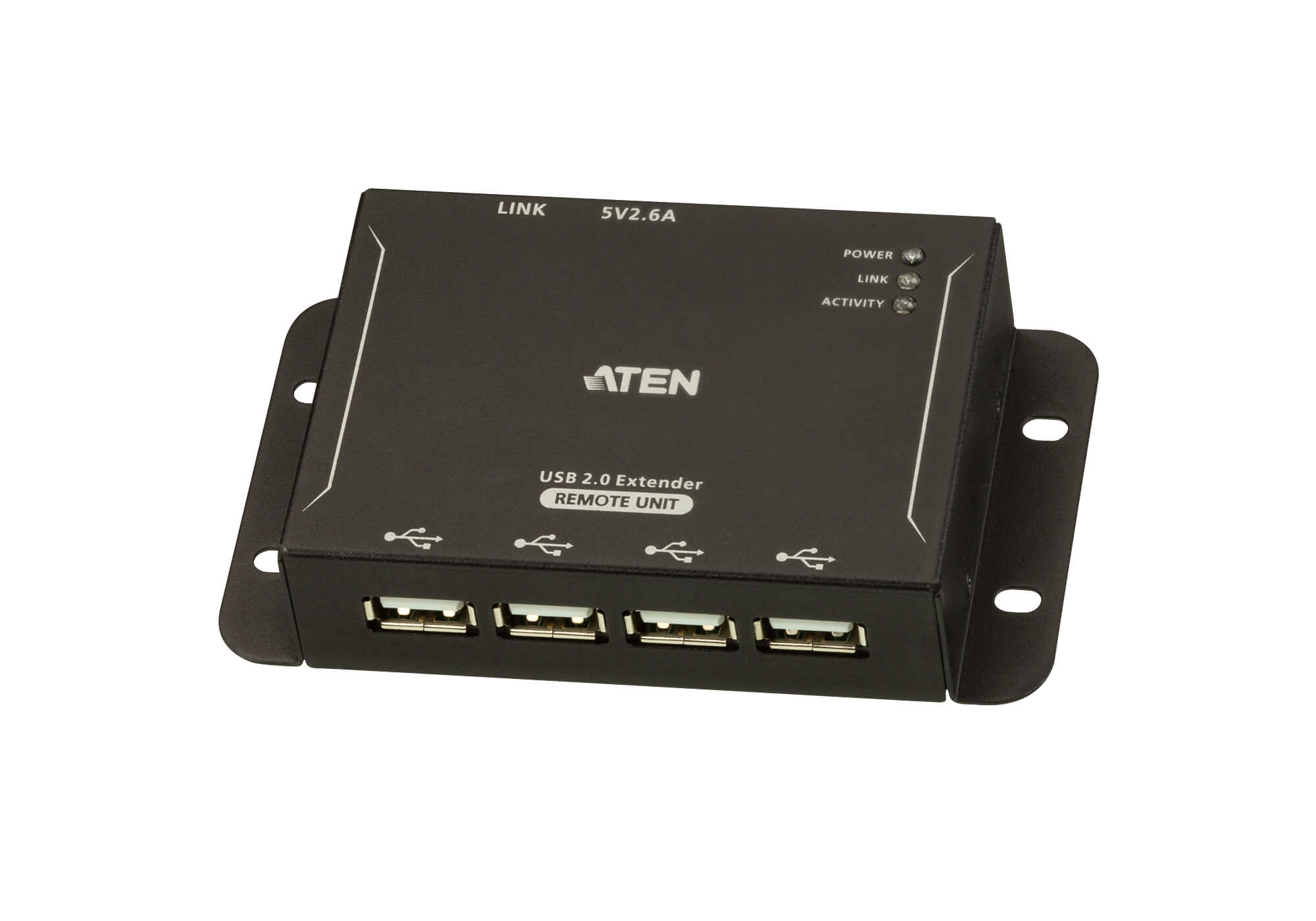

• 1 x UCE 3250 R extender USB 2.0 CAT 5 to 4 ports (Unità remote)


• 1 x USB cable from type A male to type B male


• 1 x 0 AD 6 - 1005 - 26 EG power supply


• 1 x user instructions
