Mini Extensor Video DVI Cat 5 E/ 6 (20 m) - Aten IDATA VE- 066

The mini extensioner Cat 5 VE 066 allows you to extend the distance between the DVI source and the DVI screen up to 20 meters, using a single Cat 5 cable and or Cat 6 , offering an easy way to replace the heavy and expensive DVI cables. Thanks to the support of the hot connection (s), è can add or remove the transmitter/receiver VE 066 connected to the source device or display without having to turn off the devices. Compatible with the DVI switches and splitters of ATEN, the mini extensioner DVI Cat 5 VE 066 & grave; a compact, convenient and economical way to extend the DVI view.



Features

• Expand the distance between the DVI source and the DVI screen


• Use Cat 5 cables to connect the transmitter to the receiver


• Long distance transmission up to 20 m*


• HDCP 1.1 Conforms


• Hot connection support (s)


• Superior video quality – up to 1920 x 1200


• Compact dimensions


• Compatible with all DVI ATEN switches and splitters


• Supports LCD screens, plasma TV and projectors


• Perfect for home theater facilities, banks, surveillance systems, outdoor multimedia installations, airports, financial institutions

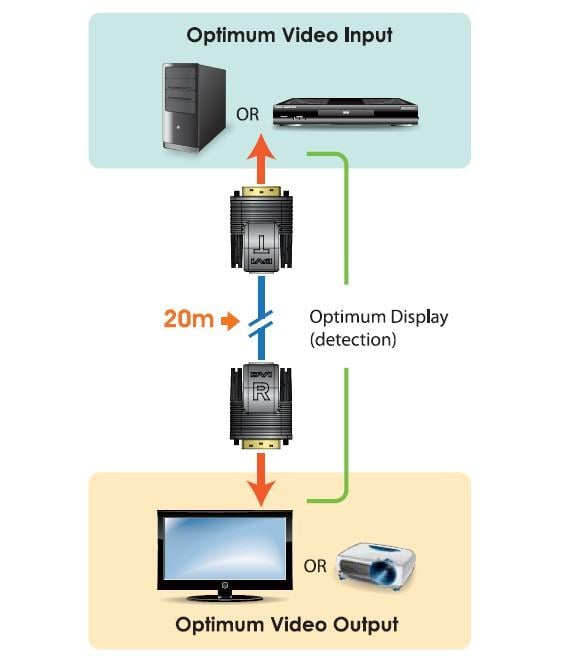

• Smart video: image quality is optimized based on output device resolution


• No power supply required



* The use of different source / display devices involves different results. To achieve the best results, it is recommended to use high quality cables.



Technical specifications

• Video input:



1 x DVI-D male interface (gold)

Impedence 100

• Video output:



1 x DVI-D male interface (gold)

Impedence 100

• Video:



- Max. frequency 4,95 Gbps data (1,65 Gbps per lane)

- Pixel clock max. 165 MHz

- HDCP conform

- Maximum resolution/distance up to 1920 x 1200 to 20 m



Environmental features

• Operating temperature: 0 - 50°C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 5,66 cm


• Depthà: 4,07 cm


• Height: 2,15 cm



Certifications

• RoHS


• RAEE



Package contents

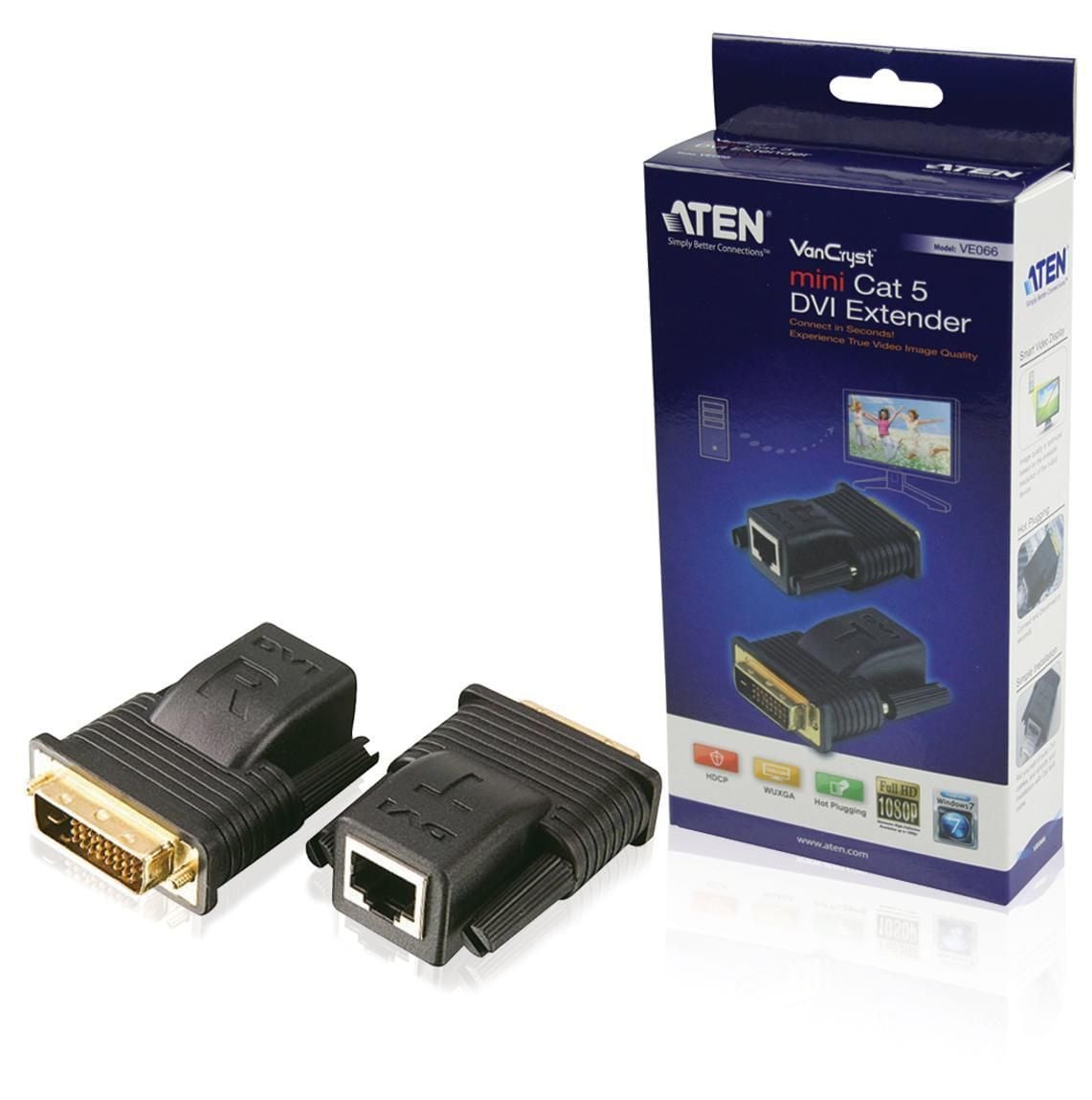

• 1 mini extender DVI Cat 5 VE 066 T (transmitter)


• 1 mini extender DVI Cat 5 VE 066 R (receiver)


• 1 user guide
