Extensor KVM USB DisplayPort Dual View HDBaseT 2.0 - Aten IDATA CE- 924

The KVM USB DisplayPort Dual View HDBaseT™ 2.0 CE 924 by ATEN integrates the most recent HDBaseT™ 2.0 technologies to offer 4 K video, stereo audio, USB and RS- 232 signals. The HDBaseT™ 2.0 provides the most reliable transmissions on the market as well as offering the ability à long range that allows you to extend the Full HD signals 1080 P up to 150 meters. The CE 924 also supports a single display 4 K or two 1080 p display for video output resolutions DisplayPort up to 100 m using a single cable Cat 6 / 2 L-2910 Cat 6 .



With a simple installation via a cable that supports various signals, CE 924 è ideal for applications where è requires convenient remote access, – such as transport control centers, medical facilities, industrial warehouses and extended workstations.



Features

• Enables displayPort Dual View access to a computer and a KVM controller from a remote console


• Supports HDBaseT 2.0 technology



- Extends video, audio, USB and RS- 232 signals via a single Cat 6 / 6 to/ 2 L- 2910 Cat 6

- Detection and correction of improved bit errors to withstand signal interference during high quality video transmissions;

- Status detection and LED indicator for HDBaseT&trade signal transmission; on the remote unità

• EDID Buffer for trouble-free ignition and high quality à display


• Single category cable for AV and control signal transmission



- Modelità HDBaseT Standard up to 4 K to 100 m (through Cat 6 / 6 a/ 2 L- 2910 ); (single display only; dual display resolution up to 1080 p)

- Modelità long distance HDBaseT up to 1080 P at 150 m (single view only; dual display resolution up to 720 p)

• Supports a 2.0 USB hub full speed to 4 ports on the – receiver that allows connection of up to 4 USB 2.0 peripherals


• HDCP Conforms


• Supports stereo audio to 2 independent channels for audio applications in high qualityà


• Supports PC reactivation function with a single push button via RS- 232 channel


• ESD protection 8 KV/ 15 KV integrated (Contact voltage 8 KV; Air voltage 15 KV)



Technical specifications

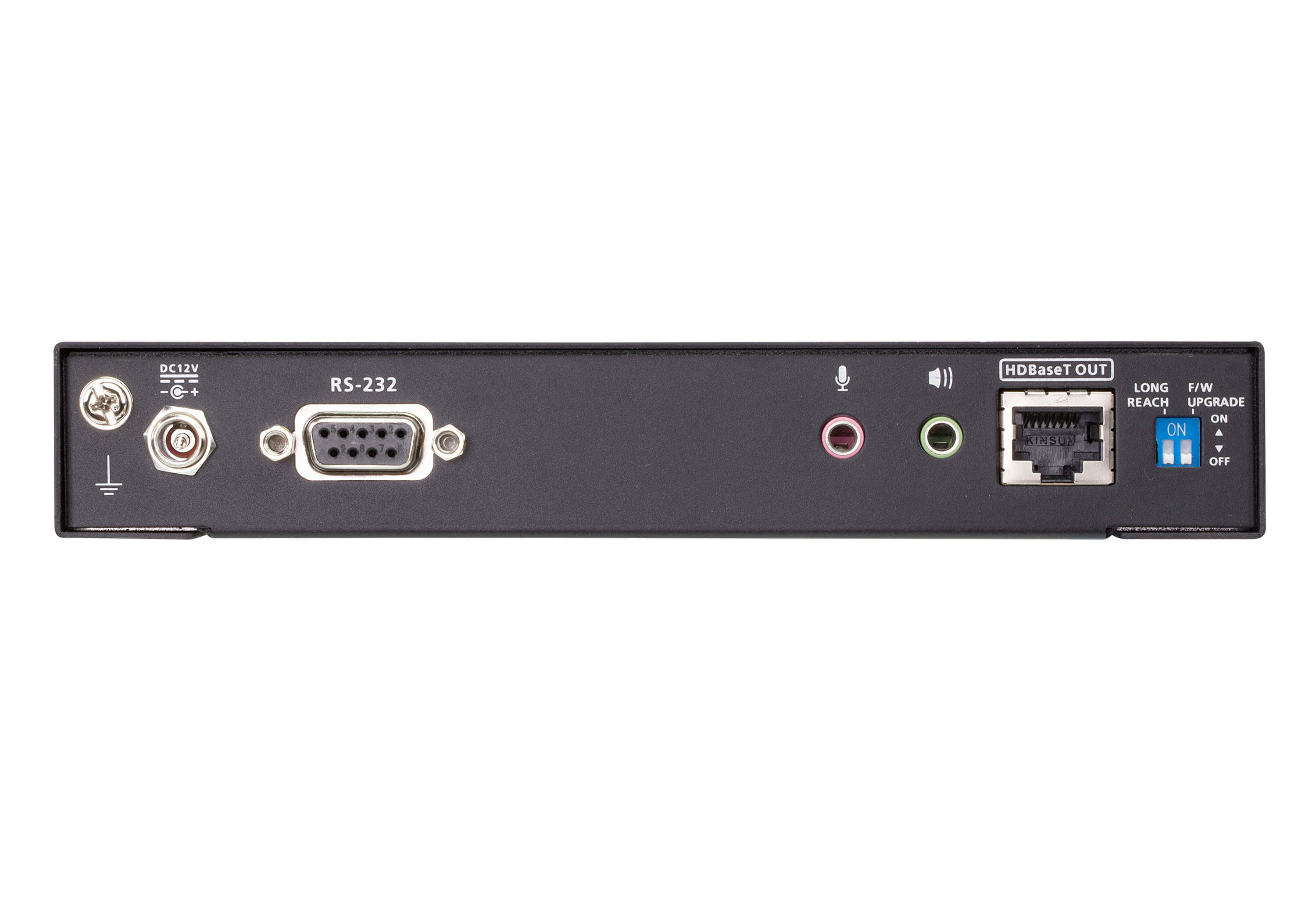

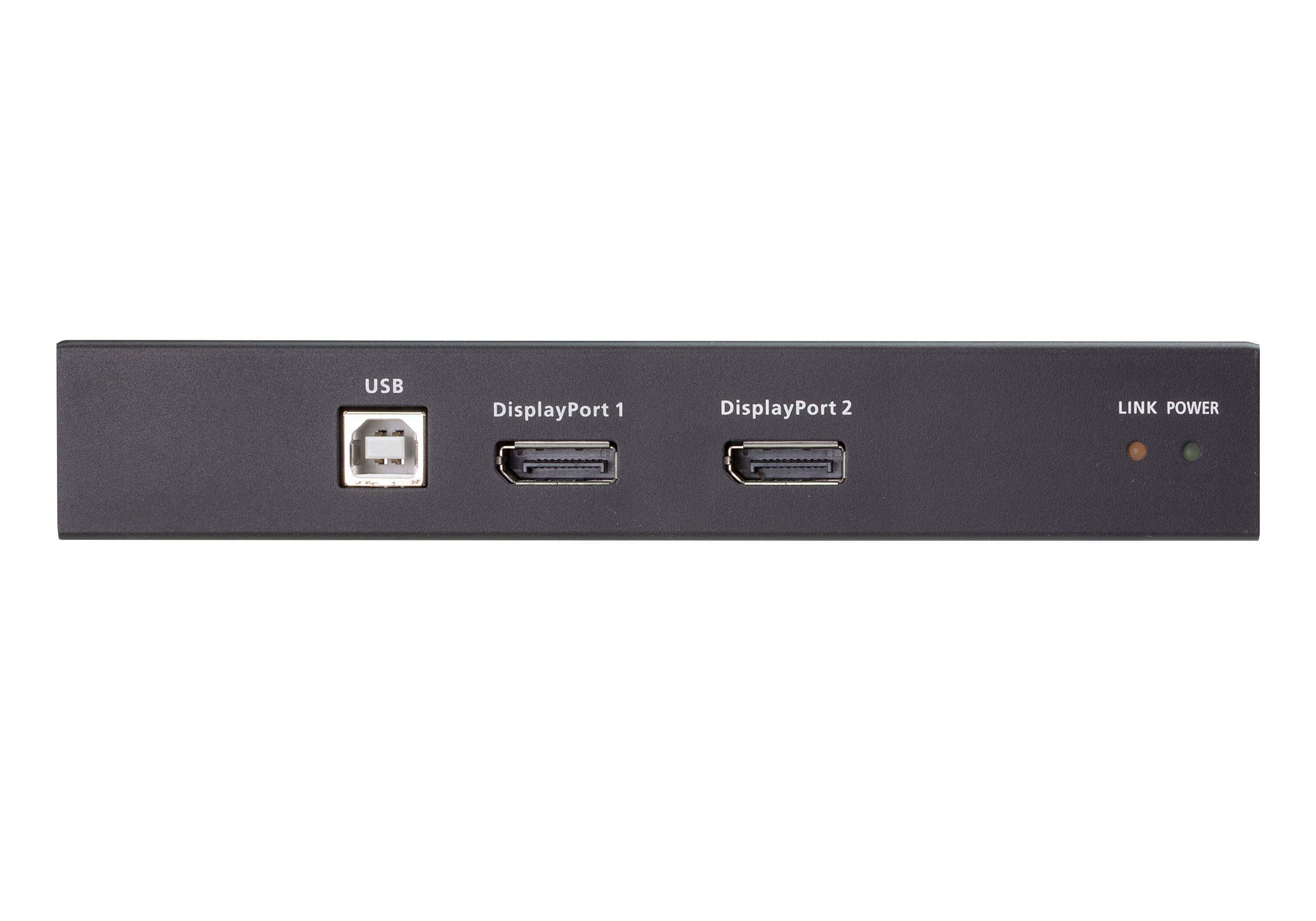

• KVM Doors:



2 x DisplayPort female (black)

1 x USB Type B female (white)

1 x Mini female stereo connector (green)

1 x Mini female stereo connector (pink)

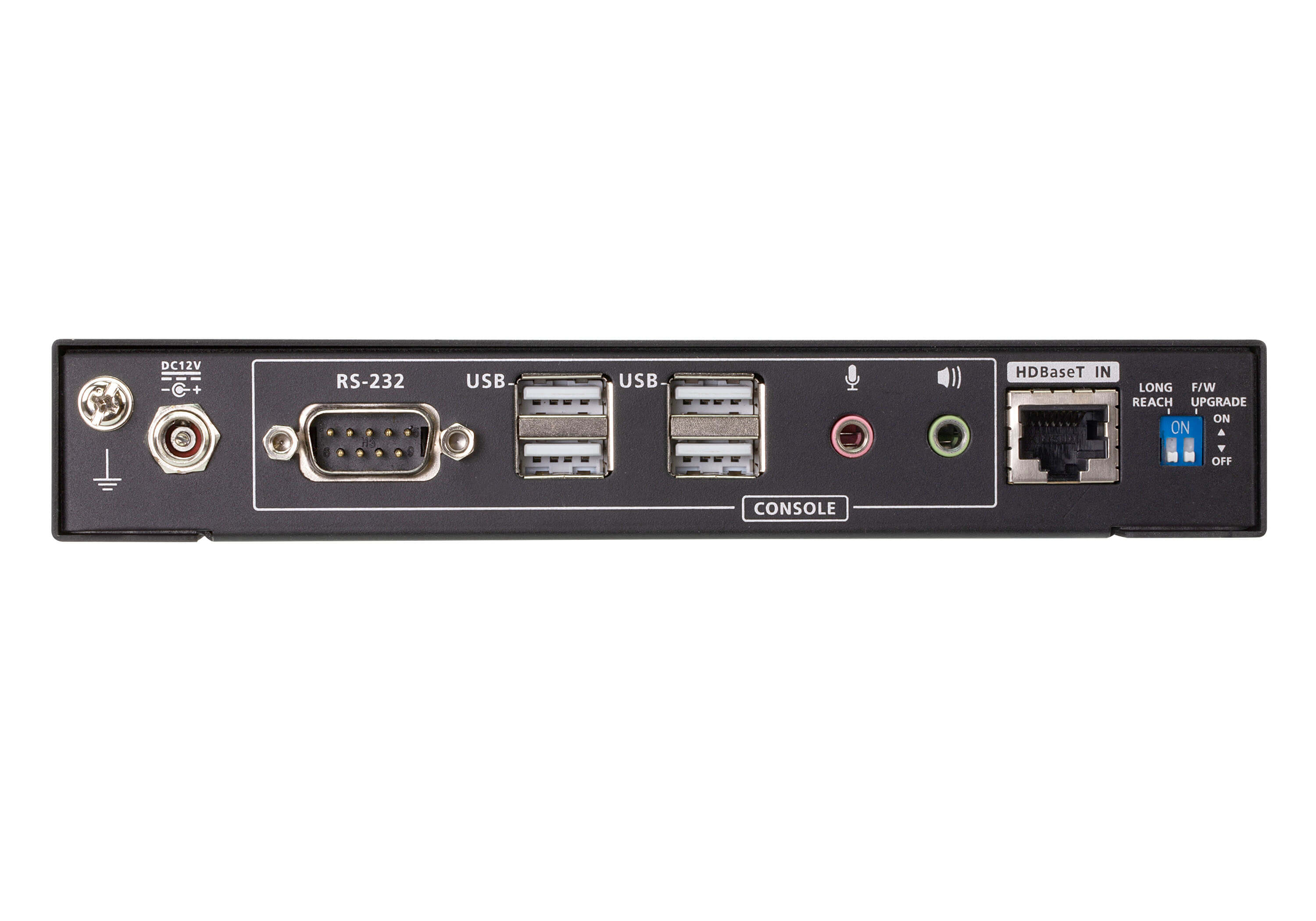

• Console doors:



2 x DisplayPort female (black)

4 x USB Type A (white)

1 x Mini female stereo connector (green)

1 x Mini female stereo connector (pink)

• RS- 232:  1 x DB- 9 female (black)


• Power supply: 1 x CC connector with lock


• Unità a Unità: 1 x RJ- 45 female (black)



Environmental features

• Operating temperature: 0 - 40 °


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 17,42 cm


• Depthà: 15,41 cm


• Height: 2,88 cm



Package contents

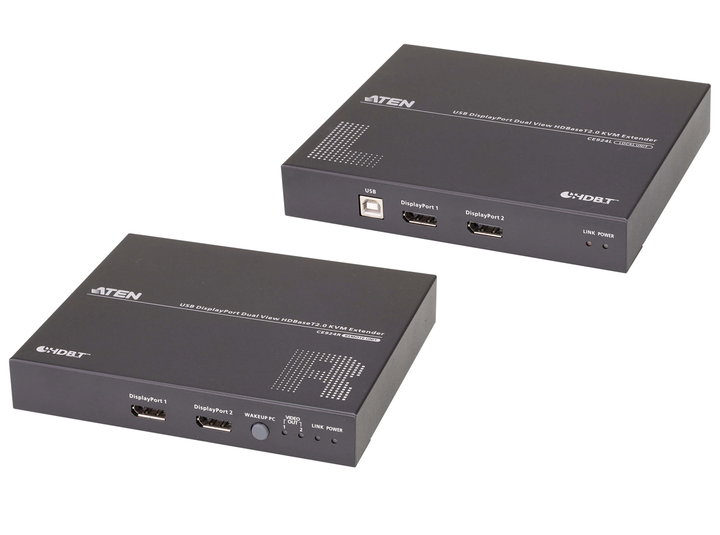

• 1 x USB KVM display port dual view HDBaseT 2.0 CE 924 L (Unità local)

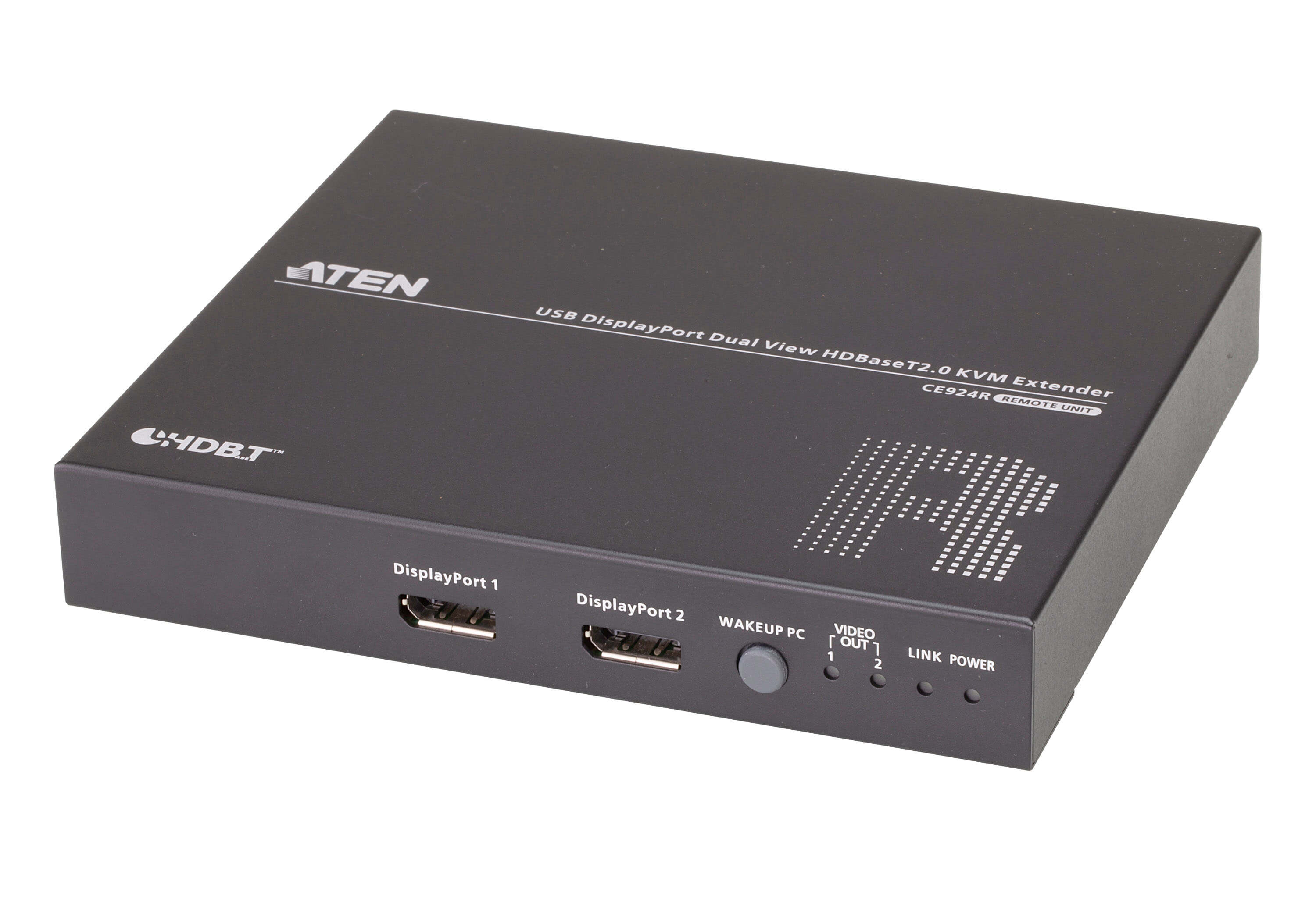

• 1 x USB KVM display port dual view HDBaseT 2.0 CE 924 R (Unità remote)


• 2 x DisplayPort cables


• 1 x Pink audio jack cable set


• 1 x set of green audio jack cables


• 1 x USB Type A to Type B cable


• 2 x power supplies


• 2 x mounting kit


• 1x User instructions
