Extender KVM USB DVI 1920 x 1200 Fiber 20 km - Aten IDATA CE- 690

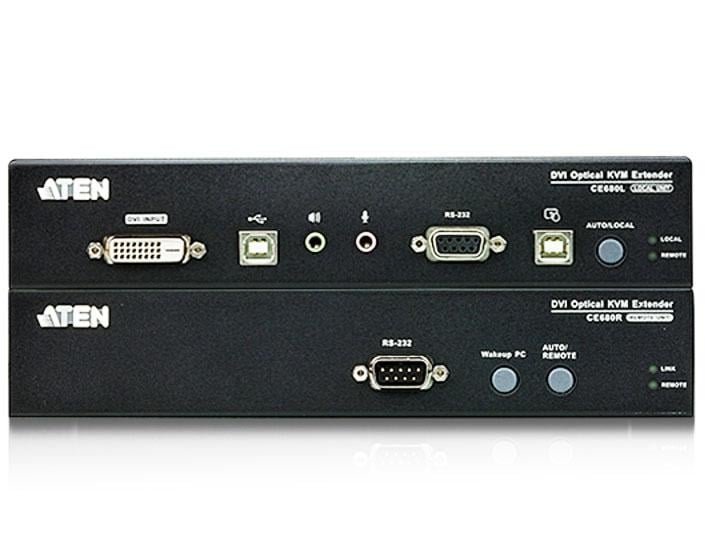

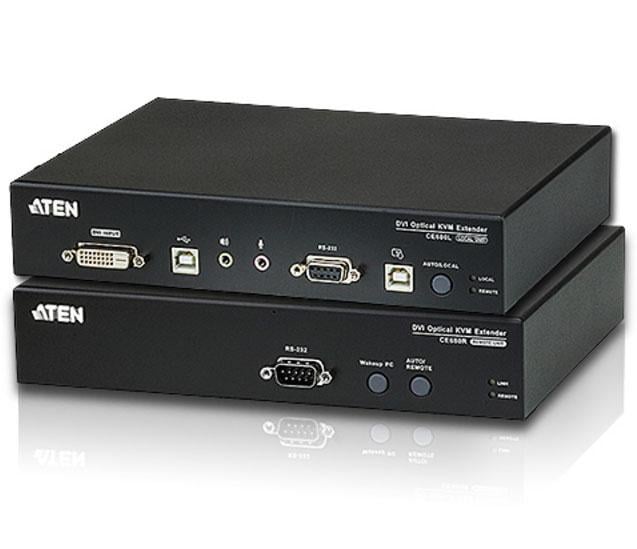

ATEN CE 690 è an optical KVM DVI extender that exceeds the length limits of standard DVI cables using optical fiber to transmit audio and video to high definition and long distance control signals. CE 690 can ò transmit KVM DVI signals at absolutely considerable distances: up to 20 km from the source. Accept audio-video streams from a local source and serialize the data to be transmitted on a single optical connection to 3,125 Gbps (for resolutions up to 1920 x 1200 at 60 Hz, 24 bit) with a perfect visual quality.

In addition to extending control of mouse and keyboard, CE 690 also transfers RS- 232 signals (up to 115 kbps) and USB signals in both directions, with ports for both standards. In this way è can connect serial devices such as barcode readers or USB devices such as touchscreen, which provide access to a computer connected to the local location, up to 20 kilometers away.

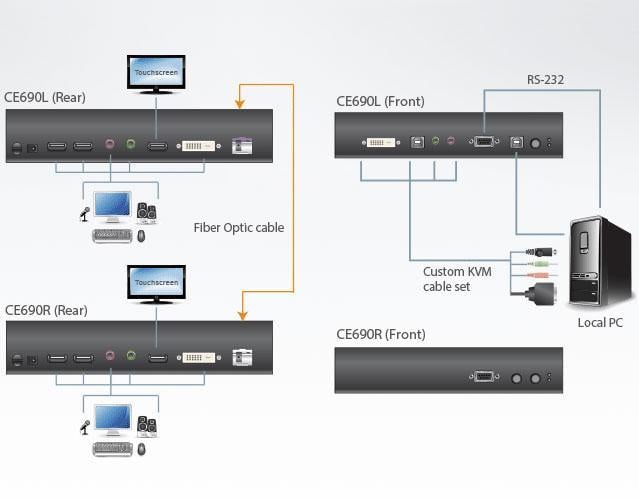

The CE 690 allows you to access a computer from both the local and remote console (USB keyboard, monitor and mouse). The product also uses the optical fibre cable technology to connect the local unit to the remote one, allowing an easy and fast installation and the extension at a very long distance (20 km) of the KVM DVI signals.



Features

• Access a computer or KVM installation from a local/remote console


• Supports DVI-D interface and allows transmission of single link DVI signals


• Qualityà video up to 1920 x 1200 at 60 Hz (24 bit); for crystal clear images up to 20 km*


• Touchscreen support: to connect a normal touchscreen, such as multi-touch devices up to 10 contact points and use highly interactive applications without the need for drivers


• Operation with two consoles: both local and remote system control from USB keyboard console, mouse and monitor


• Uses an optical fiber cable to connect local to remote Lupin


• HDCP compatible


• RS- 232 serial port: allows the connection of a terminal or serial devices such as barcode readers (velocità up to 115200 bps)


• PC Wakeup support: pressing a button on the unità remotely wakes up a PC locally via RS- 232


• Equipped with audio: supports speakers and stereo microphone


• Mountable in rack



Technical specifications

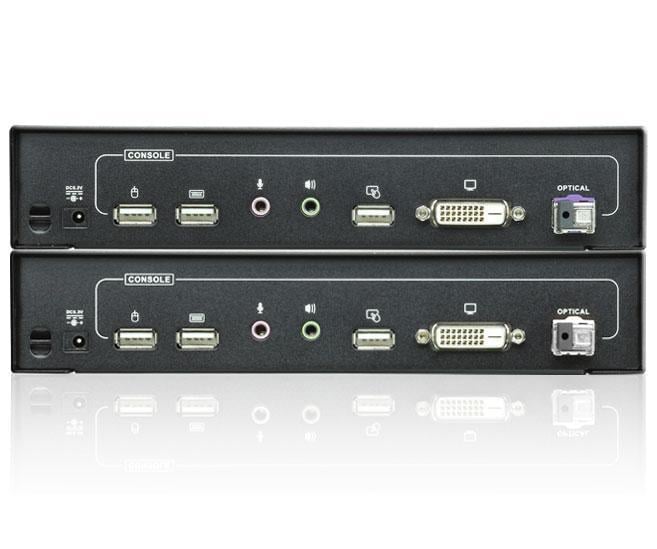

• Connectors



- Console doors

3 x USB type A female (white)

1 x DVI-D female (white)

1 x Mini female stereo connector (green)

1 x Mini female stereo connector (pink)

- Doors KVM CE 690 L

2 x female type B USB (white)

1 x DVI-D female (white)

1 x Mini female stereo connector (green)

1 x Mini female stereo connector (pink)

- RS- 232

1 x DB- 9 female (black) 

- Feeding  

1 x CC connector (black)

- Optical input/output

1 x bidirectional SFP (LC)

• LED



Local 1 (green)

Remote  1 (green)

1 connection (green)

• Switches



Mode Selection à Operating: 1 x Button

- PC reactivate: 1 x Button

• Optical fibre



- Operating distance   20 km with fibre (SM)

- Wave length 1310 / 1550 nm for MS

- Velocità of the data  Single fiber: 3,125 Gbps

- Consumption 5,3 V CC, 10,2 W

• Environment



- Operating temperature 0 - 50 °C

- Storage temperature - 20 - 60 °C

- Humidità 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Metal structure

- Weight 1.12 kg + 1.12 kg

- Dimensions (L x P x A): 21.50 x 16.33 x 4.18 cm / 21.50 x 16.29 x 4.18 cm

Note: Approximate operating distance è These are typical maximum distances that may vary according to factors such as optical fibre type, optical fiber bandwidth, connectors junction, leakage, modal or chromatic dispersion, environmental factors and bottlenecks.



Package contents

• 1 x optical KVM extension unit DVI CE 690 L (unità local)


• 1 x optical KVM extension unit DVI CE 690 R (unità remote)


• 1 x 2 L- 7 D 02 U custom KVM cable set (1,8 m)


• 1 x LIN 6 - 04 U 1 -V 1 CG USB cable (1,8 m)


• 2 x 0 AD 6 - 1605 - 24 EG power supplies


• 1 x mounting kit


• 1 x user guide
