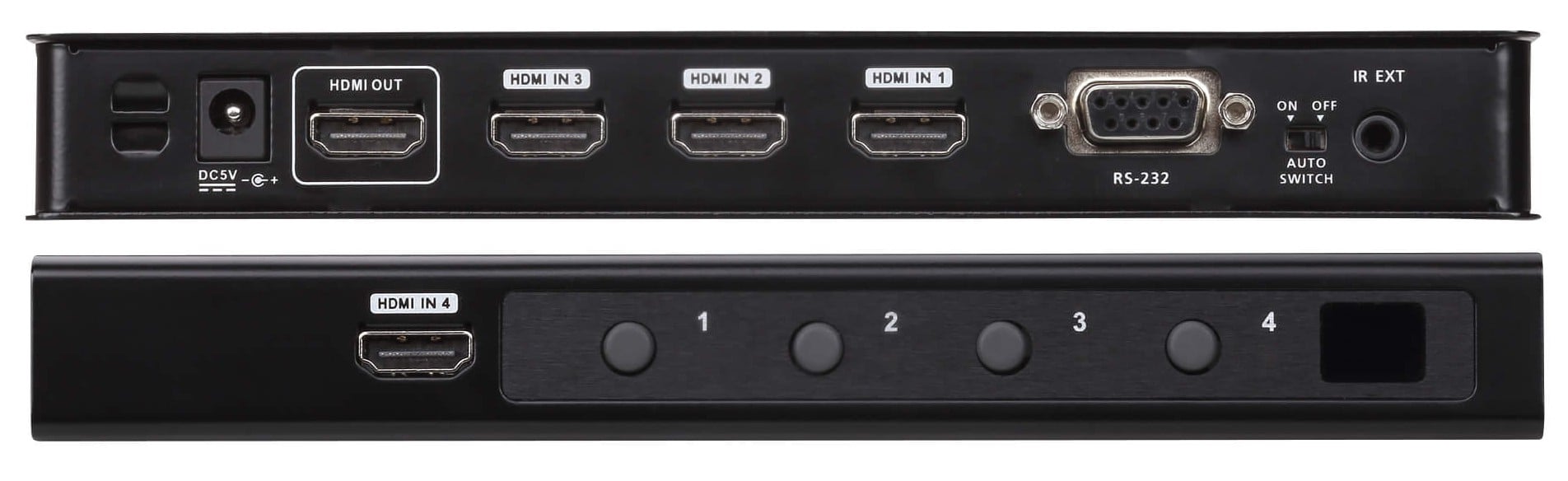

Switch HDMI 4 K Real 4 ports - Aten IDATA VS- 481 C

The VS 481 C of ATEN è designed for applications requiring 4 source addressing on a compatible display device. It allows reliable transmissions with video resolutions up to 4 K (4096 x 2160 to 60 Hz 4 : 4 : 4 ) real, speed à data up to 18 Gbps, 3 D, Deep Color up to 12 -bit and lossless HD audio formats. Easy-to-use integrator features include automatic switching mode for automatic door selection, immediate switching for seamless transmission of video between HDMI ports, RS- 232 bidirectional and IR for remote device control.



Designed to meet daily requests for real 4 K signal transmission and user-oriented design, VS 481 C from ATEN è a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade fairs and shopping centers.



Features

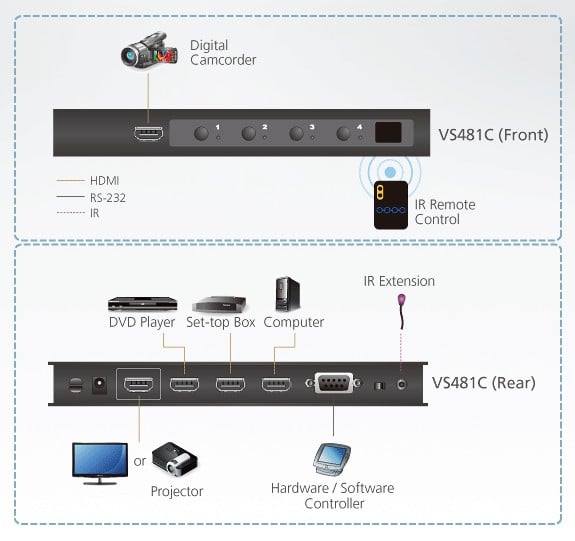

• Allows the connection of up to 4 HDMI sources to one HDMI screen


• HDMI 2.0 (3 D, Deep Color, 4 K); HDCP 2.2 compatible


• Qualità top video, 4 k resolutions real video 4 k x 2 k a 60 Hz (4: 4: 4 )


• Supports IR Extension


• Integrated bidirectional RS- 232 serial port for high-end system control


• Automatic switching mode for automatic door selection


• Source device status LED indicator


• Plug-and-play



Technical specifications

• DIP: Automatic Switching - ON/OFF


• Video input:



Interfaces  4 x HDMI type A female (black)

Impedance   100

Max. distance & 3

• Video output:



Interfaces  1 x HDMI type A female (black)

Impedance   100

Max. distance & 3

• Video:



Maximum frequency of data: 18 Gbps (6 Gbps per line)

Pixel clock max. 600 MHz

conformà HDMI 2.0 (3 D, Deep Color, 4 K)

HDCP 2.2

Consumer Electronics Control (CEC)

Maximum resolution 4096 x 2160 / 3840 x 2160 at 60 Hz (4: 4: 4 )

• Control:



RS- 232 Connector: 1 x DB- 9 female (black)

Velocità in baud: 19200 / Data Bit: 8 / Stop Bit: 1 / Parità: NO / Flow Control: NO

IR 1 x Mini female stereo connector (black)

1 x IR Receiver

• Power supply: 1 x DC connector (with lock)


• Consumption: 5 V CC, 5 W



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 20,00 cm


• Depthà: 8,21 cm


• Height: 2,50 cm



Package contents

• 1 x VS 481 C switch HDMI 4 K real to 4 ports


• 1 x 0 AD 6 - 1005 - 10 AG power supply


• 1 x 2 XRT- 0101 G unità IR remote control


• 1 x LIN 5 - 19 V 2 -V 21 G HDMI cable


• 1 x user instructions
