12 keypad Customizable buttons for ATEN control system - ATEN IDATA VK- 112 EU

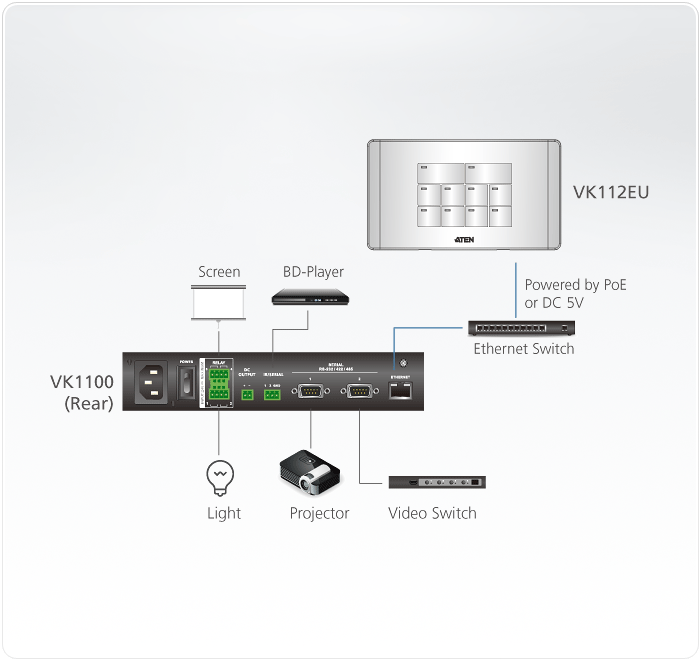

VK 112 EU è a 12 keypad fully customizable buttons designed for use with the ATEN control system. The keypad offers an interface for controlling devices in an environment from a standard wall mounted panel. Created with flexibility à, the keypad can ò be placed in 125 combinations from 6 to 12 buttons that hook between them as easily as the Legos. By connecting to the control box VK 2100 /VK 1100 via LAN, users can use the VK 6000 software without any problems to configure the desired control of any device connected, directly from the keypad. With the buttons ready to use, è can immediately and intelligently control equipment from the keyboard or keyboards that can manage any device in the keyboard. room. VK 112 EU è an accessible solution, perfect as a main interface in small meeting rooms, or as a secondary device in classes and conference centers.



Features

• Keypad, offers physical connection to the ATEN control system

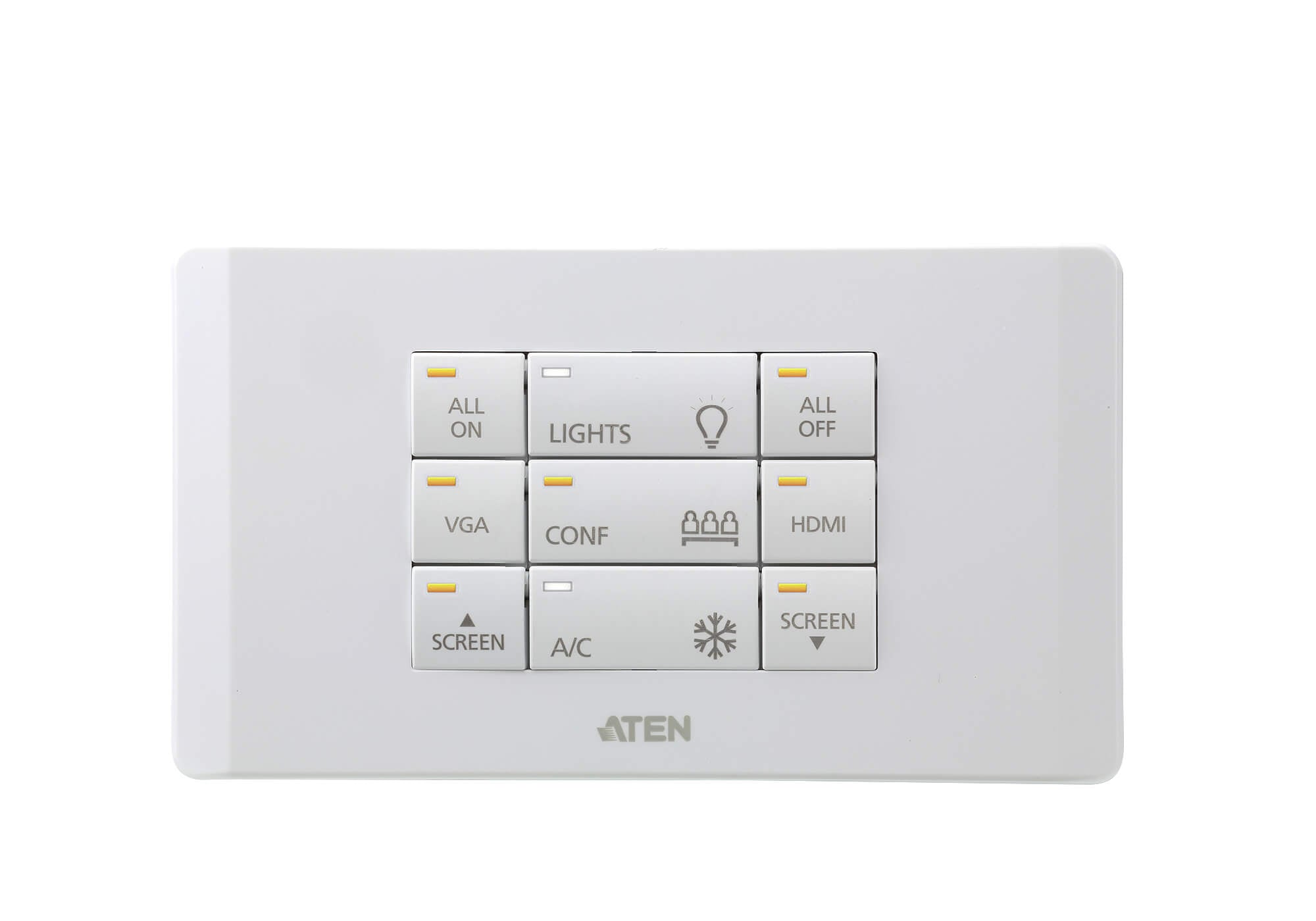

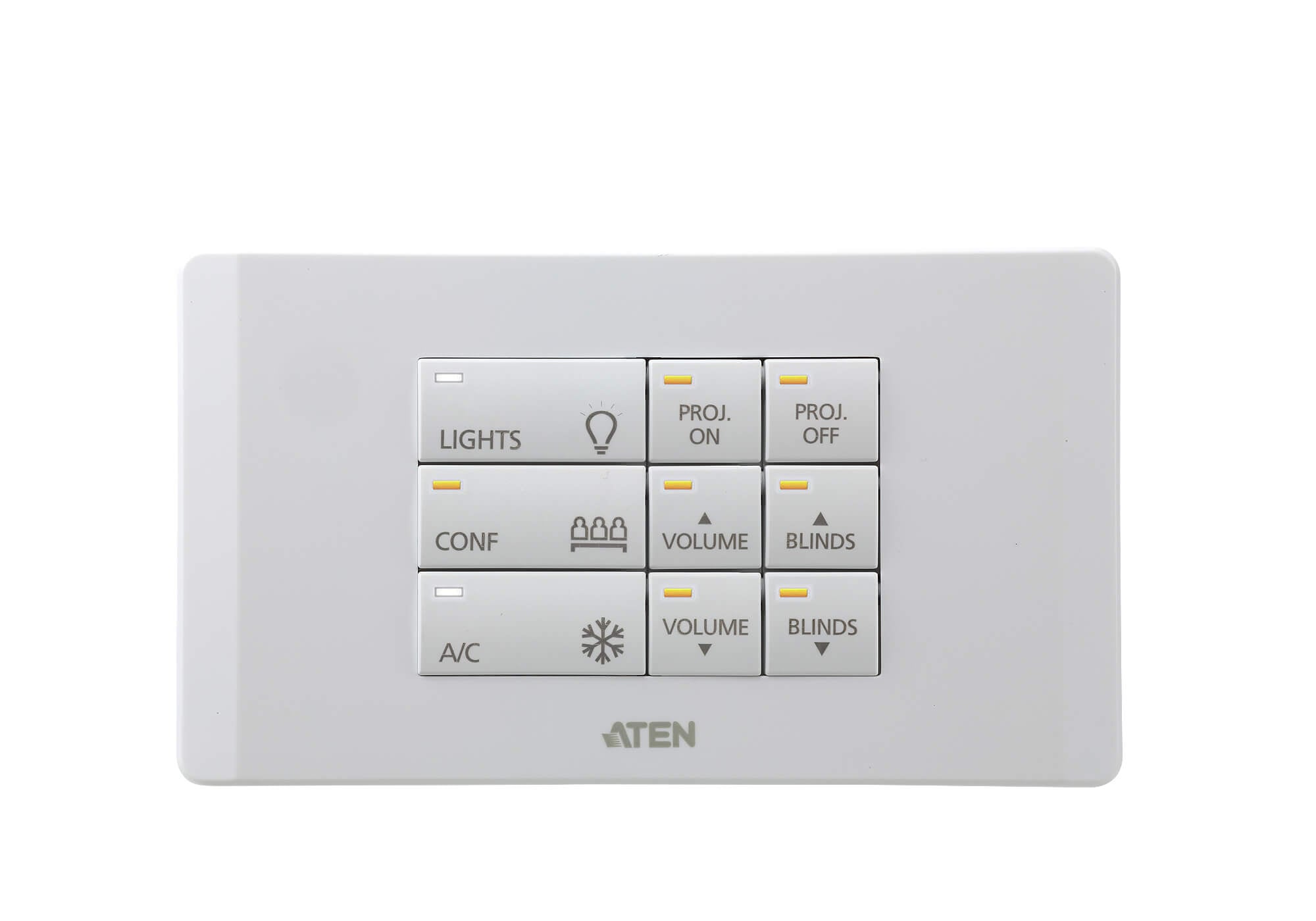

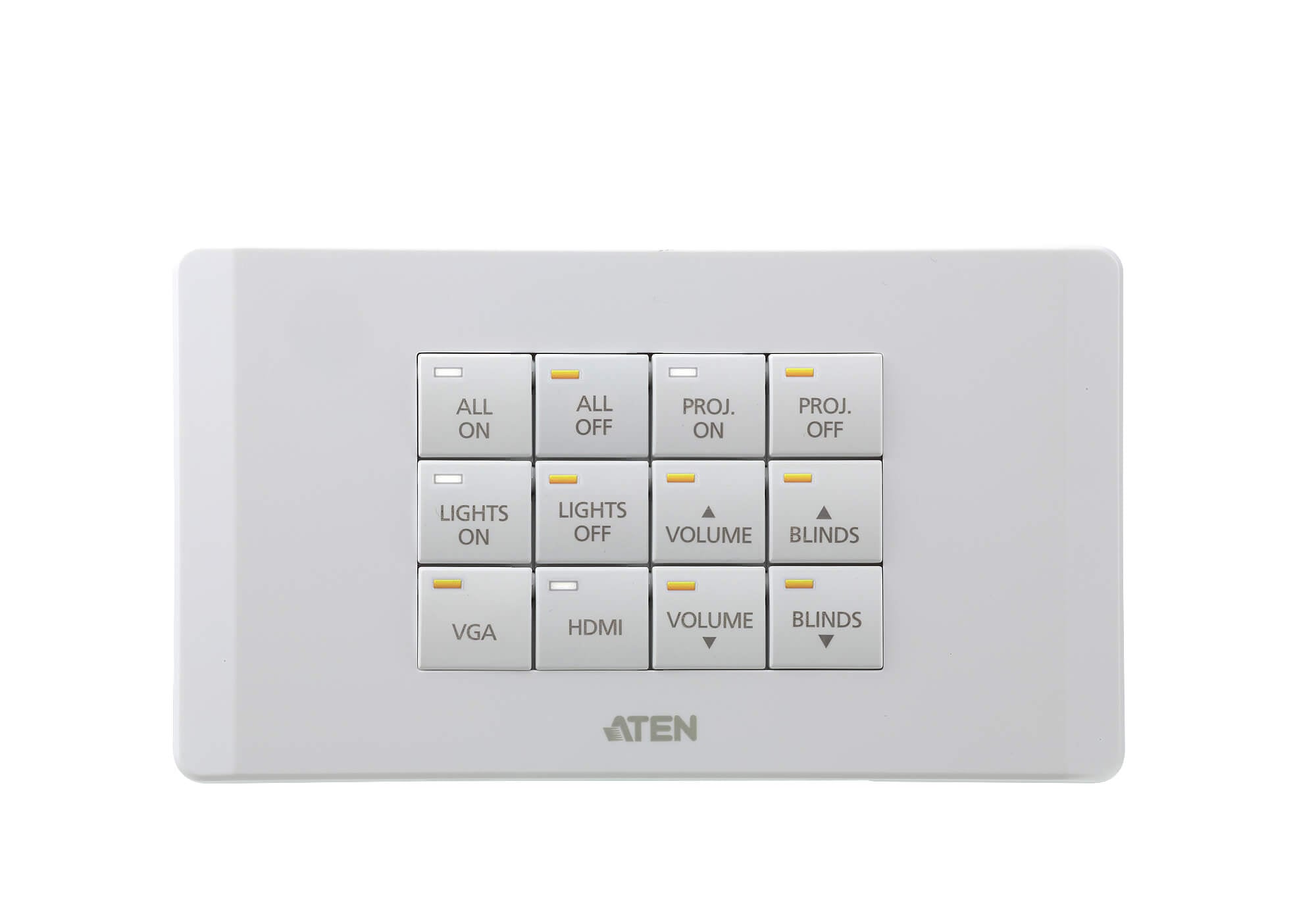

• Fully customizable with 125 layout combinations, from 6 to 12 buttons


• System LED indicators to quickly verify connection status


• Two-colour LED buttons to indicate clearly and for visibility; in dark environments


• Simple ID Association with Control Box for Ethernet Communication


• Connecting up to 8 keypads to a single control box for scalabilityà future


• Modalità versatile that support the flexible behavior setting of each button


• Intuitive web graphics interface to make keyboard configuration more simple


• redundant power supplies with PoE (Power over Ethernet) and DC power supply


• Button Engraving Service



Specifications

• Interfaces:

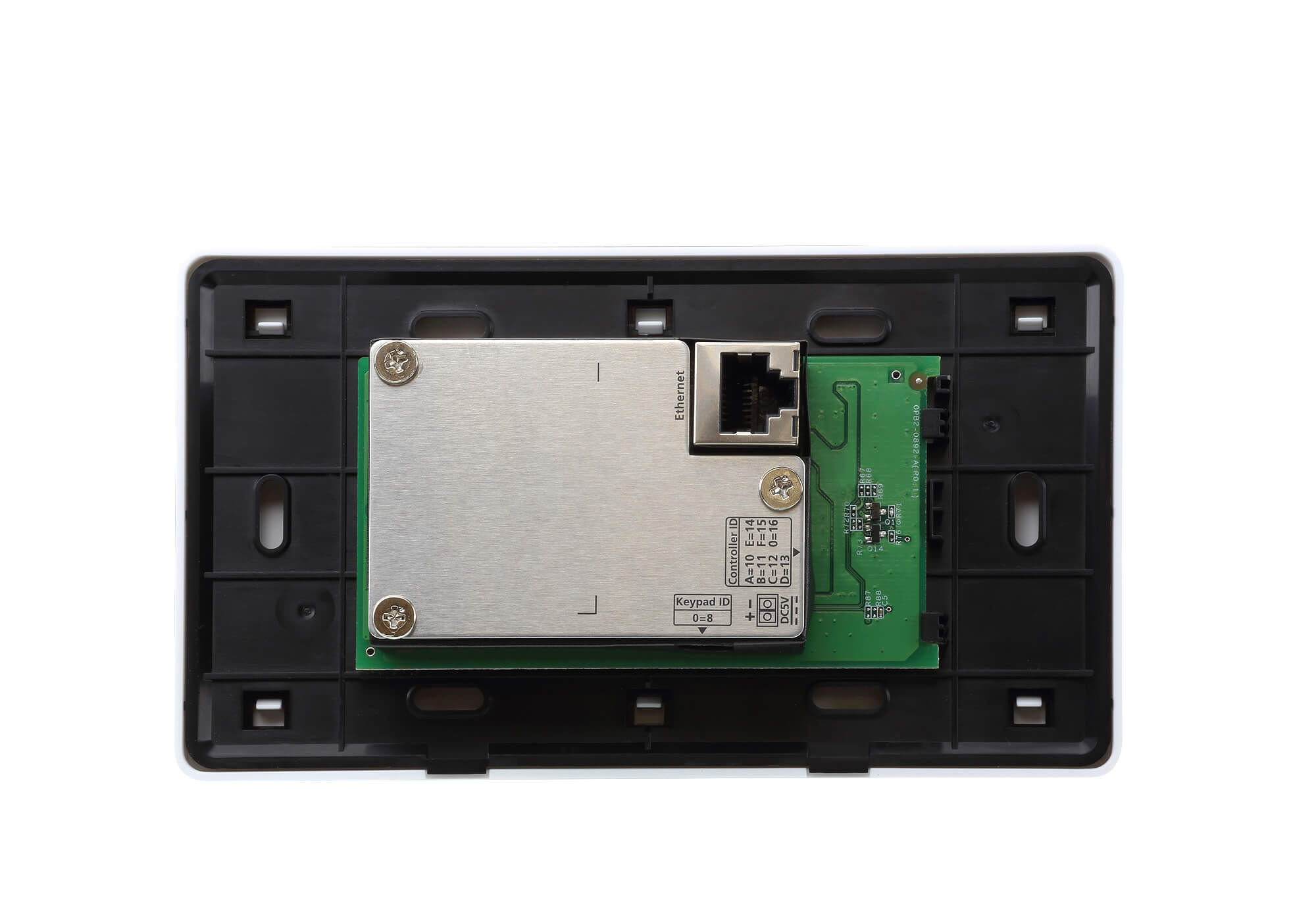

- Ethernet: 1 x RJ- 45 Female, 10 / 100 Base-T

- Supported protocol: ICMP, TCP/IP, DHCP, HTTPS

- DHCP activated. The following default IP settings will be used in case no IP is assigned within 30 seconds: IP: 192.168 . 0.60 / Subnet mask: 255.255 . 255.0

• Keypad layout: From 6 to 12 customizable buttons in 125 keypad layout


• Switches:



- Controller ID: 1 x 16 segment switch

• Restore Key: 1 x Semi-collected Button


• Consumption (DC 5 V) 1.25 W: 6 BTU


• Environment



- Operating temperature: 0 – 50 °C

- Storage temperature: – 20 – 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation



Proprietà physical

• Structure: Plastic


• Weight: 0.14 kg


• Dimensions (L x P x A):  8.32 x 14.76 x 3.87 cm


• Front cover dimensions (L x L x A): 8.62 x 15.12 x 0.92 cm



Package contents

• 1 x keypad VK 112 EU


• 18 x buttons


• 1 x terminal block


• 1 x panel


• 1 x user instructions
