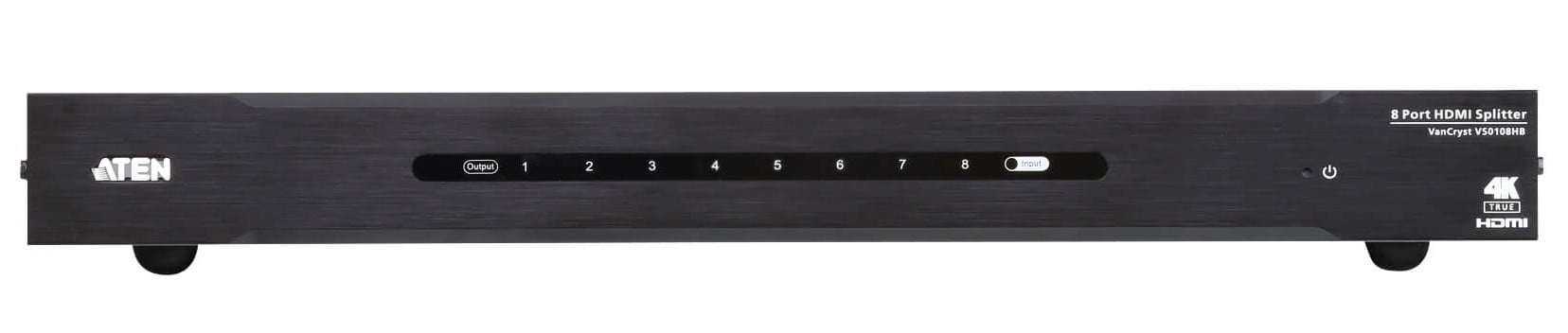

Splitter HDMI 4 K Reale a 8 Porte - Aten IDATA VS- 0108 HB

The VS 0108 HB from ATEN è designed for applications that require the addressing of an HDMI source to 8 compatible visualization devices. It supports Dolby True HD and DTS HD Master audio, video signals up to 4 K real, speed à data up to 18 Gbps, 3 D, and lossless HD audio formats. Thanks to ATEN EDID technology, the VS 0108 HB ensures continuous EDID communication with connected devices, the correct power supply for HDMI sources and the maintenance of the correct video outputs.



Designed to meet daily requests for real 4 K signal transmission and user-oriented design, VS 0108 HB from ATEN è a powerful solution for a wide range of settings such as home theater, commercial installations, educational centers, meeting rooms and where è need to meet application requirements.



Features

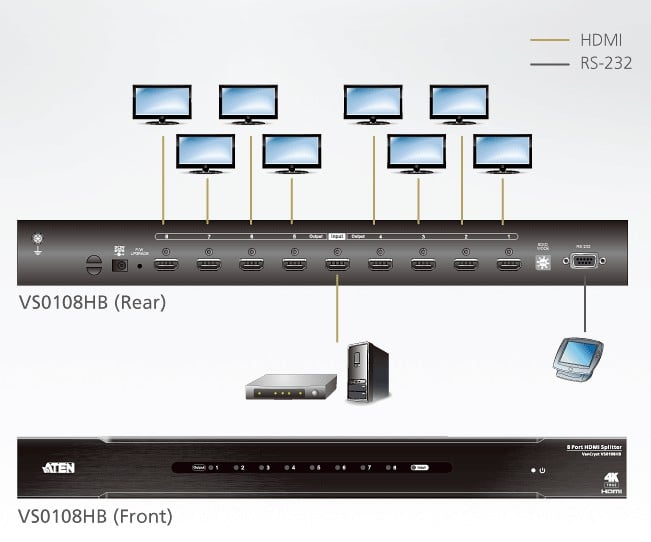

• Allows the connection of an HDMI source to a 8 HDMI display


• HDMI 2.0 (3 D, Deep Color, 4 K); HDCP 2.2 compatible


• Superior video quality – resolutions up to 4 K real (4096 x 2160 a 60 Hz 4: 4: 4 )


• Long distance transmission from source to output - up to 6 m


• Integrated bidirectional RS- 232 serial control port for high-end system control


• Supports Dolby True HD and DTS HD Master audio


• Clear LED indication of device status


• EDID Expert™ – selects the optimal EDID settings for high quality smooth display and to use the best resolution on different screens


• Plug-and-play


• rack mountable (design 1 U)



Technical specifications

• LED:



Power supply   1 x LED (green)

Video output  8 X LED (green)

Input  1 x LED (green)

• Video input:

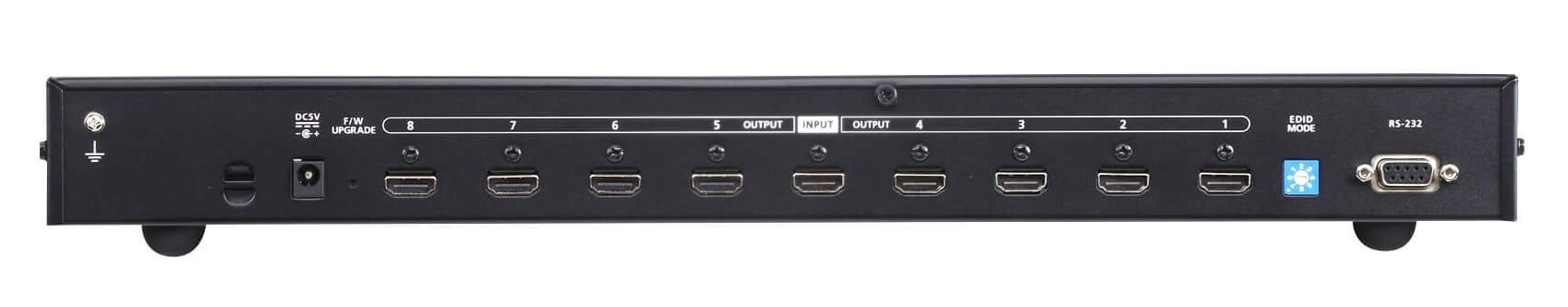

Interfaces  1 x HDMI type A female (black)

Impedance   100

Max. distance & 3

VS 0108 HB source at 4 K at 60 Hz (4: 4: 4 )

• Video output:



Interfaces  8 x HDMI type A female (black)

Impedance   100

Max. distance & 3

VS 0108 HB 4 K screen at 60 Hz (4 : 4 : 4 )

• Video:



Maximum frequency of data: 18 Gbps (6 Gbps per line)

Pixel clock max. 600 MHz

Conformityà: HDMI 2.0 (3 D, Deep Color, 4 K);

HDCP 2.2

Maximum resolution up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4: 4: 4 )

• Control RS-232:



Connector: DB- 9 female (black) x 1

Velocità in baud: 19200 ,

Data bits: 8 , Stop bits: 1 ,

Parità: No, Flow Control: No

• EDID Settings:



Sliding support EDID x 1

Modelità EDID: 1 / Default / Auto / Switch port

• Power supply: 1 x DC connector


• Consumption: DC 5 V: 11.95 W: 56 BTU



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.78 cm


• Height: 4.40 cm



Package contents

• 1 x splitter HDMI 4 K real 8 ports VS 0108 HB


• 1 x 0 AD 8 - 8005 - 40 MG power supply


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x mounting kit


• 1 x user instructions
