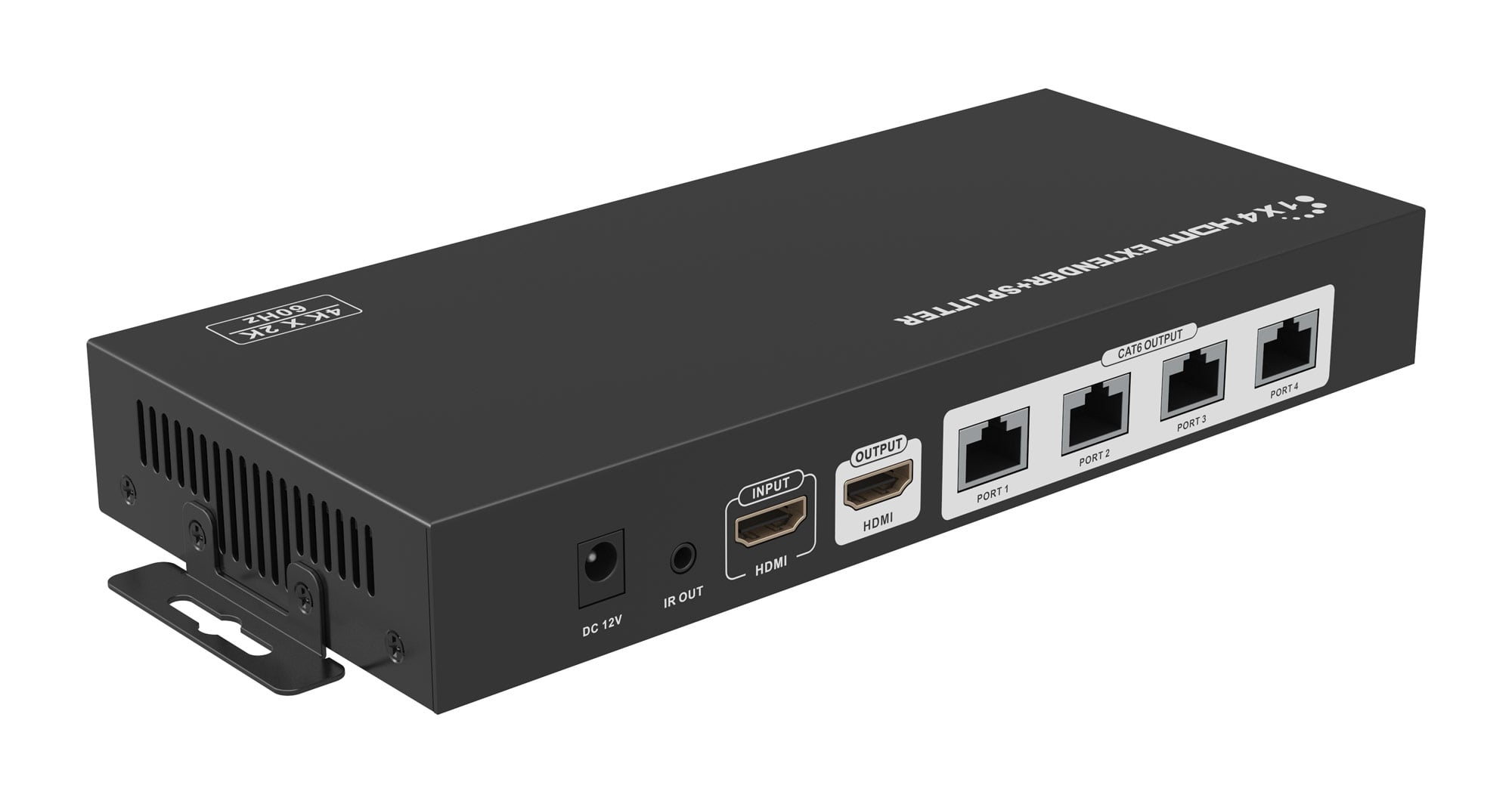

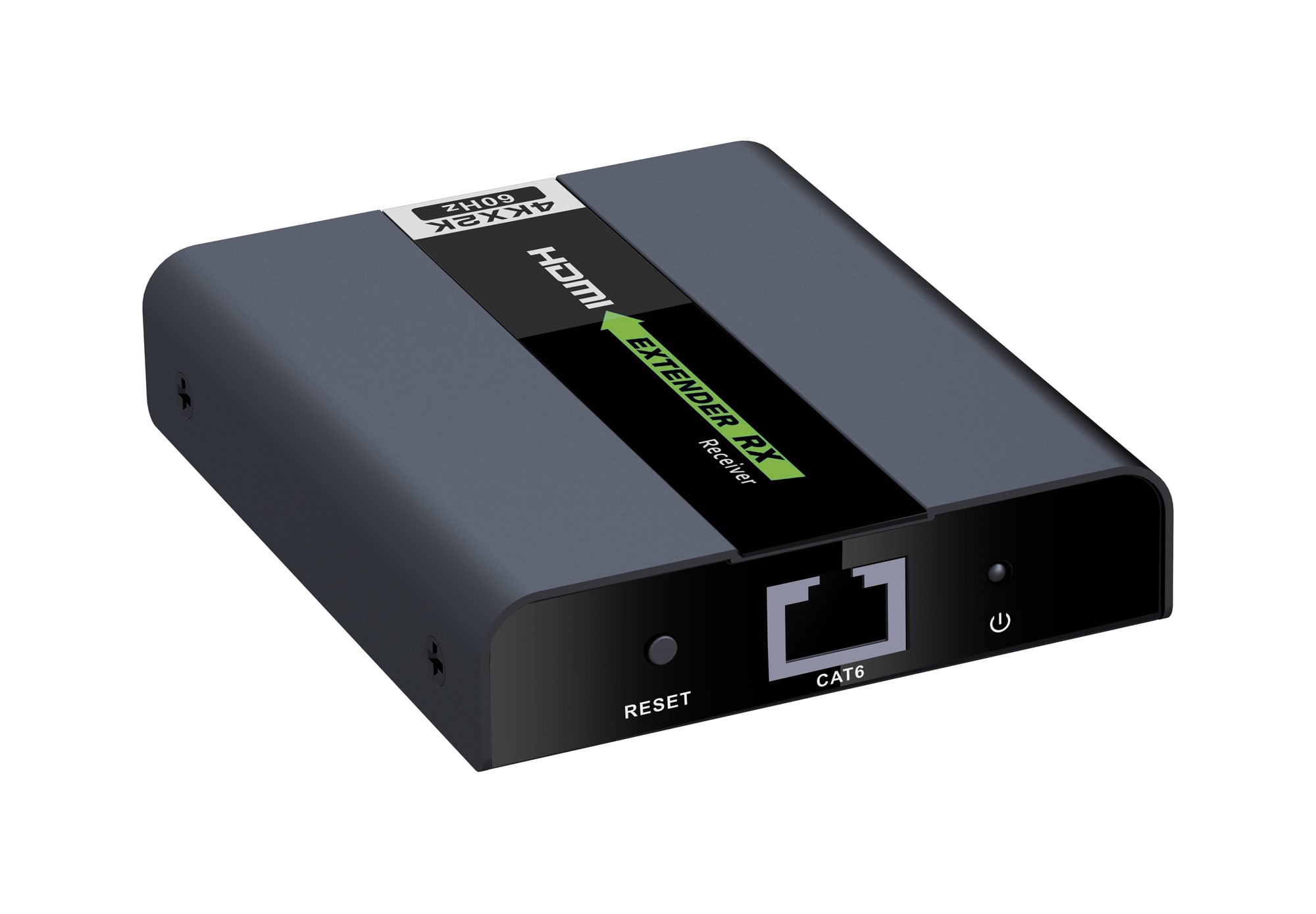

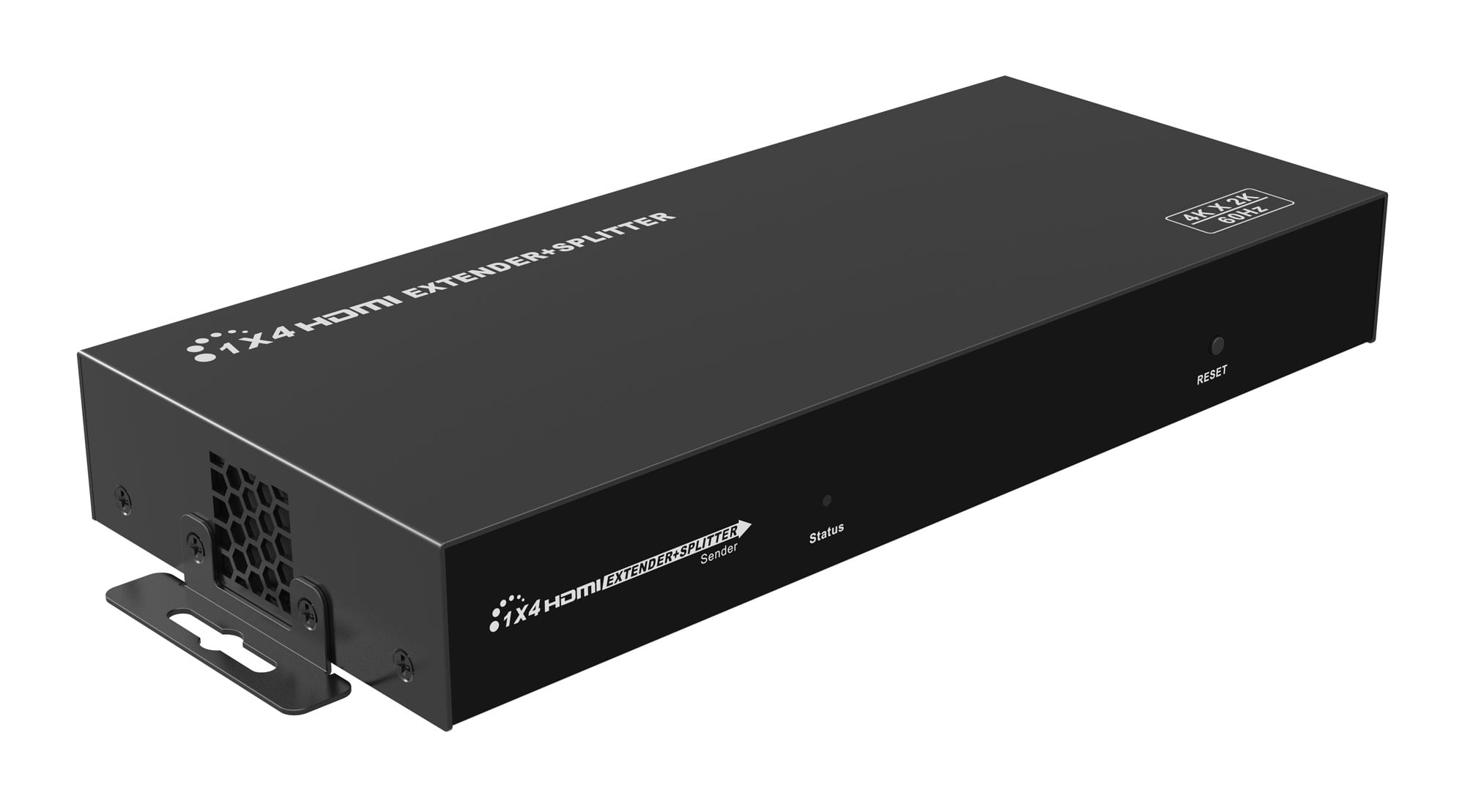

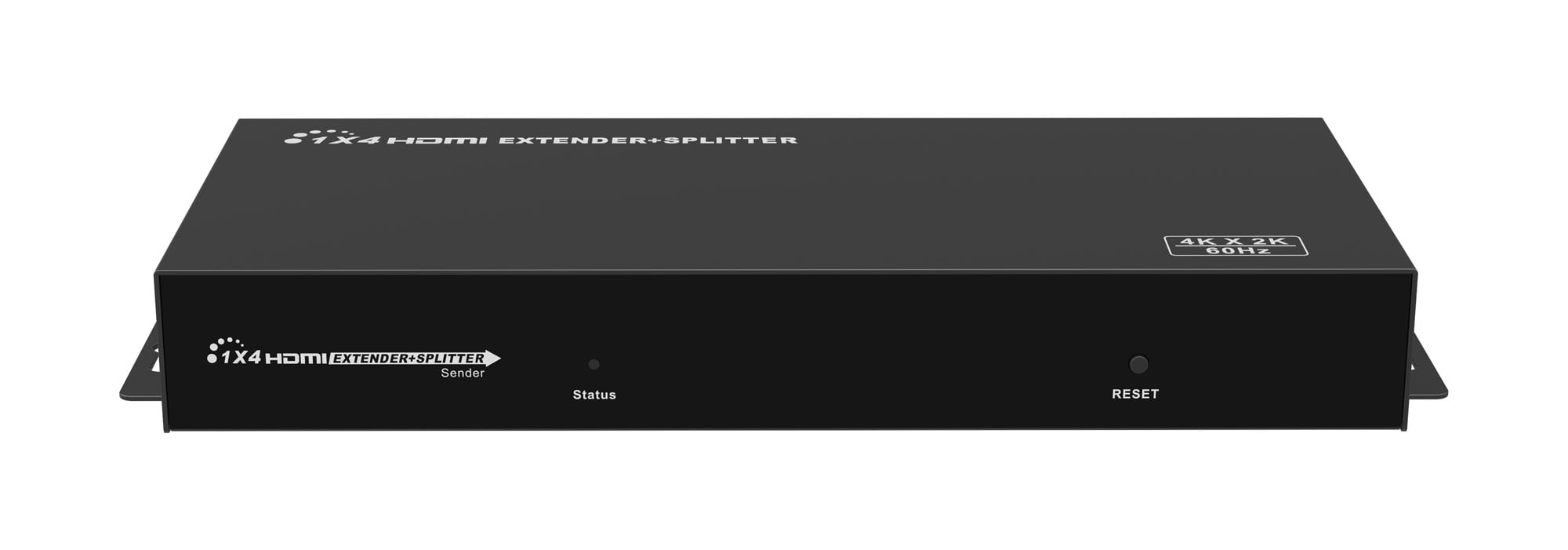

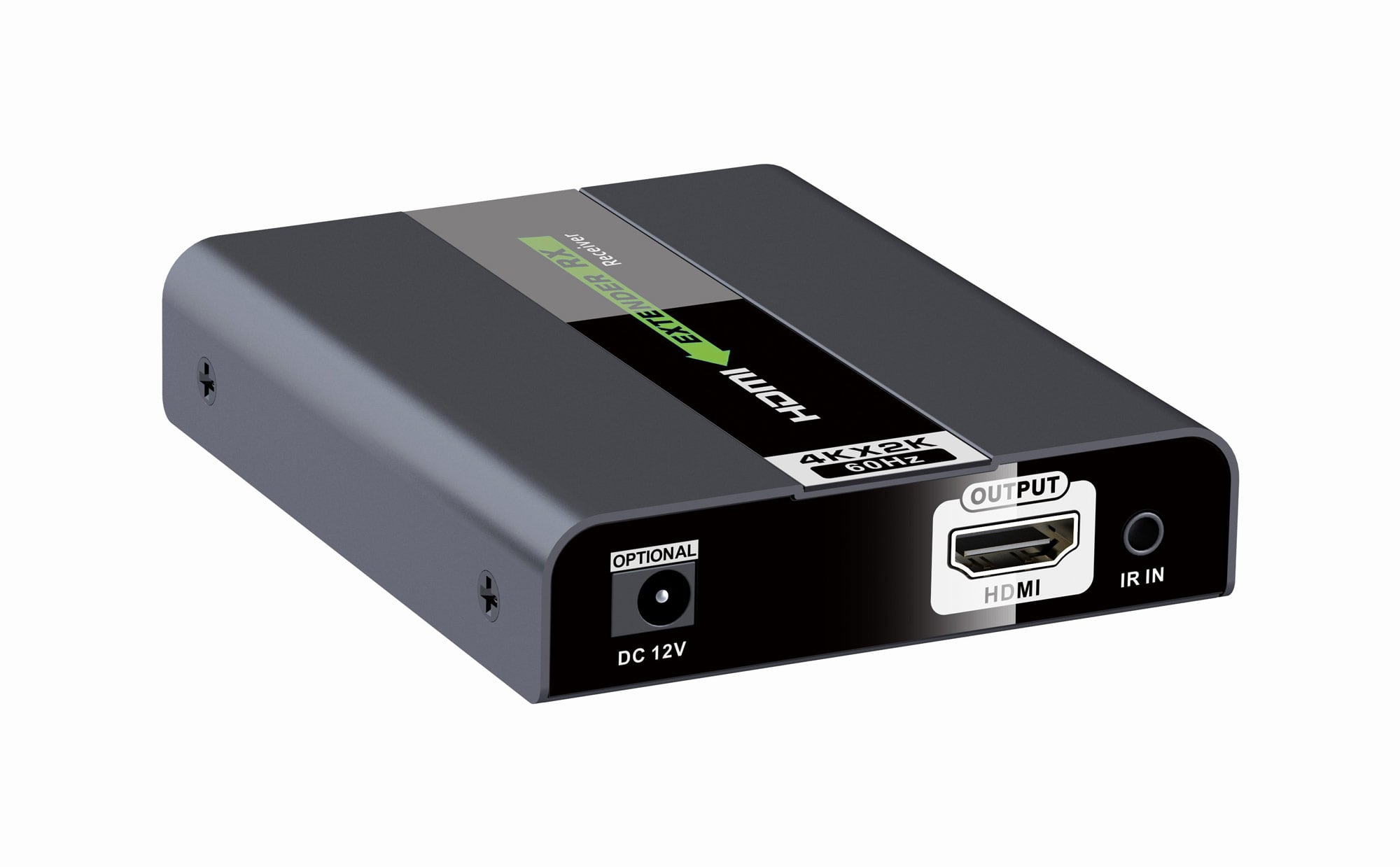

1 x 4 HDMI Extender Splitter on Cat 6 / 6 a/ 7 60 m - Techly NP IDATA EX-HL 41 TY 2

€656.79
Tax included €538.40 excl. VAT

HDMI extender/splitter with transmitter and 4 receivers. Extends an HDMI source to 4 screens via CAT cable 6 / 6 A/ 7 up to 60 m. Supports resolution 4 Kx 2 K@ 60 Hz, IR pass back and EDID. The receivers are powered by the transmitter via network cable.



Return policy



Delivery policy



Direct contact for info



Secure Payment

This HDMI extender/splitter includes a transmitter and four HDMI receivers, extends an HDMI source to 4 HDMI screens via single CAT 6 / 6 A/ 7 cable up to 60 m to the maximum supported resolution of 4 Kx 2 K@ 60 Hz ultra HD; supports IR pass back, requires power supply only for the transmitter as the receivers are powered by the transmitter via the network cable. It is the ideal solution for exhibitions, video conferences and fairs etc...



Features

  • simultaneously distributes the signal from 1 HDMI source to 4 HDMI screens via a network cable

  • Supports an HDMI port for local output

  • Compatible with CAT 6 / 6 A/ 7 network cables

  • The maximum distance of transmitsone supported è of 30 m with resolution 4 K@ 60 Hz, 50 m with resolution 4 K@ 30 Hz, 60 m with resolution 1080 p@ 60 Hz

  • Maximum supported video resolution 4 Kx 2 K@ 60 Hz ultra HD

  • Supports 20 Hz ~ 60 Hz IR pass back

  • Supports EDID

  • The transmitter can feed the unit via the CAT 6 cable

  • Plug and play

  • Installed to wall



Technical specifications

  • 1 HDMI input

  • 4 outputs RJ 45 and 1 output HDMI

  • HDMI 2.0 compatible with HDCP 2.2

  • Supported resolutions: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz, 3840 x 2140 @ 30 / 60 Hz

  • Supports distance up to 30 m with resolution 4 Kx 2 K@ 60 Hz, up to 50 m with resolution 4 Kx 2 K@ 30 Hz, up to 60 m with resolution 1080 p@ 60 Hz

  • Supports resolution up to 4 Kx 2 K@ 60 Hz ultra HD

  • IR signal: supports devices IR 20 - 60 KHz

  • EDID: supports EDID configuration function

  • Operating temperature: 0 °C - 60 °C

  • Storage temperature: - 20 °C - 70 °C

  • Power supply: It can be powered by the mains cable. Only for the transmitter è the DC 12 V/ 3 A power supply is required

  • Consumption: Transmitter < 32W / Ricevitore < 6W

  • Dimensions: Transmitter 212.6 x 102.49 x 31.0 mm / Receiver 101.1 x 81.6 x 20.6 mm

  • Color: black



Package contents

  • Transmitter x 1 pcs

  • Receiver x 4 pcs

  • DC power supply 12 V/ 3 A x 1 pcs

  • IR Blaster x 1 pcs extension cable

  • IR receiver extension cable x 4 pcs

  • Education manual x 1 pcs

  • Brand
  • Reference
    IDATA EX-HL41TY2
  • In stock
    3 Items
  • EAN13
    8051128104905
