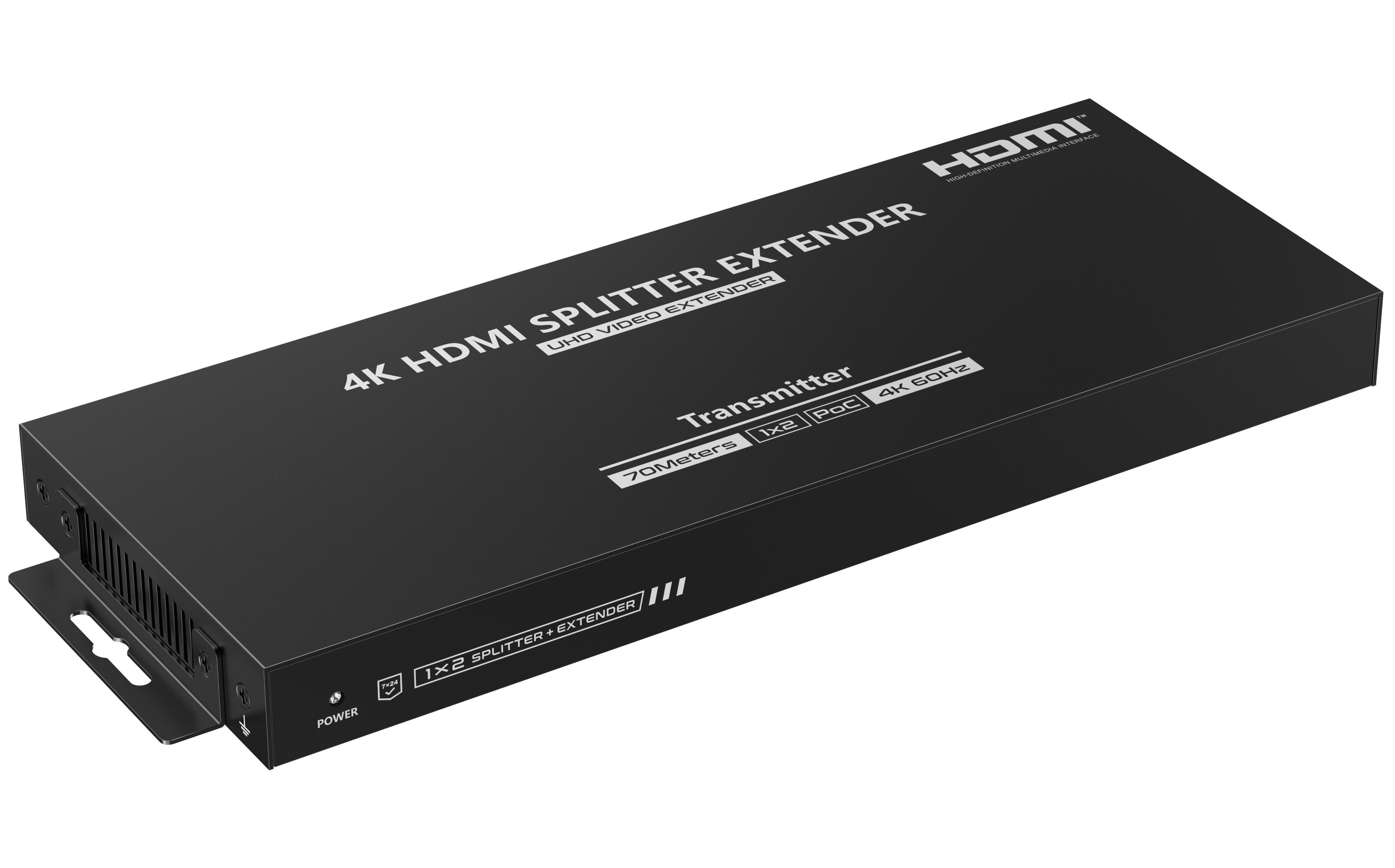

Splitter extender HDMI 1 x 2 with IR on Cat 6 / 6 a/ 7 70 m - Techly NP IDATA EX-HL 21 TY 3

•

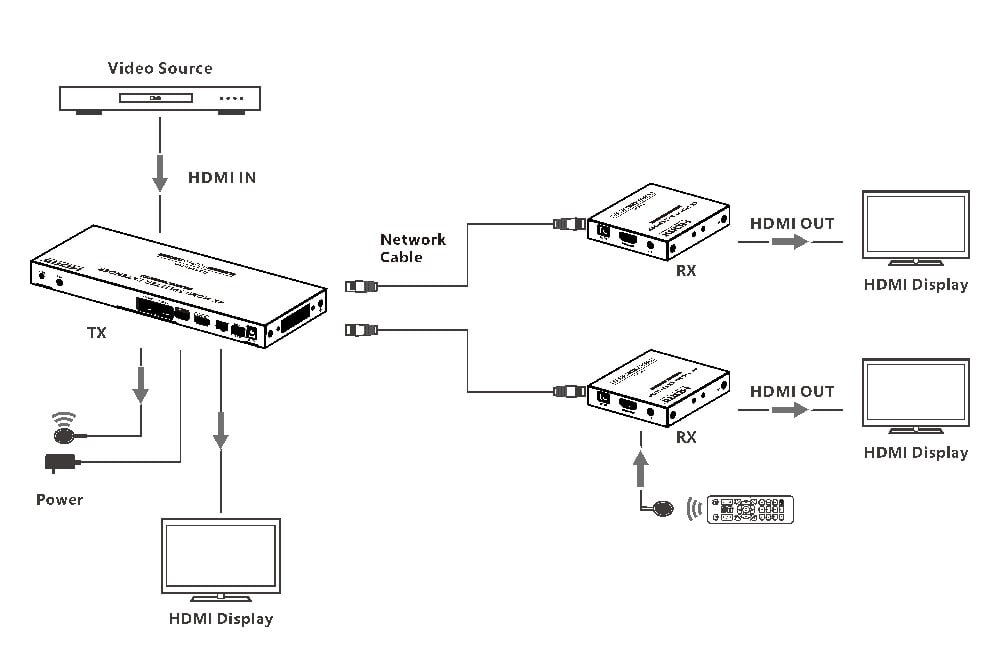

• This HDMI extender/splitter includes a transmitter and two receivers

• Splits and extends 1 HDMI input signal into 2 identical output network signals, reaching a transmission distance of 70 m on a 6 Cat cable

• It is the ideal solution for exhibitions, video conferences and fairs, multimedia classrooms, rail transport, etc.


Features

•

• Transmission at zero latency

• Splits and extends an HDMI input signal to two identical network output signals

• Supports resolution up to 4 K at 60 Hz (maximum supported resolution è of 1920 x 1080)

• Transmission distance up to 70 meters

• Compatible with CAT 6 / 6 A/ 7 network cables

• Support IR passback (20 KHz~ 60 KHz)

• The transmitter supports HDMI loop output

• The receiver supports stereo output from 3,5 mm

• Supports EDID configuration function for setting

• Supports remote control via IR

• Supports control via RS- 232 command

• Protection against electrostatic surges, lightning and discharge (ESD)

• Equipped with rack mounts

• The è transmitter can power the receiver via Cat 6 network cable (PoC function)

• Supports stable operation 24 hours on 24 , 7 days on 7

• Installed to wall


Technical specifications

•

• Modelità distribution 1 IN 2 OUT

• HDMI 2.0 compatible with HDCP 2.2

• Supported resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1280x960, 1280x800, 1280x1024, 1680x1050, 1600x1200, 1600x900, 1024x768, 800x600, 1920x1200, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25/30Hz

• Transmission distance CAT 6 / 6 A/ 7 ≤ 70 m

• Audio formats: 4 K: LPCM/DTS/Dolby Digital 5.1 ; 1080 P: LPCM/DTS/Dolby Digital 5.1 /Dolby Digital plus 7.1

• Supports IR passback function (20 KHz~ 60 KHz)

• RS- 232 3 pin: TxD-RxD-GND, follow the RS- 232 levels

• ESD protection; 1 with 2 contact level discharge; 1 b with 3 air level discharge; standard implementation: IEC 61000 - 4 - 2

• Protection against lightning and overvoltage

• Power supply: TX: DC 12 V/ 1 A

• Power consumption: TX+RX < 9 W

• Material: iron

• Color: black


Environmental features

•

• Operating temperature: - 20 ~ 60 °C

• Storage temperature: - 30 ~ 70 °C

• Humidità (without condensation): 0 ~ 90 % RH


Transmitter Size

•

• Width: 265 mm

• Depthà: 104 mm

• Height: 23 mm

• Weight TX: 670 g


Size Receiver

•

• Width: 85 mm

• Depthà: 75,5 mm

• Height: 16,5 mm

• Weight RX: 145 g


Package contents

•

• 1 x Transmitter

• 2 x Receiver

• 1 x DC power supply 12 V/ 1 A

• 1 x IR Blaster Extension Cable

• 2 x IR extension cable receiver

• 1x User manual

• 1 x Clamper

• 4 x Mounting brackets

• 2 x Mounting brackets

• 16 x Screws

• 4 x Grounding screws
