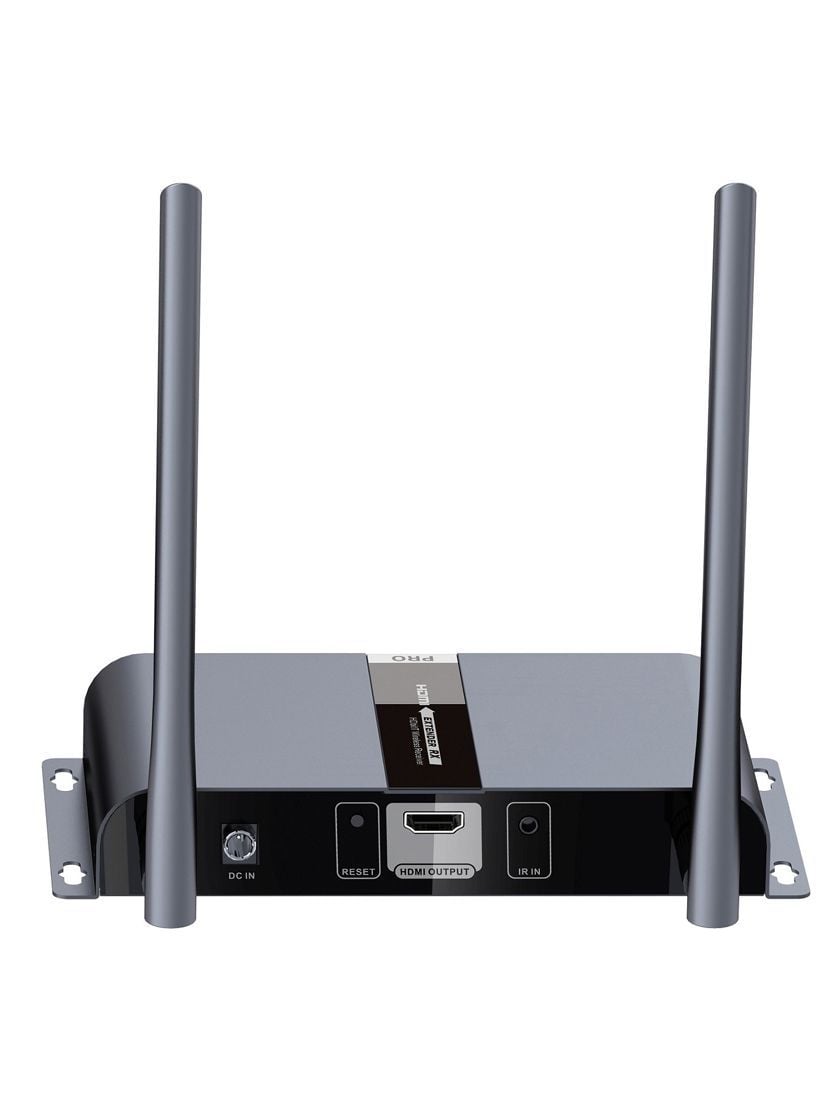

Additional Receiver for HDMI Extender Wireless - Techly NP IDATA HDMI-WL 80 R

Features

• Supports long-range HDMI signal transmission in mode à wireless

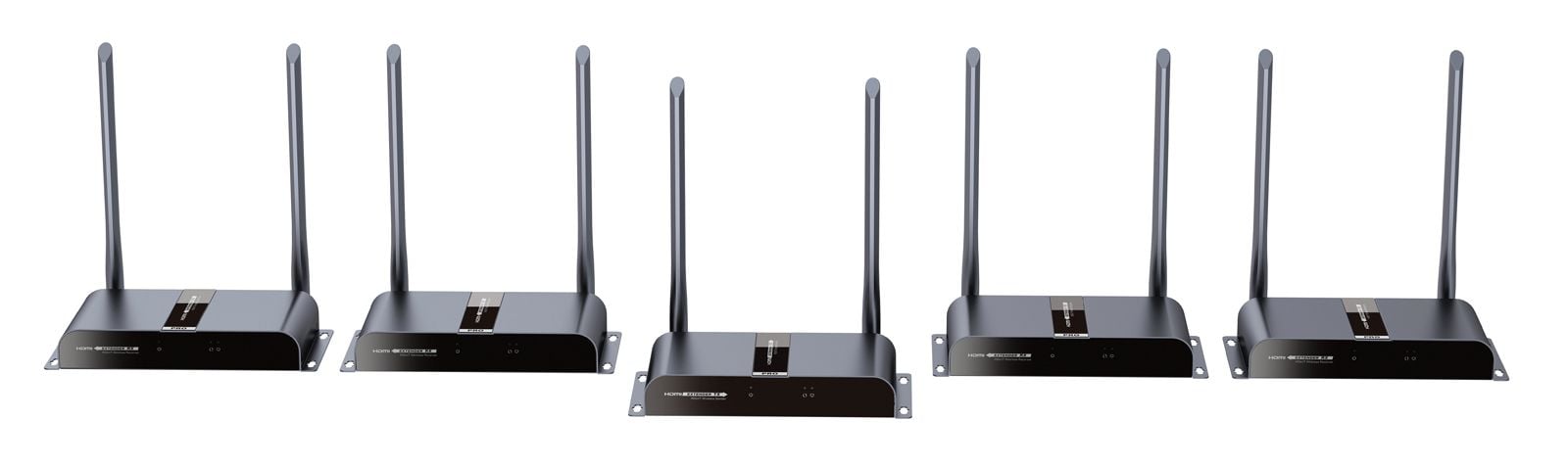

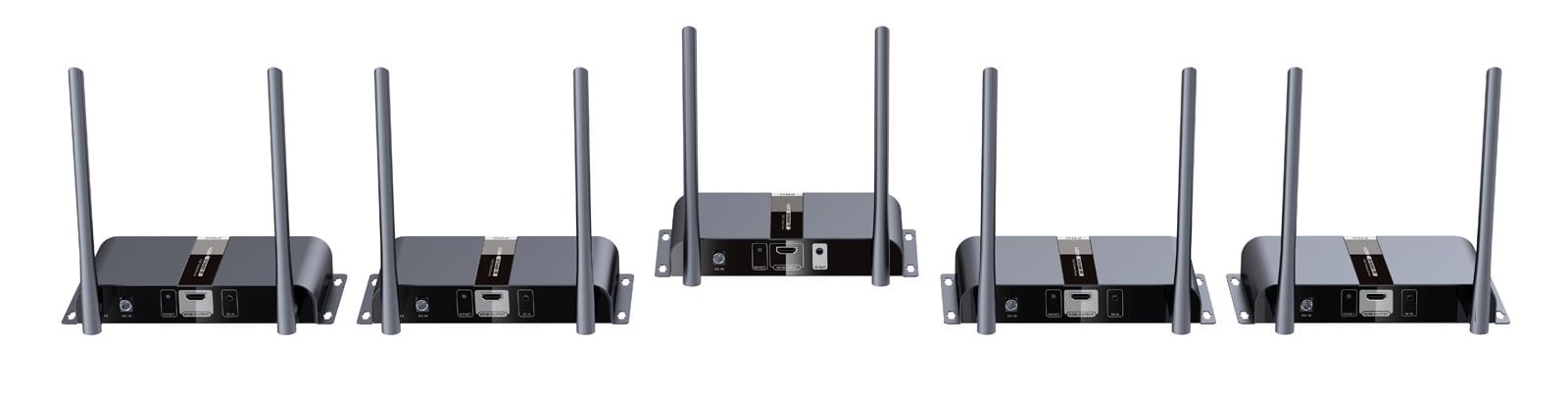

• Supports multi-point connection up to 4 receivers with a transmitter kit + IDATA HDMI-WL 80 receiver


• Full HD 1080 p transmits up to 200 meters away (in the absence of walls and/or obstacles)


• Compatibilityà complete with HDMI and HDCP


• With infrared remote control to control the source device remotely


• Plug and Play, does not require any installation software



HDBITT

HDBIT è a transmission protocol for high definition audio or network video. Compared to traditional technology, it offers more stable performance and sharper imagery.

In addition to the transmission distance and other significant advantages, it can easily meet the demand for high definition in long-distance transmission without the need for any converter.



Plug and Play

Just connect the transmitter to the HDMI port of your device and the receiver to HDTV and you're immediately connected! It doesn't require any software installation. The configuration possibilities and the use of this solution are endless and can't be serious; certainly not missing in the modern digital home!

The wireless transmission kit allows you to control the source media device remotely thanks to the IR support of the receiver. Change channel, pause the movie, adjust the volume... supports any function. Just point your remote control at the receiver and press the button: è so easy!



Technical specifications

• Supports configuration 1 transmitter to 4 receivers


• Transmission protocol: HDBIT


• Supported resolutions: 480 i @ 60 Hz, 480 p @ 60 Hz, 576 i @ 50 Hz, 576 p @ 50 Hz, 720 p @ 50 / 60 Hz, 1080 i @ 50 / 60 Hz, 1080 p @ 50 / 60 Hz


• Frequency: 5 GHZ


• HDCP 1.2 compatible


• Transmission distance: 200 meters to 1080 P 60 Hz


• Remote device 20 ~ 60 kHz IR


• Supports stereo audio L/R


• Velocità transmission: 10.2 Gbps


• Operating temperature: 0 - 60 °C


• Material: metal


• Color: black



Feeding

• DC power supply 5 V / 3 A


• Consumption: 15 W



Dimensions

• Width: 195.27 mm


• Depthà: 138.80 mm


• Height: 30.8 mm



Certifications

• CE


• FCC


• RoHS



Package contents

• 1 x HDMI Receiver


• 1 x IR sensor cable


• 1 x DC power supply 5 V/ 3 A


• 1 x User manual
