Name: HDMI HDBaseT Amplifier Through Ethernet Expansion Kit - Manhattan IDATA EXT-E 38 M
Brand: MANHATTAN
SKU: IDATA EXT-E38M
Price: 211.47 EUR
Availability: InStock

€211.47

Tax included

HDMI HDBaseT expansion kit up to 70 m. Supports 4 K@ 30 Hz to 40 m and 1080 p to 70 m. Audio 7.1 / 5.1 , bidirectional IR, RS 232 and PoC. Plug and play.

Return policy

Delivery policy

Direct contact for info

Secure Payment

Extends the HDMI signal using HDBaseT up to 70 m (230 ft.) between an HDMI source and an HD monitor or projector using an Ethernet cable
Supports uncompressed resolution 4 K@ 30 Hz to 40 m (130 ft.) or 1080 p to 70 m (230 ft.) and 10.2 Gbps given from beginning to end
Supports bandwidth of video amps up to 340 MHz and 3.4 Channel Gbps (10.2 Gbps total) for 4 K display
Supports uncompressed audio format LPCM to 8 channels without signal loss, 7.1 / 5.1 surround sound
Offers broadband and bidirectional IR (Tx) and reception (Rx) transmission cables that facilitate remote control of the signal source or UHD display
Provides RS 232/serial port to connect to an additional control processor and performs simple commands such as turning on a device or changing display resolution, or complex commands such as controlling room lighting
Supports cable power supply (PoC), unità Rx power supply with enhanced unità and vice versa
HDCP compatible
Full compatibiità at the HDCP standard guarantees protection in the transmission of high-definition content and ensures quality reception;
Plug and play
Plug and play - does not require installation or configuration
Compatible with Playstation and Xbox gaming devices, Blu-ray players, set-top boxes, satellite receivers and more
Gold plated contacts
Golden contacts for a long duration of time
For additional capacity à distance, use HDMI cables from 15 m both on the transmitter and on the receiver

Standards and certifications

HDCP 2.2
DVI 1.0
CTS 1.2
CE
FCC
RoHS2

General

Cable Cat 6 4 K up to 40 m
Cat cable 6 1080 p up to 70 m
Cat cable 6 720 p up to 100 m
Cat cable 6 480 p up to 100 m
Cat cable 5 and 4 K up to 20 m
Cat cable 5 and 1080 p up to 40 m
Cat cable 5 and 720 p up to 70 m
Cat cable 5 and 480 p up to 100 m
Power: 24 VDC / 1 A; cable, 1.4 m

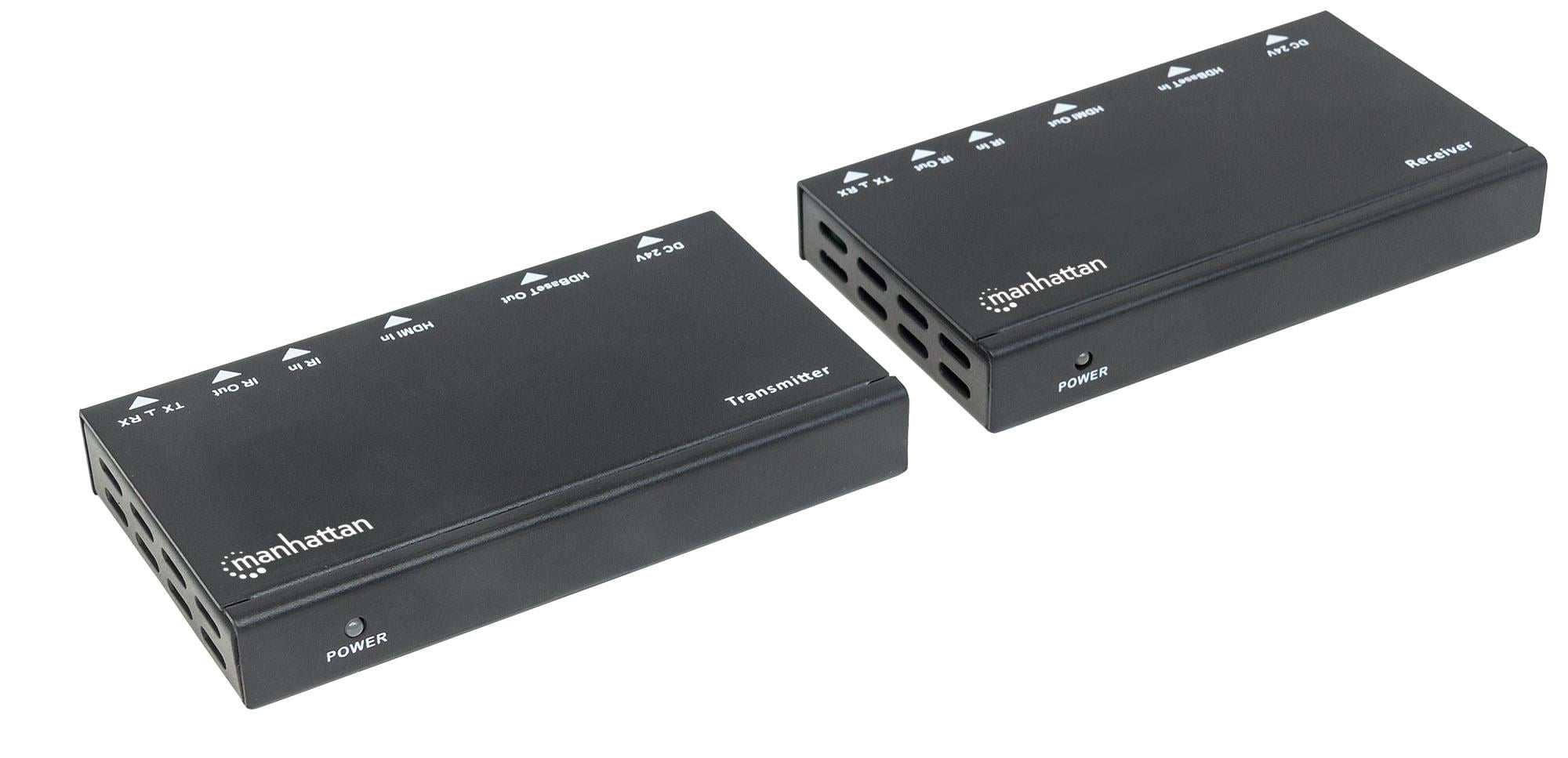

LED indicator (on: active connection; flashing: poor connection/HDCP inactive; off: no connection)
Velocità baud transmission up to 115 Kbps

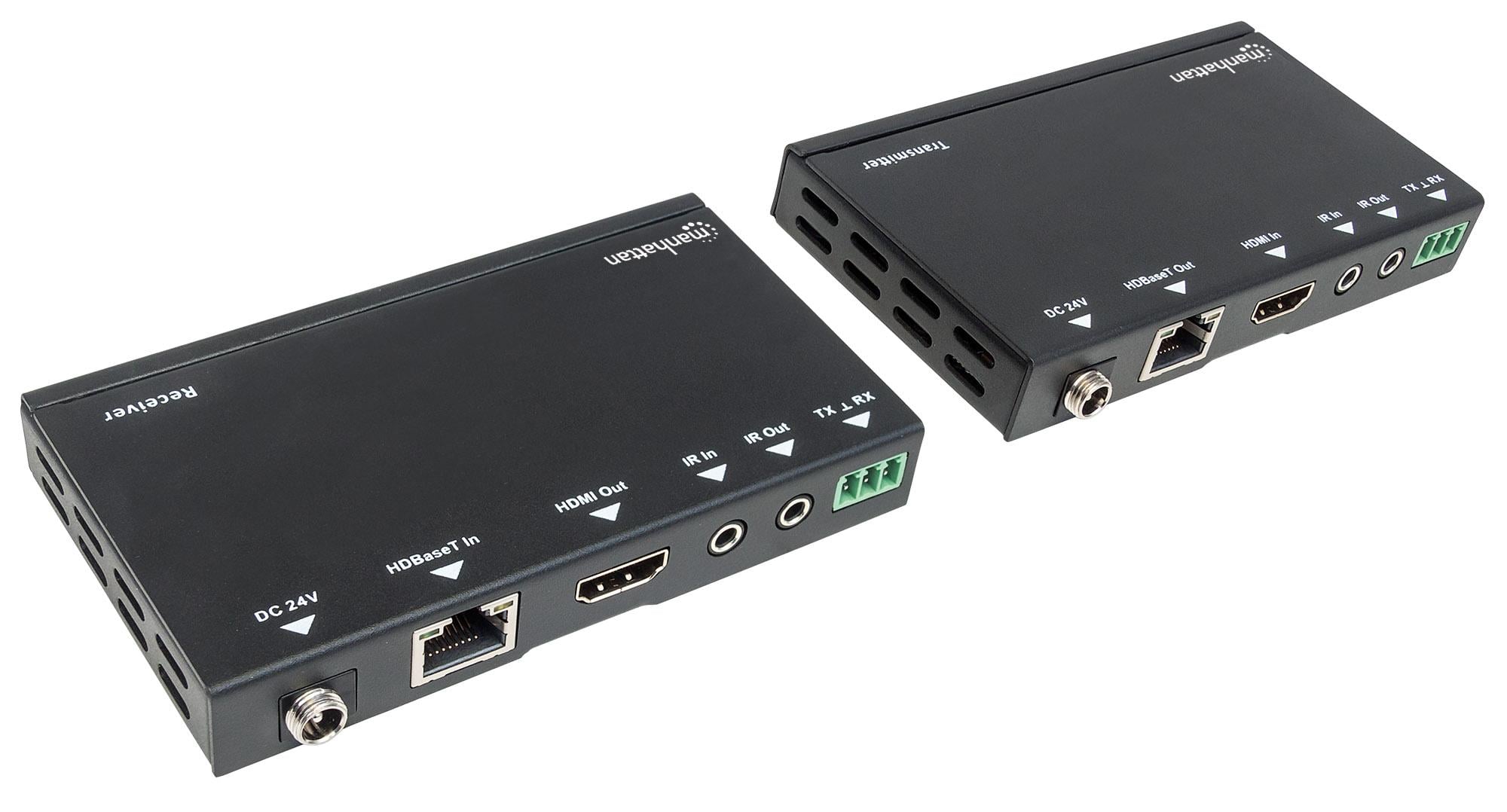

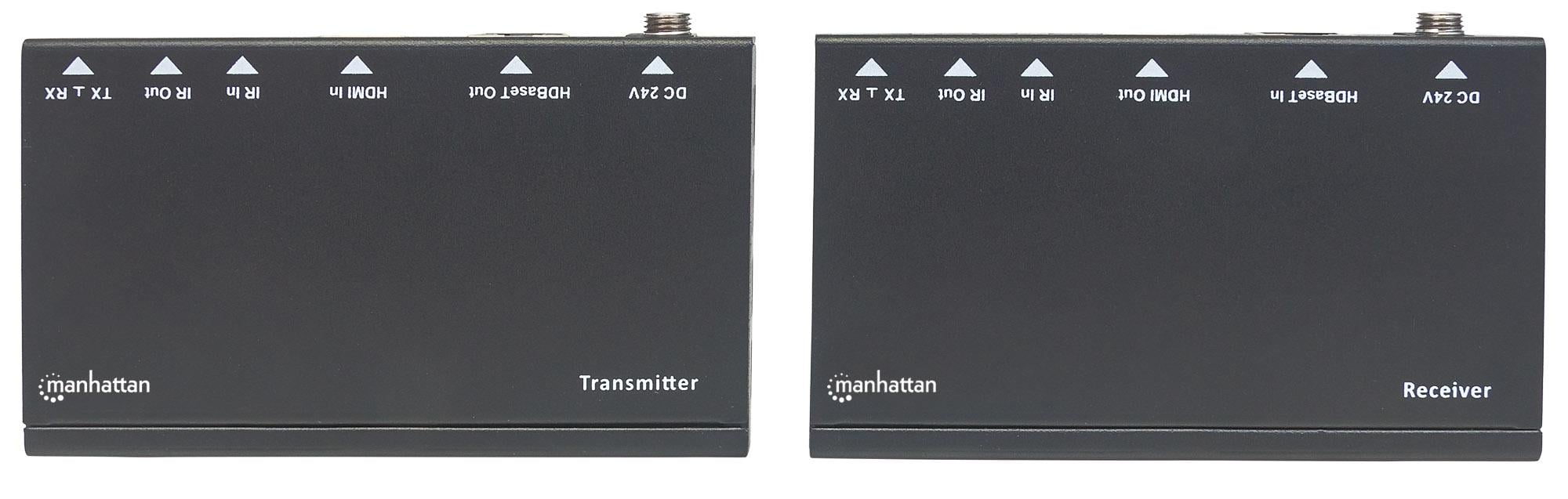

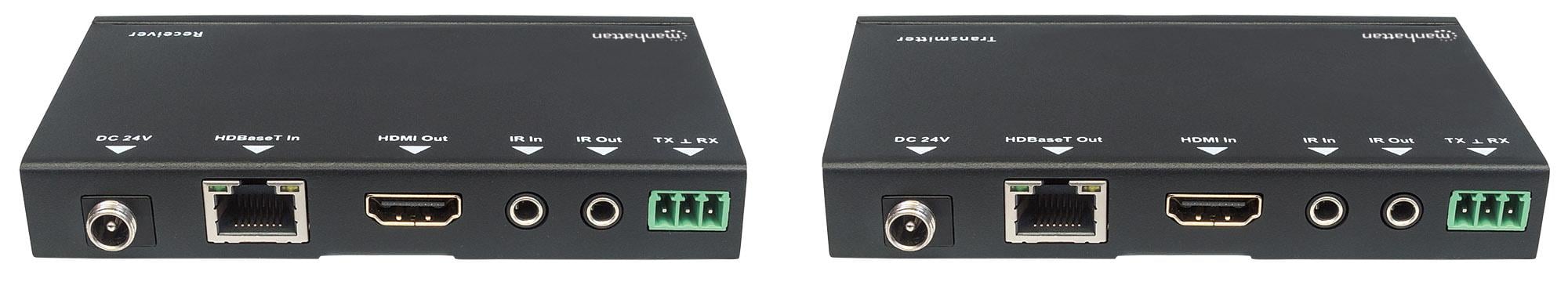

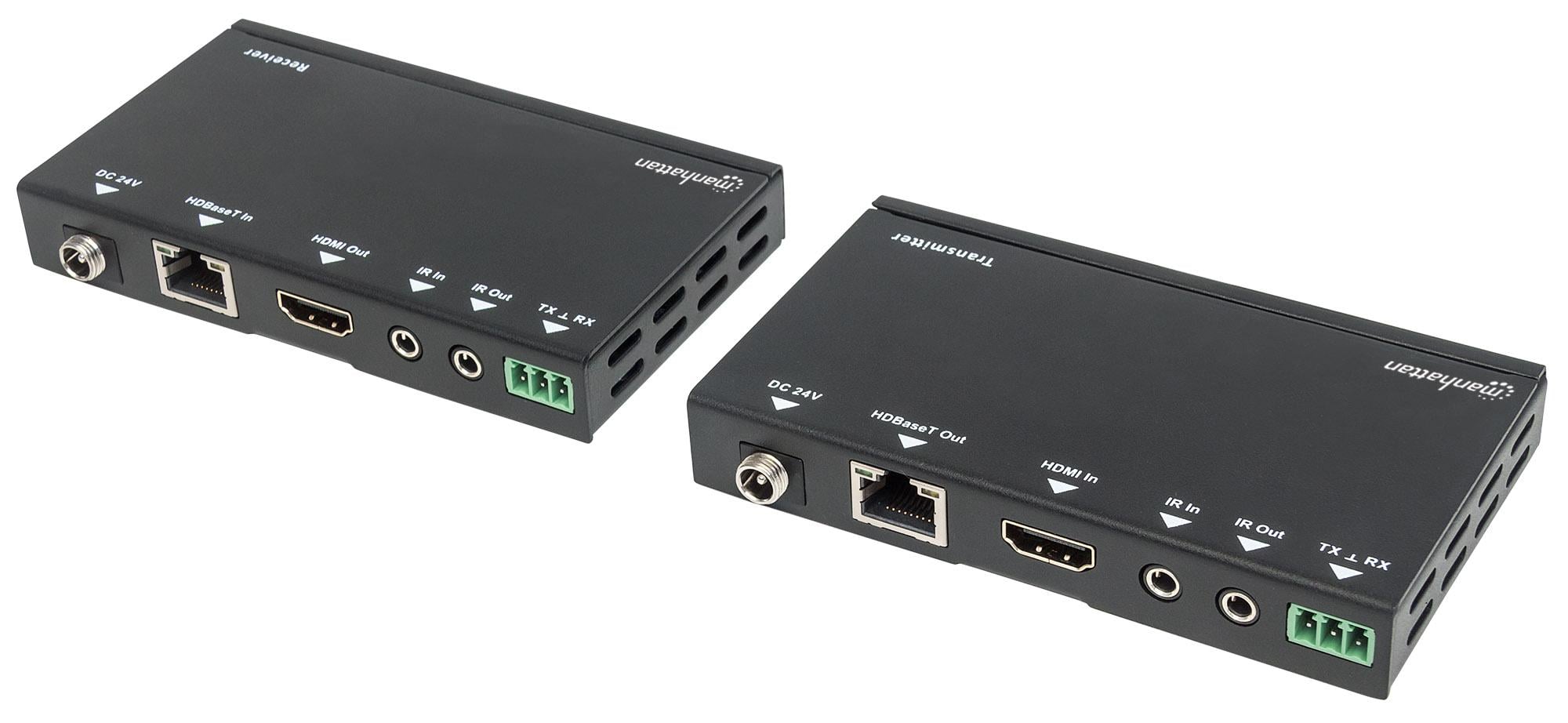

Connections

A female HDMI (transmitter/receiver)
A female RJ 45 (transmitter/receiver)
One female feeding 5 VDC (transmitter/receiver)

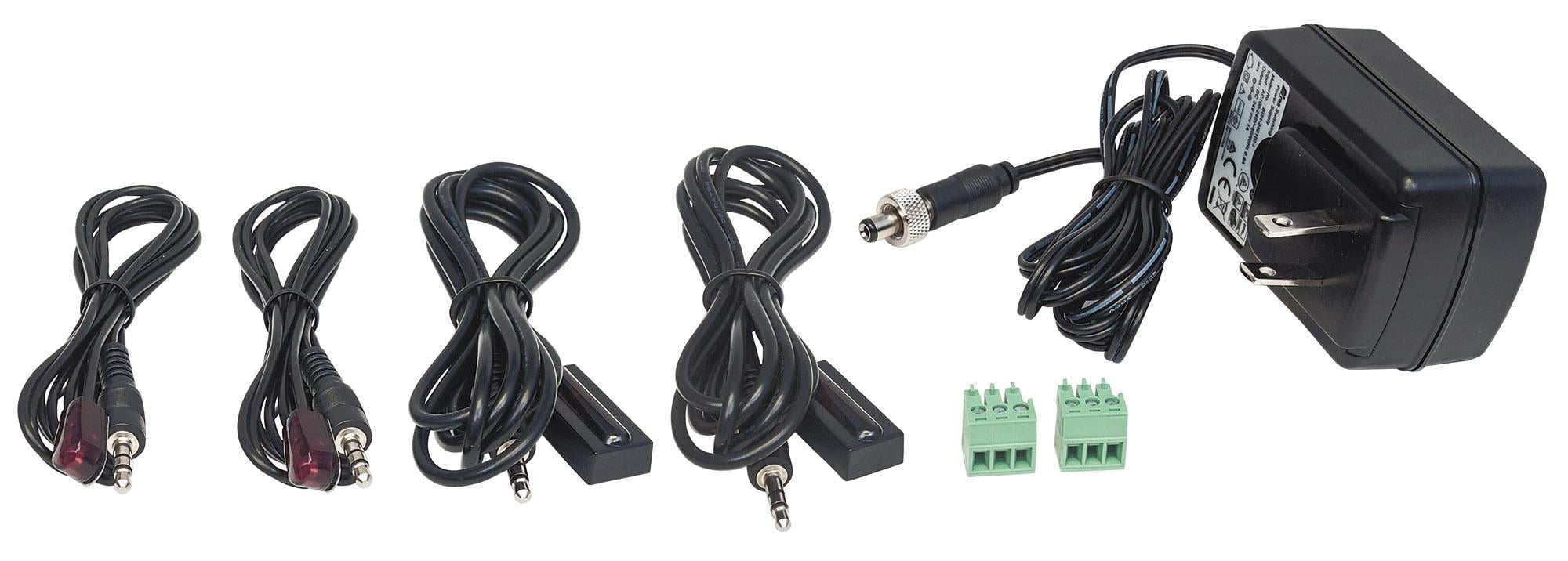

Two IR females from 3.5 mm (transmitter/receiver)
A female Phoenix to 3 poles for RS 232 / Serial control (transmitter/receiver)

Input/Exit Signal

Video signal input: 0.5 – 1.0 V p-p
Incoming DDC signal: 5 V p-p (TTL)
Maximum capacity from one connection: 3840 x 2160 p at 30 Hz, 4096 x 2160 p at 24 Hz and 4 K
Video output: HDCP 2.2 , DVI 1.0
Frequency: 3.40 Gbps / 340 MHz
