Extender HDMI KVM Over IP 1080 p up to 120 m - Manhattan IDATA HDMI-KVM 120 M 2

€157.69
Tax included €129.30 excl. VAT

Kit extender HDMI KVM Manhattan, extends HDMI and USB signals to 120 m via Cat 6 or unlimited via IP. Resolution 1080 p@ 60 Hz, audio support 7.1, HDCP 1.4. Metal housing with mounting brackets.



Return policy



Delivery policy



Direct contact for info



Secure Payment

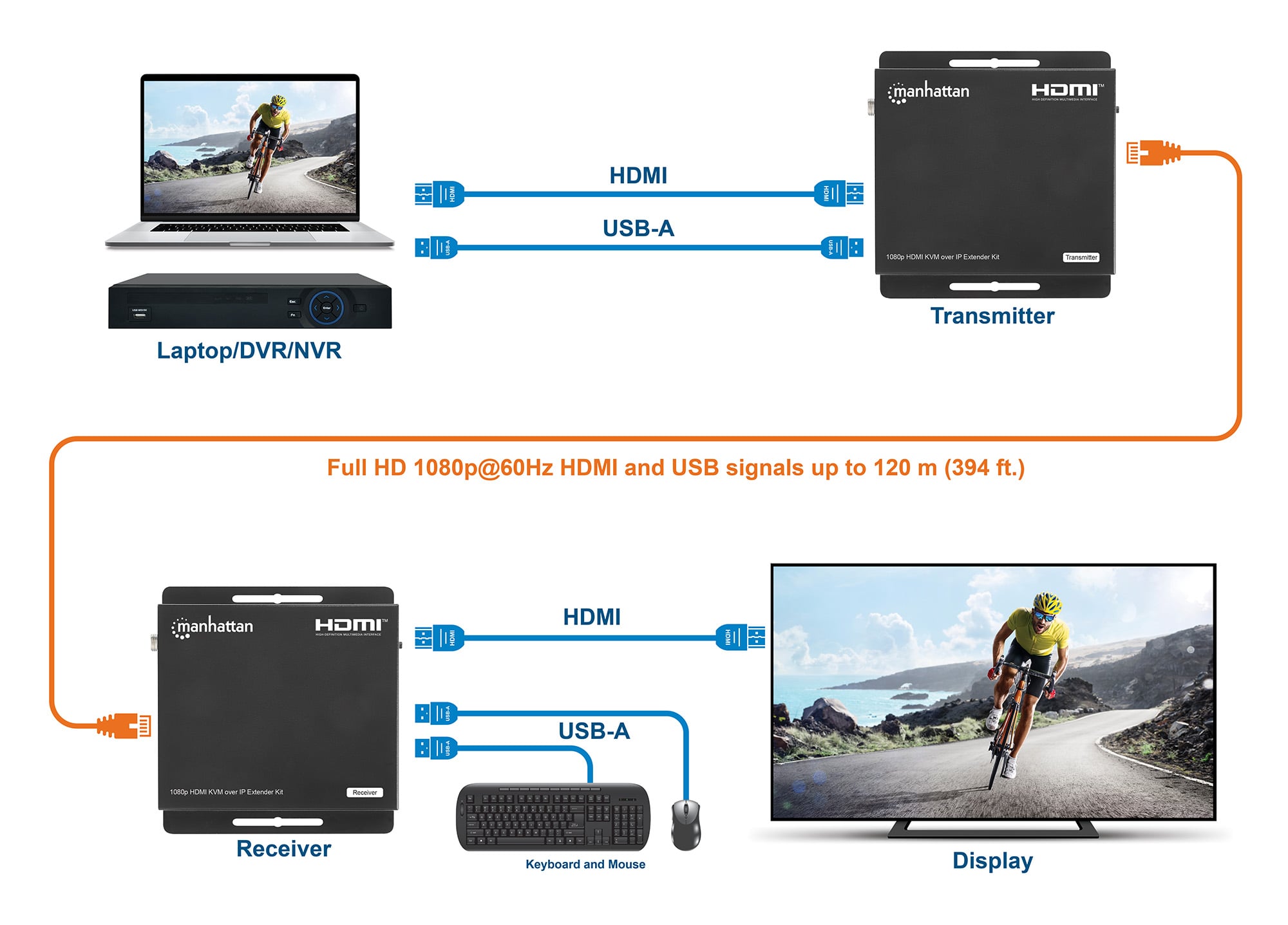

  • Remotely control a computer equipped with HDMI and USB-A from a monitor, keyboard and local mouse
  • Extends HDMI and USB signals up to 120 m via a single Cat 6 network cable or an unlimited range via an IP enabled network
  • Resolution up to full HD 1080 p@ 60 Hz (1920 x 1080 )
  • Ideal for POS systems in stores or digital cases with touchscreen
  • Reset key on both drives; to adjust the signal to cable length
  • Plug and play - does not require installation and configuration software
  • Supports video 3 D
  • Work with existing network infrastructure via TCP/IP
  • Supports 8 LPCM uncompressed audio formatting without loss and surround 7.1 sound
  • Robust metal housing for long life
  • Built-in mounting brackets for a clean wall and ceiling installation
  • HDMI, USB-A and network cables not included, available separately
  • For longer distances, use an HDMI High Speed cable with Ethernet from 15 m for both the transmitter and receiver
  • Works independently of computer operating systems
  • Fully compliant HDCP 1.4 , backcompatible with previous standards


Standards and certifications

  • CE
  • FCC
  • RoHS
  • REACH
  • UKCA
  • HDMI 1.3
  • HDCP 1.4
  • USB 1.1


General

  • Supported resolutions: 480 p/ 720 p/ 1080 i/ 1080 p (We recommend a Cat 6 or higher network cable to get maximum distance and transmission)
  • Maximum video bandwidth: 1.65 Gbps/ 165 MHz per channel (4.95 Gbps for all channels)

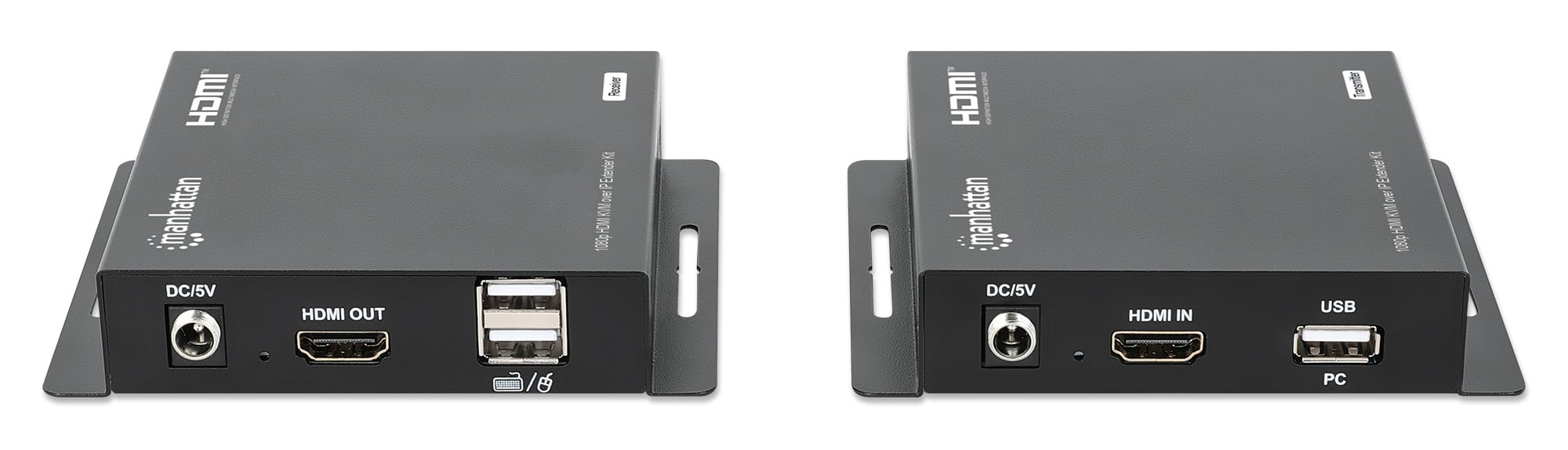

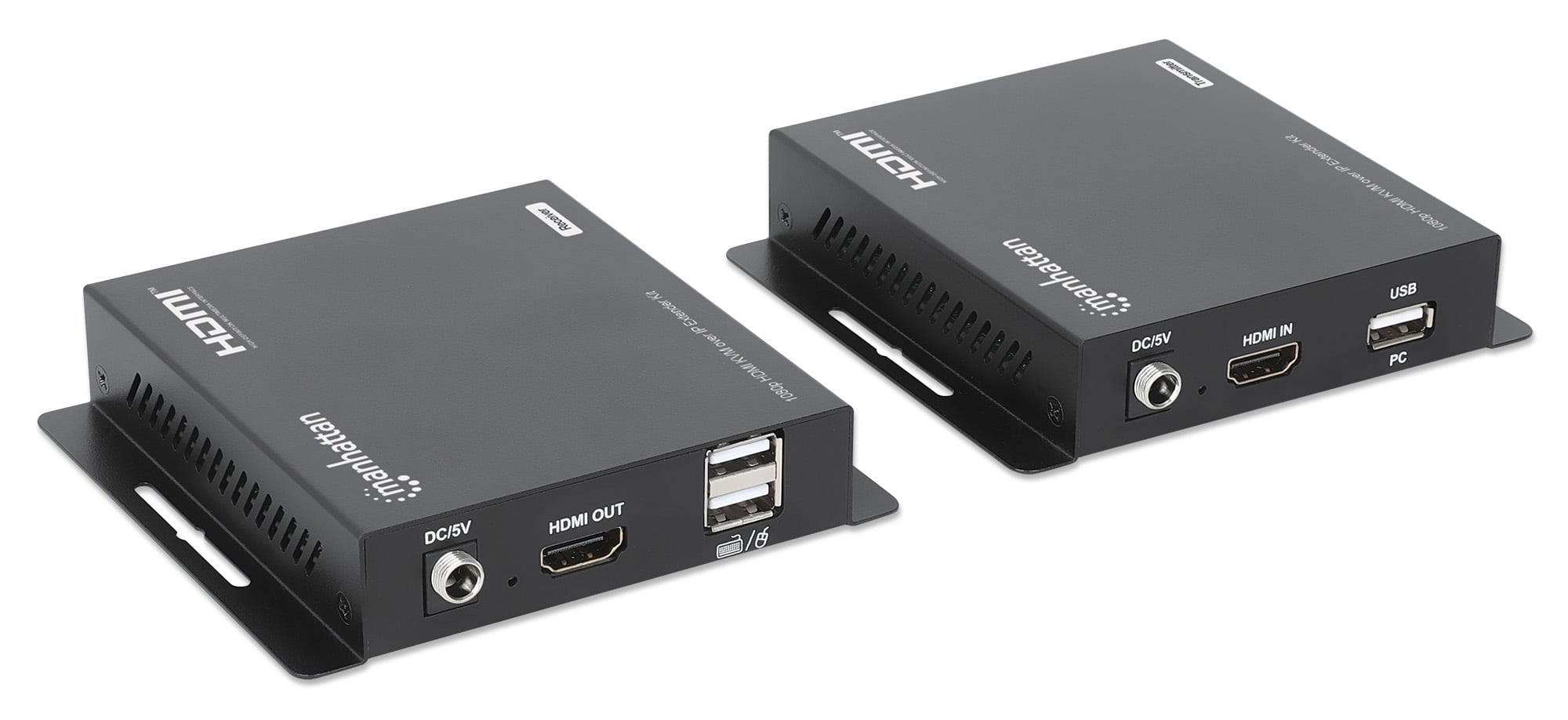

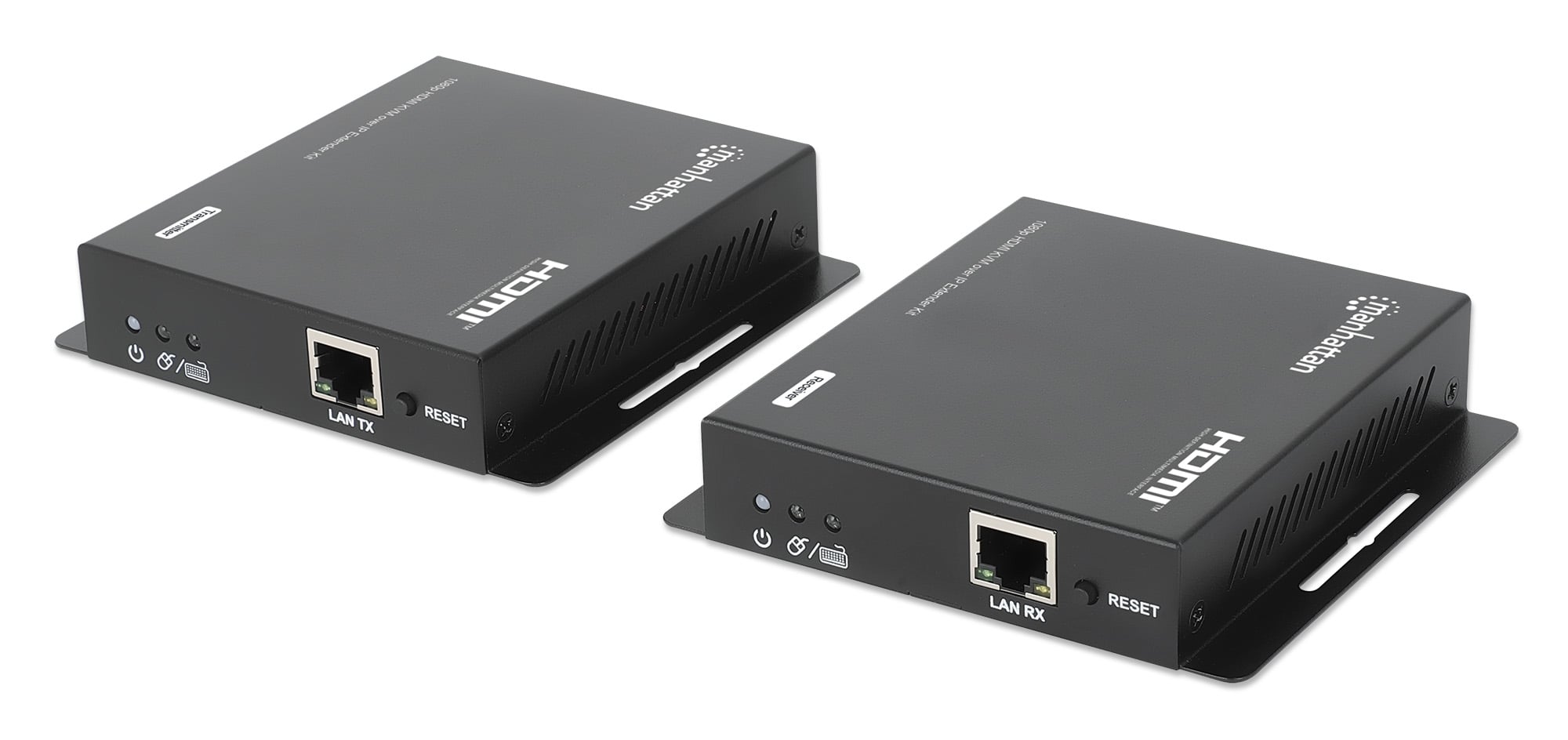

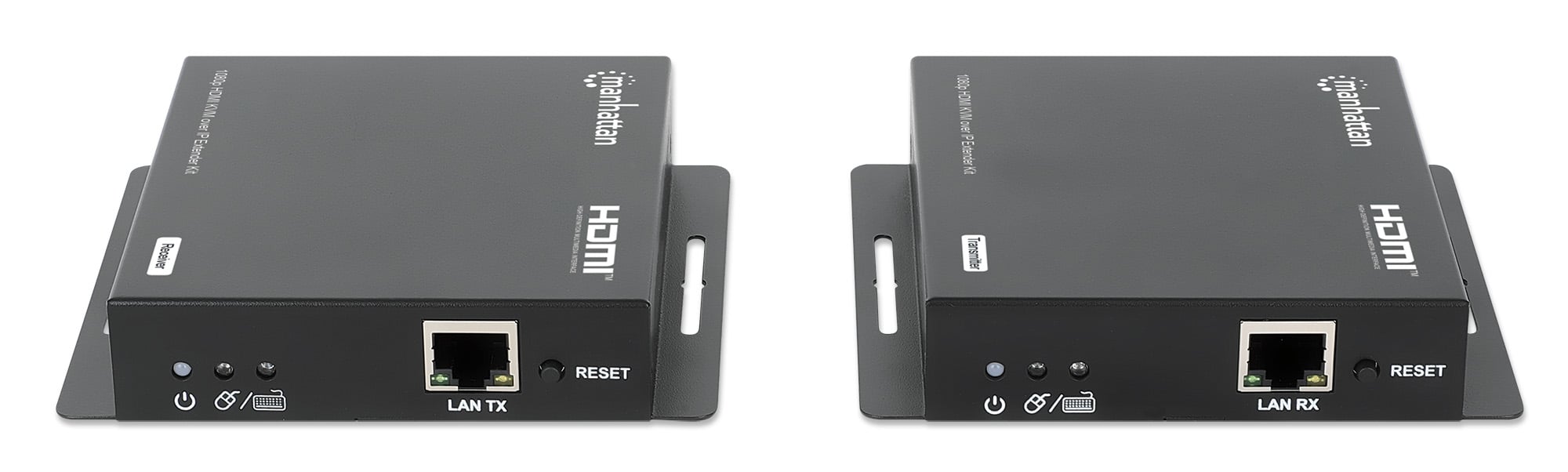

Connections/keys

  • Receiver

- 1 x HDMI female 19 -pin

- 2 x USB-A female 4 -pin (for mouse and keyboard)

- 1 x DC input 5.0 V

- 1 x RJ 45 female

- Reset key

- Switch USB key

  • Transmitter

- 1 x HDMI female 19 -pin

- 1 x USB-A female 4 -pin (for computer)

- 1 x DC input 5.0 V

- 1 x RJ 45 female

- Reset key



LED

  • Feeding
  • Activityà/connection
  • USB Connections


Electrical information

  • Two DC power supplies, cables from 1,2 m

- Input: 100.0 - 240.0 VAC, 50 - 60 Hz; 0.4 A

- Output: 5.0 VDC; 1.0 A

  • Maximum power consumption: 3.5 W (transmitter) / 2.0 W (receiver)


Physical information

  • Dimensions per module (L x P x A): 112 x 104 x 23 mm
  • Net weight: 430 g
  • Gross weight: 840 g
  • Housing: metal


Environmental information

  • Operating temperature: from 0 to 50 °C
  • Storage temperature: - 20 to 60 °C
  • Humidità (without condensation): 5 - 90 %

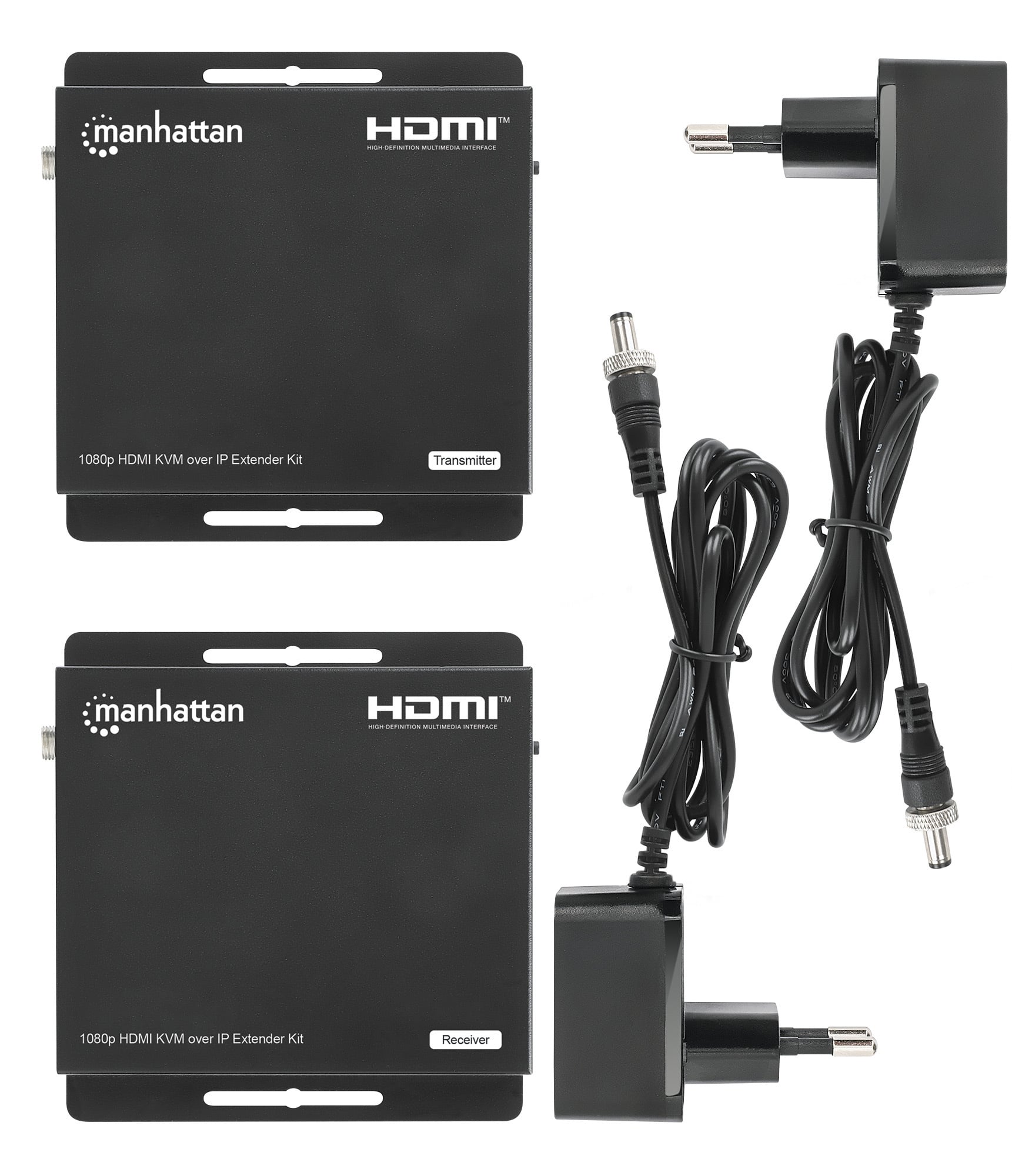

Package contents

  • Extender HDMI Kit KVM Over IP 1080 p
  • Two DC power supplies, cables from 1,2 m
  • User manual

  • Brand
  • Reference
    IDATA HDMI-KVM120M2
  • EAN13
    0766623208413
