Extender HDMI Over Ethernet Kit 4 K@ 60 Hz - Manhattan IDATA EXT-E 704 K 60

€136.34
Tax included €111.80 excl. VAT

Manhattan HDMI extender extending signal up to 70 m via Cat 6 with 4 resolution K@ 60 Hz. Supports HDR, PoC, IR, 18 Gbps and local loop-out.



Return policy



Delivery policy



Direct contact for info



Secure Payment

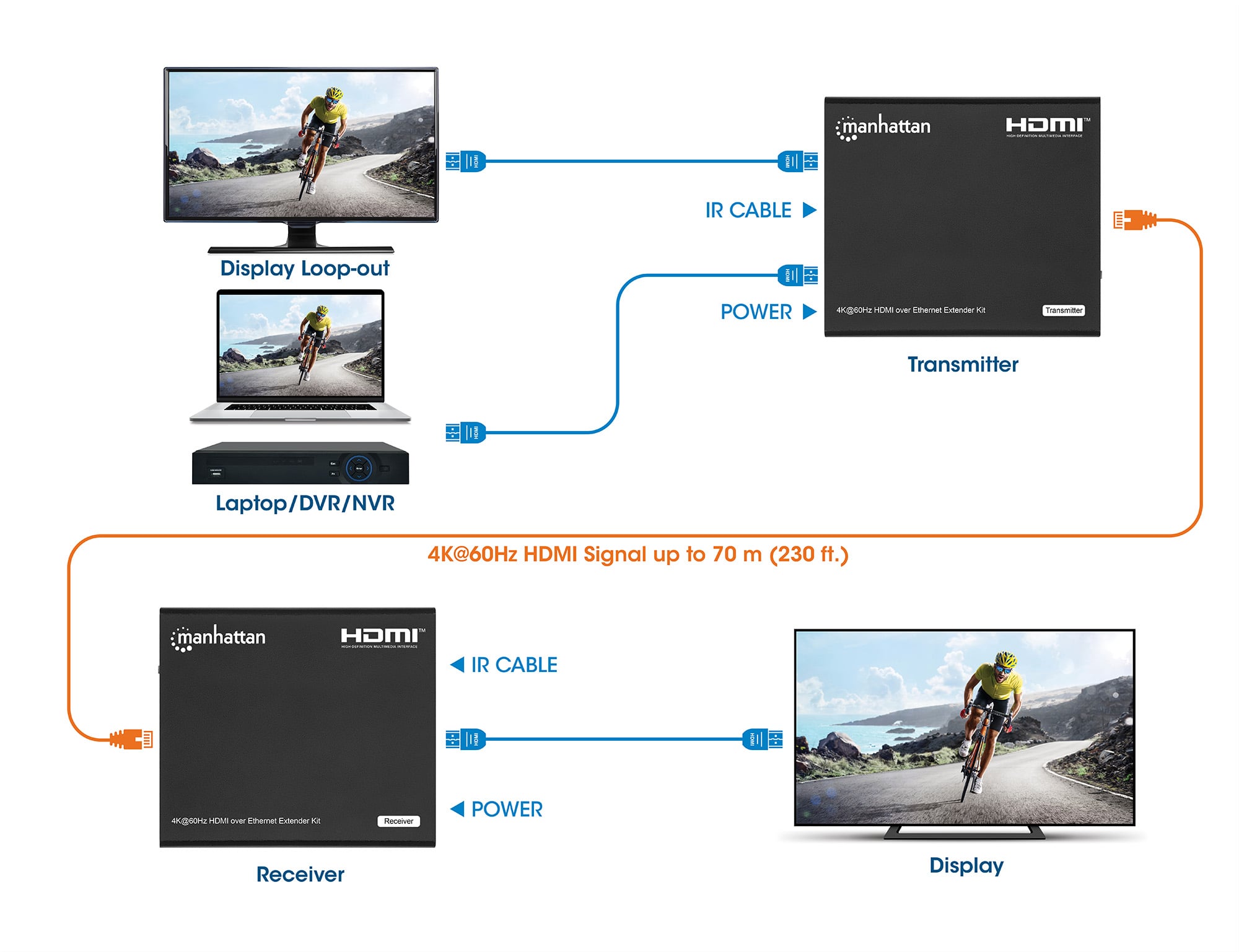

  • Extends an HDMI signal up to 70 m from an HDMI source to a screen using a single Cat 6 network cable

  • Supports resolution up to Ultra-High-Definititon (UHD) 4 K@ 60 Hz (3840 x 2160)

  • Power over Cable (PoC) technology feeds both the transmitter (Tx) and the receiver (Rx) through a single power supply

  • High Dynamic Range (HDR) for superior contrast and bright colors

  • 4 : 4 : 4 chrominance subsampling

  • Up to 18 Gbps total bandwidth with 6 Gbps per channel at 600 MHz

  • Fully back compatible with 4 K@ 30 Hz and 1080 p screens

  • HDMI local port on the transmitter to connect a screen next to the source for a simpler configuration

  • Includes infrared blaster (IR) and receiver for remote source control

  • 36 -bit Deep Color (12 bits per channel)

  • Supports video 3 D

  • Supports DTS-HD Master Compressed Audio, LPCM 8 audio uncompressed channels (7.1 surround sound) and Dolby TrueHD as well as audio 32 channels

  • Compatible with every HDMI device - TV, projectors, monitors, laptops, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS 4 /PS 5), Xbox® (One/Series S/Series X), Blu-ray players and much more

  • Reset key on both drives; to adjust the signal to cable length

  • Plug and play - does not require installation and configuration software

  • Golden contacts for anticorrosion connections

  • Robust metal housing for long life

  • Includes mounting brackets for wall or ceiling installation

  • Fully compatible HDCP 2.3 , compatible with previous versions

  • Supports EDID and HDCP bypass

  • For longer distances, use a Manhattan HDMI High Speed cable with Ethernet from 15 m for both the transmitter and receiver

  • HDMI cables and Ethernet cable not included, available separately on Manhattan and Intellinet Network Solutions



Standards and certifications

  • HDMI 2.0

  • HDCP 2.3

  • CE

  • FCC

  • RoHS

  • REACH

  • UKCA



General information

  • Supported resolutions: 480 p/ 576 i/ 720 p/ 1080 i/ 1080 p/ 4 K@ 30 Hz/ 4 K@ 60 Hz (Cat 6 or higher category network cable è recommended for better distance and resolution)

  • Maximum video bandwidth: 18 Gbps / 600 MHz



Connections/keys

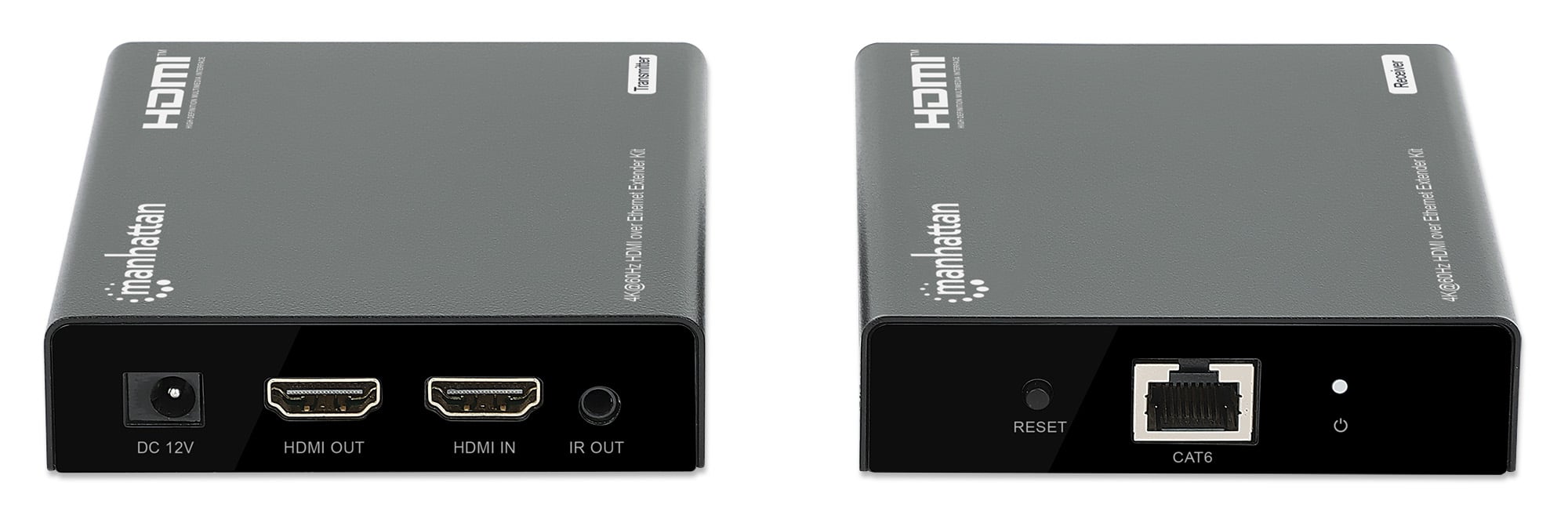

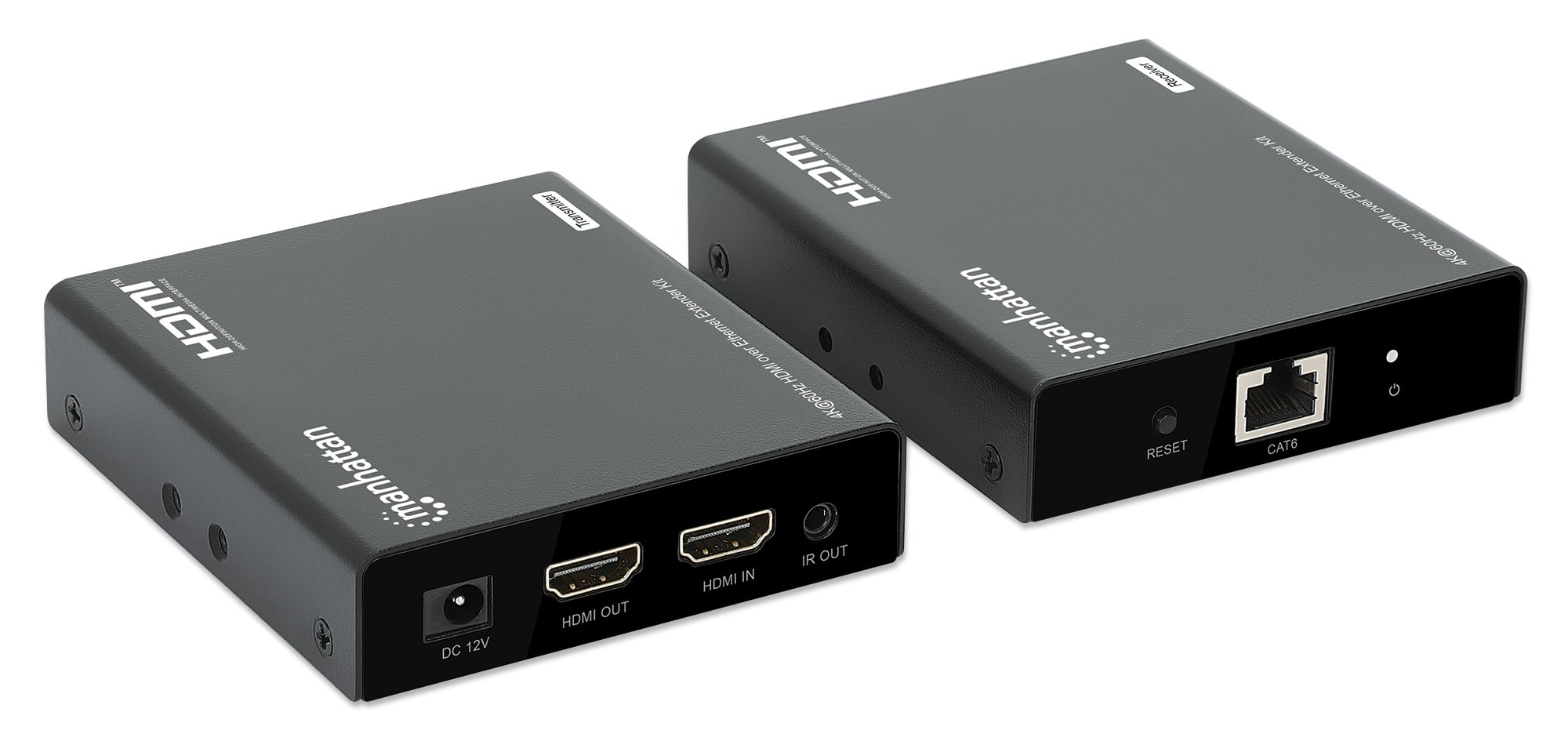

  • Transmitter


- 2 x HDMI female 19 -pin (one for local monitor)

- 1 x DC input 12.0 V

- 1 x RJ 45 female

- 1 x 3.5 mm IR female

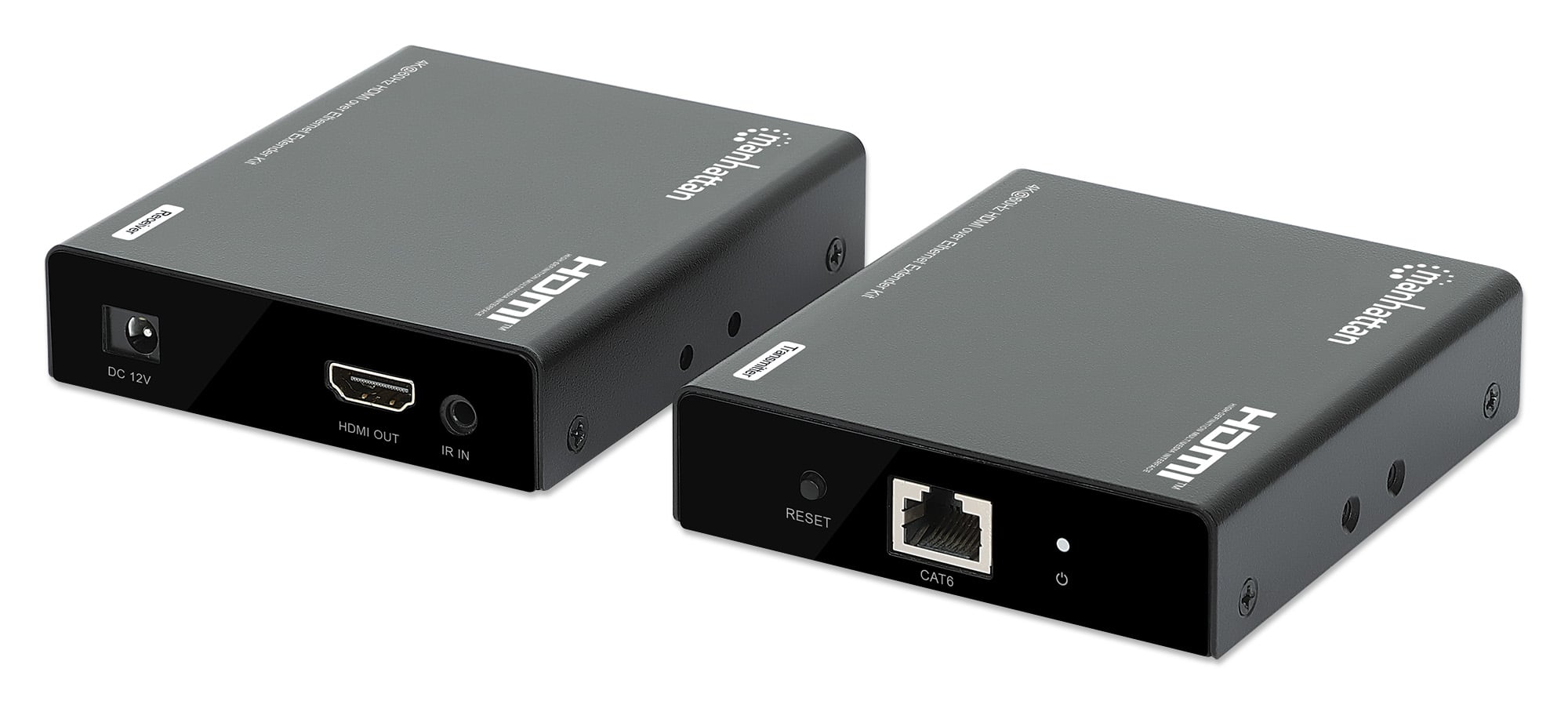

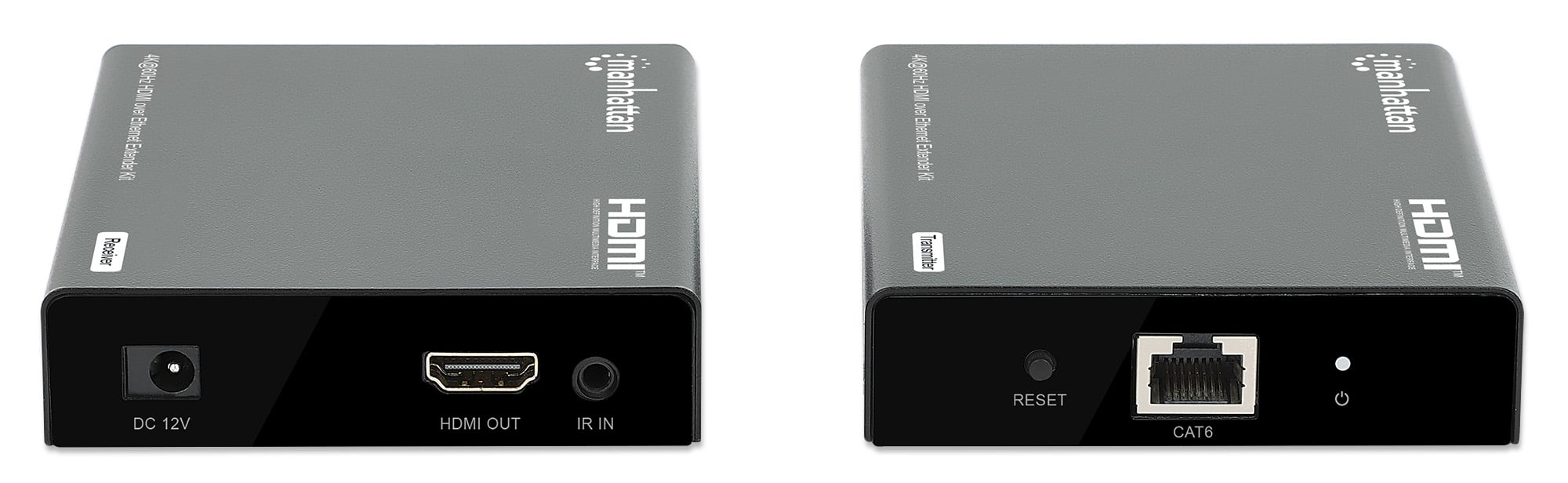

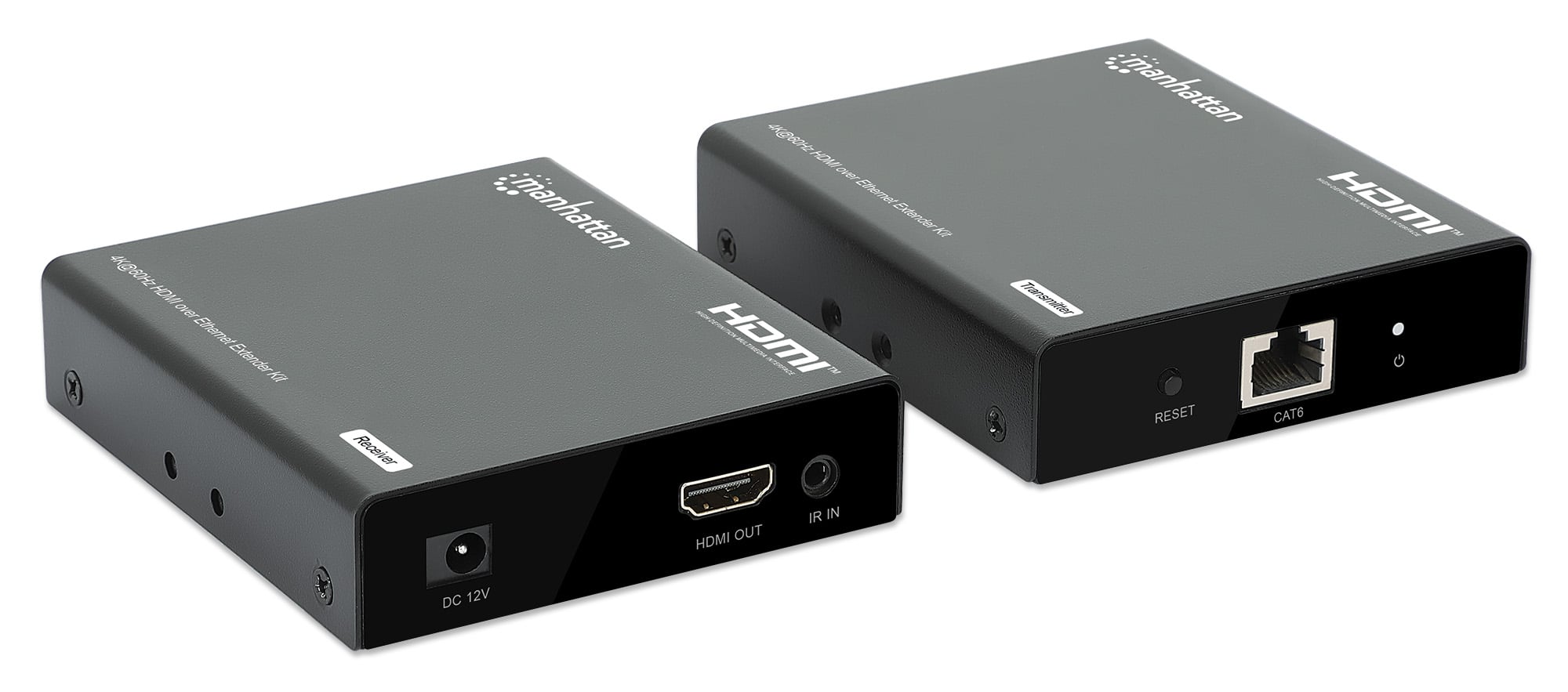

  • Receiver


- 1 x HDMI female 19 -pin

- 1 x RJ 45 female

- 1 x 3.5 mm IR female

- 1 x DC input 12.0 V



Electrical information

  • One DC power supply, cable 1.2 m


- Input: 100.0 - 240.0 VAC, 50 - 60 Hz

- Output: 12.0 VDC; 1.0 A

  • Maximum consumption: 1.3 W (transmitter) / 1.6 W (receiver)



Physical information

  • Dimensions (P x L x A): 100 x 88 x 23 mm

  • Net weight: 400 g

  • Gross weight: 750 g

  • Housing: metal



Environmental information

  • Operating temperature: from 0 to 70 °C

  • Storage temperature: - 20 to 80 °C

  • Humidità (without condensation): 5 - 90 %

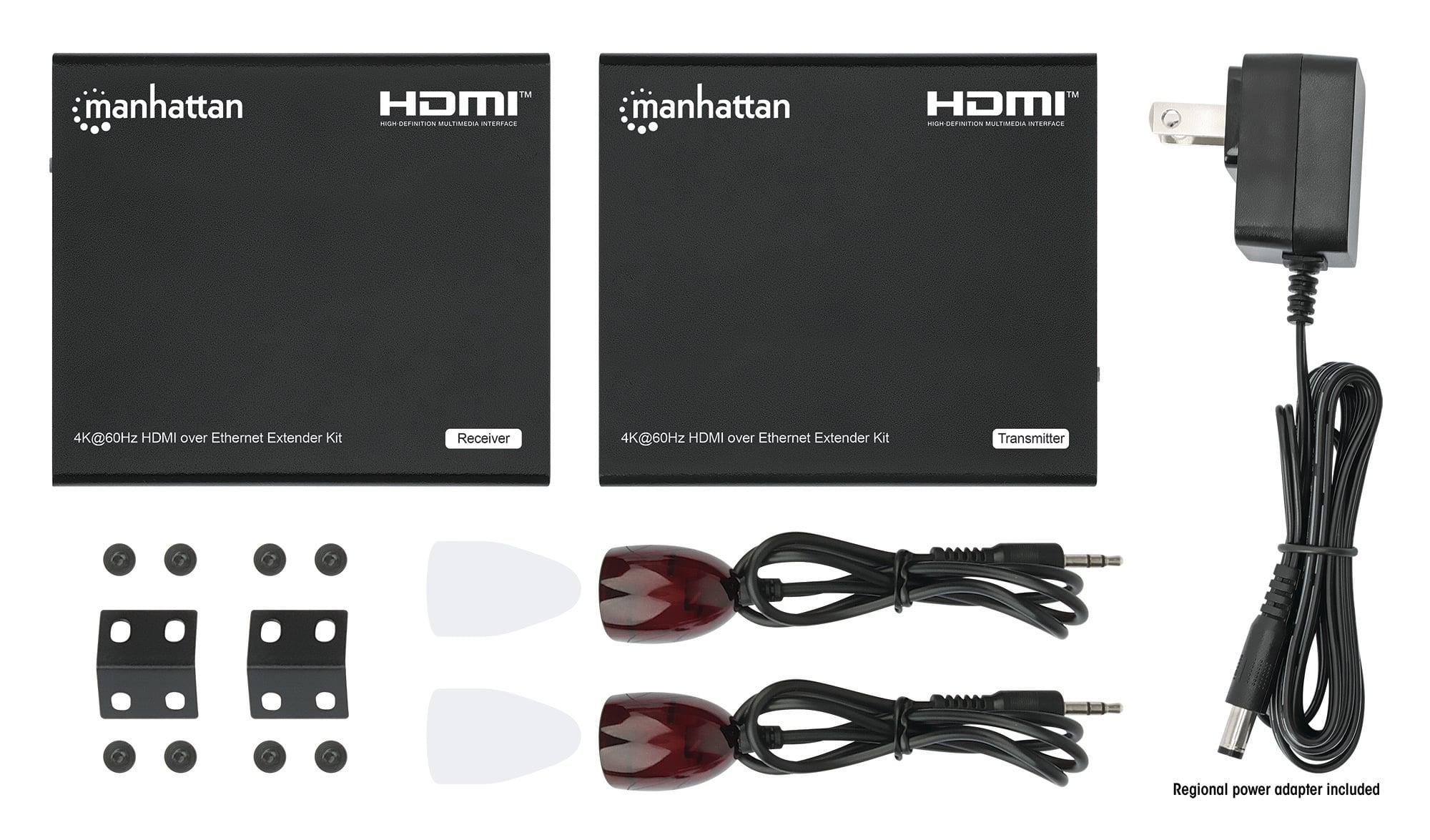

Package contents

  • Extender HDMI Over Ethernet Kit 4 K@ 60 Hz

  • One DC power supply, cable 1.2 m

  • Two IR connection cables, 1.2 m

  • Instructions



This product is part of a complete range, below is the full list of variants:

  • IDATA EXT-E 704 K 60 - HDMI over Ethernet Extender Kit 4 K@ 60 Hz up to 70 m

  • IDATA EXT-E 404 KM - HDMI over Ethernet Extender Kit 4 K@ 30 Hz up to 40 m

  • IDATA EXT-E 70 SMH - HDMI over Ethernet Extender Kit 1080 p@ 60 Hz up to 60 m

  • Brand
  • Reference
    IDATA EXT-E704K60
  • In stock
    9 Items
  • EAN13
    0766623207980
