Name: Switch Multiviewer HDMI 4 K@ 30 Hz 4 x 1 Black - Manhattan IDATA HDMI- 41 MV 4 K
Brand: MANHATTAN
SKU: IDATA HDMI-41MV4K
Price: 109.48 EUR
Availability: InStock

€109.48

Tax included

Multiviewer HDMI 4 x 1 with resolution up to 4 K@ 30 Hz and 6 display mode (dual, quad, PiP). Supports audio 7.1 and Deep Color 36 -bit.

Return policy

Delivery policy

Direct contact for info

Secure Payment

Share up to four HDMI audio/video source signals on a single HDMI output display with more ù view options

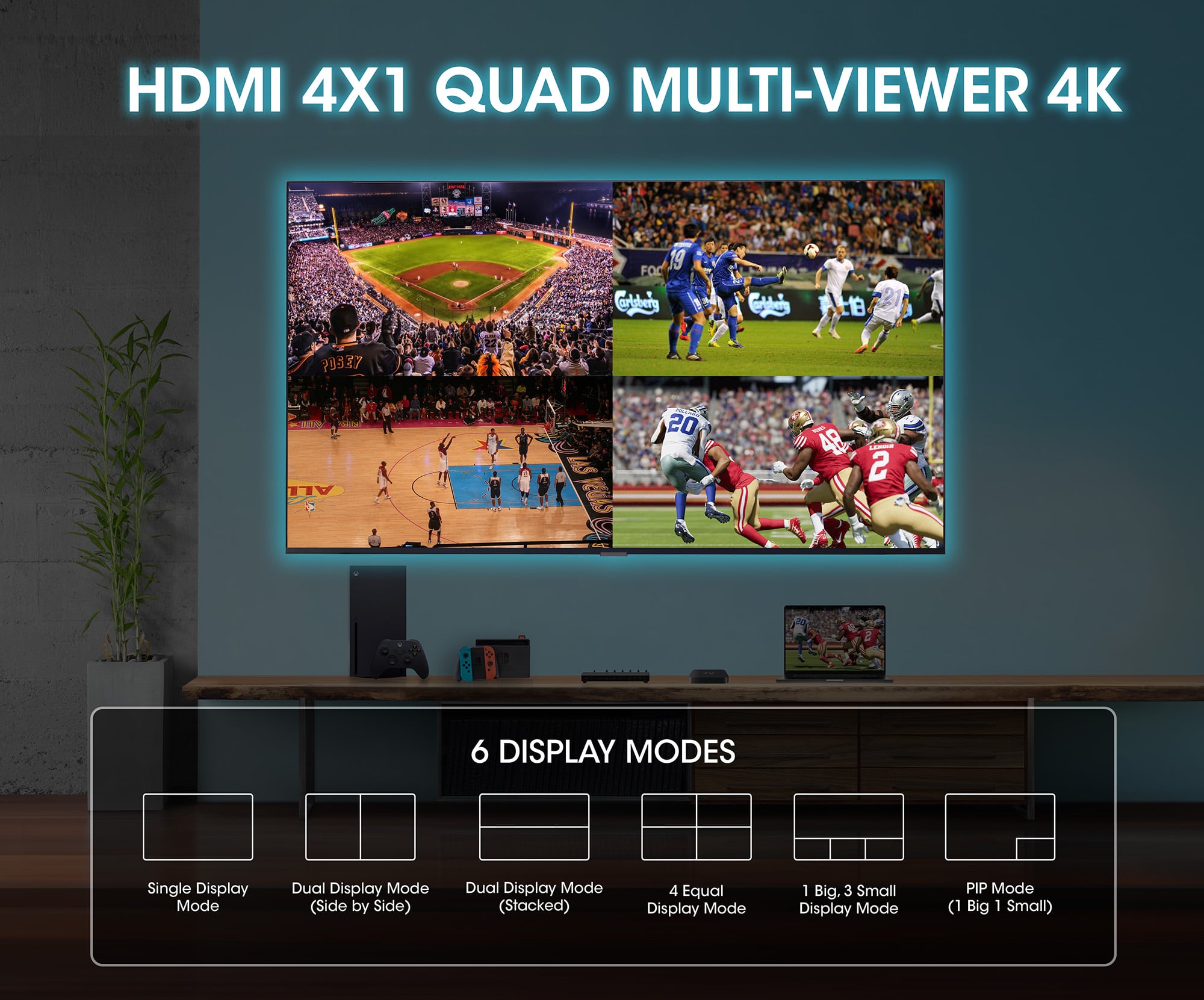

You are visualization mode, including double mode (by side or stacked), quadruple mode (B4 equal size or 1 large with small 3) and picture-in-picture mode (PIP)
Resolution up to 4 K@ 30 Hz (3840 x 2160) Ultra-High-definition/UHD)
Scale button to adjust any input signal in 4 K, 1600 p or 1080 p for configurations without problems of old and new displays
Ideal for digital signage (reduction of space and costs needed for more ù display), conference rooms (when sharing ideas and data) and to watch more ù sporting events at the same time
Supports immediate and uninterrupted switching between HDMI sources
Independent selection of audio source for combined video sources at any time
Supports 36 -bit Deep Color (12 -bit per channel), 4: 4 : 4 subsampling of chromance
Supports 8 LPCM uncompressed audio formatting without loss and surround 7.1 sound
Up to 10.2 Gbps at 340 MHz bandwidth
Supports video 3 D

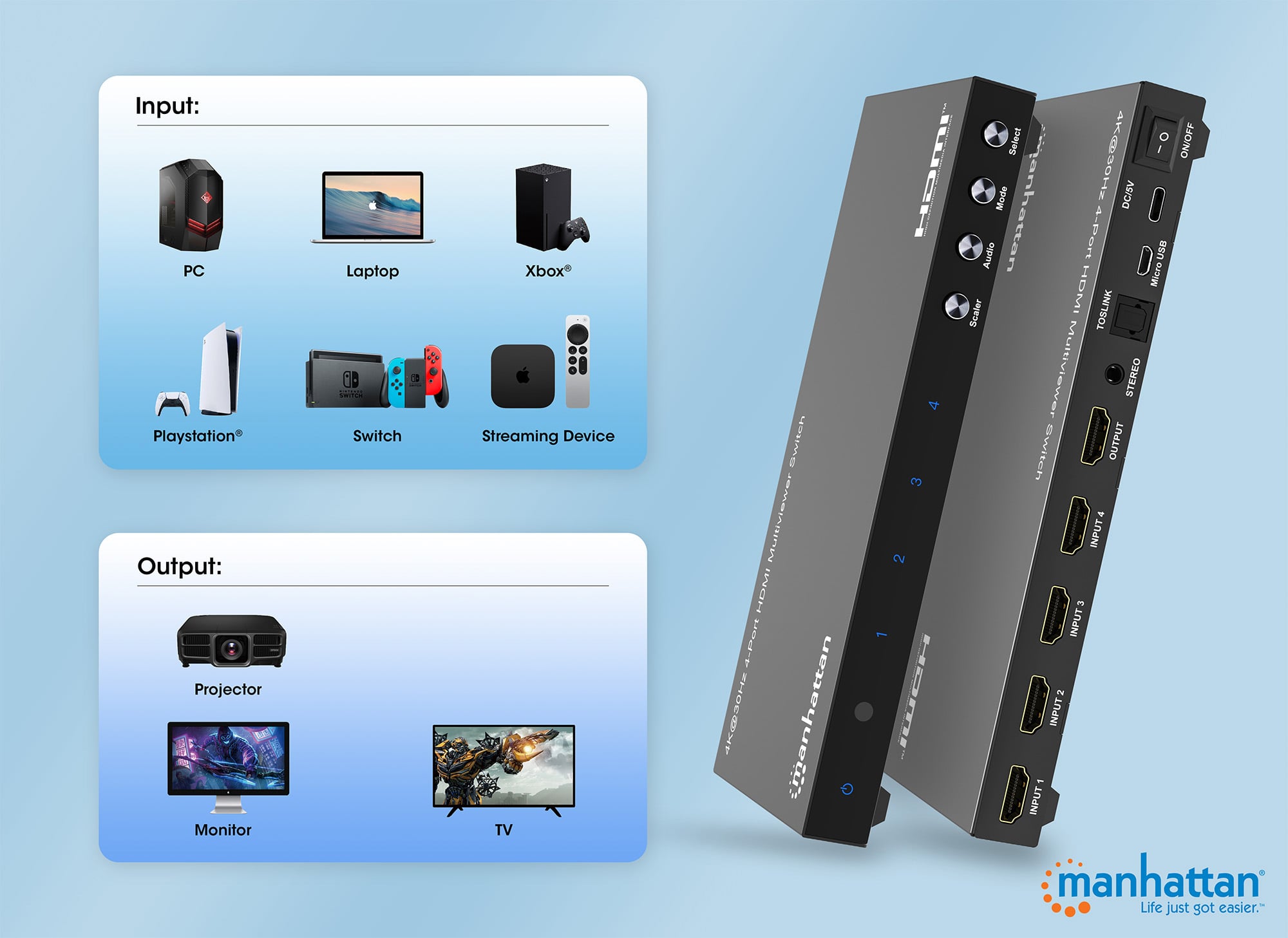

Compatible with every HDMI device - TV, projectors, monitors, laptops, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS 4 /PS 5), Xbox® (One/Series S/Series X), Blu-ray players and much more
Fully compliant HDCP 1.4 , backcompatible with previous standards
Non-slip rubber feet for desktop use
Two mounting brackets included for an ordered wall or ceiling installation

Standards and certifications

HDCP 1.4
CE
FCC
RoHS
REACH
UKCA

General

Supported resolutions: 480 i/ 480 w/ 576 i/ 576 w/ 720 w/ 1080 i/ 1080 w/ 1600 w/ 4 K@ 30 Hz
Max. video bandwidth: 10,2 Gbps / 340 MHz
Power consumption: 5,0 W (max.)
Supports immediate and uninterrupted switching when source resolutions are identical; a short delay occurs when resolutions differ

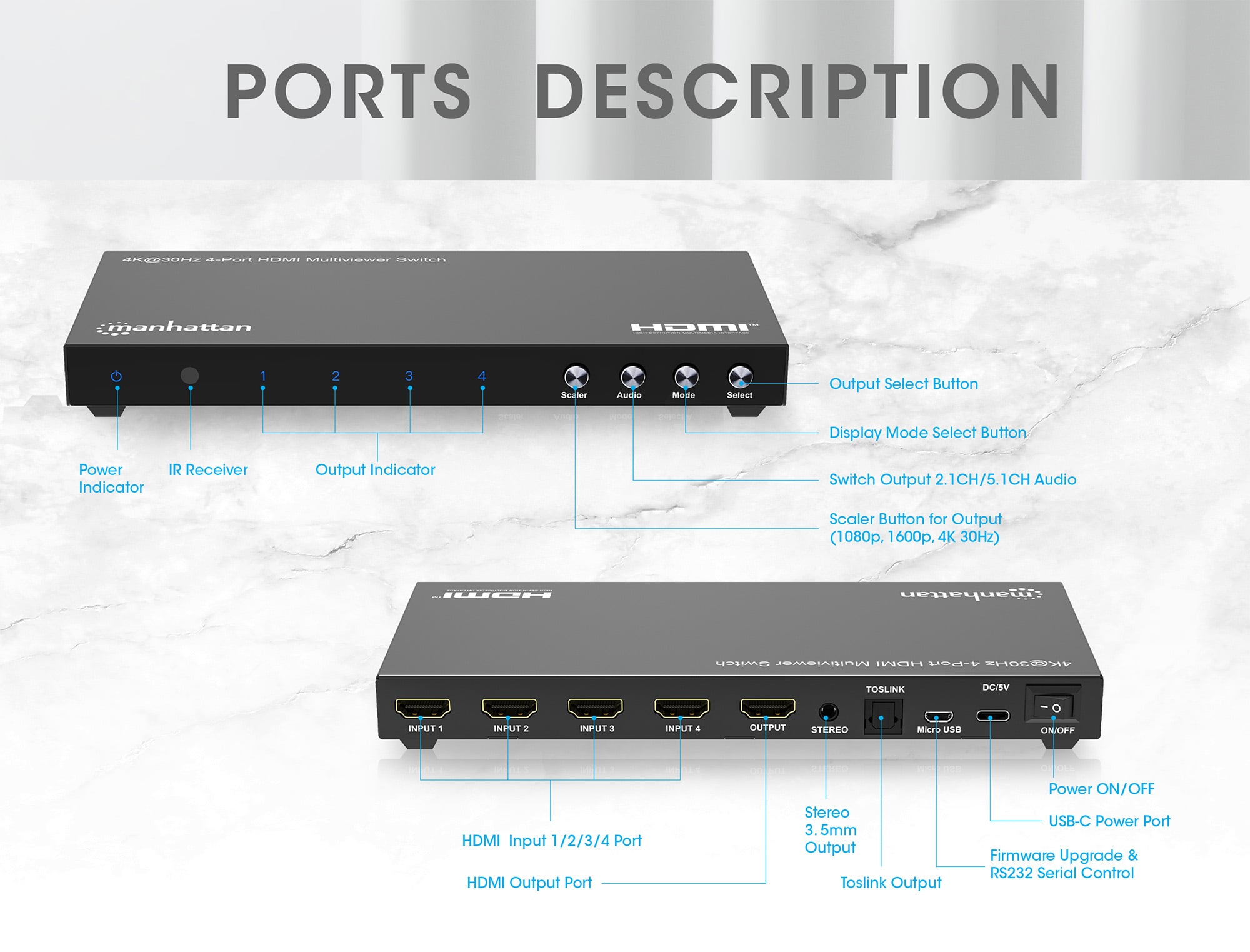

Connections/keys

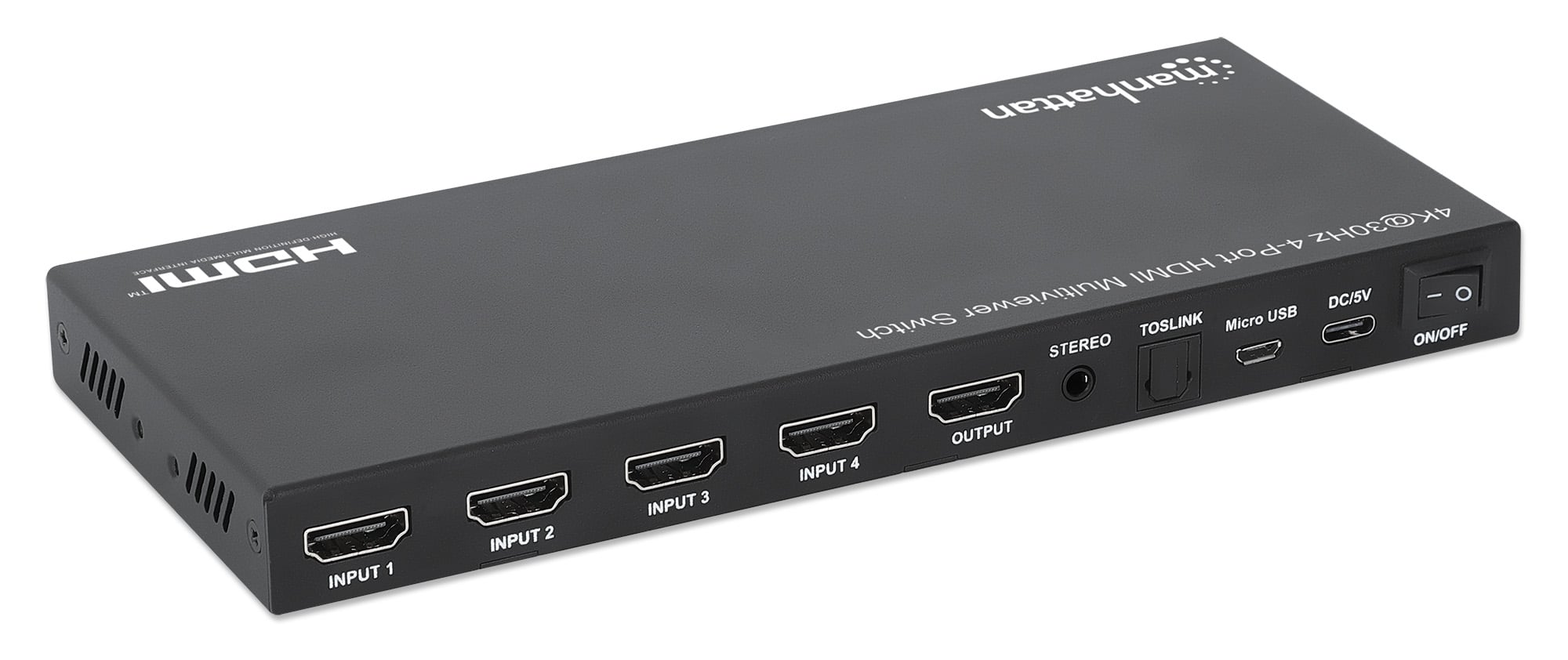

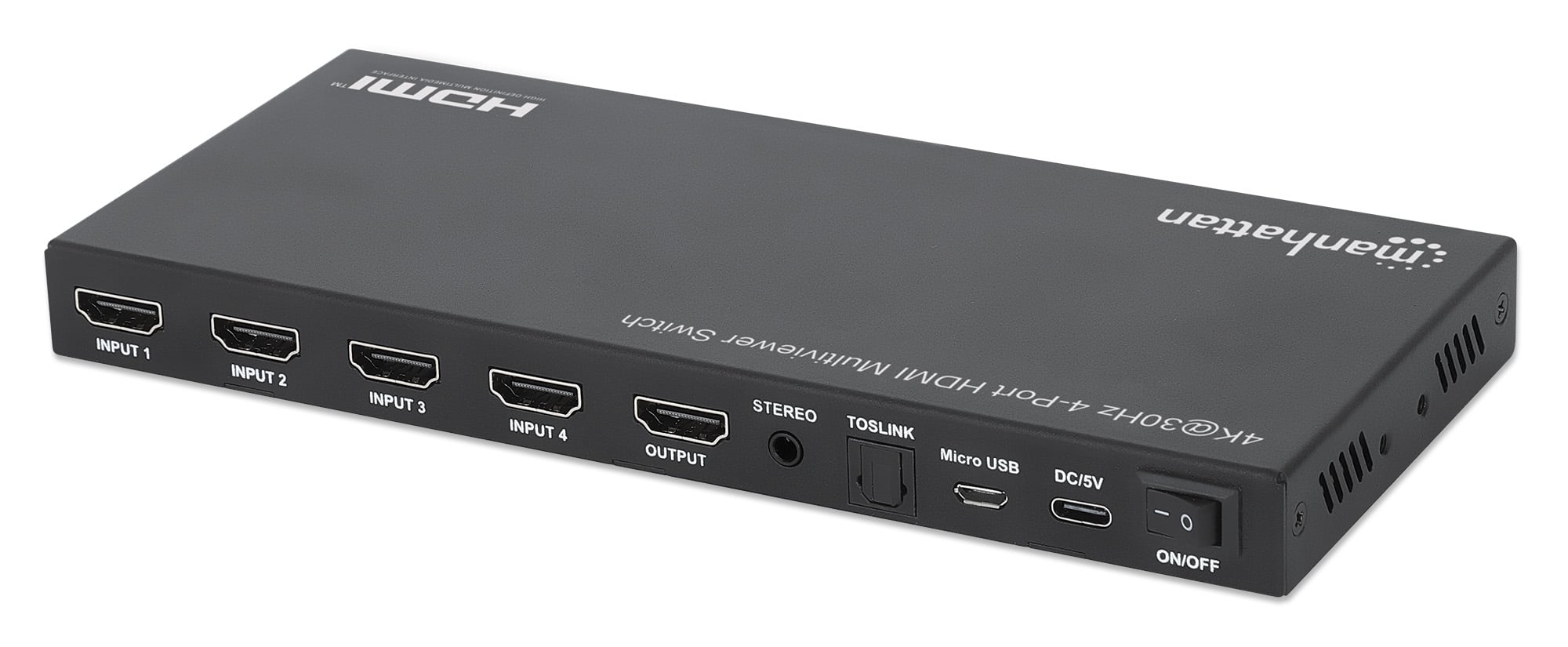

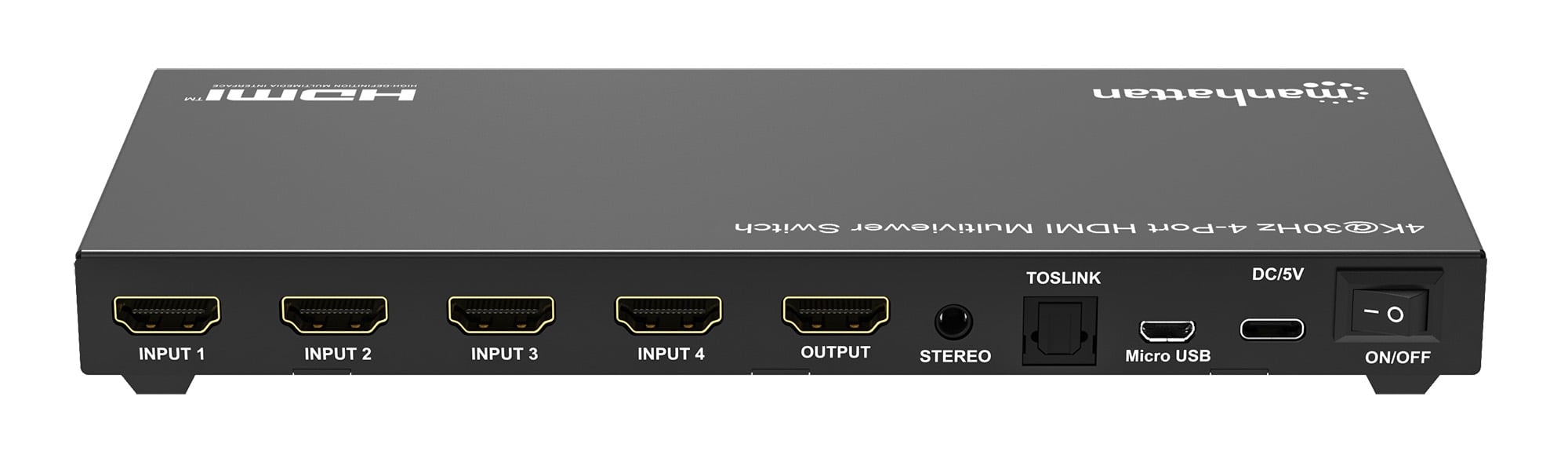

Five female HDMI at 19 pin (four inputs, one output)
A stereo female from 3,5 mm (exit)
One female Toslink/SPDIF (exit)
A USB, Micro-B (input) for firmware updates and RS- 232 serial control optional
A female power supply from 5,0 V DC/ 1,0 A, USB-C to 24 pin (input)

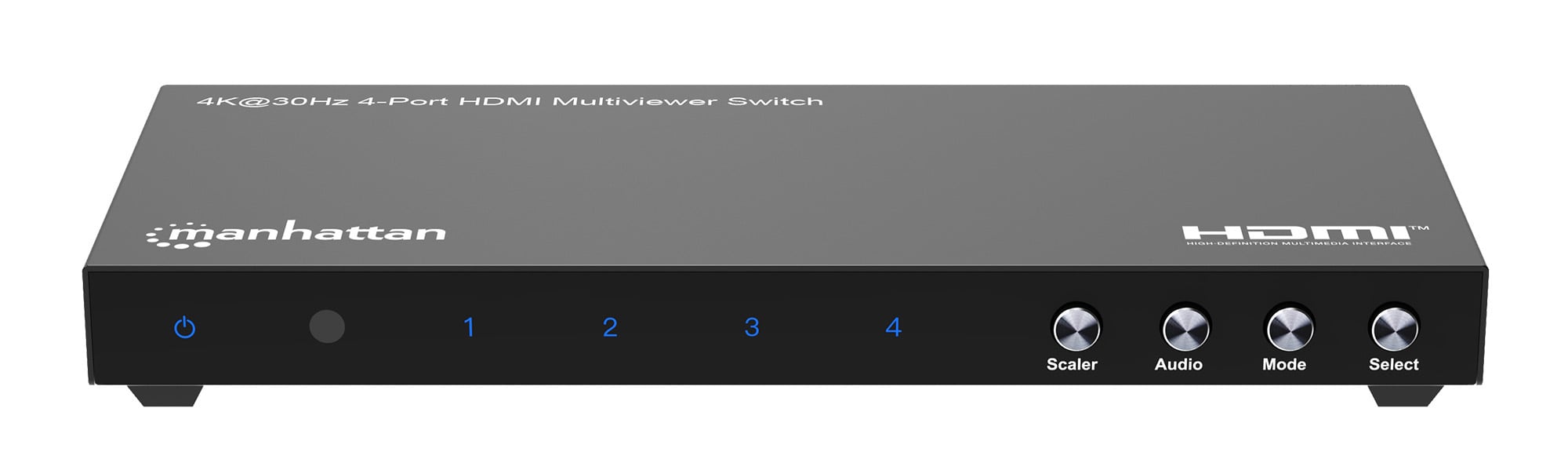

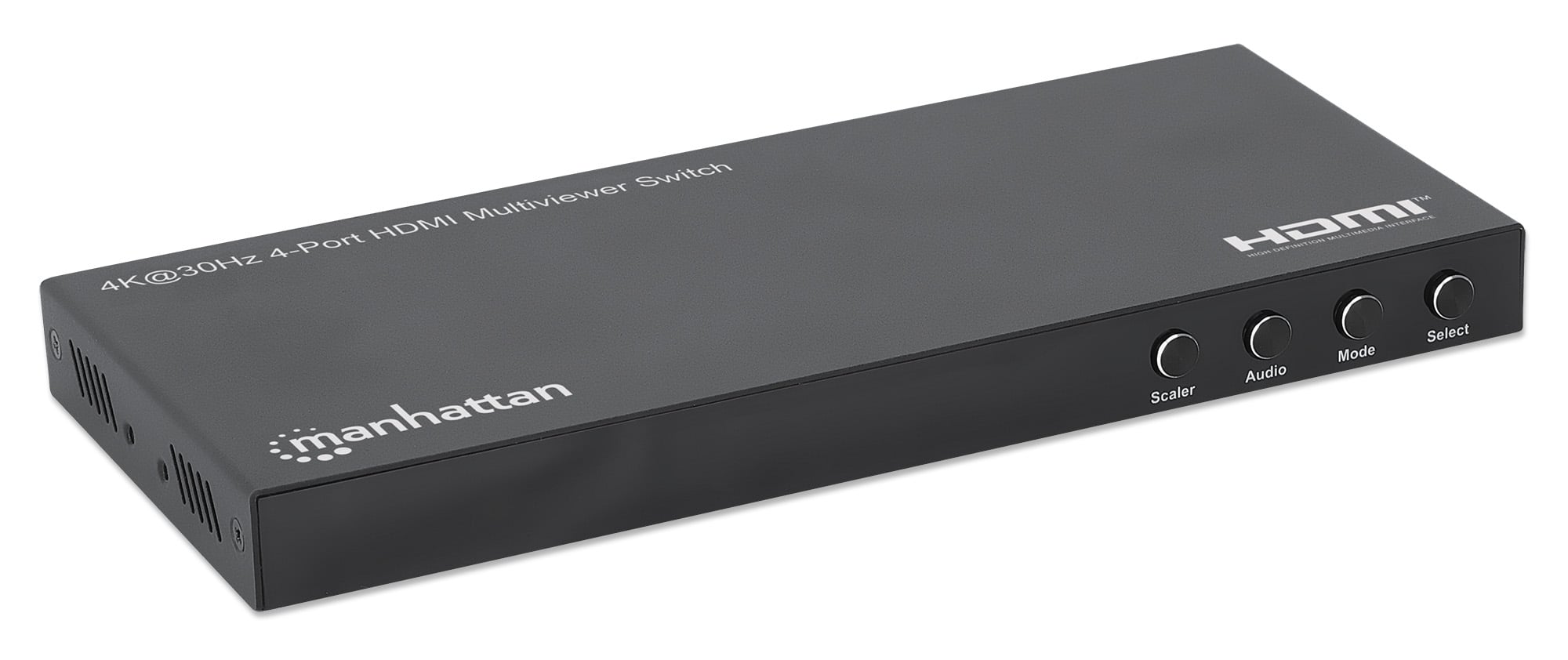

A Scale button (to resize output resolution between 1080 p, 1600 p and 4 K)
An Audio button (to select the audio source)
A Modelità button (to select the mode à display)
A Select button (to select input channels 1 - 4)

Physical information

Dimensions (L x P x A): 198 x 85 x 19 mm
Net weight: 372 g
Gross weight: 671 g
Housing: metal

Environmental information

Operating temperature: from 0 to 70 °C
Storage temperature: - 20 to 80 °C
Humidità (without condensation): 5 - 90 %

Battery details included (for remote control battery)

Type: a non-rechargeable metallic lithium CR 2025, interchangeable
Dimensions: diameter 20 mm, height 2,5 mm
Number of batteries needed to power the product: 1 (included)
Voltage: 3,0 V
Capacityà: 170,0 mAh

Package contents

Multiviewer switch HDMI to 4 ports 4 K@ 30 Hz
USB-A to USB-C power cable, 30 cm
USB power supply with USB-A port
Remote control (requires a CR 2025 battery; included)
USB-A to Micro-USB data cable (connect the Micro-USB port for optional RS 232 control)
Two mounting brackets
User manual
