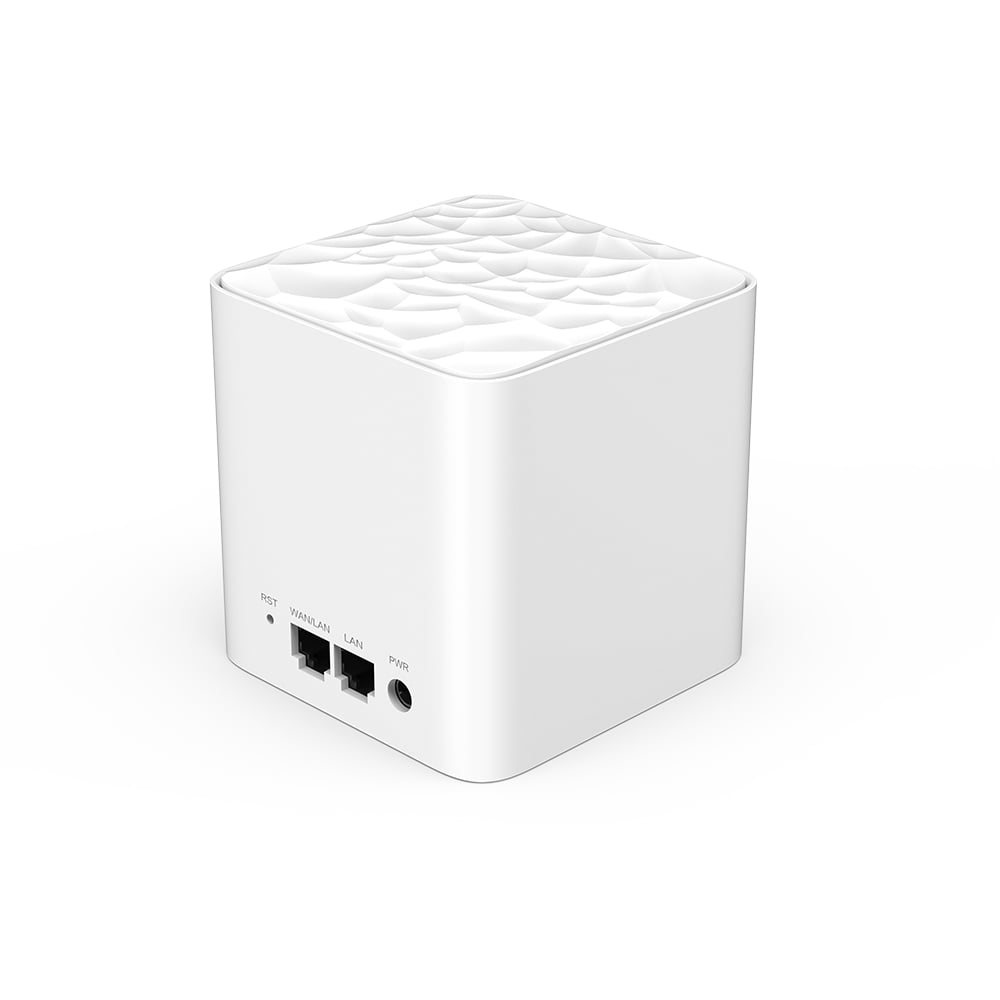

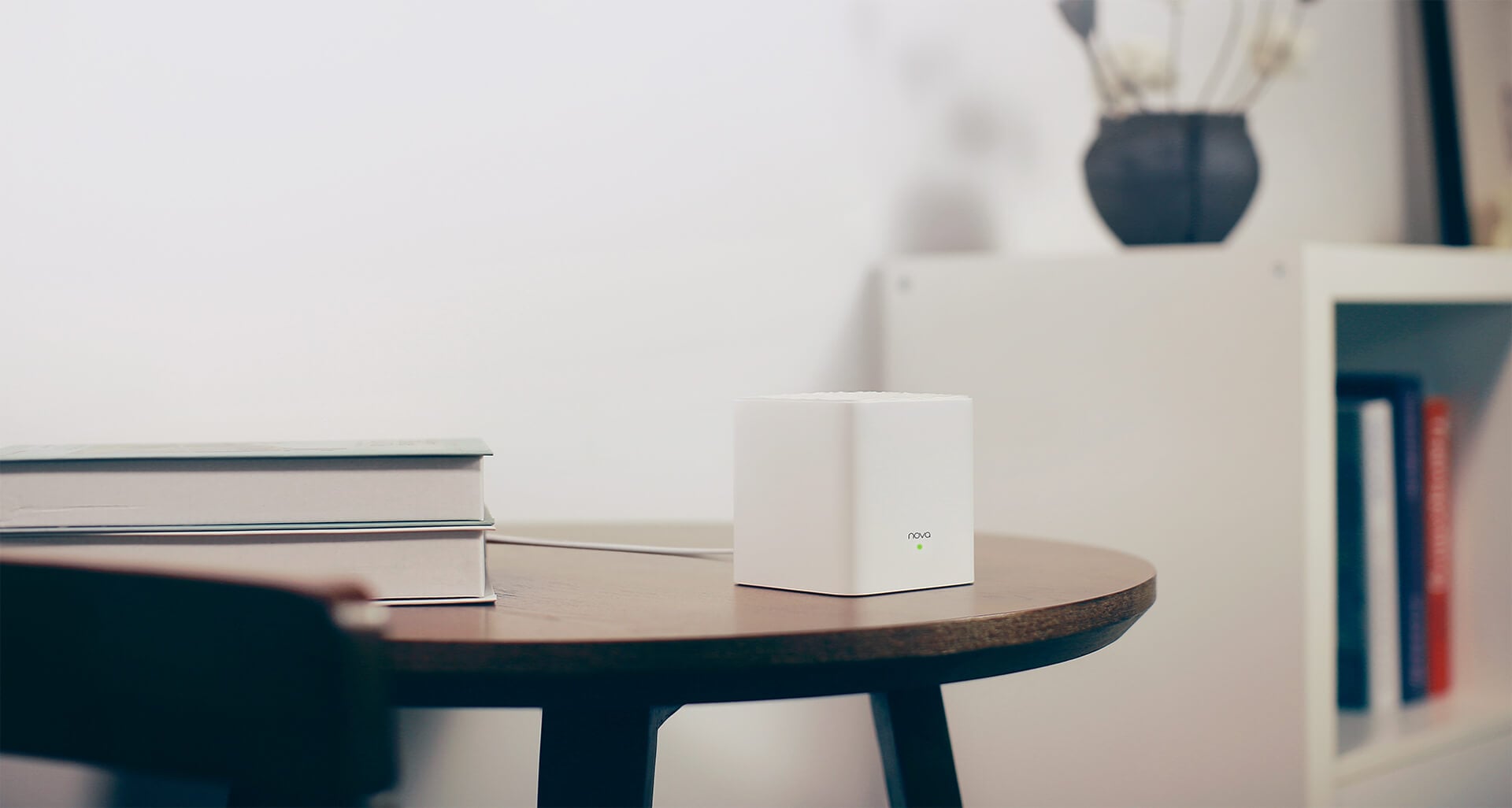

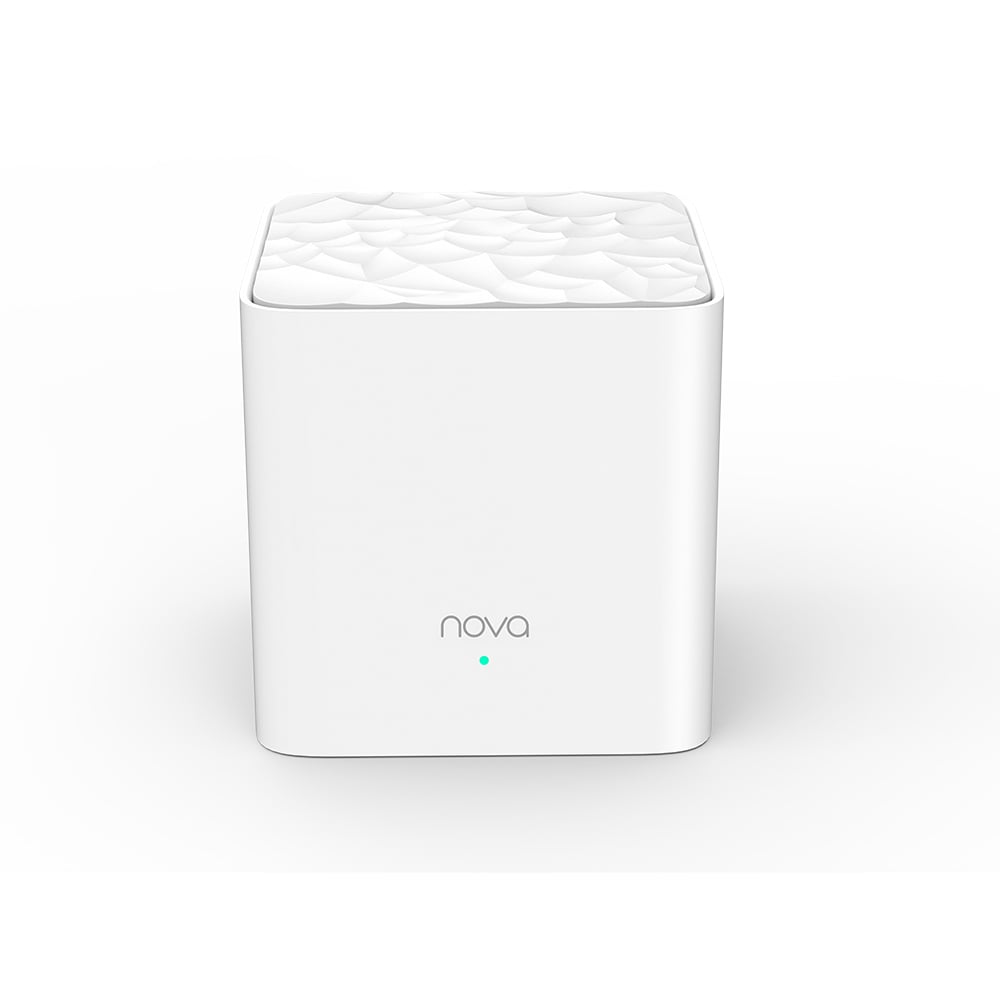

System Home Mesh WiFi 3 pieces NOVAMW 3 - Curtain I-WL-NOVAMW 3 - 3

I-WL-NOVAMW3-3 is a dual-band Mesh WiFi system with 1200 Mbps designed for homes from 100-300㎡, offering complete home Wi-Fi coverage and a fast, stable Internet connection. The 3-piece kit provides up to 300㎡ of WiFi coverage. Compliant with IEEE 802.11v and IEEE 802.11r wireless roaming protocols, MW3 supports automatic network optimization and automatic routing selection, allowing you to enjoy a more stable and flexible wireless network. Thanks to mesh technology, it creates a distributed WiFi network covering up to 300㎡, eliminating dead zones. Thanks to MU-MIMO technology, it supports multiple WiFi-enabled devices. Additionally, the intelligent QoS system optimally allocates bandwidth to simultaneously and seamlessly support streaming, gaming, download, and video chat applications. With a single SSID and password, I-WL-NOVAMW3-3 automatically performs seamless handover without interrupting services. This ensures a constant connection and a stronger signal for devices to the WiFi network. It offers data transmission speed up to 1200 Mbps and prioritizes network access at 5 GHz, allowing you to stream 4K HD video without delays or interruptions. Thanks to pre-configuration, installation is quick and easy, avoiding the burden of cable connections. It can be conveniently managed via the simple Tenda WiFi app, which allows you to block unauthorized users with a single touch. It also supports Parental Control features to let your children browse safely, and Guest Network to protect your personal privacy.



Features

• Standards and Protocols: IEEE 802.3 , IEEE 802.3 u


• Doors: 2 Ethernet ports for mesh node - WAN and LAN on primary mesh node - Both work as LAN ports on additional mesh nodes


• Antenna: 2 internal antennas dual band 3 dBi


• Buttons: Reset button


• Power: input 100 - 240 V- 50 / 60 Hz


• Dimensions: 90 x 90 x 90 mm


• Wireless standard: IEEE 802.11 ac/a/n 5 GHz - IEEE 802.11 b/g/n 2,4 GHz


• Wireless frequency: 2,4 G: 2400 MHz- 2483 MHz - 5 G: 5150 MHz- 5250 MHz or 5725 MHz- 5825 MHz


• 5 GHz efficiency: up to 867 Mbps - 2,4 GHz: up to 300 Mbps


• Frequency: Dual simultaneous 2,4 GHz and 5 GHz


• Basic features: SSID transmission - Beamforming


• Wireless security: WPA/WPA 2 -PSK mixed (default)


• Wireless roaming: compliant with IEEE 802.11 v/r


• Type of Internet connection: PPPoE, dynamic IP, static IP, mode à Bridge


• DHCP server: DHCP server, DHCP client list


• Virtual Server: Port Forwarding - UPnP


• Supports Smart QoS


• Firewall: UDP attack protection, TCP attack protection, ICMP attack protection


• DNS: Manual support setting of DNS server


• VPN: pass through IPsec - pass through PPTP - pass through L 2 TP


• Other: Parental Control - Guest Network - Online firmware update - factory settings restore


• Installation requirements: a mobile device with Android 4.0 + or iOS 8 +



Environmental information

• Operating temperature: 0 °C ~ 40 °C


• Storage temperature: - 40 oC~ 70 oC


• Humidità operating: 10 % ~ 90 %RH without condensation


• Storage humidità 5 % ~ 90 %RH without condensation



Certifications

• CE


• FCC


• RoHS


• EAC


• CI



Package contents

• 3 x identical network nodes


• 3 x power adapters


• quick installation guide


• ethernet cable
