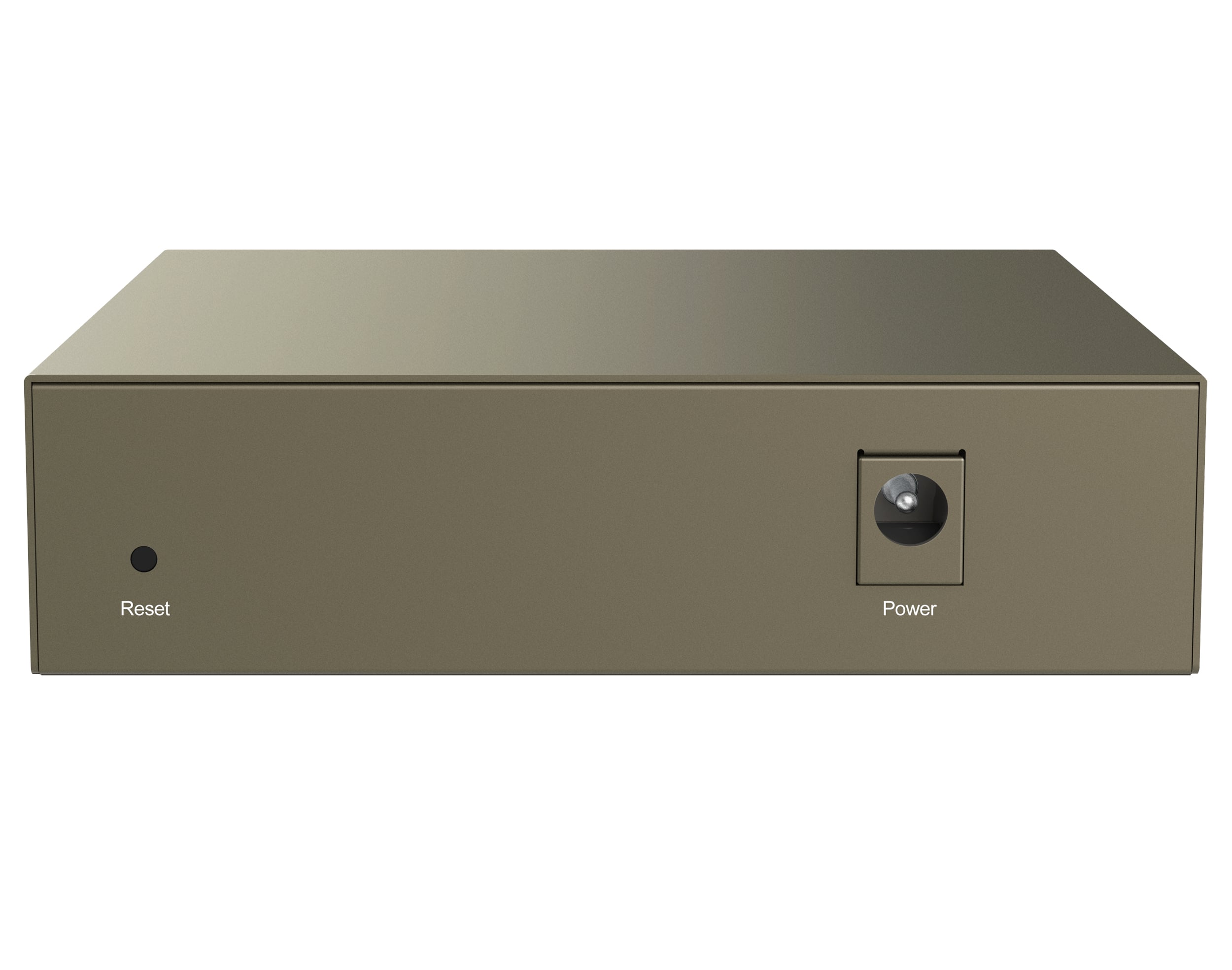

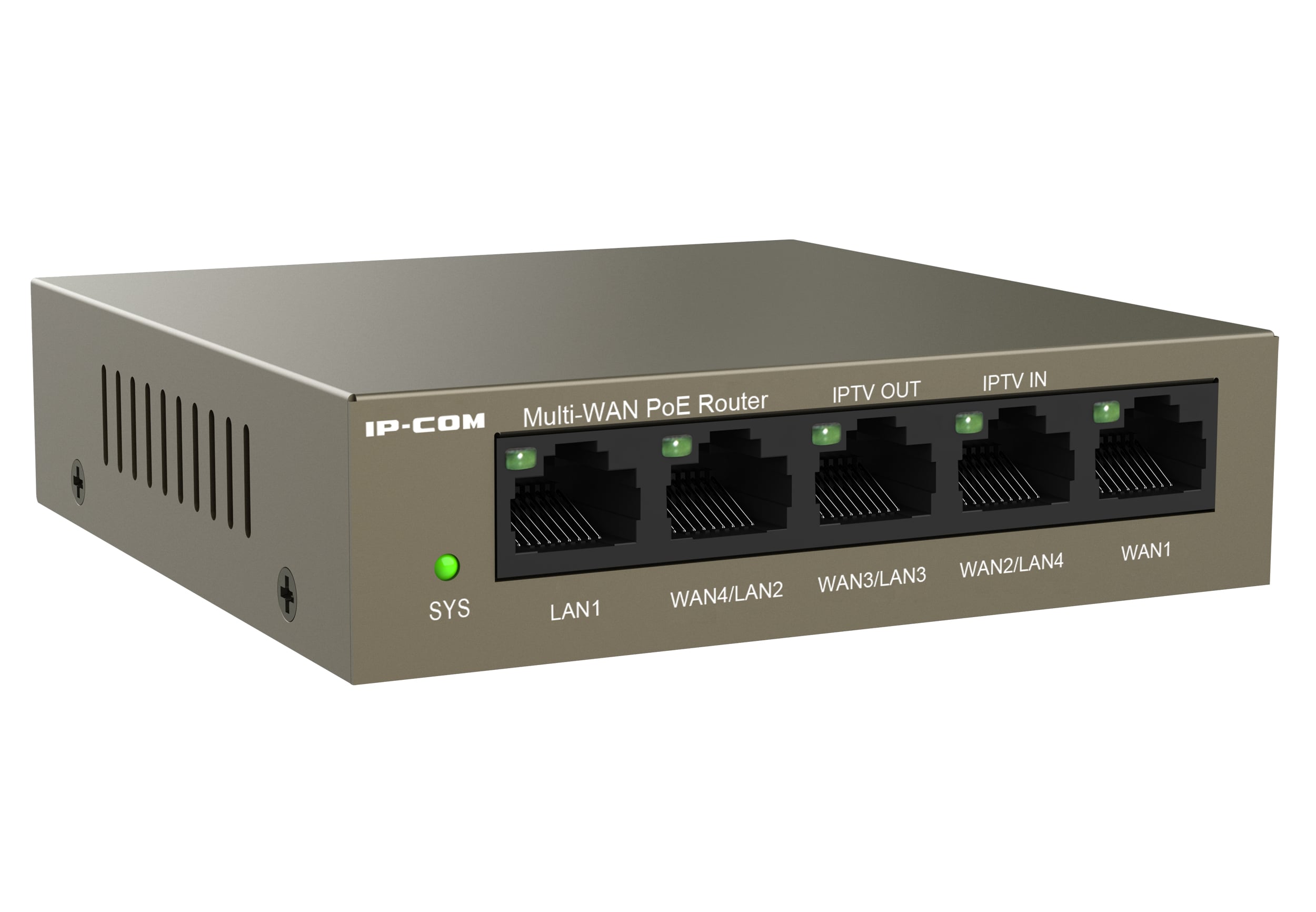

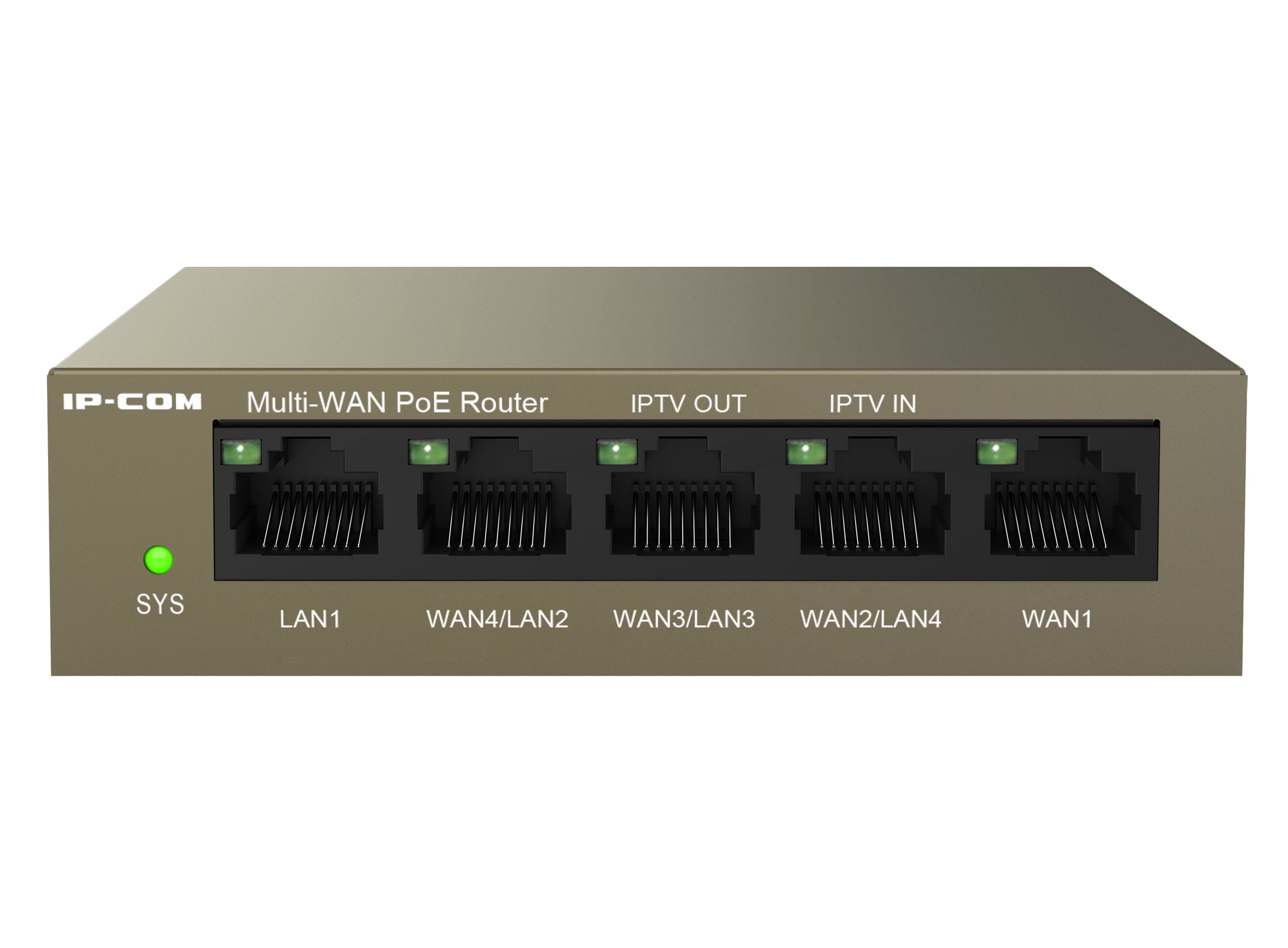

Router PoE 5 ports Managed by Cloud M 20 -PoE - IP-COM ICIP-M 20 POE

ICIP-M 20 POE fully integrates router, PoE switch and access controller.

4 dedicated PoE+ ports for PoE-supported devices such as access points, IP cameras and IP phones, reduce infrastructure costs for small businesses.

M 20 -PoE supports pass-through and moreù VPN protocols, including IPSec, PPTP and L 2 TP.

Intelligent load balancing and redundancy of the connection between more ù WAN ports.

Supports ProFi Cloud, Remote Monitoring and Maintenance.



Efficient firewall to ensure internal and external network security

Supports attack defense function, effectively resisting various common DoS attacks, DDoS attacks, ARP attacks, flood attacks and scanning attacks.

Supports the association of IP and MAC addresses, effectively preventing ARP spoofing.

Supports MAC address-based filtering to block access from unauthorized hosts.

Supports URL filtering to prevent users from accessing risky domain names and reducing network risks.



More ù WAN ports with more ù broadband access

Supports up to 4 WAN ports. Può achieve bandwidth stacking with 4 broadband lines and stacking efficiency can ò reach 98 %. In addition, it supports smart routing, automatic traffic balancing and customized traffic balancing to fully use bandwidth resources.



Technical specifications

• Maximum capacity; 150 customers


• Capacityà recommended client 100


• Recommended wide band 1000 Mbps


• Maximum new sessions 4000


• Maximum simultaneous sessions 42000


• NAT (static IP) 940 Mbps/ 930 Mbps


• NAT(DHCP) 941 Mbps/ 932 Mbps


• NAT(PPPoE) 914 Mbps/ 924 Mbps


• Management AP 16


• VLAN 4



Hardware

• Dual Core CPU, 1,0 GHz


• RAM 128 MB


• FLASH 16 MB


• Doors 5 *GE (max. 4 WAN, max. 4 LAN)


• Exit PoE 802.3 af/at on LAN 1 - 4


• Budget PoE from 55 W


• Button Restore Button


• IEEE 802.3 , 802.3 u, 802.3 x, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, DDNS


• 51 V DC/ 1,25 A power supply



Software

• Management AP 16


• DHCP Server DHCP Server (user/AP), DHCP reservation


• AP Group Wireless Policy, SSID Policy, RF Policy, Vlan Policy, Maintenance Policy, Alarm Policy, Distribution Policy


• Quick Roaming 802.11 k,v,r


• IPTV IPTV Policy


• ACL IP/MAC/URL/PORTA


• Single-user-based bandwidth control, user group, intelligent bandwidth control


• VPN IPSec, PPTP, L 2 TP


• Virtual server DMZ, DDNS, DNS hijacking, IP hijacking, UPNP, port mirroring, port mapping, DNS cache


• Support IPV 6


• Load Balance WAN Smart Load Balance, Customization


• Routing Static Routing, Routing Policy


• Security IP-MAC Association, Ping Block from WAN,Difesa from DDoS attacks,ARP attacks defence,By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By-By.


• System tools ntp, scheduled restart, diagnosis


• System registry, operating register, execution register


• System Account Administrator, Visitor, Access IP Address Limit


• Update Local, Online


• Maintenance Restoration,Backup,Remote WEB Management


• Manage http/https,ProFi Cloud,APP ProFi



Dimensions

• Width: 100 mm


• Depthà: 100 mm


• Height: 26 mm



Package contents

• ICIP-M 20 POE router


• Power supply


• Network cable


• User manual
