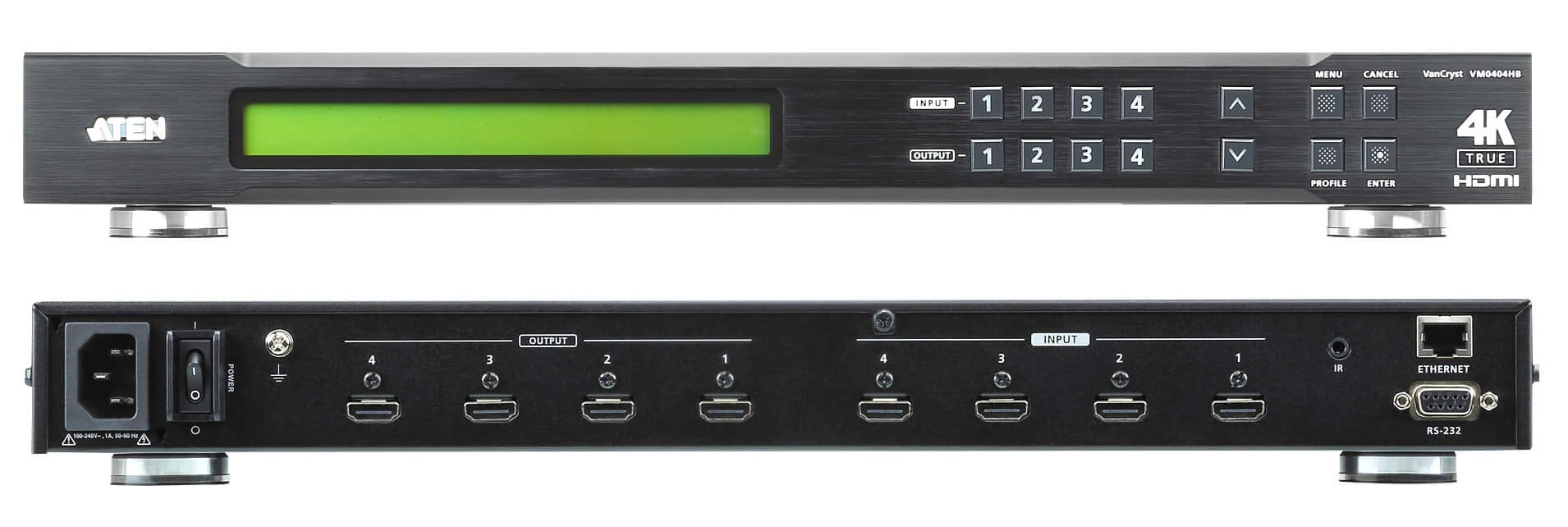

True 4 K HDMI Matrix 4 x 4 , VM 0404 HB - Aten IDATA VM- 0404 HB

The VM 0404 HB from ATEN è a True 4 K HDMI matrix switch that offers a simple and reliable way to direct one of the 4 HDMI video sources to one of the 4 HDMI displays. Equipped with higher video resolutions up to 4096 x 2160 to 60 Hz (4: 4: 4), the VM 0404 HB offers ultra fast digital signal addressing and switching, making it perfect for applications where è need to address the True 4 K digital signals, e.g. event locations, digital classes, auditorium, large warehouses and more.

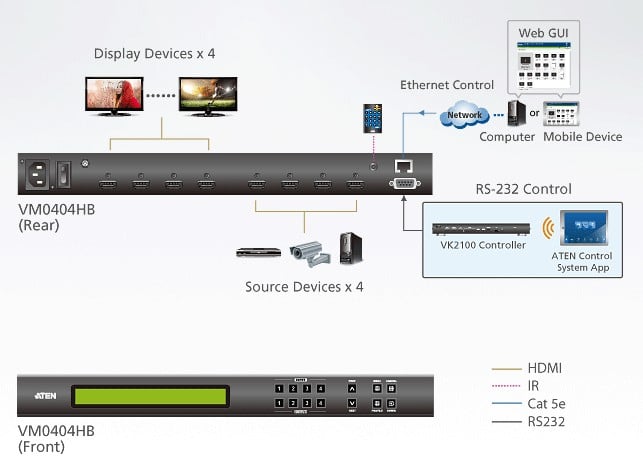

The intuitive design of the user graphics interface of the VM 0404 HB allows users to flexibly configure any input-output connection, eliminating the need to frequently modify physical configurations. In addition to the integrated web user graphics interface, the VM 0404 HB can be used by means of push buttons on the front panel, IR remote control, RS- 232 control and Telnet via Ethernet connections, offering the user the maximum comfortà while making the system available thanks to the switching of video performance at any time.



Features

• Connect one of the 4 HDMI sources to one of the 4 HDMI screens


• Supports True 4 K resolutions up to 4096 x 2160 at 60 Hz (4: 4: 4 )


• Multiple control methods, system management via push buttons on the front panel, IR remote control, RS- 232 control and web/Telnet user graphics interface via Ethernet connections


• EDID Expert – selects the optimal EDID settings for high quality, smooth display and better video resolution on different monitors


• Signal frequency up to 6 Gbits for true 4 K output without problems


• Supports Dolby True HD and DTS HD Master audio


• HDMI (3 D, Deep color, 4 K); HDCP 2.2 compatible


• Supports Consumer Electronics Control (CEC)


• ESD protection for HDMI


• Supports ATEN's HDMI LockPro™ cable block for secure HDMI cable connections


• Updated Firmware


• rack mountable (design 1 U)



Technical specifications

• Video input:



Interfaces  4 x HDMI type A female (black)

Impedance   100

Max. distance & 1,8 m

• Video output:



Interfaces  4 x HDMI type A female (black)

Maximum distance.  3 m / 4 K to 60 Hz (4 : 4 : 4 )

15 m / 1920 x 1200

Impedance   100

• Video:



Pixel Clock max 600 MHz

Maximum resolution up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 4 : 4 )

Maximum data frequency 18 Gbps (6 Gbps per line)

Conformityà HDMI (3 D, 4 K, Deep Color)

HDCP 2.2 compatible

Consumer Electronics Control (CEC)

• Control:



- RS- 232  

Connector: 1 x DB- 9 female (black)

Velocità in baud and protocol:

Velocità in baud: 19200 , Data Bit: 8 , Stop Bit: 1 , Parità: No, Flow Control: No

- IR: 1 x female mini stereo connector (black)

- Ethernet: 1 x RJ- 45 female

• EDID Settings: Modelità EDID: Default / 1 / Remix / Customized (supported EDID wizard procedure)



Environmental features

• Operating temperature: 0 - 40 °C


• Humidità:  0 - 80 % relative humidity without condensation


• Storage temperature: - 20 - 60 °C



Dimensions

• Width: 43,72 cm


• Depthà: 15,28 cm


• Height: 4,40 cm



Package contents

• 1 x VM 0404 HB Switch True 4 K HDMI Matrix 4 x 4


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x 2 XRT- 0106 G IR remote control


• 1 x 2 XRT- 0003 G IR receiver


• 1 x rack mounting kit


• 1 x user instructions
