4 K 9 x 2 - Aten IDATA VP- 1920

L ATEN VP 1920 è a 3 -in- 1 presentation switch that integrates a video matrix switch, an audio processor and analog to digital converter functions. With nine multi-format inputs on two 4 K HDMI outputs, è designed to improve the efficiency and impact of professional presentations.



Thanks to the simplified control from the push buttons of the front panel, remote IR, OSD and RS- 232 controllers, the VP 1920 reduces not only the number of devices in the system, but also reduces the complexity à operational. It is suitable for all environments for business presentations and education of small and medium size, such as meeting rooms, classrooms, training rooms or any other environment for presentations, such as exhibition centers or hotels.



Multi-format AV exchange with simplicityà

• Supports 9 multi-format inputs and 2 HDMI outputs:



- 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr)

- 3 HDMI inputs

- 2 HDMI outputs

• Integrated Ethernet 10 / 100 Mbit Interface


• VGA port that supports universal analogue input formats (RGBHV/RGBs/YCbCr/YPbPr)


• Integrated/disassembled audio: HDMI/DisplayPort audio signals can be extracted to separate digital/analogue audio signals; stereo/composite/component audio can be integrated into digital audio signals



High definition video with optimal output

• Quality (agrave; video up to 4096 x 2160 at 60 Hz (4: 2: 0) / 4096 x 2160 at 30 Hz (4: 4: 4) (HDMI/DP)


• EDID Expert™: automatically selects optimal EDID settings for trouble-free ignition, high quality visualization and use of best video resolution between connected devices


• HDMI (3 D, Deep Color, 4 K); HDCP 1.4 compatible



Versatile operations without problems

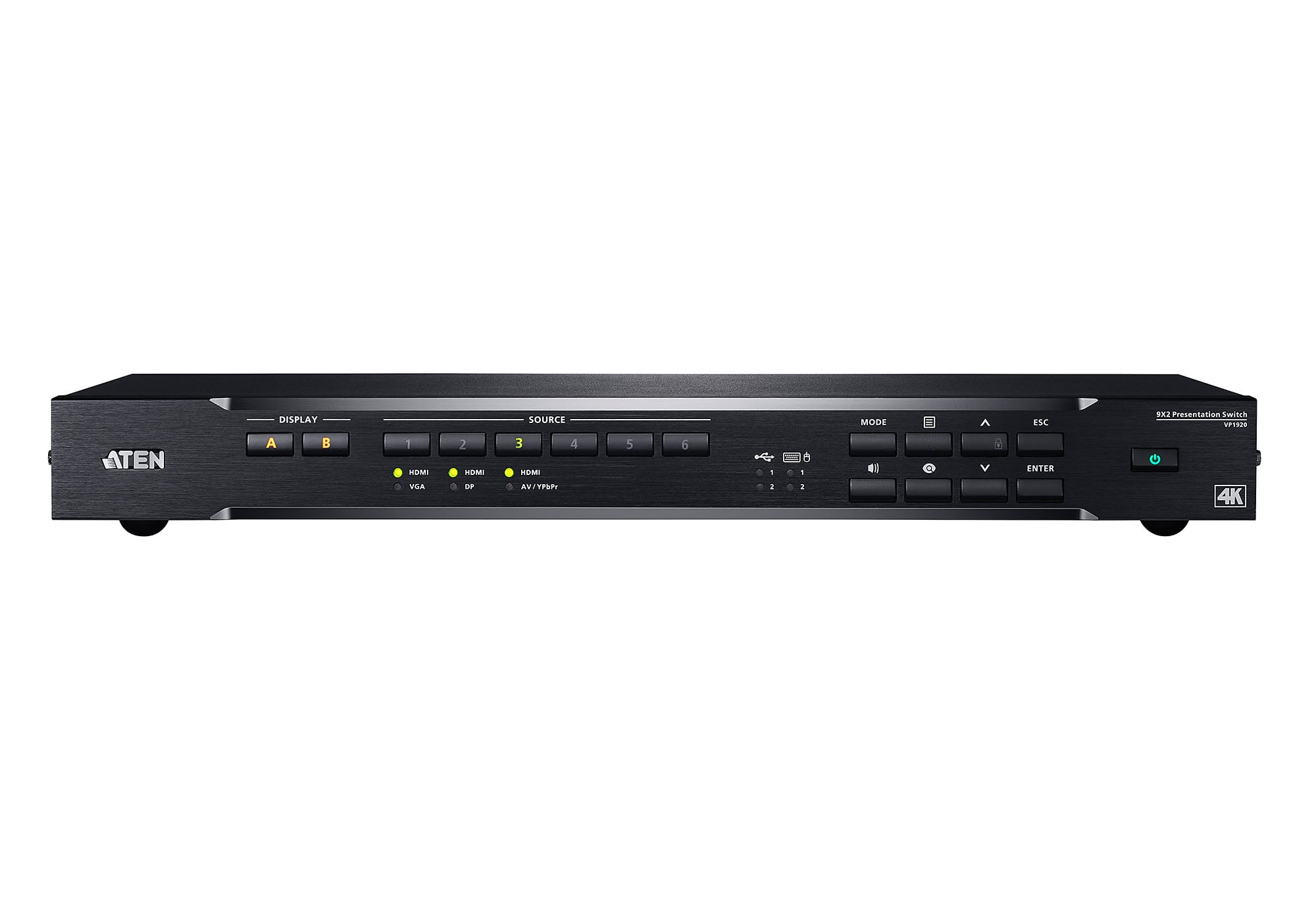

• Multiple control methods using push buttons on the front panel, RS- 232 and IR remote control


• Source Preview: Quickly identify and exchange target content


• Modelità selectable display (Matrix, Mirror, or PiP) for different presentation requests


• Automatic Switching: automatically detects and switches to a new source as soon as connected to save time and comfortà


• Supports modeà standby for energy saving and rapid reactivation



Flexibleà extended for USB devices

• USB ports that allow keyboard/mouse control or touch panel on connected computers


• Control for keyboard/mouse and USB devices can be switched individually on a designated computer source



Video Input

• 6 x HDMI type A female (black)


• 1 x female DP (black)


• 1 x HDB- 15 female (blue)


• 1 x Component (3 x RCA female, blue/green/red)


• 1 x Composite (1 x female RCA, yellow)



Video output

• 2 x HDMI type A female (black)


• Max. distance to 15 m



Video

• Resolution max. 



HDMI/DP: Up to 4096 x 2160 / 3840 x 2160 to 60 Hz (4 : 2 : 0 ); 4096 x 2160 / 3840 x 2160 to 30 Hz (4 : 4 : 4 )

VGA/Analog: Up to 1920 x 1200 at 60 Hz

• Conformityà 



HDMI (3 D, Deep Color, 4 K)

HDMI/DP: HDCP 1.4 compatible; Consumer Electronics Control (CEC)



Audio

• Input: 



Stereo audio: 1 x Mini female stereo connector (green)

Composite/component audio: 2 x female RCA (red/white)

• Output:



Optical audio: 1 x Toslink (black)

Coaxial audio: 1 x female RCA (orange)

Stereo audio: 2 x RCA female (white / red)

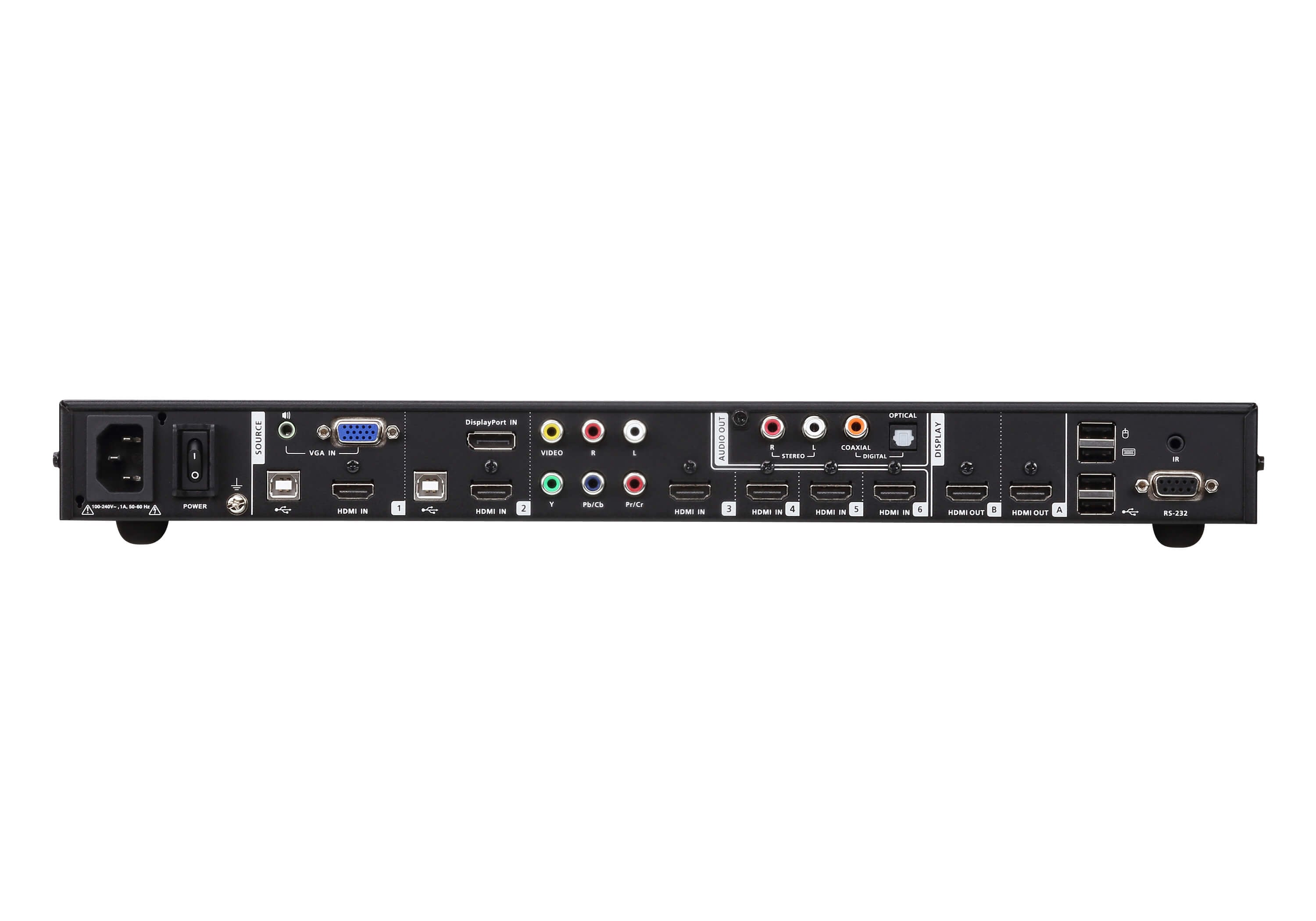

Connectors

• Computer 



2 x female type B USB (white)

• Console ports  



Keyboard/Mouse: 2 x USB type A female (white)

Device: 2 x USB type A female (white)

• Feeding  



1 x Tripolar AC sockets



Monitoring

• RS- 232: 1 x DB 9 female (black)


• IR: 1 x female mini stereo connector (black)



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 43,72 cm


• Depthà: 16,36 cm


• Height: 4,40 cm



Package contents

• 1 x switch matrix for presentations 9 x 2 VP 1920


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x 2 XRT- 0003 G IR receiver


• 1 x 2 XRT- 0109 G IR remote control


• 1x User instructions
