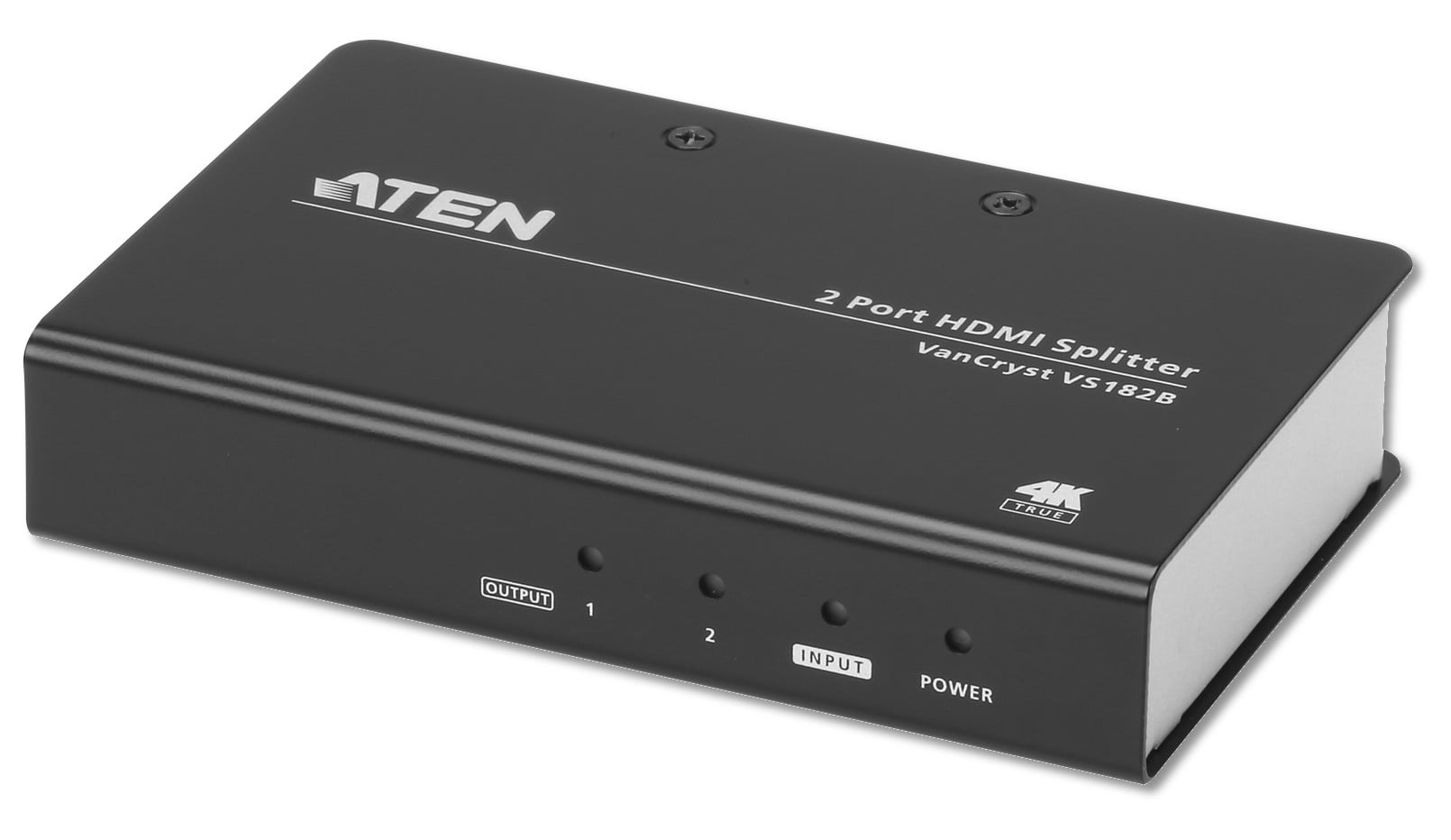

Splitter HDMI 4 K real 2 doors - Aten IDATA VS- 182 B

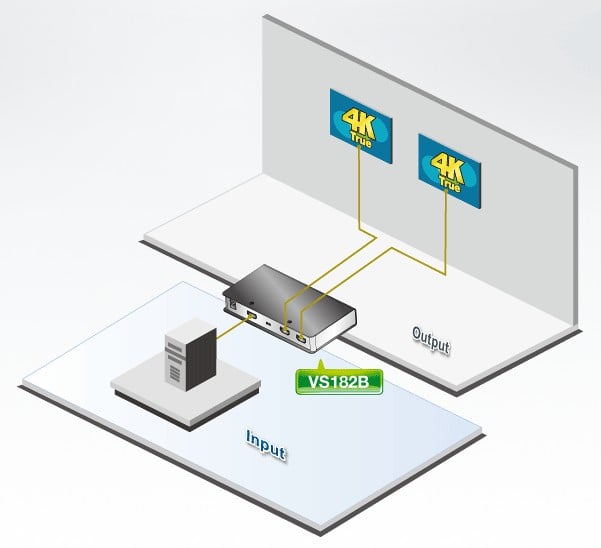

The real VS 182 B è HDMI 4 K splitter is the perfect solution for all those who want to send a digital high-definition video source to two screens simultaneously. It supports all equipment equipped with HDMI, such as DVD players, satellite decoders and all monitors, screens, projector or HDMI TV.



The splitter HDMI 4 K real VS 182 B è compliant HDMI 2.0 , 4 K to 60 Hz (4: 4: 4), and supports multiple audio streaming, making it suitable for use with all HDMI screens in home theater applications, as well as in business, school and commercial installations.



Features

• Connect an HDMI source to two HDMI screens simultaneously


• HDMI (3 D, Deep Color, 4 K); HDCP 2.2 compatible


• Support HDR


• Supports maximum solutions up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4: 4: 4 )


• Long distance transmission up to 15 m (1920 x 1200) / 1,8 m (4 K real)


• Maximum pixel clock frequency up to 600 MHz


• Velocità maximum data, 18 Gbps (6 Gbps per line)

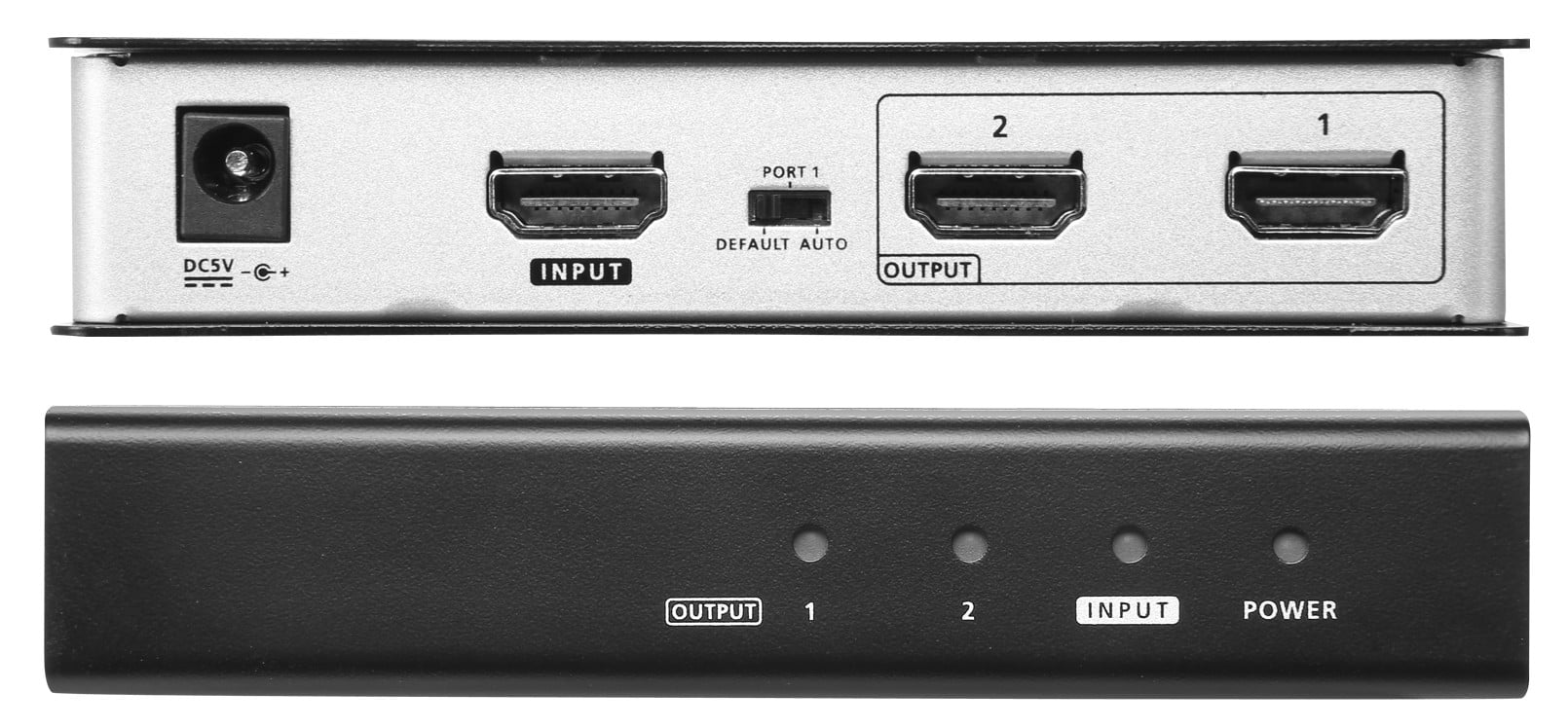

• LED indicator for power supply status and source devices


• EDID Expert™ – , selects the optimal EDID settings for high quality smooth display and to use the best video resolution via the EDID DIP switch to allow users to choose smoothly between 1 , Default and Auto Port


• Plug-and-play – no software installation required



Technical specifications

• Video input:



Interfaces: 1 x HDMI type A female (black)

Impedance: 100

Max. distance: 1,8 m

• Video output:



Interfaces: 2 x HDMI type A female (black)

Impedance: 100

• Video:



Maximum frequency of data: 18 Gbps (6 Gbps per line)

Pixel clock max. 600 MHz

Conformityà: HDMI (3 D, Deep Color, 4 K);

HDCP compatible

Maximum resolution up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4: 4: 4 )

• Audio:



Input: 1 x HDMI type A female (black)

Output: 2 x HDMI type A female (black)

• Power supply: 1 x DC connector


• Consumption: DC 5 V: 4.84 W: 23 BTU



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 12.50 cm


• Depthà: 8.00 cm


• Height: 2.50 cm



Package contents

• 1 x splitter HDMI 4 K real VS 182 B to 2 ports


• 1 x 0 AD 6 - 1005 - 26 EG power supply


• 1 x LIN 5 - 19 V 2 -V 21 G HDMI cable


• 1 x user instructions
