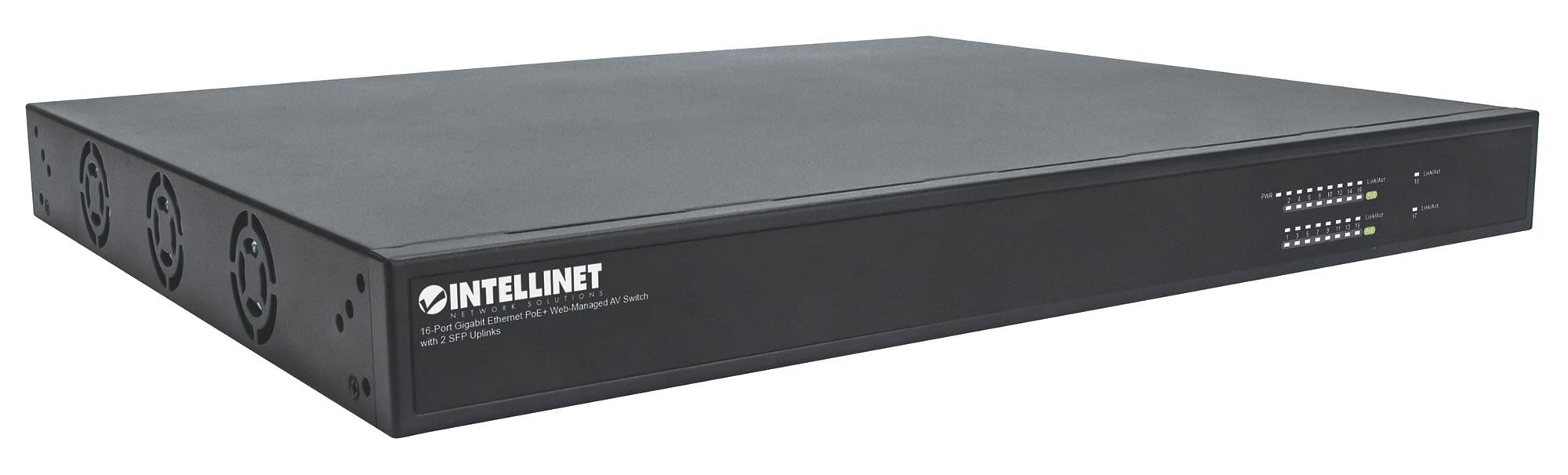

AV Gigabit Ethernet PoE+ Switch with 16 Ports 2 SFP - Intellinet I-SWHUB AV16GP

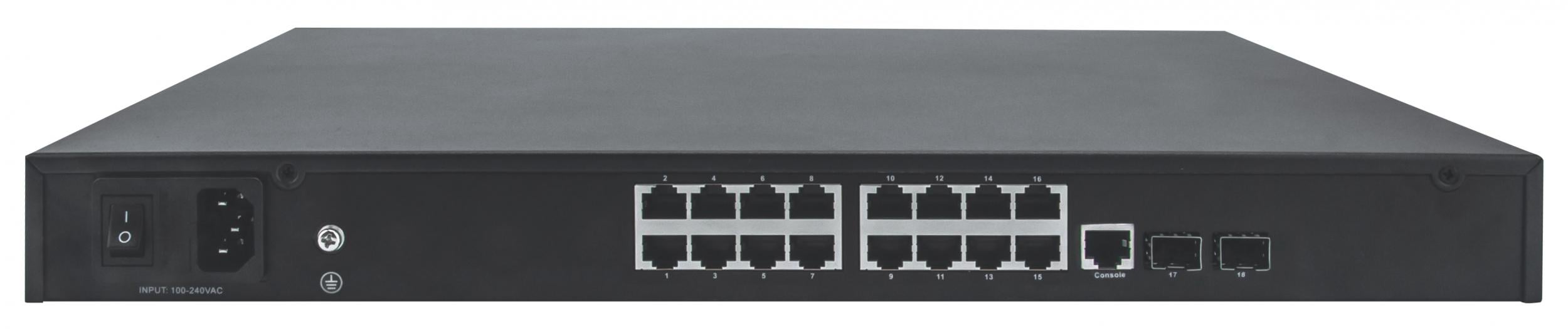

• Gigabit Ethernet RJ45 PoE/PoE+ ports compliant with IEEE 802.3at/af, located on the rear


• Provides power and data connection for up to 16 PoE network devices


• Auto-sensing 10/100/1000 ports for automatic detection of optimal network speed.


• Two slots for small form-factor 1GbE SFP modules.


• Console port for configuration.


• Output power up to 30 Watt per port*


• PoE power budget 255 watts


• Supports PoE devices compliant with IEEE 802.3at and IEEE 802.3af (e.g., wireless access points, VoIP phones, IP cameras, etc.)


• Supports IEEE 802.3at/af detection and short circuit, overload and high voltage protection


• Management via Web/SNMP/Telnet/Console


• All RJ45 ports support Auto-MDIX and NWay auto-negotiation


• Compliant with IEEE 802.3az (Energy Efficient Ethernet EEE) specifications


• Switch 136 Gbps


• SNMP management and remote monitoring (RMON)


• Remote reboot/restart


• The Powered Device Monitor (PDM) feature restarts any connected PoE device that is not responding or sending network traffic.


• Dual protocol IPv4/v6


• Supports VLAN (tag-based and port-based)


• Provides IEEE 802.1x security protocol


• Supports link aggregation (trunking)


• Supports per-port bandwidth control


• Supports port mirroring


• Supports two types of QoS: port-based and DSCP


• Broadcast storm control with multicast packet rate settings


• Supports Spanning Tree Protocol (STP) IEEE 802.1d


• Store and forward switching architecture


• IEEE802.3x Flow Control


• Supports jumbo frames up to 10 kbytes


• Supports MAC address 8K

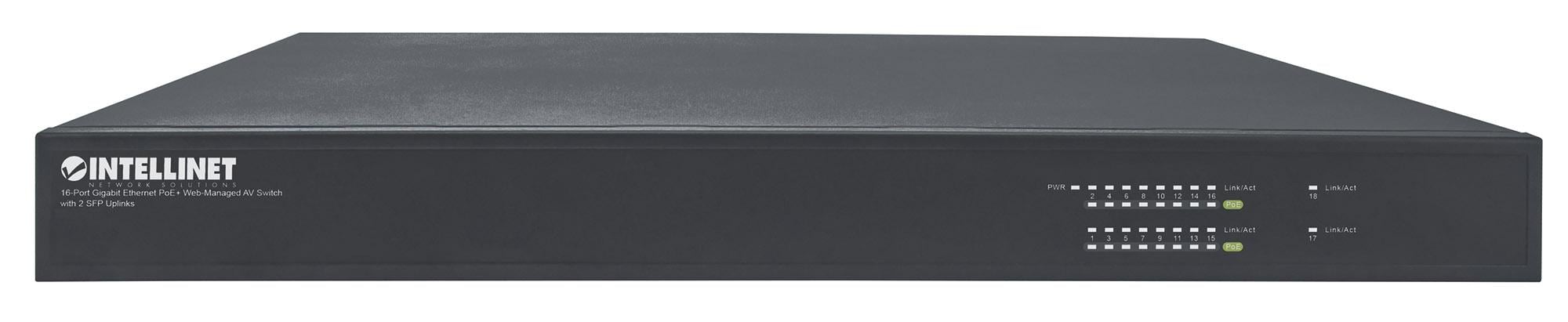

• LEDs for power, link/activity, and PoE


• Includes rack mounting brackets 19


• Includes console cable



Standard

• IEEE 802.1d (Spanning Tree Protocol [STP])


• IEEE 802.1p (Traffic Prioritization)


• IEEE 802.1q (VLAN Tagging)


• IEEE 802.1s (Multiple Spanning Tree Protocol [MSTP])


• IEEE 802.1w (Rapid Spanning Tree Protocol [RSTP])


• IEEE 802.3ad (Link Aggregation)


• IEEE 802.3 (10Base-T Ethernet)


• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)


• IEEE 802.3ad (Link Aggregation Control Protocol [LACP])


• IEEE 802.3az (Energy Efficient Ethernet [EEE])


• IEEE 802.3af (Power over Ethernet 802.3at Type 1)


• IEEE 802.3at (Power over Ethernet 802.3at Type 2)


• IEEE 802.3u (100Base-TX Fast Ethernet)


• IEEE 802.3x (Flow Control for full duplex mode)



General information

• Supports:



- 10Base-T UTP/STP RJ45

- 100Base-TX UTP/STP RJ45

- 1000Base-T UTP/STP RJ45

• MAC Address: 8k


• Backplane speed / switch fabric: 36 Gbps


• Buffer memory: 4.1 MB


• Forwarding Rate: 26.784 Mpps


• Switch architecture: store and forward


• Configuration options:



- Port speeds: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation

- PoE on/off per port

- Flow Control on/off per port

- VLAN

- Speed limitation (input speed and output rate)

- Port mirroring, 1-1 or many-to-one

- Port Aggregation/LACP: 8 groups

- Broadcast Storm configuration with broadcast rate, multicast rate, and flooded unicast rate

- IGMP Snooping

- Access management filtering: SNMP, HTTP, HTTPS, SSH, Telnet

- Quality of Service (QoS): port-based or DSCP

- Link Layer Discovery Protocol (LLDP) - Station and Media Access Control Connectivity Discovery

- LLDP-MED Extension (TIA specific TLVs)

- Integrated ICMP Ping client sends ping requests to other network nodes

- SNMP v1/v2c/v3 (Simple Network Management Protocol)

- RMON

- DHCP: Server/Client

- LAN settings (IP address, Gateway, etc.)

- EEE Energy Efficient Ethernet

- SSHv2



Certifications

• FCC Class B


• CE



LED

• PoE


• Power


• Activity/Connection



Power

• Input: 100 – 240 V AC, 50 – 60 Hz


• Power consumption: 270 watt (maximum)



Physical information

• Metal chassis


• Dimensions: 330 x 440 x 44 mm


• Weight: 5.4 kg


• Operating temperature: 0 - 40°C


• Operating humidity: 20 - 85% RH, non-condensing


• Storage temperature: -10°C - 70°C



Package contents

• Ethernet Gigabit Switch A/V Web-Managed 16 ports PoE+ with 2 SFP Uplinks


• Power cable


• User manual


• Rack mounting brackets 19


• Console cable


• Four rubber feet
