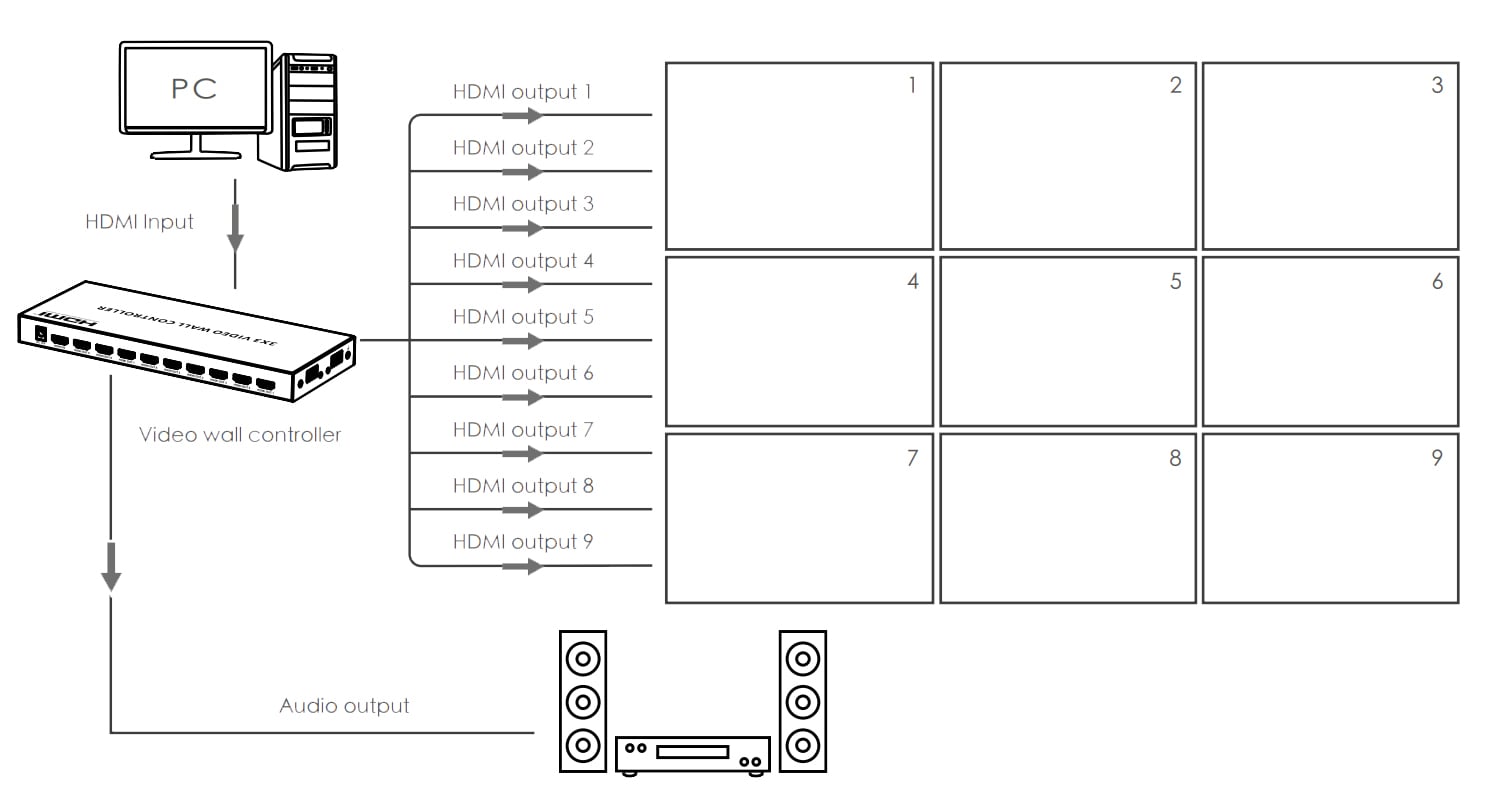

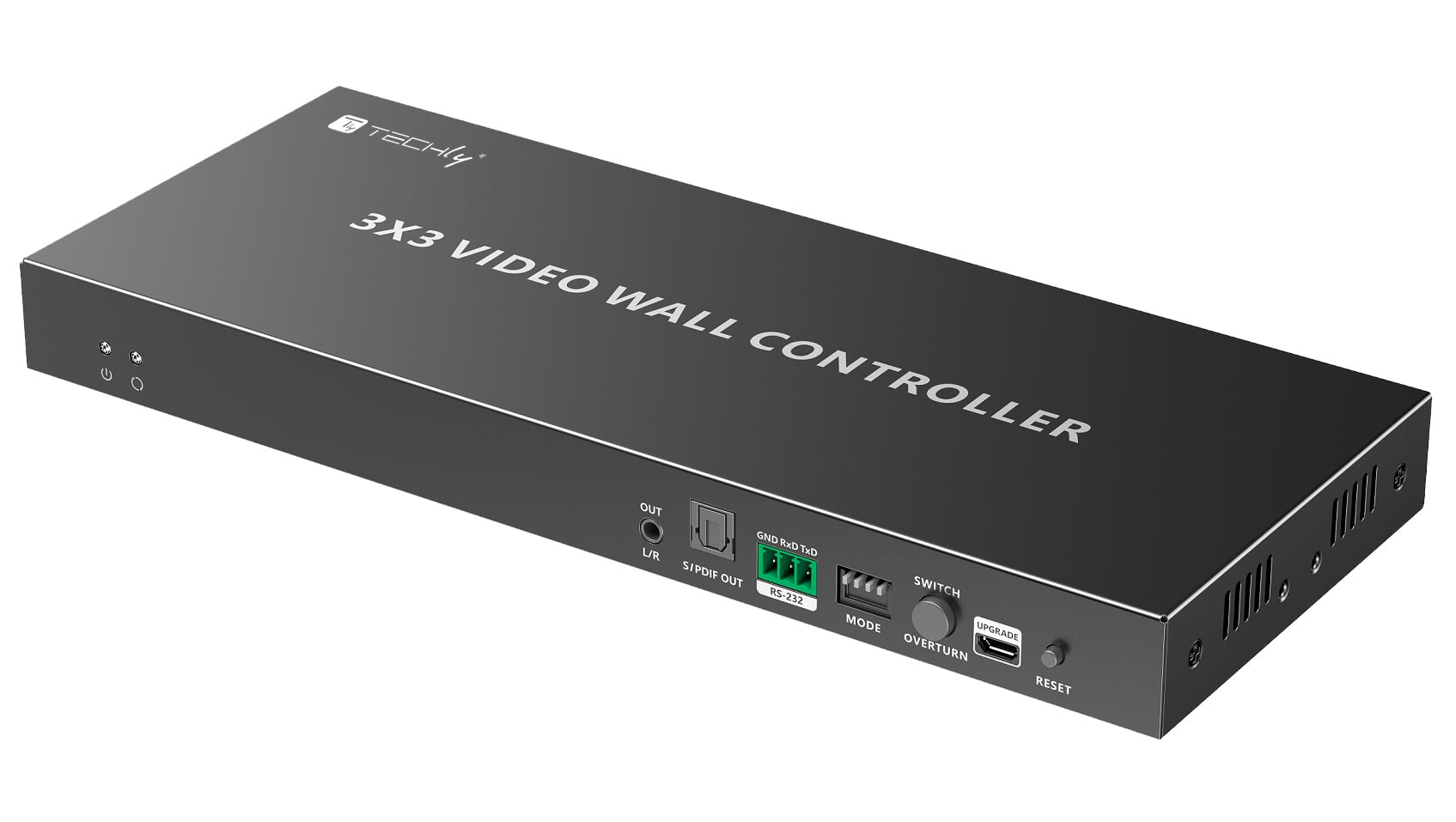

Video wall controller 1 -in- 9 -out: supports an input HDMI source and nine HDMI outputs.
Supports the 1 x 2 / 1 x 3 / 1 x 4 / 2 x 2 / 2 x 3 / 3 x 2 / 2 x 4 / 4 x 2 / 3 x 3 , which can be set via RS- 232 or dip switch.
It can be adapted flexibly to the different installation needs, which can be widely used in safety monitoring, rail transport, television, advertising, home theatre, training and other fields.
Features- Supports 1 HDMI signal input and 9 HDMI outputs
- Supports resolution up to 4096 x 2160 @ 60 Hz, compatible with lower resolutions

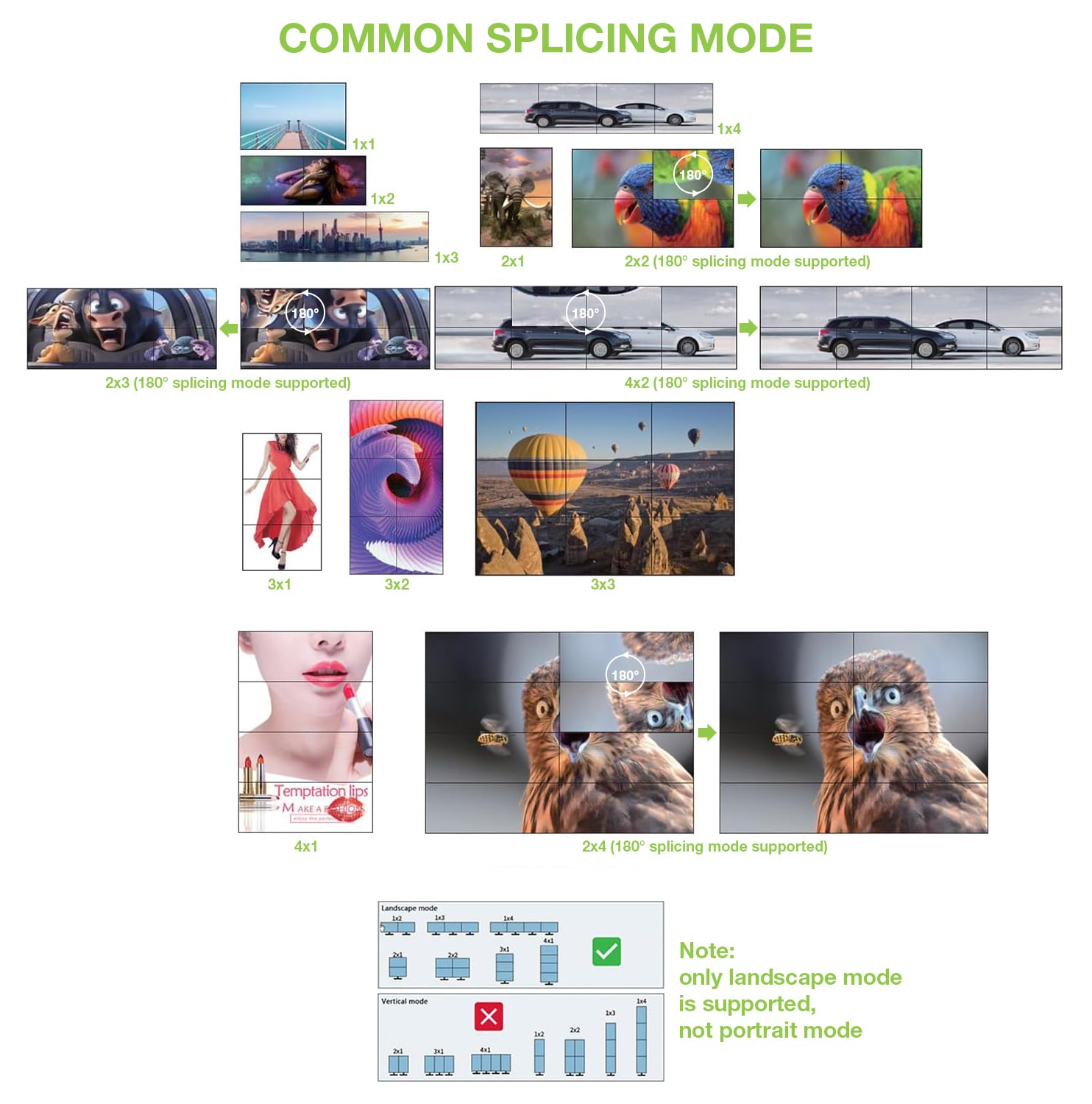

- Supports a variety of modes à display such as 1 x 2 / 1 x 3 / 1 x 4 / 2 x 2 / 2 x 3 / 3 x 2 / 2 x 4 / 4 x 2 / 3 x 3
- Supports mode à switching via dip switch
- Supports RS- 232 control to set the mode à display
- Supports 3,5 mm audio output left/right channel or audio output via S/PDIF
- Supports 180 ° Screen Image Rotation HDMI 1 / 2 Modalità 2 x 2 / 2 x 3 / 4 x 2 (when top displays are installed upside down)
- Updated firmware via Micro USB port
- Plug and play, no driver installation required

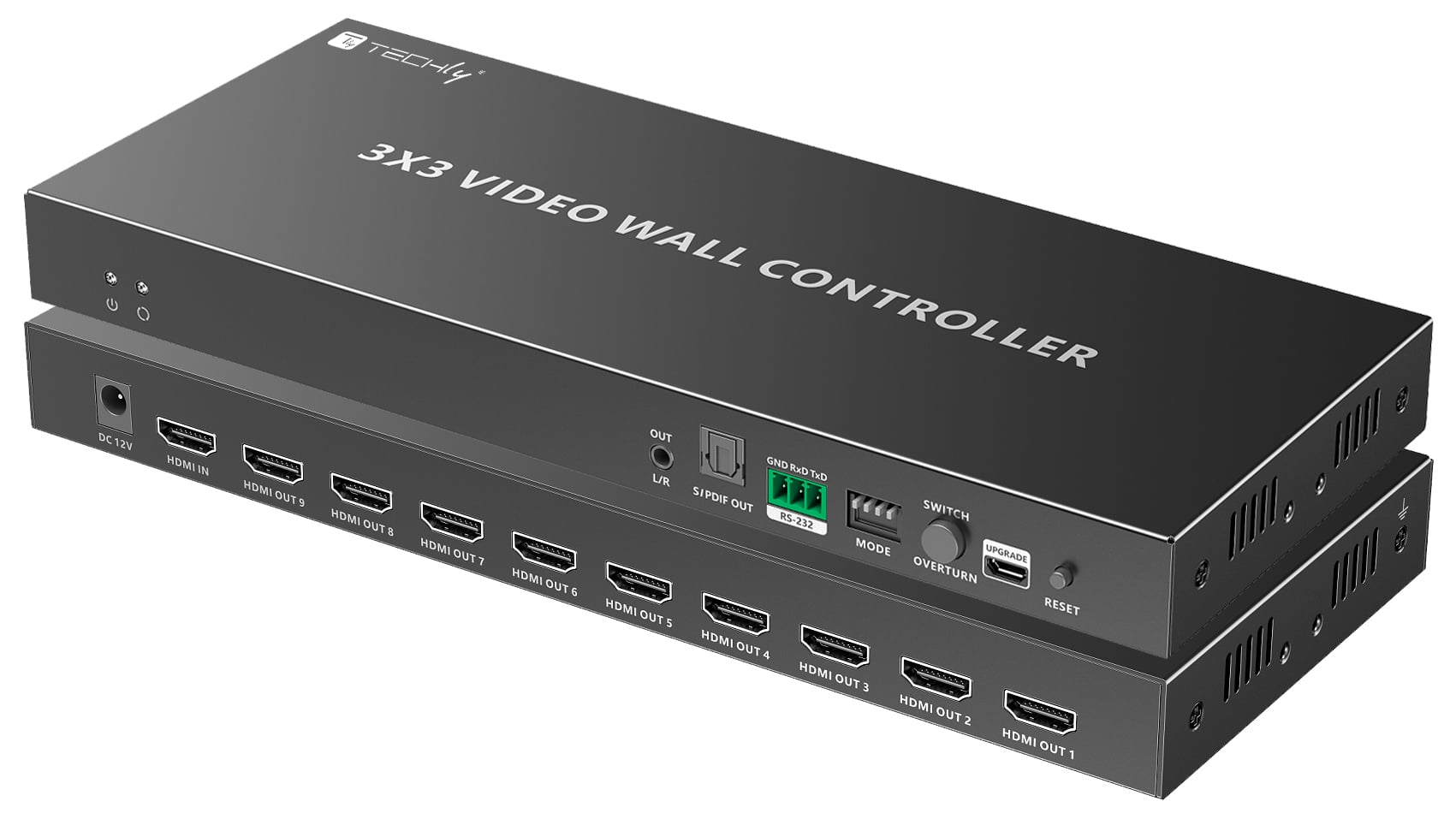

Technical specifications- Input: 1 x HDMI
- Outputs: 9 x HDMI
- HDMI 1.4 compatible
- HDCP 2.2 compatible
- Supported maximum resolution: 4096 x 2160 @ 24 / 25 / 30 / 50 / 60 Hz
Protection- Lightning protection
- Overvoltage protection
- ESD protection
Dimensions - Depthà: 105 mm
- Width: 265 mm
- Height: 25 mm
Environmental features- Operating temperature - 20 °C~ 60 °C
- Storage temperature - 30 °C~ 70 °C
- Humidità 0 ~ 90 % RH (without condensation)
Package contents- 1 x Controller
- 1 x DC power supply 12 V 1 A
- 1x User manual
- 2 x Mounting brackets
- 6 x Screws
- 1 x Ground lives
- 1 x Clamper
