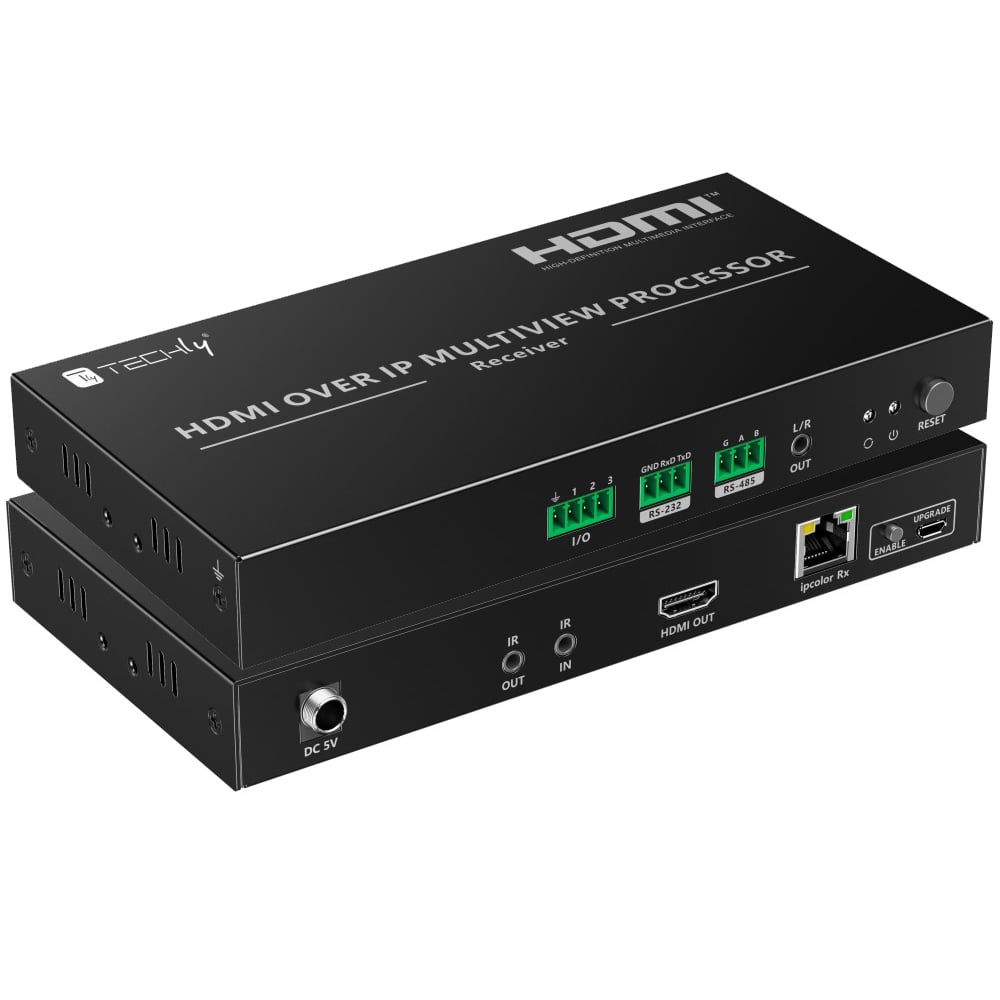

Multiview HDMI Over IP 4 K Receiver for iMMS - Techly IDATA HDMI-MX 02 RMV

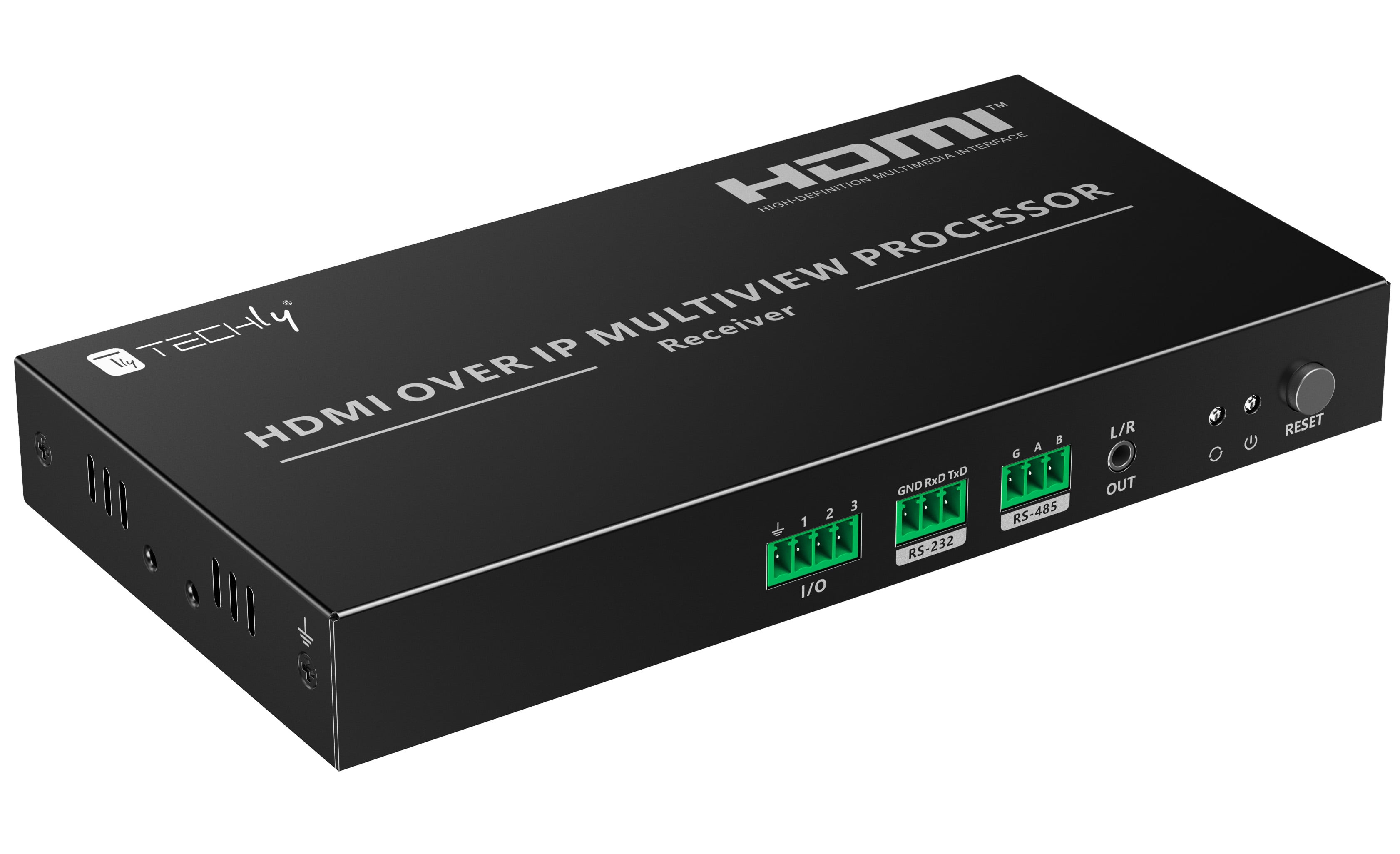

This multi-view HDMI è receiver is designed for ipcolor Multimedia Management System (iMMS).

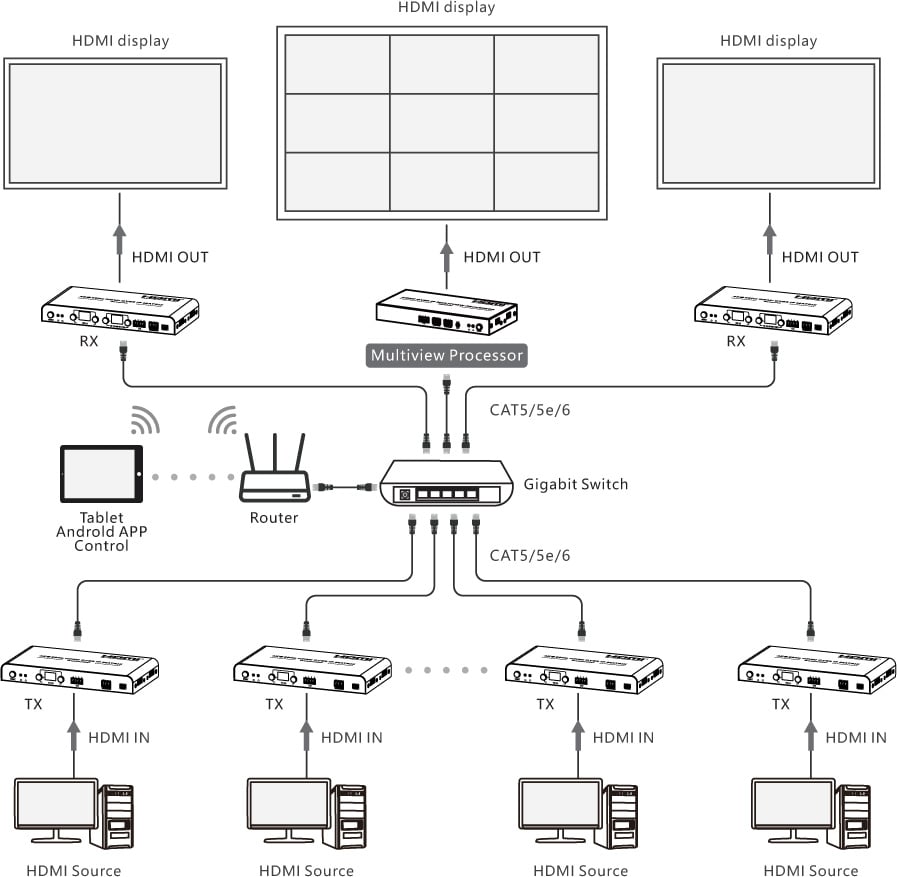

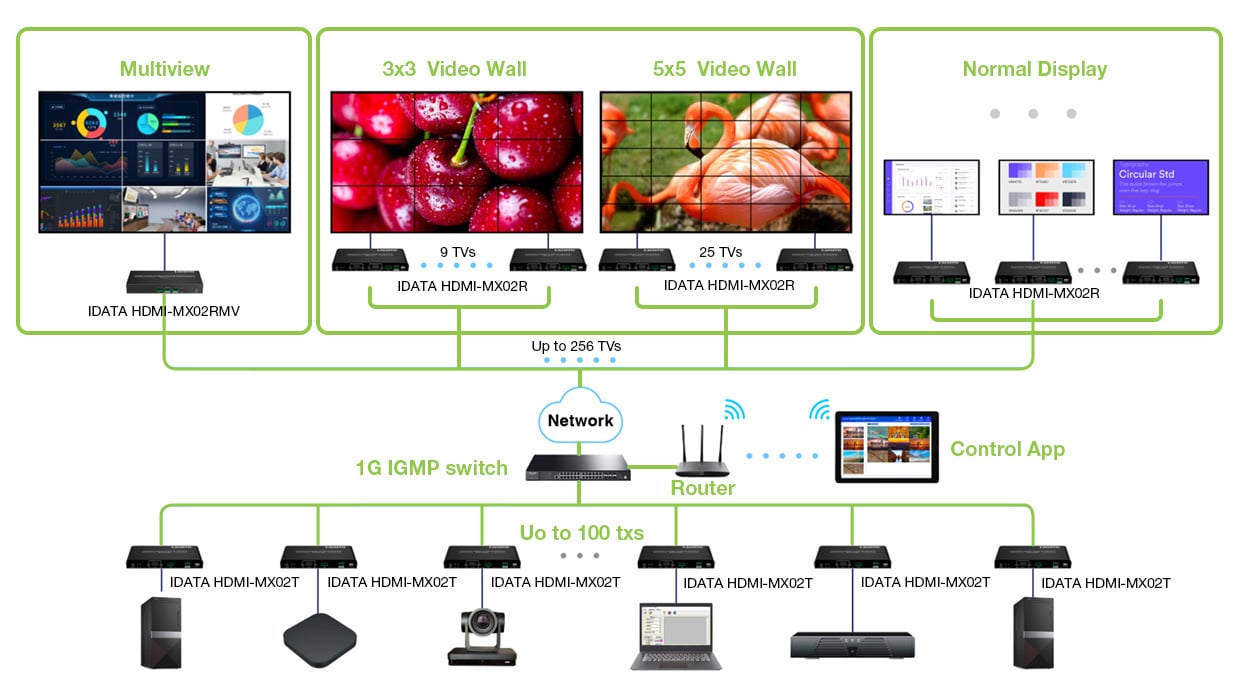

When using this product, it must be combined with the products of the iMMS series. After connecting to the iMMS transmitter via an IGMP switch it can ò receive and process simultaneously more ù AV signals.

Allows remote control of more ù 4 K@ 60 Hz video display via the iMMS control app.

It uses ipcolor STREAM technology to achieve high definition and low frequency transmission while supporting other functions such as bidirectional IR passback, RS- 232 control, RS- 485 control and digital audio separation. It can be widely used in areas such as audiovisual conferences, shipping centers, home entertainment, light television and education and training.



Features

• Based on ipcolor STREAM & trade technology; to offer high-definition transmission and low latency


• Supports resolution up to 3840 x 2160 at 60 Hz, backcompatible


• Compatible with CAT 5 / 5 E/ 6 network cables and higher, the transmission distance can & grave; reach 120 meters when using CAT 6 network cables or higher


• Compatible with HDMI-MX 02 T IDATA transmitter


• The actual distance can & grave; vary slightly due to the different performance of the switch

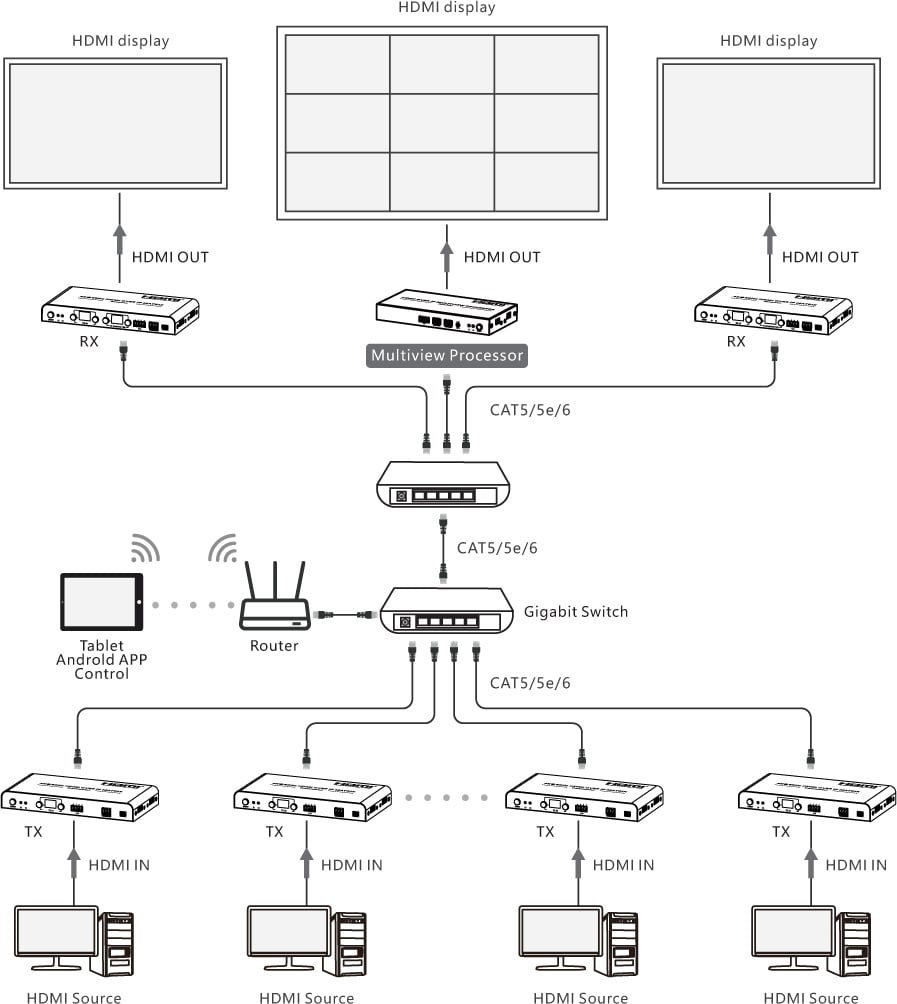

• Supports the switch cascade


• Supports RS- 232 control


• Supports RS- 485 control


• Supports bidirectional IR pass-back (20 .60 KHz)


• Supports I/O interface control


• Support for audio separation of the L/R channel from 3,5 mm

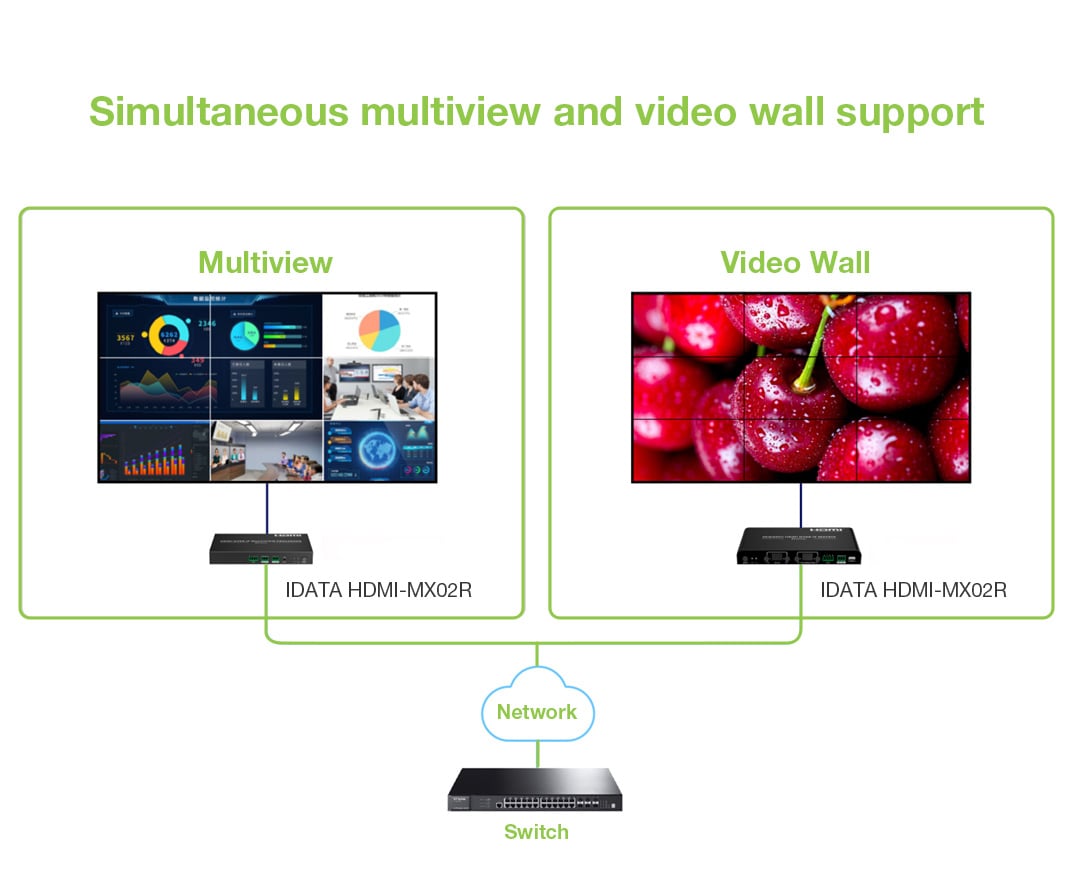

• After connecting to the iMMS matrix on IP, it supports receiving and processing more ù signals simultaneously. Combined with iMMS APP, it allows remote control of the display of the screen, providing a display of the screen to four and nine panels, also freely adjusting the size and position of the display


• Firmware update via Micro USB port


• Lightning protection, overvoltage, ESD protection


• Stable operation 24 hours on 24 , 7 days on 7



Video Specifications

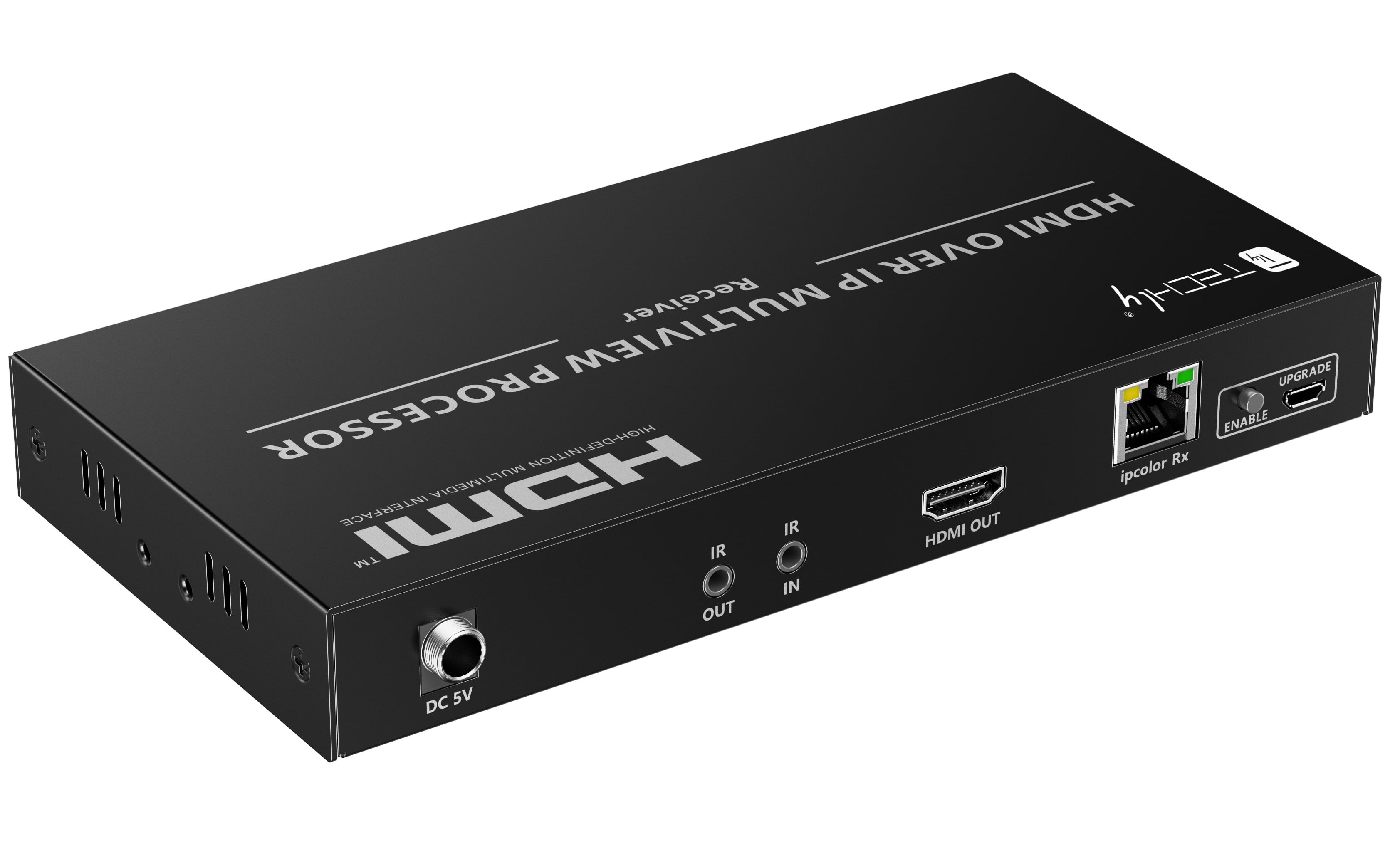

• Input interface: 1 x RJ 45


• Output interface: 1 x HDMI


• HDMI length ≤ 5 m


• Velocità maximum transfer 18 Gbps


• HDMI 2.0 compatible


• HDCP 1.4 /HDCP 2.2 compatible


• 3840 x 2160 @ 24 / 30 / 50 / 60 Hz, 1080 P@ 50 / 60 Hz, 720 P@ 50 / 60 Hz, 1920 x 1200 @ 60 Hz, 2560 x 1440 @ 60 Hz


• Connection Types: Normal switch connection or cascade switch


• Transmission distance: Cat 6 / 6 A/ 7 ≤ 120 m



Audio Specifications

• Input interface 1 x RJ 45


• Output interface:



1 x 3,5 mm L/R

1 xHDMI

• HDMI output: LPCM 2.0


• Audio input/output format from 3,5 mm: PCM



Command signal

• Input interface:



1 x IR output from 3,5 mm

1 x IR input from 3,5 mm

• IR frequency: 20 kHz~ 60 kHz


• RS- 232 /RS- 485:



Velocità default transmission: 115200

Supported: 2400 , 4800 , 9600 , 19200 , 38400 , 57600 , 115200



Feeding

• Power supply: DC 5 V/ 2 A


• Energy consumption: ≤ 2,5 W



Protection

• ESD protection


• Protection against lightning


• Overvoltage protection



Environmental features

• Operating temperature: - 20 °C / 60 °C


• Storage temperature: - 30 °C / 70 °C


• Humidità: 0 - 90 %RH (without condensation)



Dimensions

• Width: 191 mm


• Depthà: 96 mm


• Height: 25 mm



Package contents

• 1 x Multiview receiver processor


• 1 x Power supply 5 V 2 A


• 1x User manual


• 2 x IR extension cables


• 3 x Terminal block


• 2 x Mounting wings


• 1 x Screw kit
