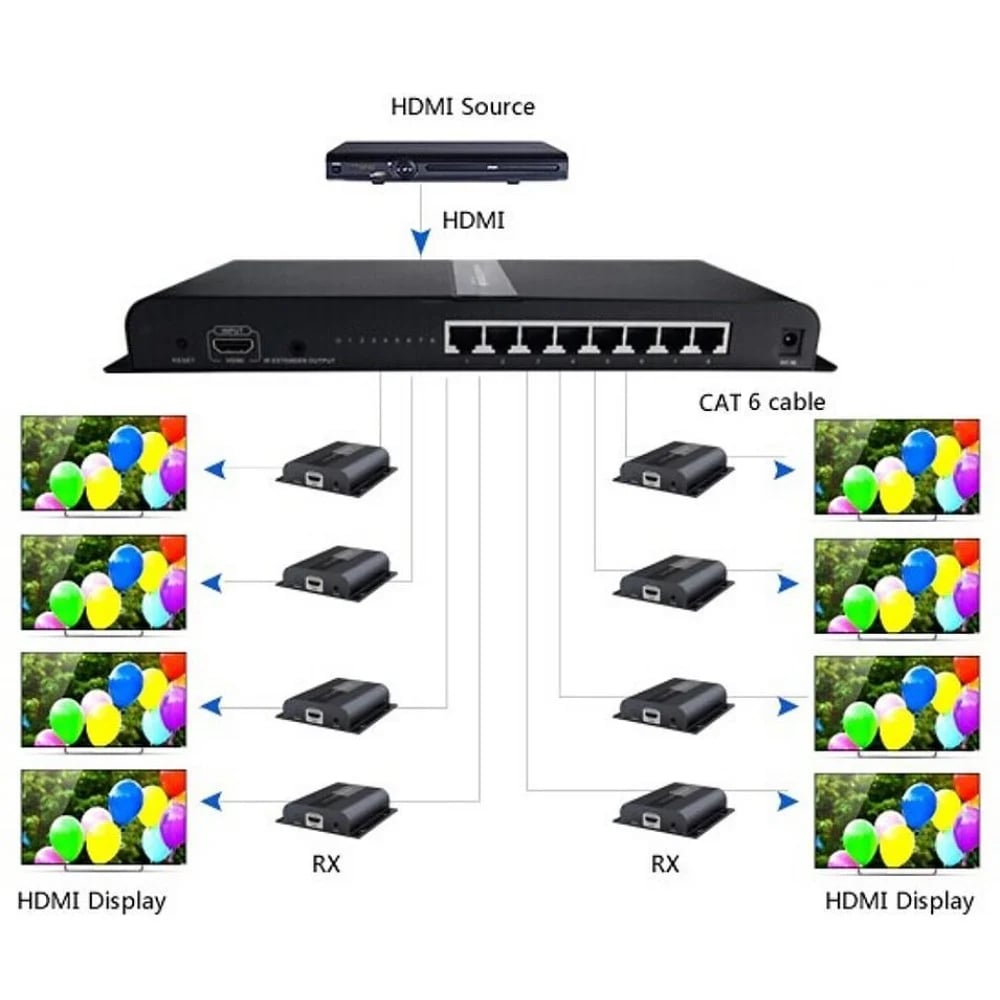

IDATA EXTIP- 318 V 4 è a HDMI splitter that allows you to distribute the signal from an HDMI source to 8 HDMI display on CAT 6 / 6 cable to 7 via compatible receivers (kit consisting of a base/transmitter and an additional receiver). It supports remote transmission up to 120 meters and the maximum resolution of 1080 P.
Not compatible with previous product versions.Features- Compatible with HDMI and HDCP
- Distribute an HDMI source to 8 monitor on CAT 6 / 6 cable to/ 7
- Supports video resolution from 480 i@ 60 Hz to 1080 p@ 50 Hz/ 60 Hz
- Supports transmission distances up to 120 meters through the network cable
- Supports infrared signal transmission
Technical specifications- HDMI signal: HDCP compatible
- Supported resolutions: 480 i@ 60 Hz; 480 p@ 60 Hz; 576 i@ 50 Hz; 576 p@ 50 Hz; 720 p@ 50 / 60 Hz; 1080 i@ 50 / 60 Hz; 1080 p@ 50 / 60 Hz
- Transmission distance: up to 120 meters with resolution 1080 p@ 60 Hz full HD on Cat cable. 6
- Supports IR signal 50 / 60 kHz

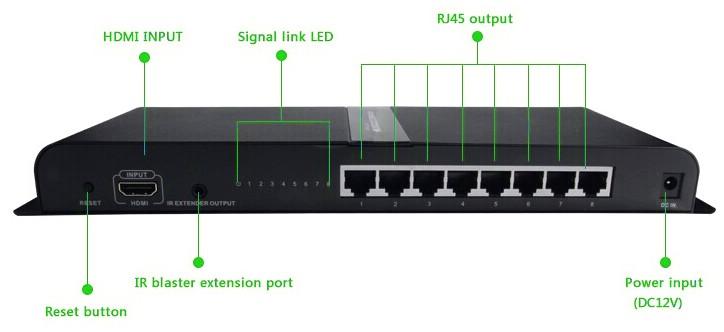

- Input: 1 x HDMI
- Outputs: 8 x RJ 45
- 8 LED connection
- Power supply: 5 V 3 A
- Consumption: < 24W
- Color: black
- Attention includes 1 additional receiver (if necessary more ù additional receivers, buy them separately with IDATA EXTIP- 383 RV 4 )
Dimensions- Width: 299 mm
- Depthà: 110.7 mm
- Height: 29.6 mm
- Weight: 430 g

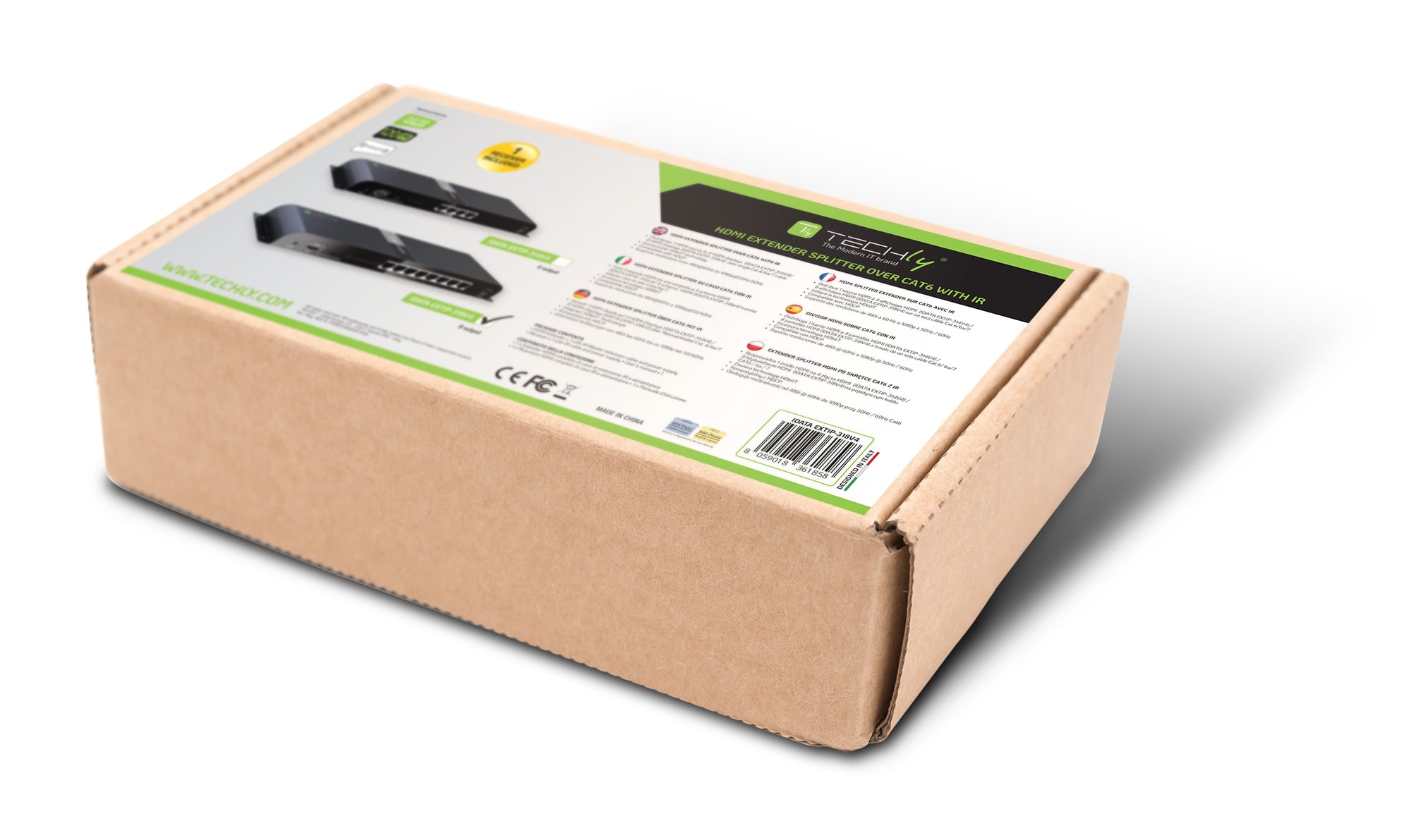

CertificationsPackage contents- 1 x Base/Extender splitter IDATA EXTIP- 318 V 4
- 1 x Extra receiver IDATA EXTIP- 383 RV 4
- 1 x IR blaster cable
- 1 x IR receiver extension cable
- 1 x Extender power supply
- 1 x Receiver power supply
- 1x User manual
