Extender Splitter HDMI 1 x 8 with IR on Cat cable 6 up to 40 m - Techly IDATA EX-HL 81 TY

IDATA EX-HL 81 TY is the reliable solution to extend an HDMI signal over long distances ensuring sharpness and stabilityà both for qualityà video and for qualityà audio, with full support of full hd video signal and PCM audio, all optimizing the costs thanks to the use of a common copper network cable.

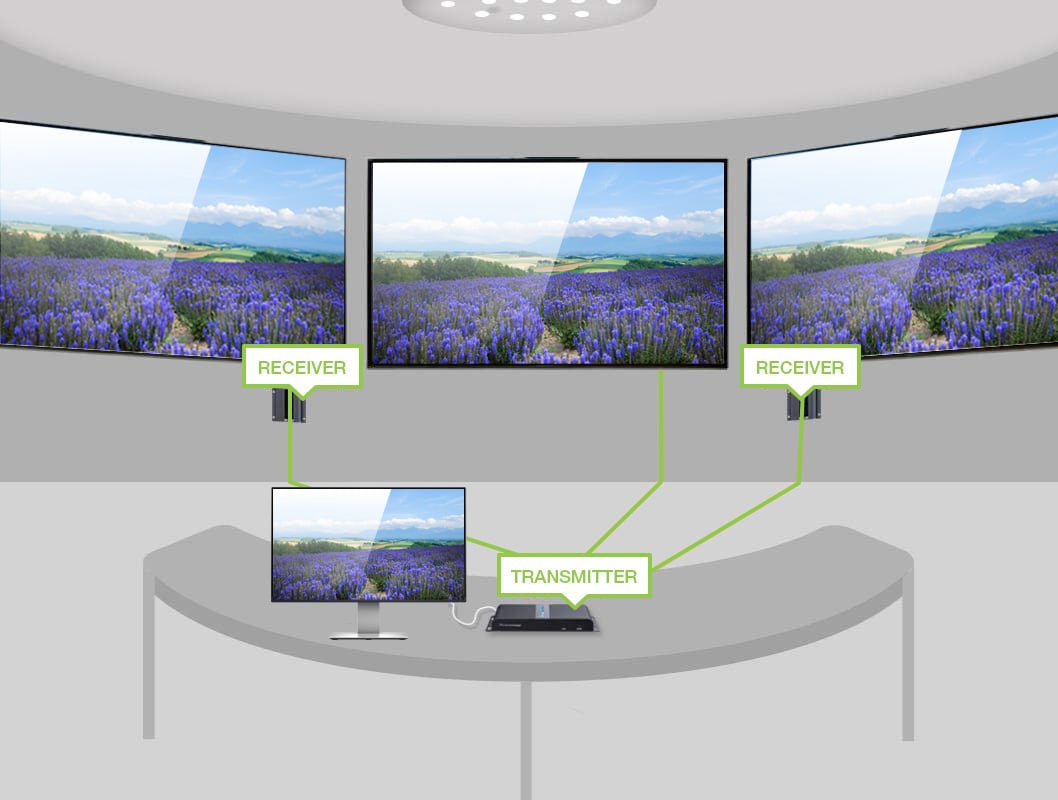

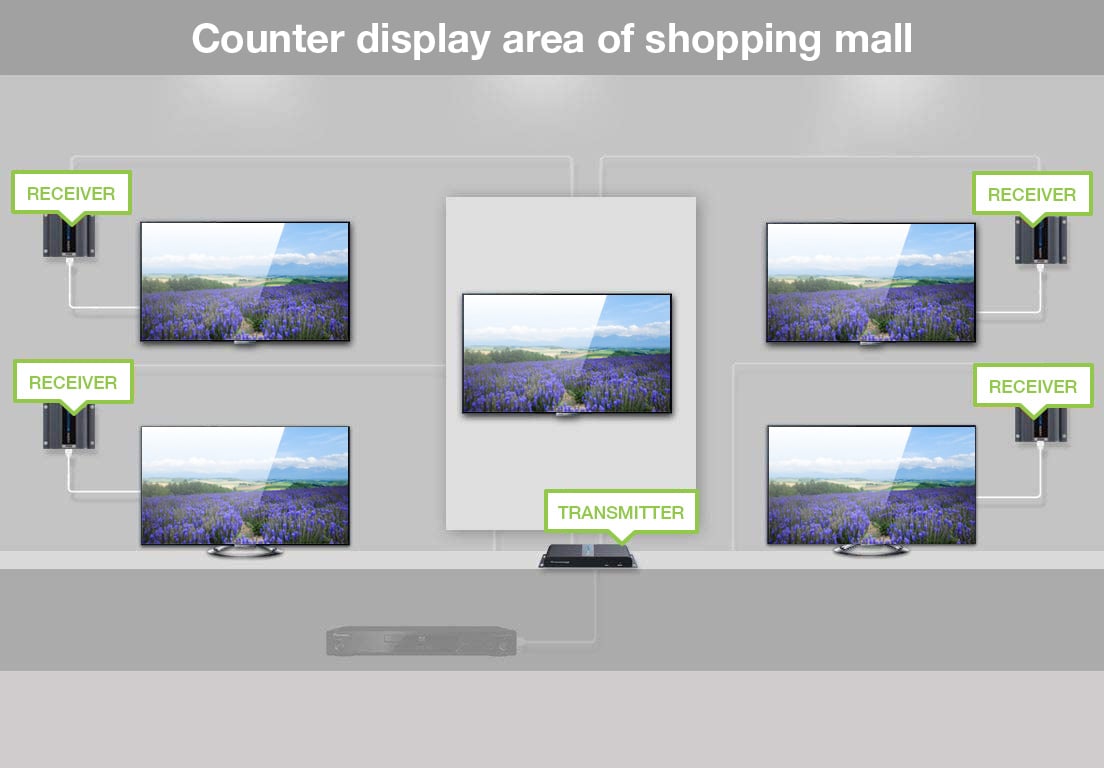

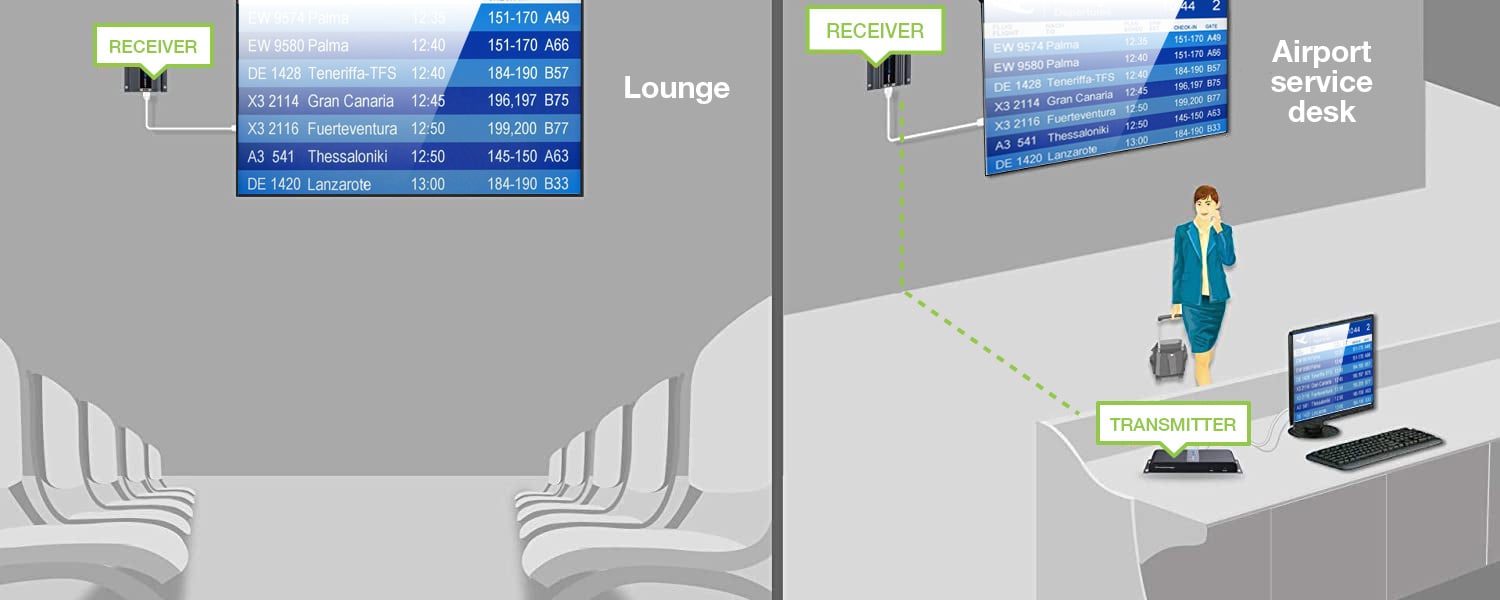

Find application in various contexts: training, school, health care or business. Suitable for digital advertising, video surveillance systems through DVR, congress halls, exhibition halls or commercial exhibitions and much more.

IDATA EX-HL 81 TY è can connect devices with HDMI output such as PC, DVR, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables.

You can also use the existing remote control to control devices from long distances.

And equipped with EDID switches for optimal resolution settings

Remotes are powered in POE directly from the base via network cables, saving the installation of additional power supplies on remotes.



Features

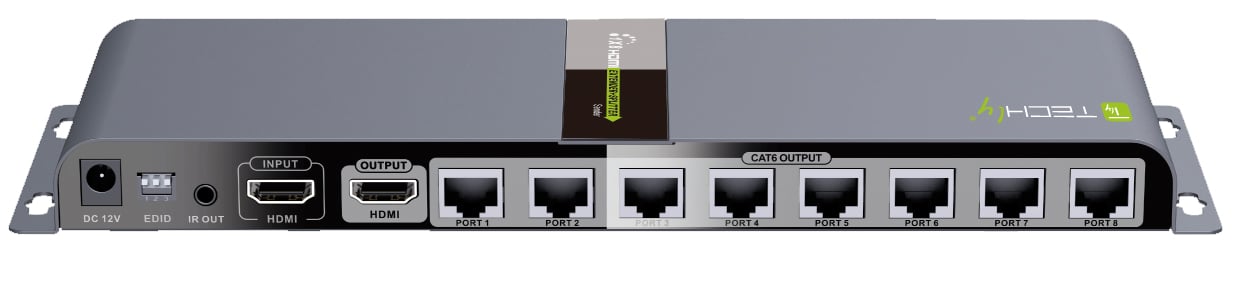

• Distribute the audio/video signal from an HDMI source to 8 HDMI screens simultaneously using a Cat network cable. 6 or higher

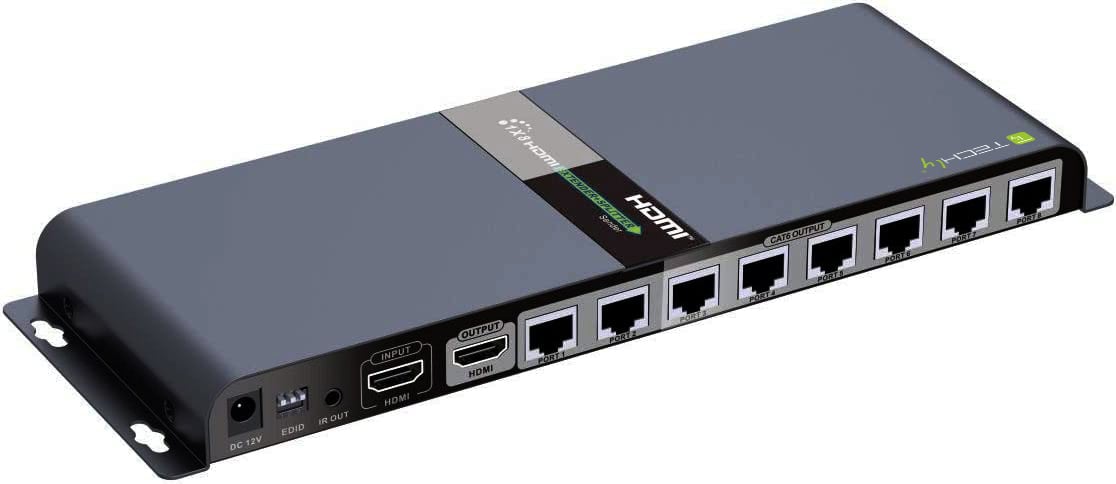

• Supports HDMI Loop-out: equipped with HDMI output port on the transmitter to connect an additional monitor for local monitoring


• Extends HDMI audio/video signal to 40 m


• Supports 1080 resolution p@ 60 Hz


• Supports IR pass back for remote device control


• Complete with SWITH EDID for better compatibility à and setting between connected devices


• Equipped with a lenght button on the receiver to manage the different transmission lengths optimally


• Supports PoE function, the receiver is powered by network cable and does not need to connect it to a power supply


• Plug and Play



Technical specifications

• HDMI input: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz


• HDMI output: 480 p@ 60 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz


• Supported color video format: 24 bit/deep color; 30 bit/Deep Color; 36 bit


• Supported audio format: PCM


• Proprietà physical: aluminium


• Supported HDCP version: HDCP 1.2


• Input cable length: ≤ 5 m (standard HDMI cable 1.3 AWG 26)


• Output cable length: ≤ 5 m (standard HDMI cable 1.3 AWG 26)


• Transmission distance: Cat 6 up to 40 m (50 mt with optional remote power supplies)

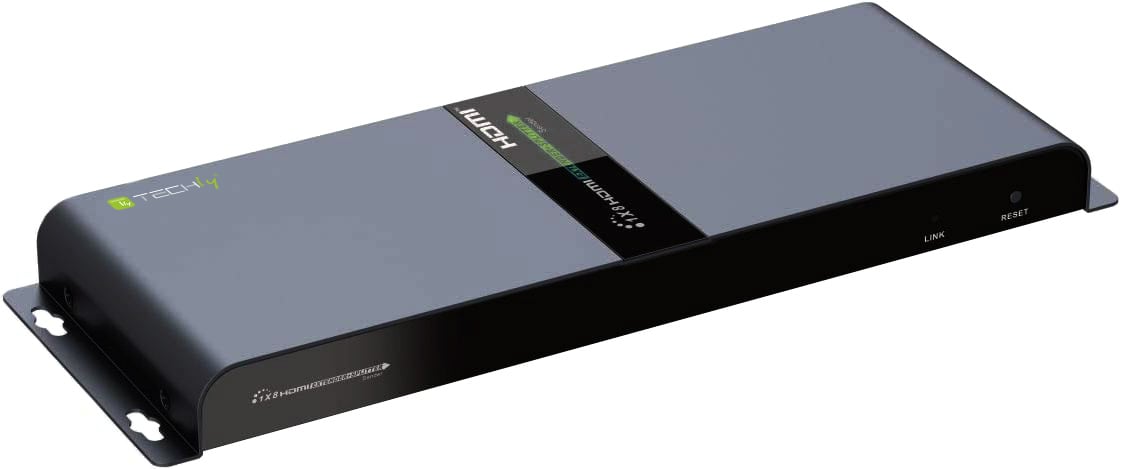

• Reset button on transmitter base


• Length button on the receiver for length setting

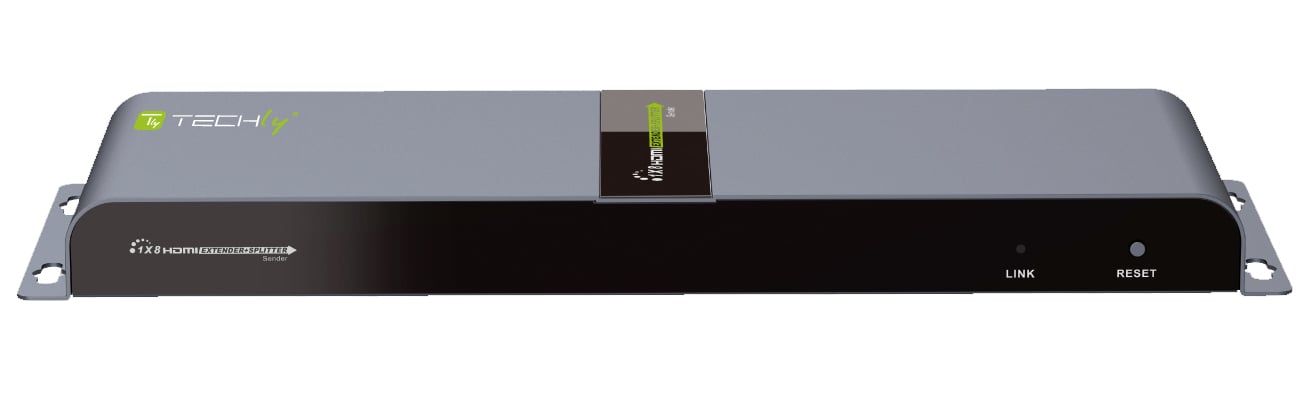

• Led: Link on the transmitter and receiver base



Feeding

• Power supply mode: power supply/POE


• Power supply included: DC 12 V/ 3 A


• Energy consumption: < 24W


• Optional receiver power supply: 5 V 1 A



Environmental features

• Operating temperature: 0 ~ 60 °C


• Storage temperature: - 20 - 70 °C


• Storage humidità (without condensation): 0,95 %



Dimensions

• TX: 27.6 * 9.6 * 2.3 cm


• RX: 7.10 * 6.6 * 2.3 cm

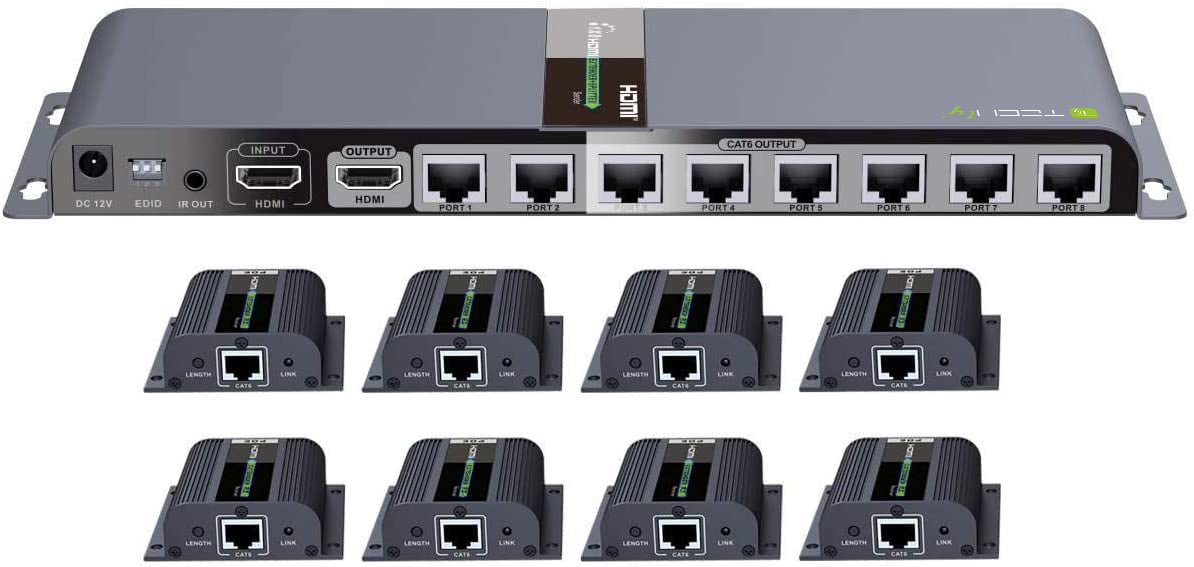

Package contents

• 1 x Extrender Transmitter


• 1 x IR blaster cable


• 8 x Extrender POE Receivers


• 8 x Cables ir receiver


• 1 x DC power supply 12 V / 3 A


• 1 x Installation guide
