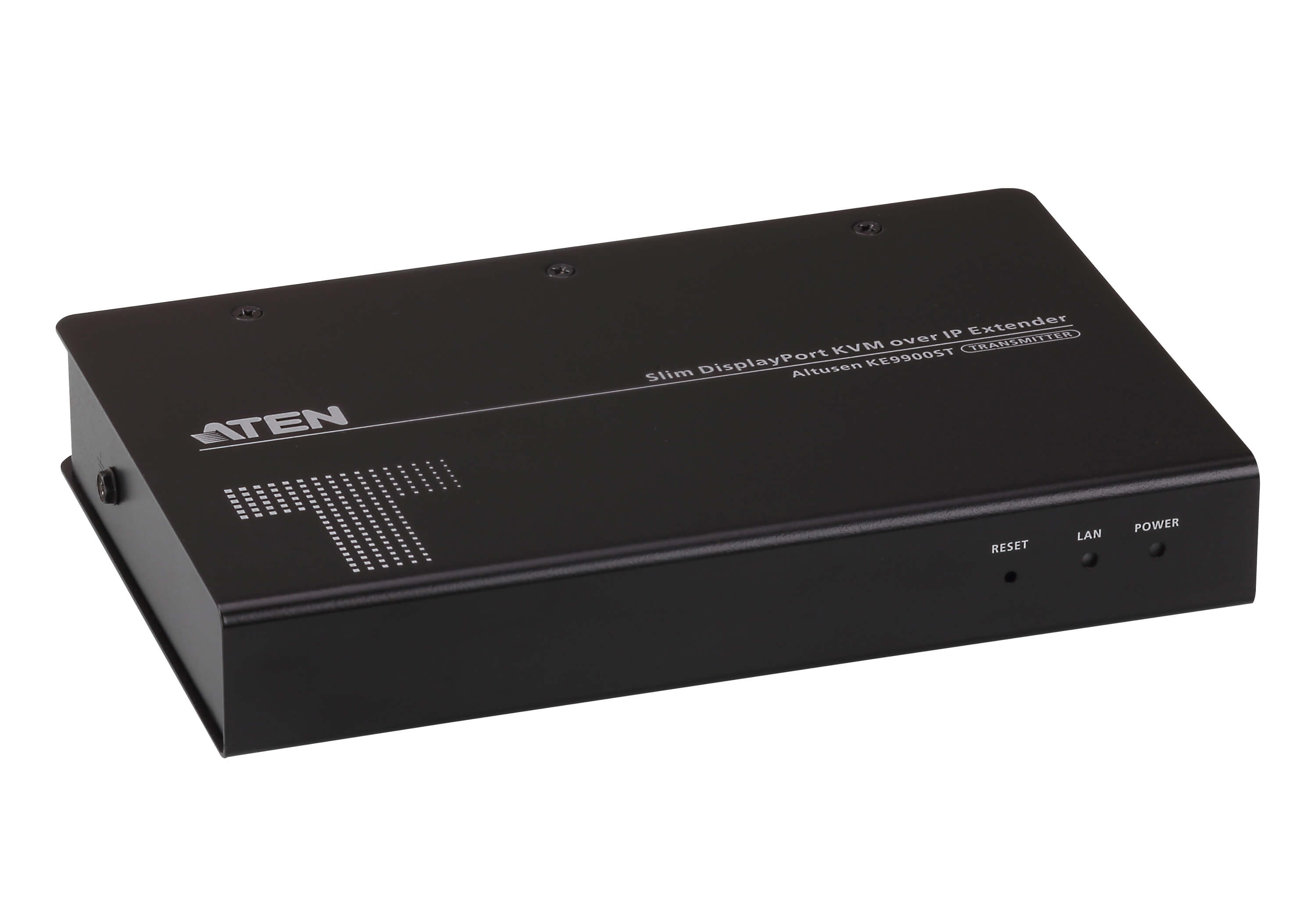

KVM over IP DisplayPort single display transmitter - Aten IDATA KE- 9900 ST

The KVM over IP DisplaySlim port extension unit KE 9900 ST è a high-performance, compact and reliable IP-based transmitter that can be associated with any KE* series receiver to achieve a budget-saving solution. KE* series extenders allow access to a computer system from a remote USB console via Intranet to allow users to set up computers in a secure environment with controlled temperature, isolated from user workstations.

The KE 9900 ST supports video input DisplayPort from a computer while the associated KE series receiver supports DisplayPort, DVI or HDMI output to offer video resolutions up to 1920 x 1200 and qualityà video compression integrated and loss-free with minimal latency. The extender also supports RS- 232 serial commands. In addition to a DC power jack, the KE 9900 ST transmitter includes an additional CC terminal block to make it more ù convenient to install.

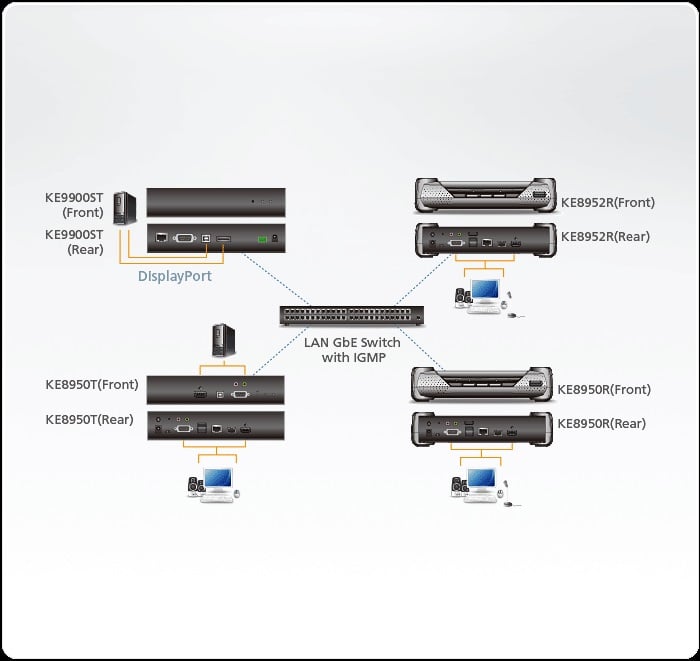

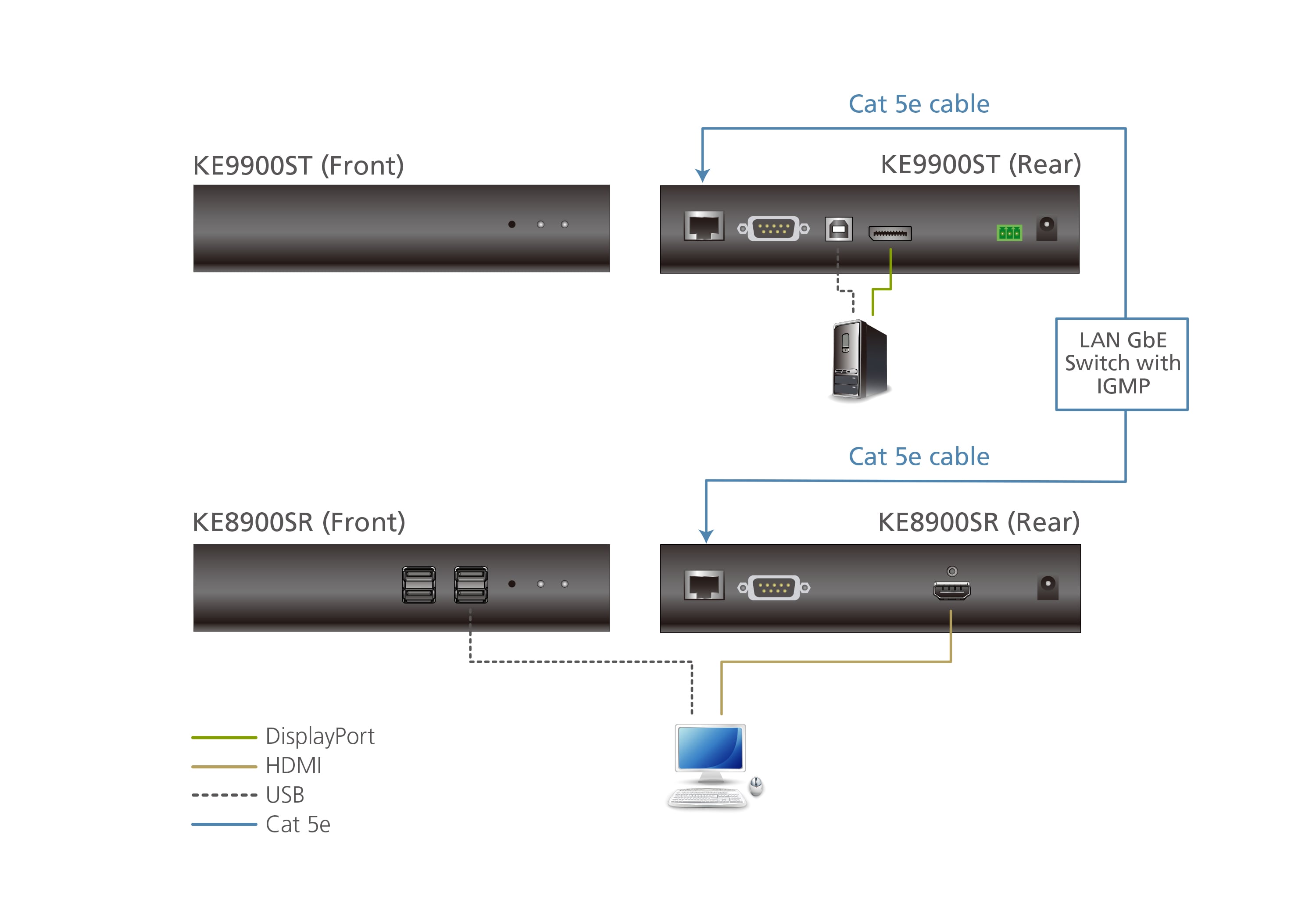

It can be placed on a desk, mounted on the wall or on the back of a rack thanks to its space-saving mounting design on 0 U rack. It is also possible to use the KE 9900 ST as a point-to-point extension device/multipoint point-to-point, or integrated into a matrix KVM over IP (multipoint multipoint) system when combined with the matrix KE (CCKM) management software, so as to offer more ù flexible applications in different network environments. The configuration is done through the KE matrix management software or the RS- 232 /Telnet text menu. The KE extender also offers improved security features such as support for AES encryption for secure data transmissions/keyboard/mouse/USB and RADIUS/LDAP/AD user authentication or remote to offer an additional level of security in connection.

When integrated with the KE Matrix Management Software and associated with the KE Series receiver, the KE Extensor supports other advanced functions such as boundless switching, quick exchange, video wall, multi-view, profile planning, automatic detection of KE series extenders on the same subnet to make installation and configuration more rapid, in addition to authentication and permission by username/password. Consult the CCKM web page for more information. Both during configuration, monitoring, administration, control or extension of computer access, the KVM matrix over IP è system so as to adapt to an infinite variety of work environments and workstation settings, as well as providing solutions in the transmission sectors, control center, multimedia, production and many other areas where è request the matrix extension.



Hardware

• The advanced processor offers loss-free and low latency video transmissions up to 1920 x 1200 at 60 Hz; depthtà color 24 -bit


• Supports standard DisplayPort resolutions from 640 x 480 to 1920 x 1200


• Conforms with 1.2 DP and 1.3 HDCP


• Auto-MDIX: automatically detects cable types


• ESD protection 8 KV/ 15 KV integrated and overvoltage protection 1 KV


• Slim, lightweight and fanless design for silent and energy efficient operations


• Supports connection via Gigabit Ethernet port


• Mountable on rack (with optional mounting kit) and on wall



Management

• EDID Expert™: select the optimal EDID settings for trouble-free ignition and high quality à display


• Compression level saw: allows you to increase/reduce qualityà video so as to adjust it to the most appropriate network band


• CLI: administrators can control all KE devices via RS- 232 or Telnet by emitting commands


• RS- 232 serial port: allows you to connect to a serial terminal for text menu, CLI or serial devices such as touch screens and barcode scanners


• Compatible with all KE series devices



Security and Virtual Media

• Dedicated LAN port for direct KE connections: can & grave; be isolated from the business network


• Secure data transmission: AES encryption to protect video/keyboard/mouse/data transmission


• Supports TLS industry standard protocol (Transport Layer Security)


• Virtual Media allows you to transfer data, patch your operating system, install software and perform diagnostic tests


• Supports drivesà DVD/CD USB 2.0 , USB mass storage devices, PC hard drives, ISO images and a smart/CAC card reader



Advanced functions**

**Advanced functions are supported when KE transmitters are associated with KE receivers and managed through the KE Matrix Management Software (CCKM)

• Flexible connections: allows multiple connections with extender and matrix for multiscreen installations and video walls


• Push and Pull: to share content immediately with just one click


• Quick exchange: Switch between different remote video resolutions on a local display within 0,3 seconds


• Boundless Switching: Just move the mouse cursor over the screen limits to switch to different receivers


• Video walls: create more ù video walls up to 8 x 8 (maximum 64 screens) in each layout


• Advanced planning: improves efficiency and savings by allowing connections based on time and date


• Virtual Transmitter: to transmit independently video, audio, USB and serial sources


• Supports both internal and external authentication: External authentication supports LDAP, Active Directory, RADIUS and TACACS+


• Advanced User Authorisation Settings: Administrators can set four ways à of access permissions on Tx devices for collaboration or to avoid interference between users


• User permissions and configurable group for access and control of KE devices


• Tx groups up to 4 KE transmitter series to support multi-screen applications

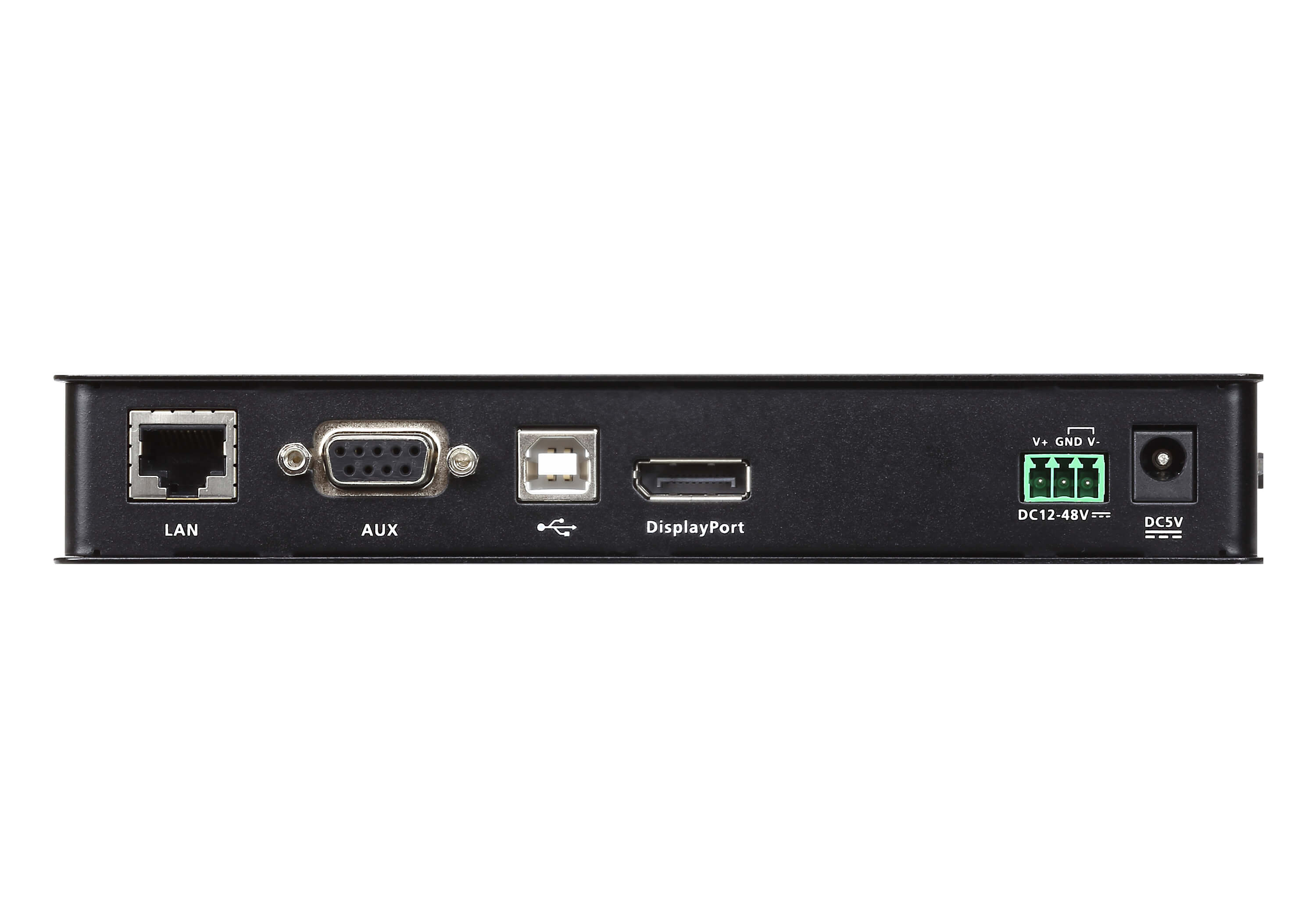

Connections

KVM Doors : 

• 1 x female type B USB (white)


• 1 x DisplayPort female (black)


• 1 x DB- 9 female (black)


• 1 x Doors LAN 1 x RJ- 45 10 / 100 / 1000



Power supply: 

• 1 x CC connector (black)


• 1 x 3 pole terminal block connectors (green)



Physical and environmental data

• Power supply: DC 5 V 4,75 w (included power supply)


• Operating temperature:  0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità:  0 - 95 % relative humidity without condensation


• Structure:  Metal


• Weight:  0.65 kg (1.43 lb)


• Dimensions (L x P x A):  18.20 x 11.75 x 2.87 cm



Package contents

• 1 x KE 900 ST transmitter KVM over IP DisplayPort with single thin display


• 1 x 2 L- 7 D 02 DP- 1 cable DisplayPort (2 m/ 6,56 ft)


• 1 x LIN 6 - 04 U 1 -V 1 BG USB cable 2.0 Type A Type B (1,8 m/ 6 ft)


• 1 x 0 AD 6 - 1005 - 26 EG power supply


• 1 x mounting kit


• 1x User instructions
