True 4 K 4 x 2 - Aten IDATA VP- 1420

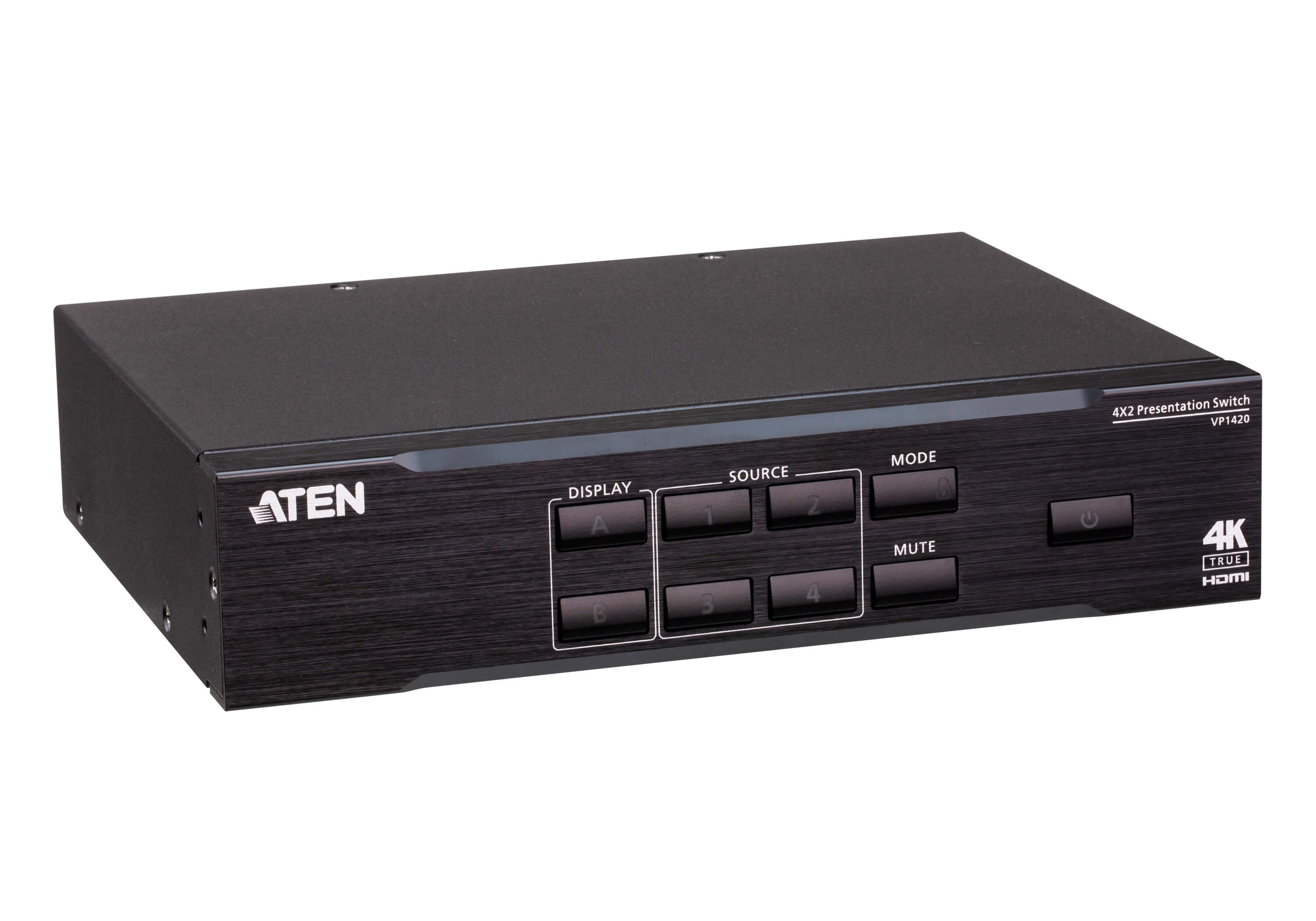

IDATA VP- 1420 è a complete presentation switch that integrates the functions of the switch matrix video, scaler True 4 K, audio processor and digital analogue converter in a compact device easy to install on a table or rack. With four analog/digital inputs for two HDMI True 4 K outputs, è designed to improve the impact of professional presentations in meeting rooms from small to medium dimensions.

Thanks to the simplified control from the push buttons of the front panel, the remote IR controller, RS- 232 and the web user interface via Ethernet, IDATA VP- 1420 reduces not only the number of devices in the system, but also reduces the complexityà operational. It is suitable for all environments for business presentations and education, such as meeting rooms, classrooms, training rooms or any other environment for presentations, such as exhibition galleries or hotels.

Supports resolutions up to 4096 x 2160 at 60 Hz (4: 4: 4) with HDR to offer vivid content in each presentation.

The fluid è AV switching è brought to perfection, allows you to connect up to 4 sources (3 HDMI, 1 VGA) and switch seamlessly from one to the other and display the contents climbed to perfection simultaneously on True 4 K and 1080 p. Supports the integration of stereo and audio disassembled HDMI for different audio outputs to make it easier to choose the preferred audio configuration.



Features

• Supports 4 multi-format inputs: 3 HDMI and 1 VGA inputs


• 2 HDMI outputs

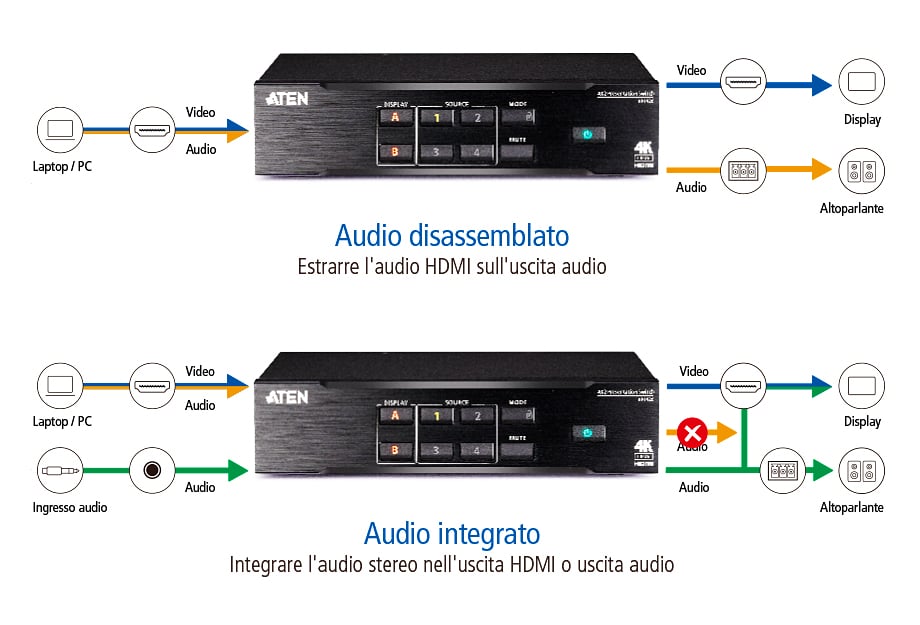

• Integrated audio: stereo audio can be integrated into HDMI output or separated from stereo output


• Disassembled Audio: HDMI audio can be extracted on stereo output


• Automatic Switching: automatically detects and switches to a new source as soon as connected


• Superior video quality: True 4 K resolutions up to 4096 x 2160 at 60 Hz (4: 4: 4 )(HDMI)


• Supports 4 K HDR

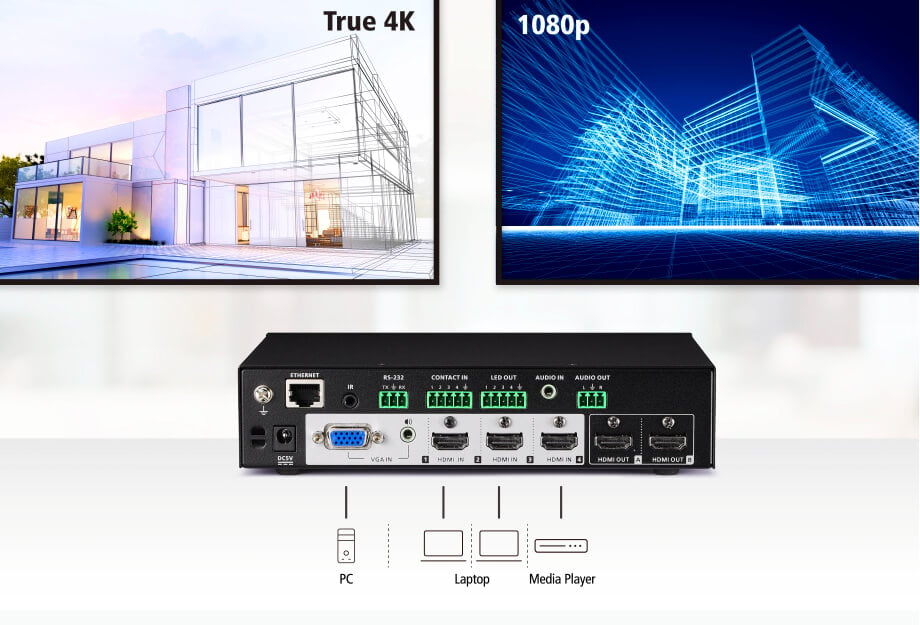

• Scaler: supports 4 K video upscaling for display A and downscaling at 1080 p for display B


• EDID Expert™: automatically selects optimal EDID settings for trouble-free ignition, high quality visualization and use of best video resolution between connected devices


• HDMI 2.0 (3 D, Deep Color, 4 K); HDCP 2.2 compatible

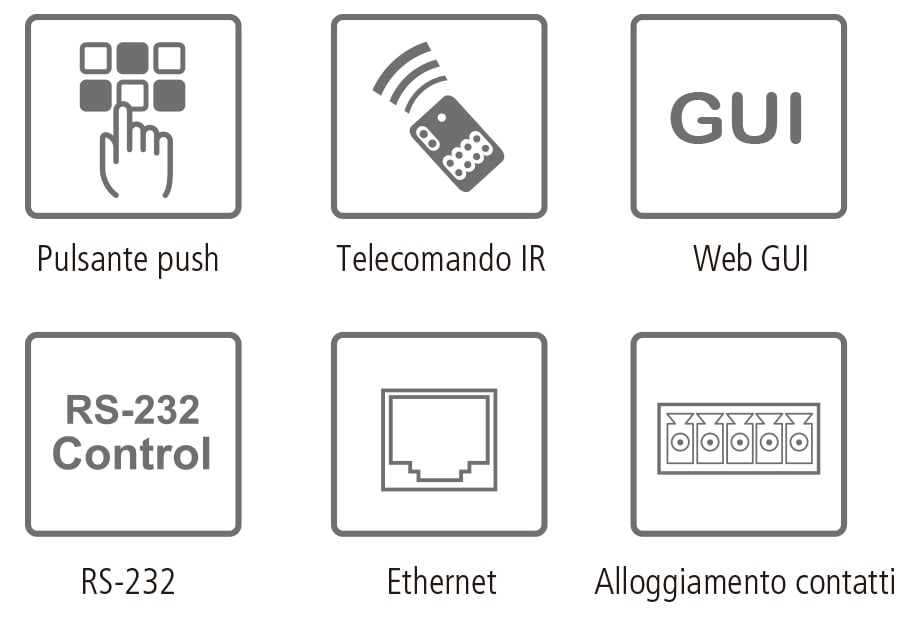

• Multiple control methods: flexible control via push buttons on the front panel, IR remote control, RS- 232 and web user interface via Ethernet


• Supports modeà standby for energy saving and rapid reactivation


• Consumer Electronics Control (CEC) Support


• Integrated contact input and LED output for keypad control via remote pad IDATA VPK- 104 contacts housing



Specifications

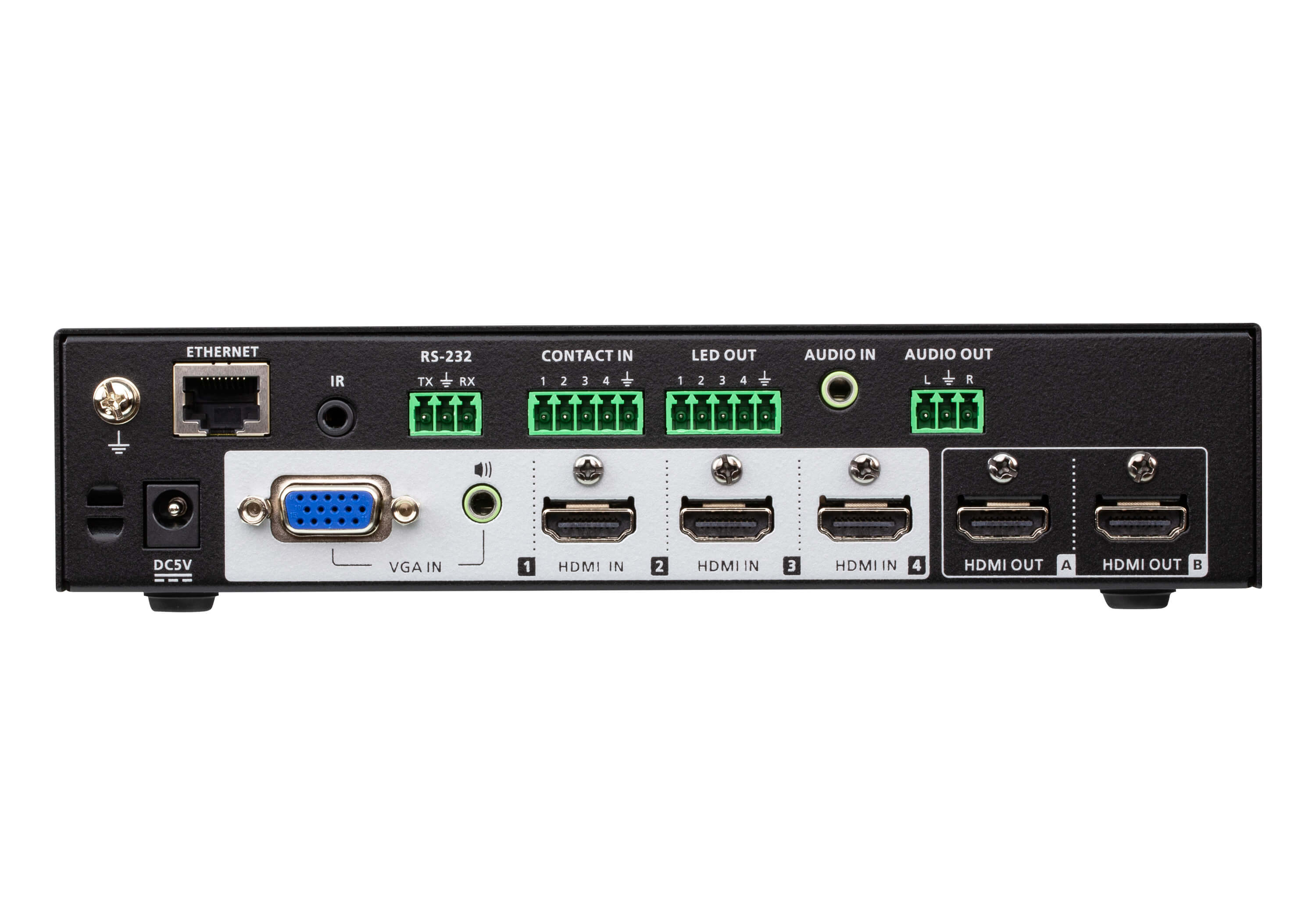

• Video input: 3 HDMI type A female (black) and 1 VGA (HDB- 15) female (blue); max distance HDMI: 4 K at 60 Hz (4 : 4 : 4 ) at 3 m; 4 K at 30 Hz at 10 m; 1080 p at 60 Hz at 15 m - VGA: 1920 x 1200 at 60 Hz at 15 m


• Video output: 2 HDMI type A female (black); max distance & HDMI: 4 K at 60 Hz (4 : 4 : 4 ) at 3 m; 4 K at 30 Hz at 10 m; 1080 p at 60 Hz at 15 m


• Video: max. HDMI resolution: up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 4 : 4 ) - VGA: up to 1920 x 1200 at 60 Hz; conformità: HDMI 2.0 (3 D, Deep Color, 4 K); 4 K HDR; compatible with HDCP 2.2; CEC (Consumer Electronics Control)


• VGA stereo audio input: 1 x mini female stereo connector (green)


• HDMI stereo audio input: 1 x mini female stereo connector (green)


• Audio output:   Line output (Unbalanced): 1 x prisoner screw connector, 3 poles


• RS- 232 control: 1 x captive screw connector, 3 poles


• IR control: 1 x mini female stereo connector (black)


• Ethernet control: 1 x RJ- 45 female (silver)

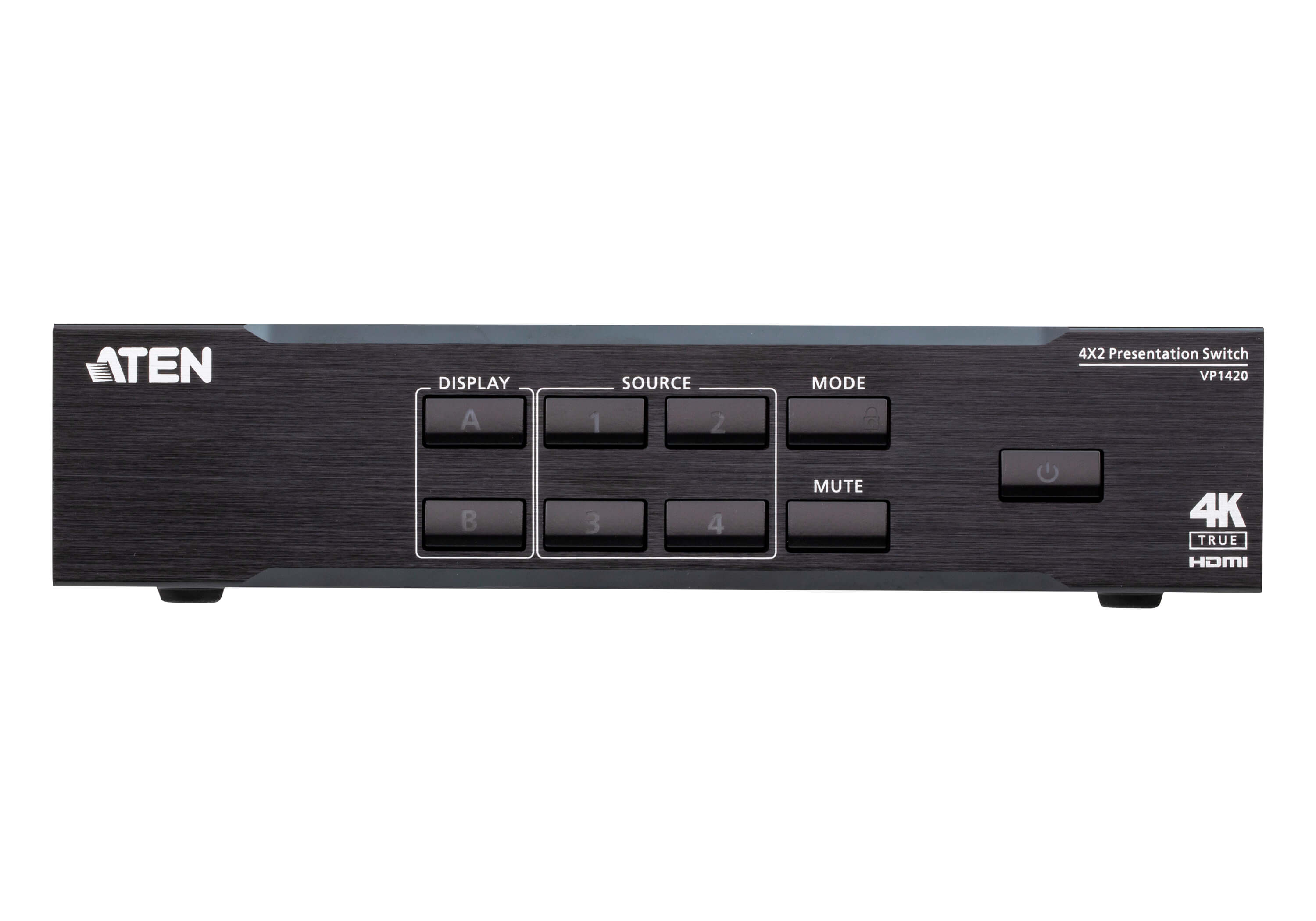

• Power switch: 1 x push button (LED: green / orange)


• Switch Video input port selection: 4 x push button (LED: green)


• Switch Video output port selection: 2 x push button (LED: orange)


• Switch Selection: Audio disable: 1 x push button - modeà/unlock: 1 x push button


• Modelità EDID: Default / Port 1 / Remix


• 1 DC power connector


• Consumption: DC 5 V: 7.21 W: 38 BTU



Environmental information

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Package contents

• True 4 K 4 x 2 VP 1420 slideshow switch


• 2 XRT- 0003 G IR receiver


• 2 XRT- 0111 G IR remote control


• 2 3 pole terminal blocks


• 2 5 pole terminal blocks


• 0 AD 8 - 1005 - 26 M 1 power supply


• User instructions
