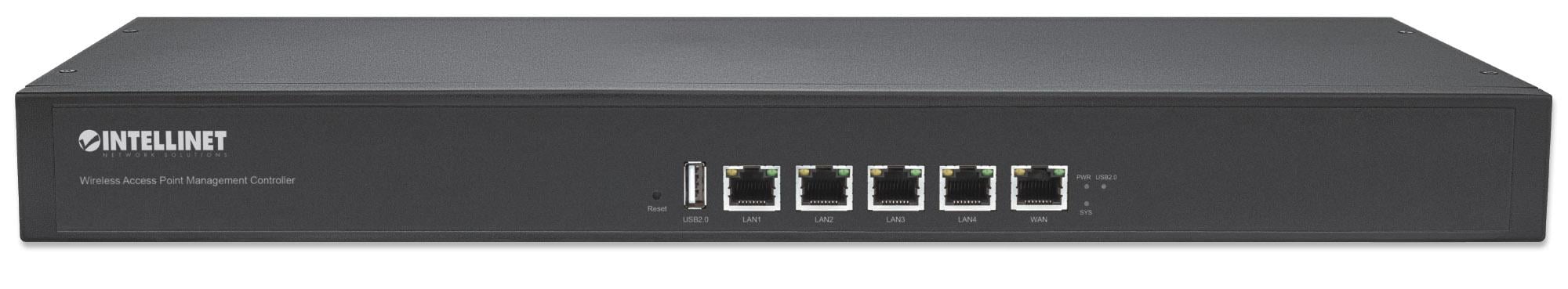

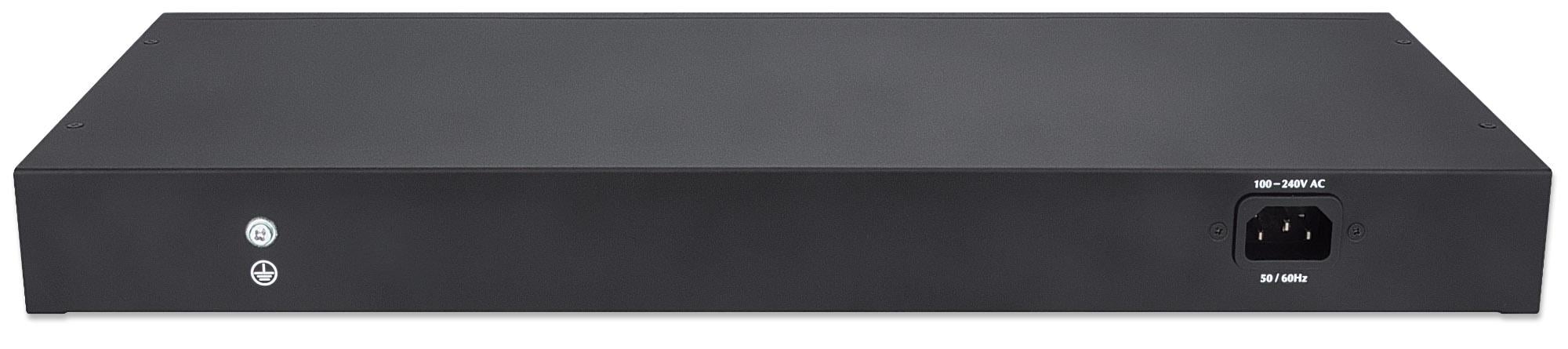

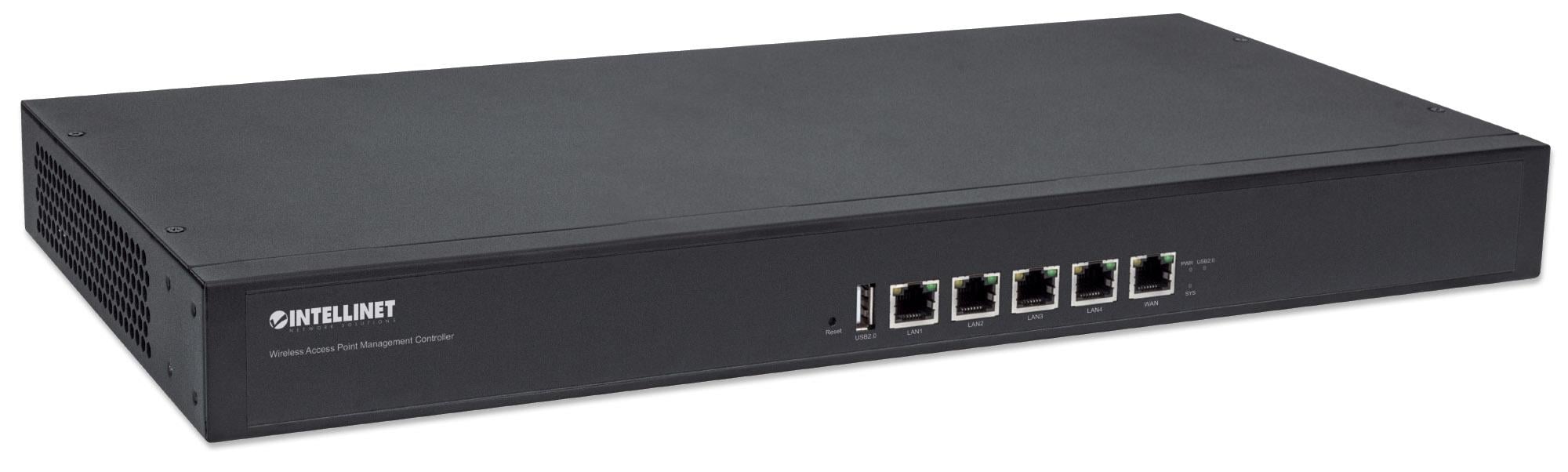

Wireless Access Point Management Controller - Intellinet I-SWHUB AP200

€203.35
Tax included €166.70 excl. VAT

Centralized controller for managing up to 200 Access Points. Router functionality with 1 Gigabit WAN port and switch with 4 Gigabit LAN ports. Real-time traffic monitoring and batch configuration.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Conveniently manages up to 200 Access Points (APs) from a single centralized controller

  • Compatible with Intellinet Manageable Wireless AC1300 Dual-Band Gigabit PoE Access Point and Router (see model #525831)

  • Provides status of Access Points and connected clients

  • Real-time network traffic monitoring up to 24 hours

  • Manages APs with update, restart, reset, configuration, and removal options

  • Creates individual configuration templates to apply to different APs in batch settings

  • Router functionality with one Gigabit WAN port

  • Switch functionality with four Gigabit LAN ports

  • One USB 2.0 port for use in FTP server applications

  • Supports VPN server and client

  • Upgradable firmware



Standard

  • IEEE 802.3u (100Base-TX Fast Ethernet)

  • IEEE 802.3i (10BASE-T)

  • IEEE 802.3ab (Gigabit Ethernet over Twisted Pair)



General information

  • Chipset: MediaTek MT7621

  • LAN Port: 4 x RJ45 10/100/1000 Mbps

  • WAN Port: 1 x RJ45 10/100/1000 Mbps

  • USB Port: 1 USB-A port for backup configuration and firmware update

  • Flash Memory: 16 MB

  • RAM Memory: 256 MB DDR3

  • Certifications: FCC Class A, CE, RoHS



Access Point Management

  • Status

  • Network Traffic

  • Enable/Disable

  • Update

  • Reboot

  • Factory Reset

  • Model setting for batch configurations

  • VPN Server and client settings

  • Wi-Fi Protected Setup (WPS)



System Configuration

  • Backup/Restore Configuration

  • Upgradable firmware

  • NTP Server

  • SSH

  • User Rights Management

  • System Log



Router

  • Supported WAN connection types:


- PPPoE

- DHCP

- Static IP

- PPTP

- L2TP

  • Other router features


- IPv6

- QoS

- DDNS

- TFTP

- UPNP

  • Firewall:


- Port/URL/Mac filter

- DMZ (perimeter network)

- Port Forwarding

- MAC Filter

- URL Filter

- Network service filter



LED

  • PWR (power)

  • SYS (system)

  • USB

  • Link/ Activity per port



Buttons

  • Reset



Power

  • Input: 100 – 240 V AC, 50 – 60 Hz



Physical information

  • Metal housing

  • Dimensions: 208 (D) x 440 (W) x 44 (H)

  • Weight: 1.7 kg

  • Operating temperature: 0 - 40°C

  • Operating humidity: 10 – 90% non-condensing

  • Storage temperature: -40° to 70°C



Package contents

  • Wireless Access Point Management Controller

  • Power cable

  • Instruction manual

  • Rack mounting brackets 19

  • Brand
  • Reference
    I-SWHUB AP200
  • In stock
    5 Items
  • EAN13
    0766623525749
