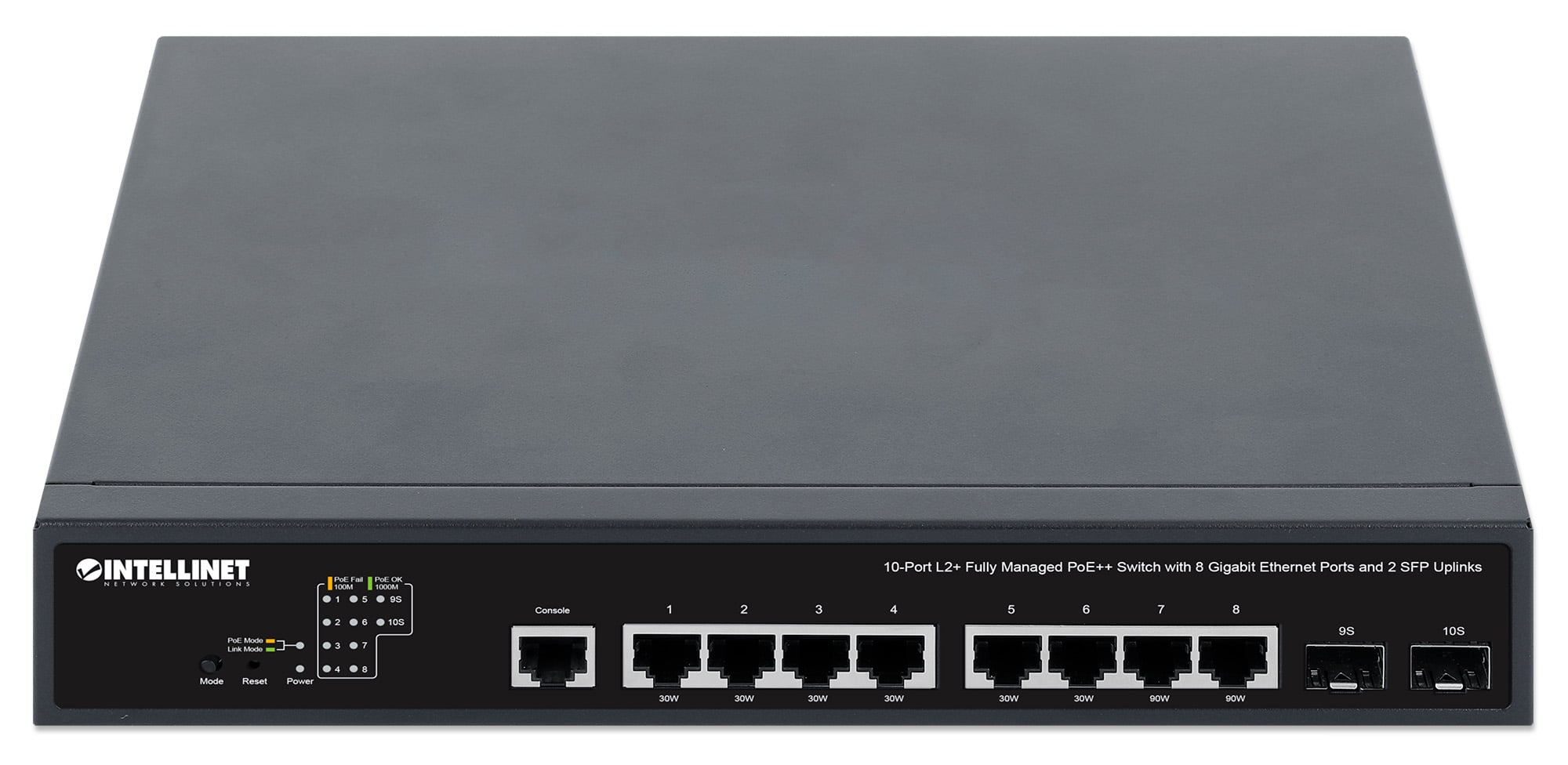

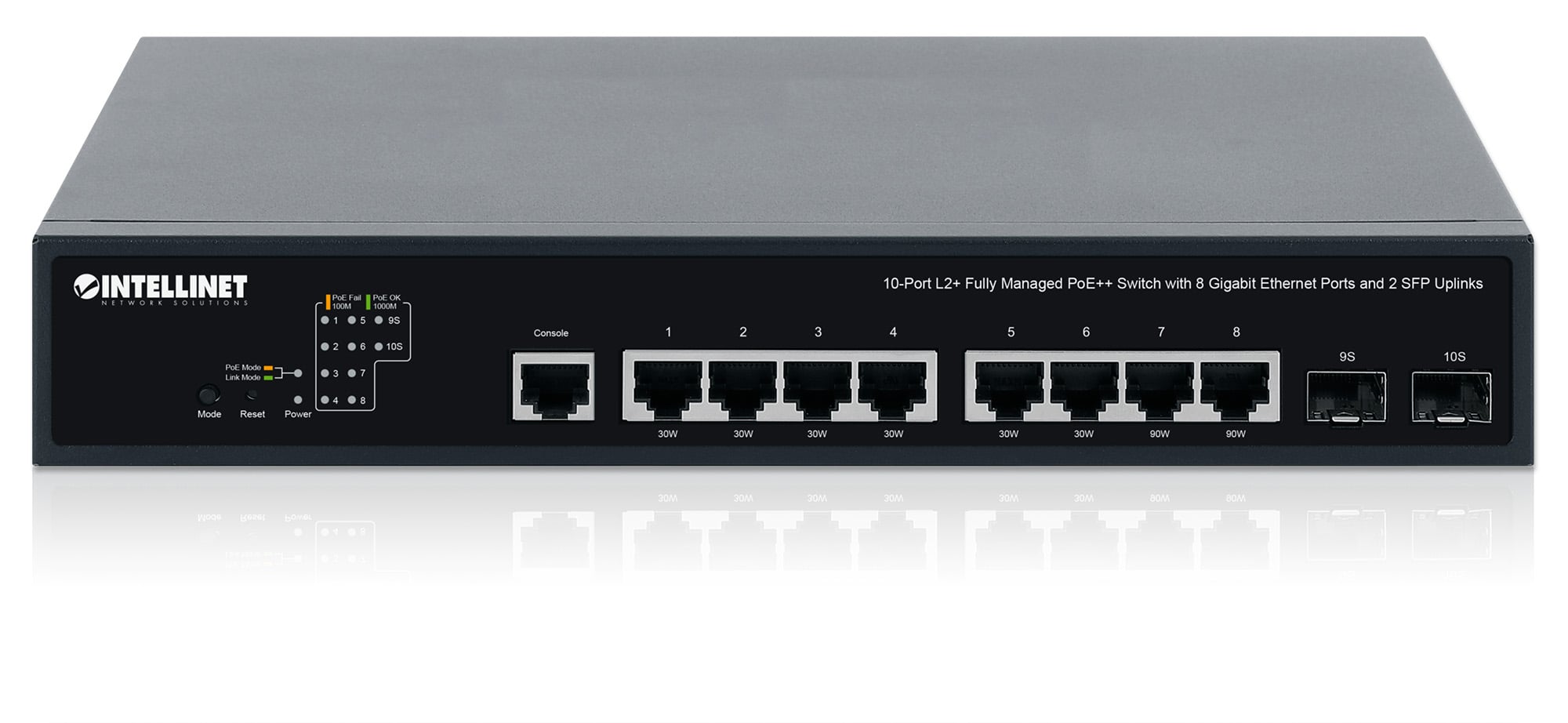

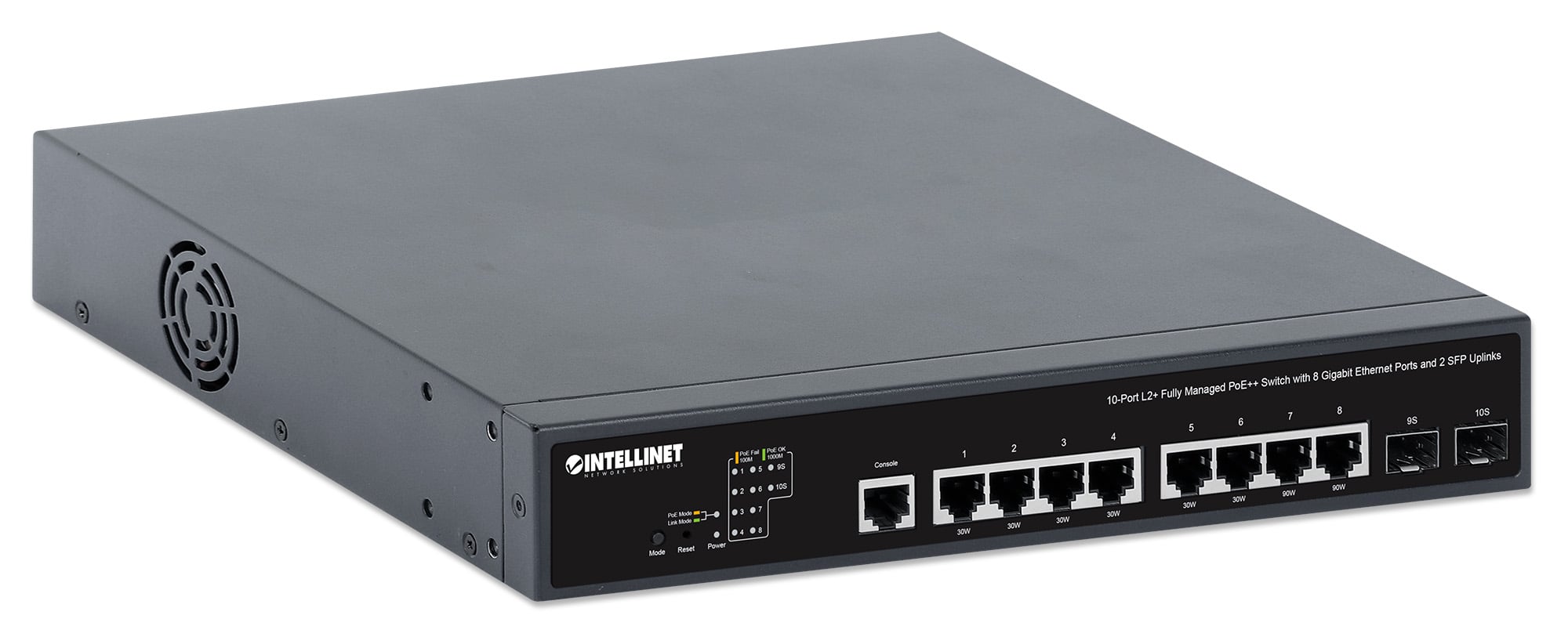

PoE++ Switch 10 ports L2 Fully Managed 8x Gigabit 2x SFP - Intellinet I-SWHUB POE-003

• Connect up to eight PoE network devices with power and data
• Two slots for SFP (Small Form Factor Pluggable) modules of 1G
• Self-Healing Network: The Powered Device Monitor (PDM) function restarts any connected PoE device that is not responding or not sending network traffic
• Compatible with Domotz for cloud management
• PoE power budget of 242 watt
• PoE++ output up to 90 watt on port 7 and 8; PoE+ output up to 30 watt on ports from 1 to 6
• Supports 802.1Q VLAN (tag-based and port-based)
• Automatic speed detection of ports 10/100/1000 Mbps

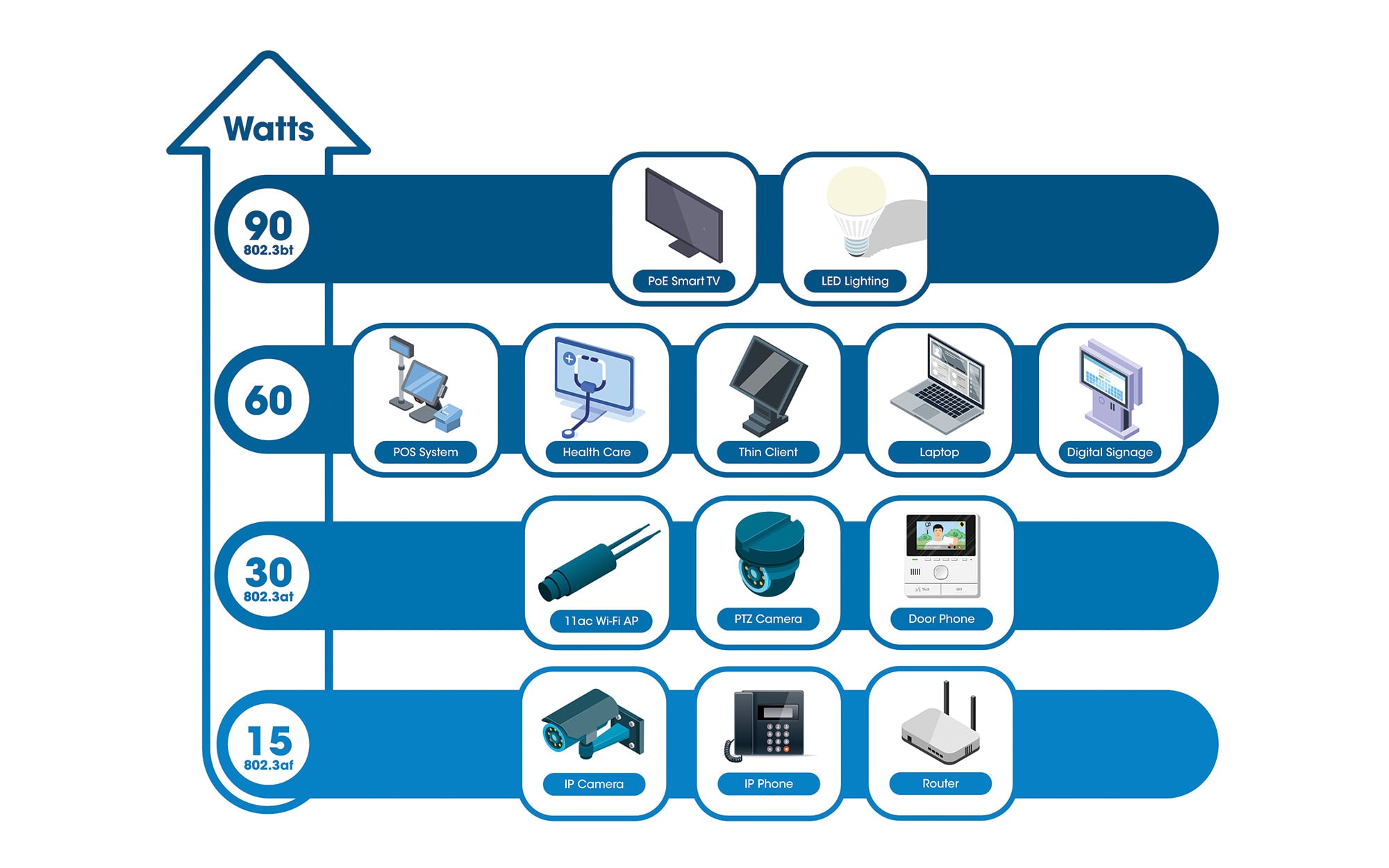

• Supports PoE IEEE 802.3bt/at/af compliant devices (wireless access points, VoIP phones, IP cameras and much more)
• Supports IEEE 802.3bt/at/af detection and short-circuit, overload and high voltage protection
• All RJ45 ports have Auto-MDIX and NWay auto-negotiation support
• Switch fabric/switch capacity up to 20 Gbps
• SNMP management and remote monitoring (RMON)
• Dual protocol IPv4/v6
• Supports link aggregation (trunking)
• Multicast filtering with IGMP Snooping
• Supports per-port bandwidth control
• Supports port mirroring
• Supports two types of QoS: CoS and DSCP
• Broadcast storm control with multicast packet rate settings
• Supports jumbo frames up to 9216 Bytes
• Store and forward switching architecture
• Operates in full/half duplex mode
• Supports flow control 802.3x for full duplex mode and backpressure collision-based for half duplex mode
• Supports 8k MAC addresses with Auto-learning and Auto-aging
• Buffer memory of 4.1 Mbits
• Grounding point to protect equipment from external electrical surges
• PoE protection against surge (4kV) for all RJ45 ports
• ESD protection up to 8 kV for air and 4 kV for contact
• Configuration via Web browser, Telnet, SSH or RJ45 console port
• Power, Link/Activity, PoE, and System LEDs
• An efficient and silent fan for effective cooling
• Includes 19 rack mounting brackets
• Fully NDAA compliant

Standard

• IEEE 802.1p (Traffic Prioritization)
• IEEE 802.1q (VLAN Tagging)
• IEEE 802.3ad (Link Aggregation)
• IEEE 802.3z Gigabit SX/LX
• IEEE 802.3 (Ethernet 10Base-T)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet 802.3at type 1)
• IEEE 802.3at (Power over Ethernet 802.3at type 2)
• IEEE 802.3bt (PoE++/4PPoE/Ultra Power over Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, for full-duplex mode)

General information

• Ports

- Eight 10/100/1000 Mbps RJ45 PoE ports

- Two Gigabit SFP slots

- One console port

• Support support:

- 10Base-T Cat5e UTP/STP RJ45, 8 pin

- 100Base-TX Cat5e UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

• MAC address table: 8k
• Buffer memory: 4.1 Mbits
• Forwarding rate: 14.88 Mpps
• MTBF: 392,650 hours
• Backplane speed/switch fabric: 20 Gbps
• Switching architecture: store and forward
• Configuration options:

- Port speeds: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation

- PoE on/off per port

- Maximum PoE per port

- PoE mode per port

- PoE priority per port: low, medium, high

- PoE SNMP alarm notification

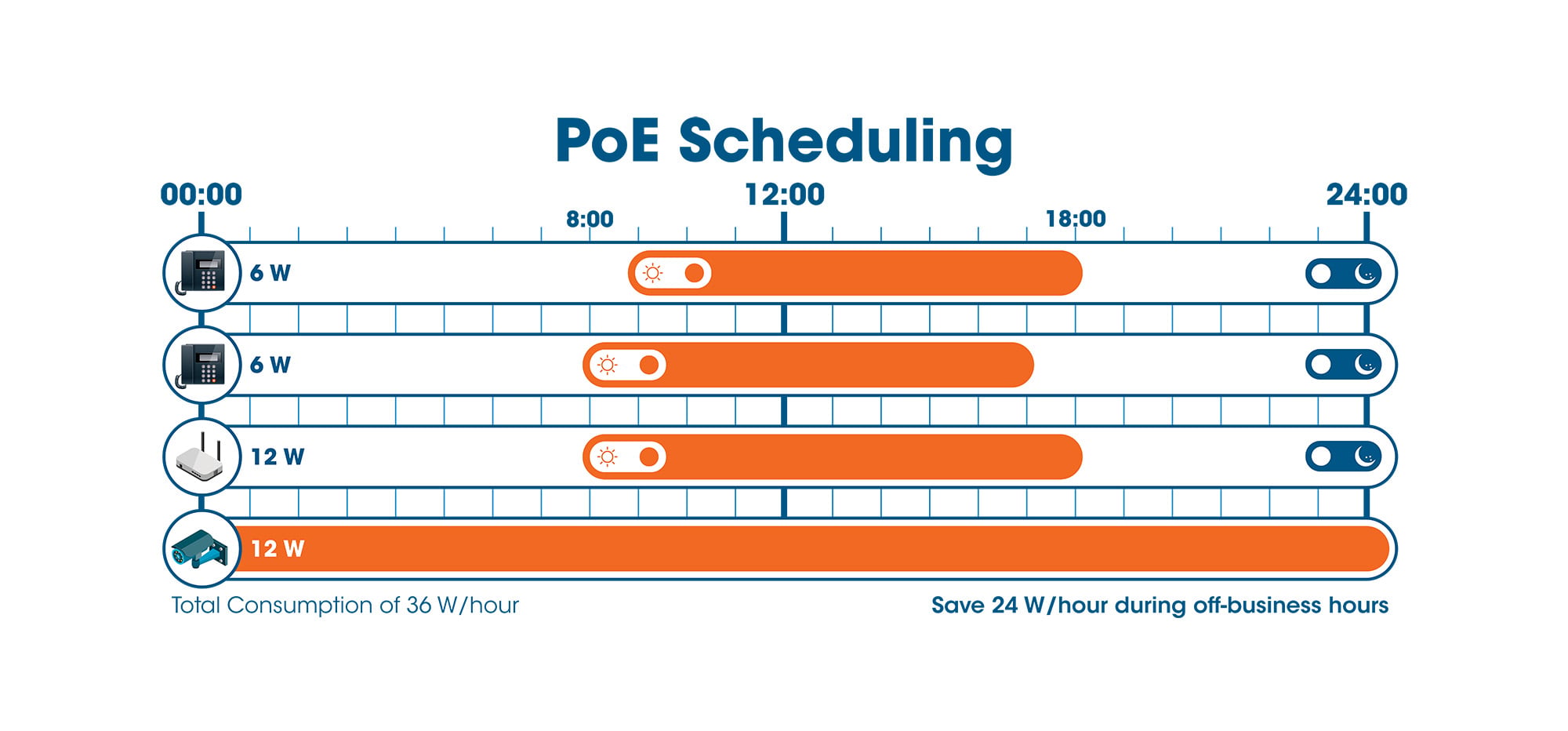

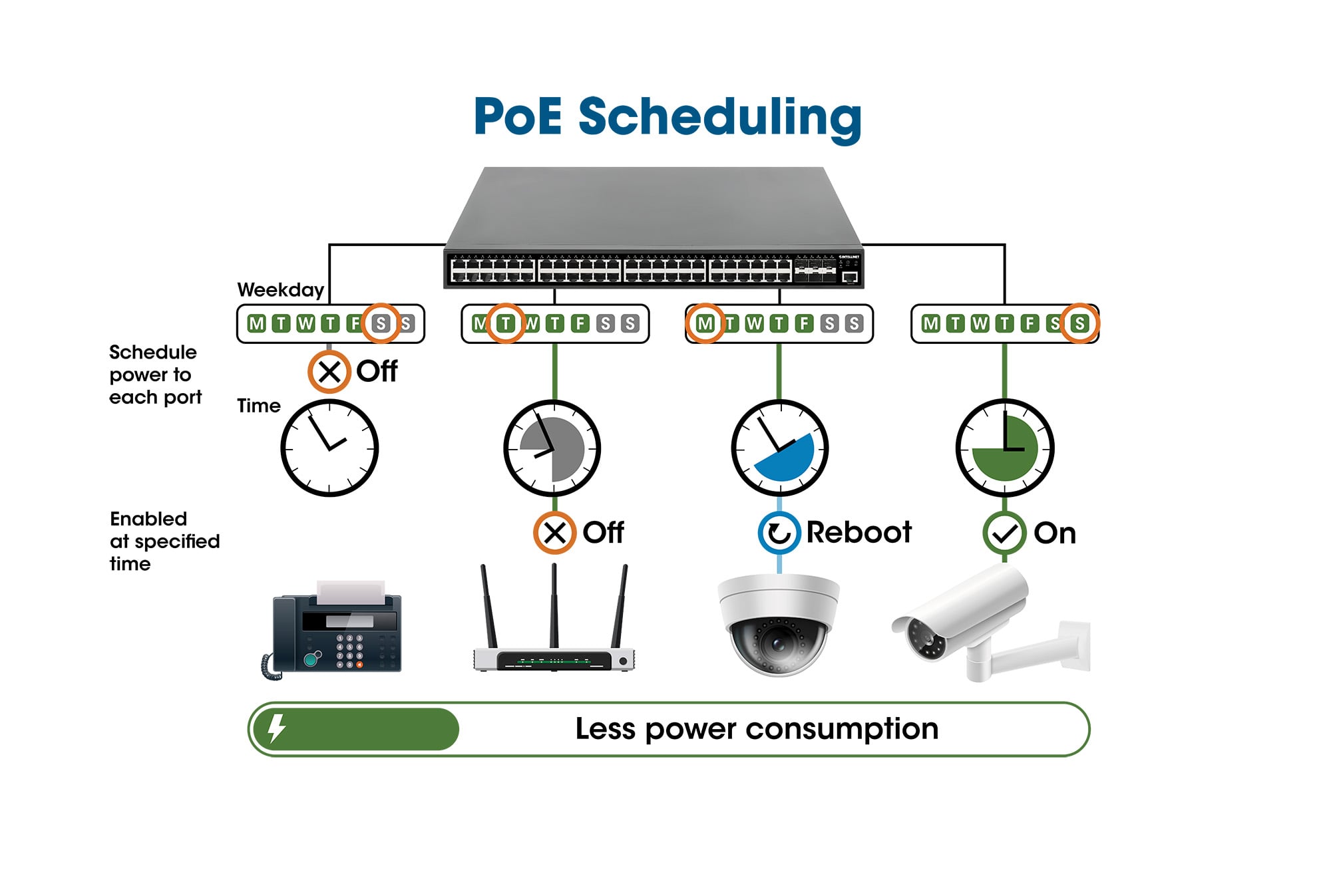

- PoE delayed start configuration for each port

- PoE restart time configuration per port

- PoE status monitoring

• PD monitor function, watch guard
• Flow control: on/off per port
• VLAN
• Rate Limiting (ingress rate and egress rate)
• Port Mirroring, one-to-one or many-to-one
• Port Aggregation/LACP: 8 groups
• Broadcast Storm configuration with broadcast rate, multicast rate and flooded unicast rate
• IGMP Snooping
• Access management filter: SNMP, HTTP, HTTPS, SSH, TELNET
• Quality of Service (QoS): CoS or DSCP
• Link Layer Discovery Protocol (LLDP)
• The built-in ICMP Ping client sends ping requests to other network nodes
• SNMPv1/v2c/v3 (Simple Network Management Protocol)
• RMON 1, 2, 3 and 9 groups (statistics, history, alarm and event)
• TACACS+ via command line
• Built-in RADIUS client to cooperate with RADIUS server
• Tracert utility
• Access control list: MAC-based and IPv4/IPv6 IP-based ACL
• Built-in Trivial File Transfer Protocol (TFTP) client
• Dynamic ARP Inspection (DAI) discards ARP packets with invalid MAC-address to IP-address binding
• DoS attack prevention
• DHCP: Client/Option82/Snooping
• LAN Settings (IP address, gateway, etc.)
• SSHv2

Certifications

• FCC
• CE
• RoHS
• UKCA
• NDAA

LED

• PoE
• Power supply:
• Link/Activity

Buttons

• Mode
• Reset

Pinout of RJ45 output ports (PoE+ ports from 1 to 6)

- Pin 1: DC (-)

- Pin 2: DC (-)

- Pin 3: DC (+)

- Pin 6: DC (+)
Pinout of RJ45 output ports (PoE++ ports 7 and 8)

- Pin 1: DC (-)

- Pin 2: DC (-)

- Pin 3: DC (+)

- Pin 4: CC (+)

- Pin 5: CC (+)

- Pin 6: DC (+)

- Pin 7: CC (-)

- Pin 8: CC (-)

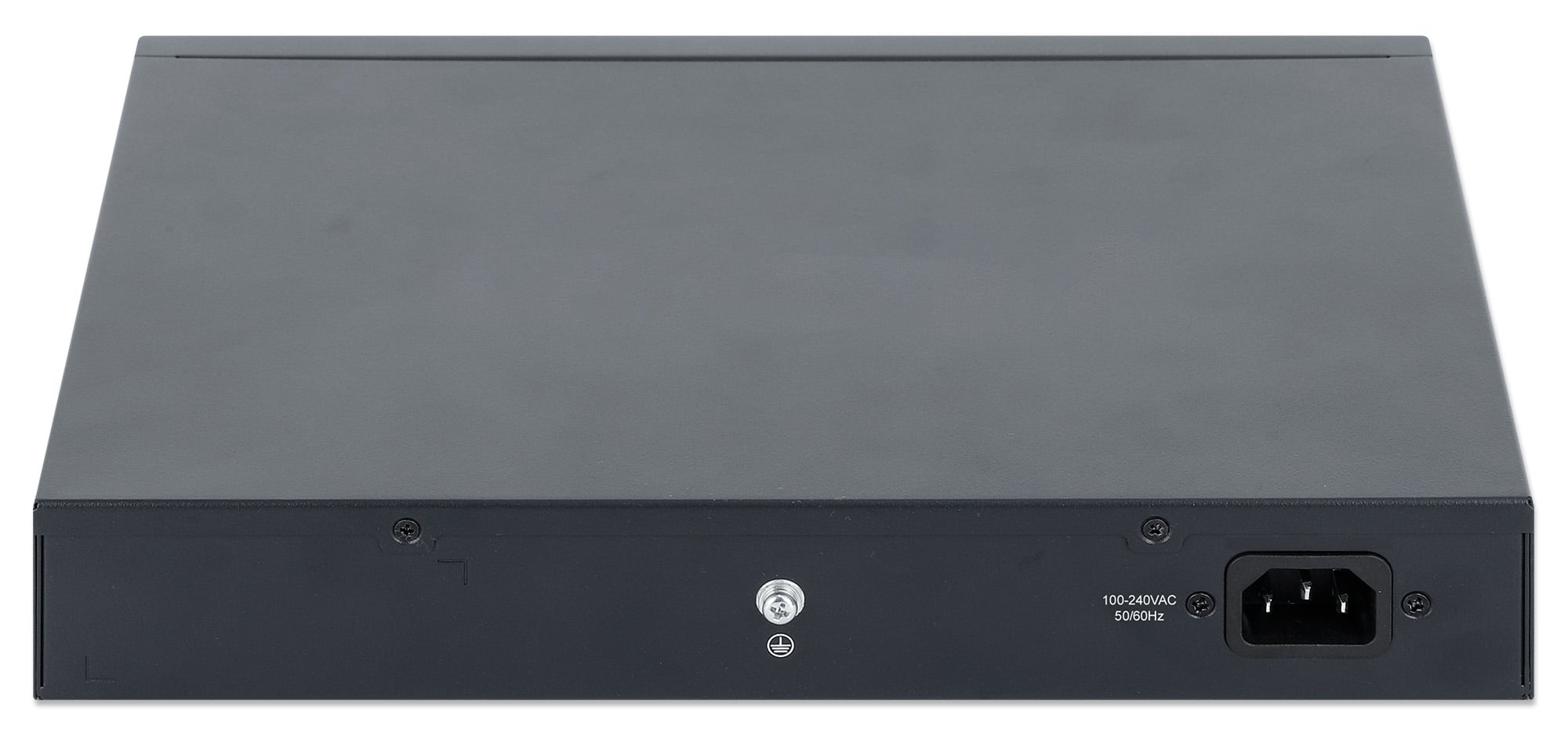

Power supply:

• Input: internal 100.0 - 240.0 VAC, 50 - 60 Hz, internal power supply
• PoE power budget: 242.0 watts (max)
• Power consumption: 252.0 watts (max)

Physical information

• Metal housing
• Dimensions (D x W x H): 230 x 280 x 44 mm
• Net weight: 2.5 kg
• Gross weight: 2.65 kg

Environmental information

• Operating temperature: from 0 to 45°C
• Storage temperature: from -40° to 70°C (-40 - 158°F)
• Operating humidity: 10 - 90% RH, non-condensing
• Storage humidity: 5 - 90% RH, non-condensing

Package contents

• PoE++ switch 10 ports L2 Fully Managed with 8 Gigabit Ethernet ports and 2 SFP Uplink
• Power cable
• Instruction manual
• Rack mounting brackets 19
