Gigabit Ethernet Switch PoE+ 16 ports with 2 SFP ports - Intellinet I-SWHUB POE-983

•

• Provides power and data to up to 16 PoE network devices

• Two slots for SFP (Small Form Factor Pluggable) modules of 1G

• Self-Healing Network: The Powered Device Monitor (PDM) function restarts any connected PoE device that is not responding or not sending network traffic

• PoE power budget of 250 watt

• Output power up to 30 watts per port

• Manual VLAN mode to isolate ports from 1 to 16 from each other, allowing them to communicate with SFP uplink ports 17 and 18

• Manual PoE extension mode (reduces network speed and extends PoE support to 250 m)

• PoE extension mode ideal for IP camera installations

• Fabric switch 36 Gbps

• Auto-sensing with automatic speed detection of ports 10/100/1000 Mbps

• Compliant with IEEE 802.3az (Energy Efficient Ethernet EEE) specifications

• Green Ethernet energy-saving technology that disables unused ports and adjusts power levels based on cable length

• Saves installation costs by providing data and power over existing network cables

• Supports PoE devices compatible with IEEE 802.3at and IEEE 802.3af (e.g., wireless access points, VoIP phones, IP cameras)

• Supports IEEE 802.3at/af detection and protection against short circuit, overload, and high voltage

• Supports Auto-MDIX and NWay auto-negotiation on all RJ45 ports

• Supports jumbo frames up to 9216 Bytes

• Store and forward switching architecture

• Supports flow control 802.3x for full duplex mode and backpressure collision-based for half duplex mode

• Supports 8k MAC addresses with Auto-learning and Auto-aging

• Buffer memory of 4.1 Mbits

• Equipped with grounding to protect the equipment from external electrical surges

• ESD protection up to 8 kV (air) and 6 kV (contact)

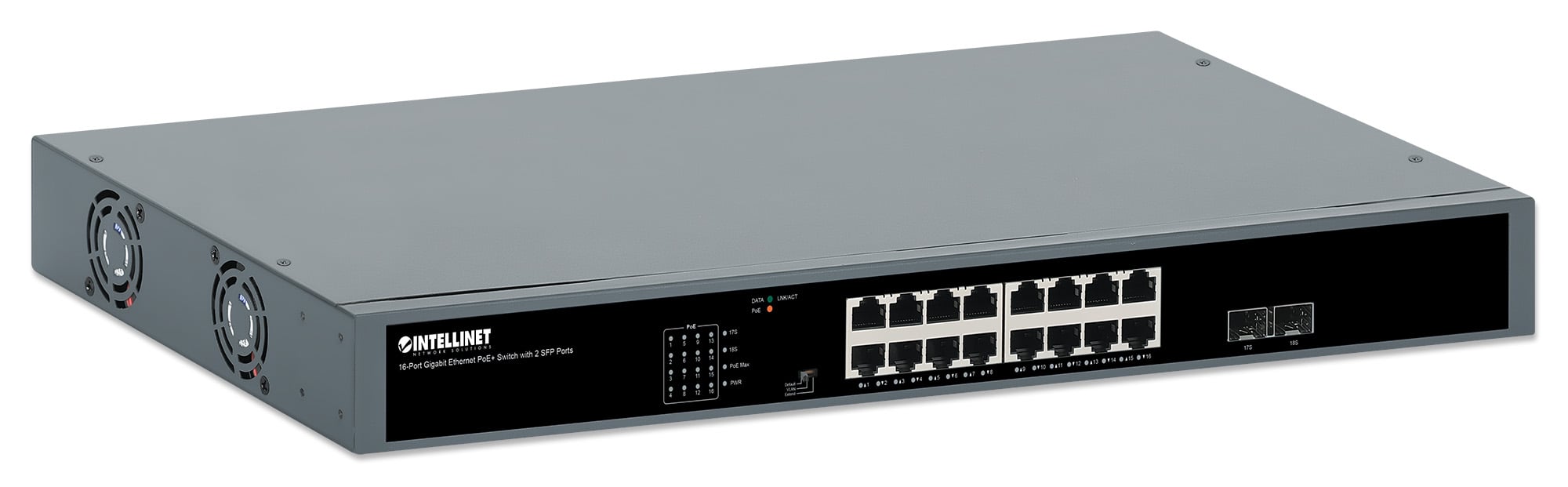

• Two high-performance cooling fans to ensure perfect ventilation

• Includes 19 rack mounting brackets

• Fully NDAA compliant


Standard

•

• IEEE 802.3 (Ethernet 10Base-T)

• IEEE 802.3ab (Gigabit Ethernet Twisted Pair)

• IEEE 802.3az (Energy Efficient Ethernet)

• IEEE 802.3af (Power over Ethernet 802.3at type 1)

• IEEE 802.3at (Power over Ethernet 802.3at type 2)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3x (flow control for full duplex mode)


General

•

• Media support:


- 10Base-T Cat5e UTP/STP RJ45, 8 pin
- 100Base-TX Cat5e UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

•

• MAC address table: 8k

• Buffer memory: 4.1 Mbits

• Forwarding rate: 26,78 Mpps

• Backplane / switch speed: 36 Gbps

• Switch architecture: store and forward


Certifications:

•

• FCC

• CE

• RoHS

• UKCA

• NDAA

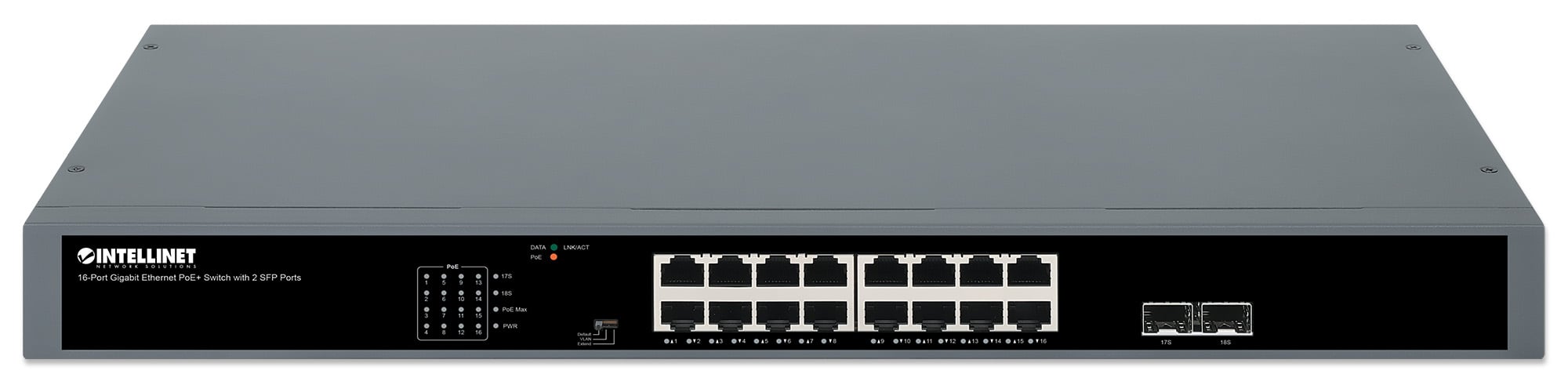

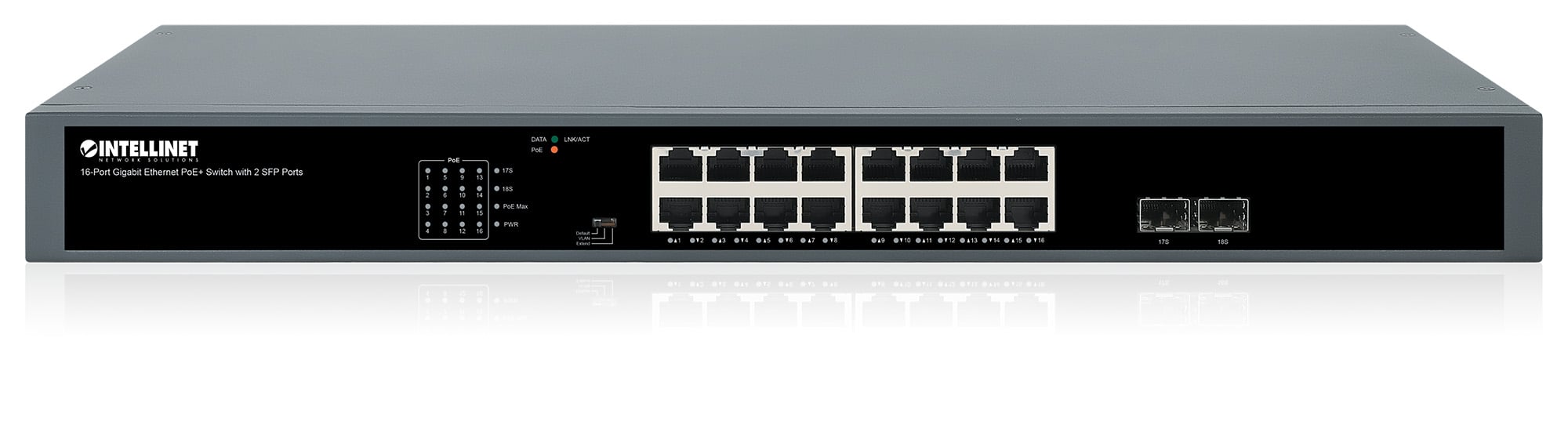

Modes (selectable via sliding switch on the front panel)

•

• Normal

• VLAN (port isolation)

• PoE Extend


LED

•

• Power

• Link/Activity

• PoE


Output port pinout RJ45
- Pin 1: CC (+)
- Pin 2: CC (+)
- Pin 3: CC (-)
- Pin 6: CC (-)

Power

•

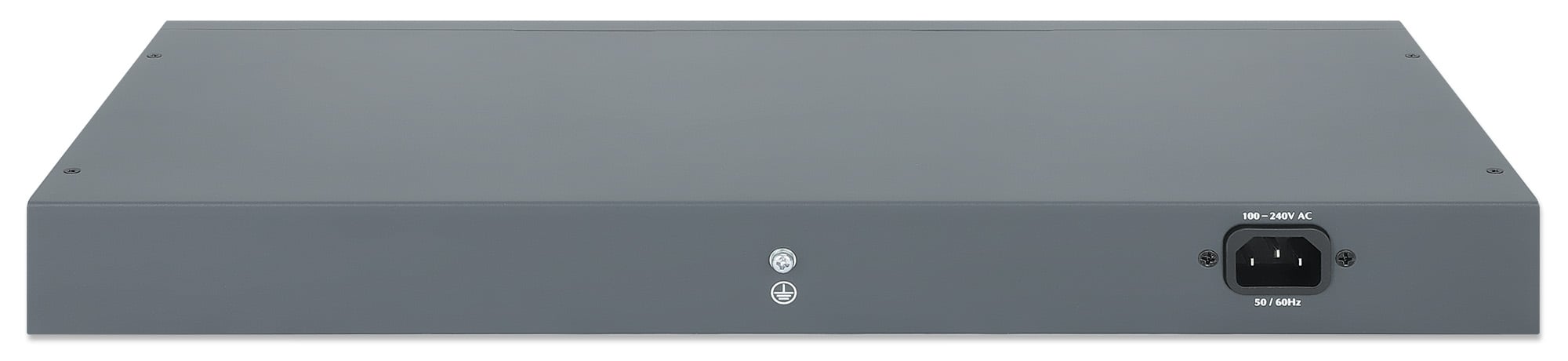

• Input: 100.0 - 240.0 VAC, 50 - 60 Hz, internal power supply

• PoE power budget: 250.0 watt (maximum)

• Consumption: 260.0 W (maximum)


Physical information

•

• Metal housing

• Dimensions (D x W x H): 207 x 440 x 44 mm

• Net weight: 2.44 kg

• Gross weight: 2.91 kg

• Operating temperature: from 0 to 40°C

• Storage temperature: -⁠40 to 70°C

• Operating humidity: 10 - 90% RH, non-condensing

• Storage humidity: 5 - 90% RH, non-condensing

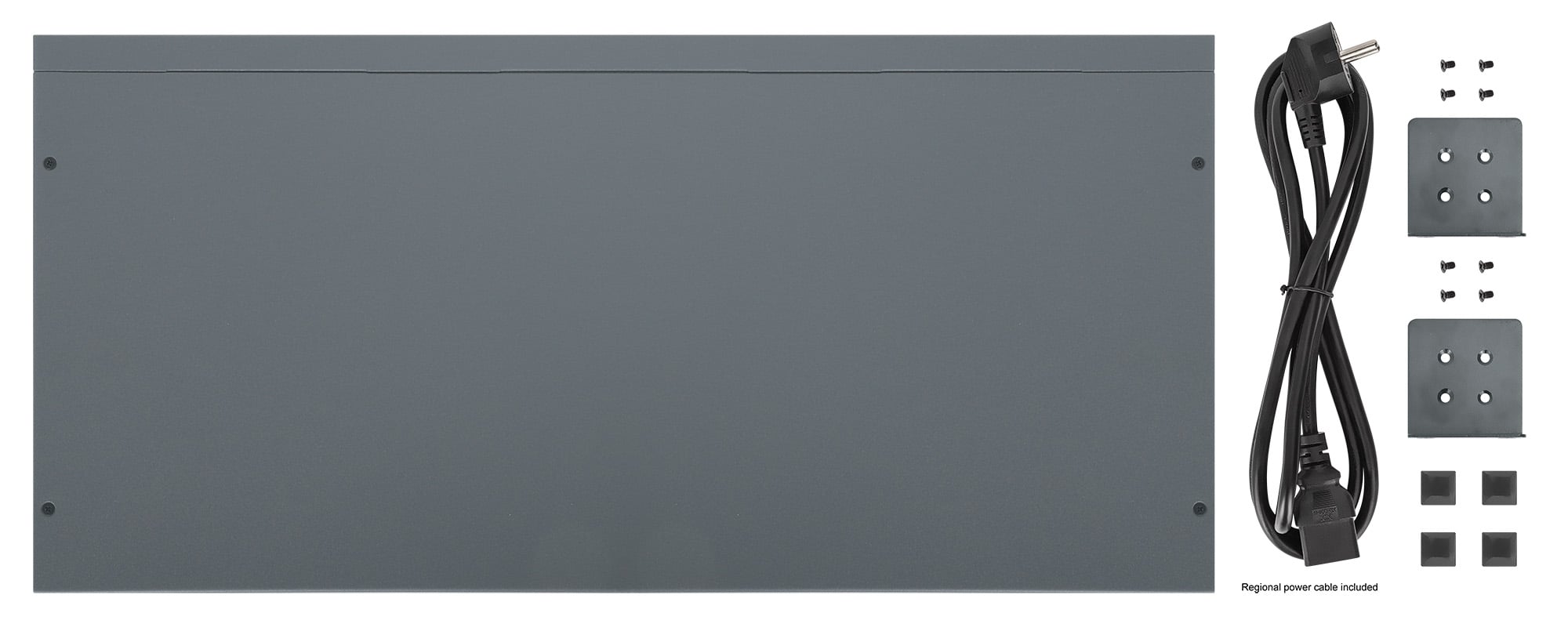

Package contents

•

• Gigabit Ethernet PoE+ Switch with 16 ports and 2 SFP ports

• Power cable

• Instructions

• Rack mounting brackets 19
