- Supports up to 24 PoE network devices with power and data
- Two slots for SFP (Small Form Factor Pluggable) modules of 1G
- PoE power budget of 370 watt
- Self-Healing Network: The Powered Device Monitor (PDM) function restarts any connected PoE device that is not responding or not sending network traffic
- Output power up to 30 watts per port
- Manual VLAN mode to isolate ports from 1 to 24 from each other, allowing them to communicate with SFP uplink ports 25 and 26
- Manual PoE extension mode (reduces network speed and extends PoE support to 250 m)
- PoE extension mode ideal for IP camera installations
- Switch fabric 52 Gbps
- Auto-sensing with automatic speed detection of ports 10/100/1000 Mbps
- Compliant with IEEE 802.3az (Energy Efficient Ethernet EEE) specifications
- Green Ethernet energy-saving technology that disables unused ports and adjusts power levels based on cable length
- Saves installation costs by providing data and power over existing network cables
- Supports PoE devices compatible with IEEE 802.3at and IEEE 802.3af (e.g., wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and protection against short circuit, overload, and high voltage
- Supports Auto-MDIX and NWay auto-negotiation on all RJ45 ports
- Supports jumbo frames up to 9216 Bytes
- All RJ45 ports support Auto-MDIX (auto uplink)
- Store and forward switching architecture
- Supports flow control 802.3x for full duplex mode and backpressure collision-based for half duplex mode
- Supports 8k MAC addresses with Auto-learning and Auto-aging
- Buffer memory of 4.1 Mbits
- Equipped with grounding to protect the equipment from external electrical surges
- ESD protection up to 8 kV (air) and 6 kV (contact)

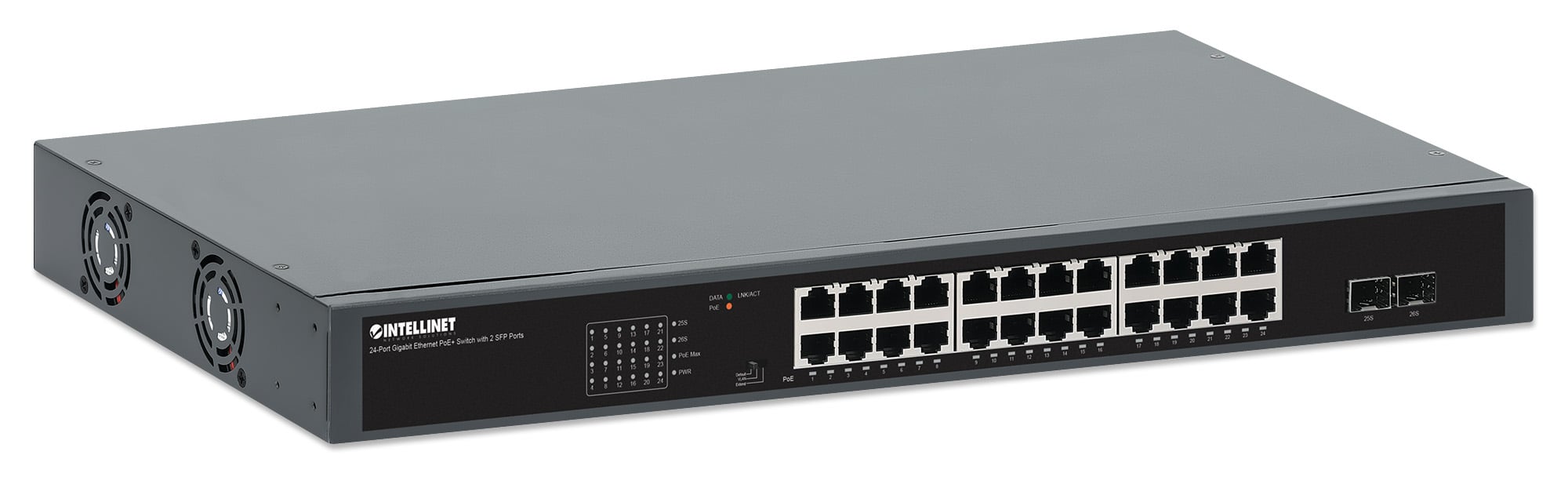

- Two high-performance cooling fans to ensure perfect ventilation
- Includes 19 rack mounting brackets
Standard- IEEE 802.3 (Ethernet 10Base-T)
- IEEE 802.3ab (Gigabit Ethernet Twisted Pair)
- IEEE 802.3az (Energy Efficient Ethernet)
- IEEE 802.3af (Power over Ethernet 802.3at type 1)
- IEEE 802.3at (Power over Ethernet 802.3at type 2)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (flow control for full duplex mode)
General information- 10Base-T Cat5e UTP/STP RJ45, 8 pin
- 100Base-TX Cat5e UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin
- MAC address table: 8k
- Buffer memory: 4.1 Mbits
- Forwarding rate: 38.69 Mpps
- Backplane speed / switch fabric: 52 Gbps
- Switch architecture: store and forward
- Certifications: FCC, CE, RoHS, UKCA

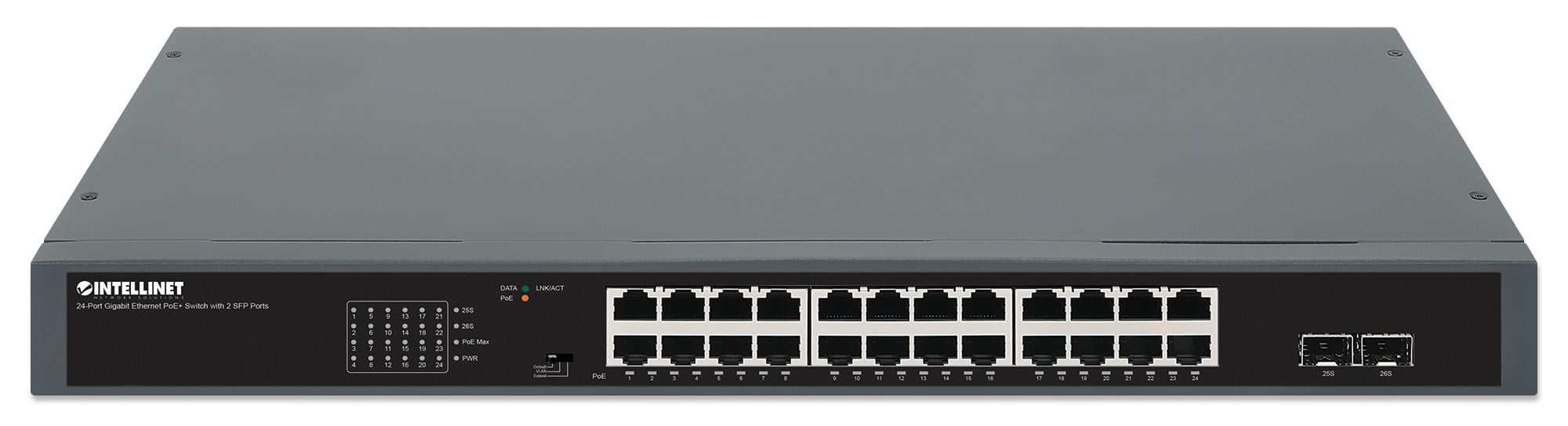

Mode (selectable via sliding switch on the front panel)- Normal
- VLAN (port isolation)
- PoE Extend
LEDOutput port pinout RJ45- Pin 1: CC (+)
- Pin 2: CC (+)
- Pin 3: CC (-)
- Pin 6: CC (-)

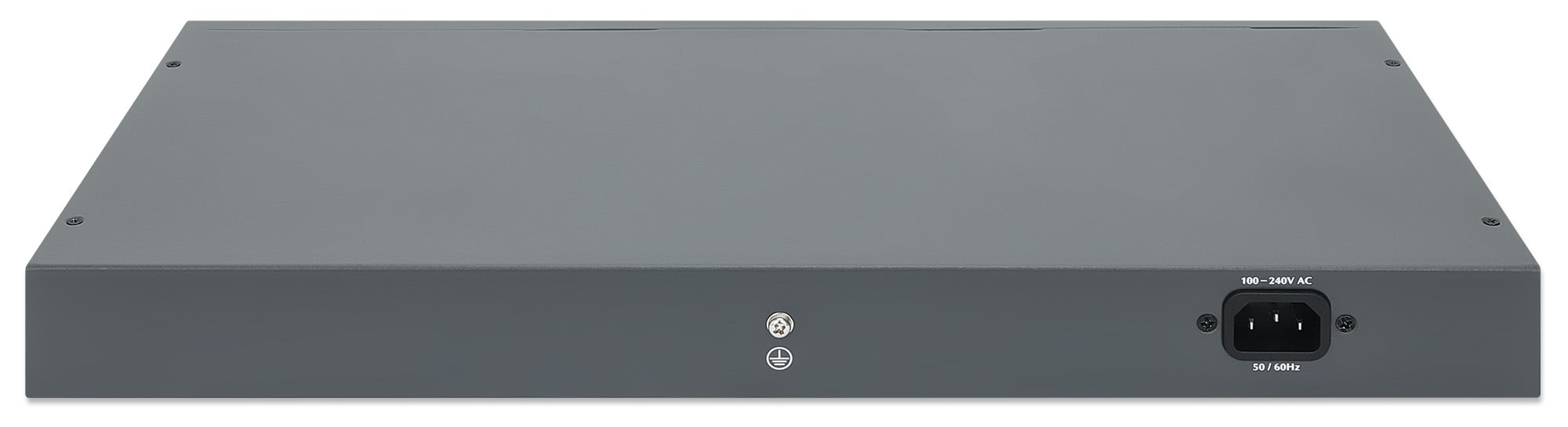

Power- Input: 100.0 - 240.0 VAC, 50 - 60 Hz, internal power supply
- Power consumption: 400.0 W (maximum)
Physical information- Metal housing
- Dimensions (D x W x H): 207 x 440 x 44 mm
- Net weight: 3,37 kg
- Gross weight: 3,87 kg
Environmental features- Operating temperature: from 0 to 45°C
- Storage temperature: -40 to 70°C
- Operating humidity: 10 - 90% RH, non-condensing
- Storage humidity: 5 - 90% RH, non-condensing

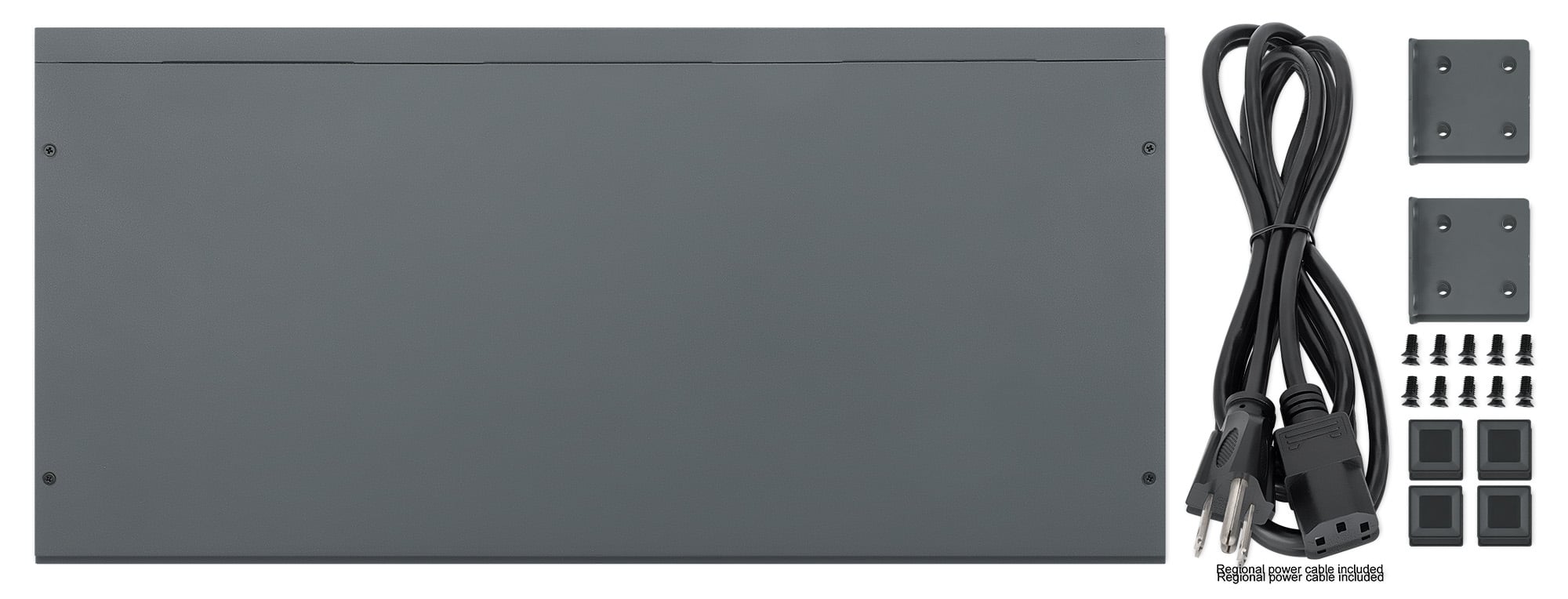

Package contents- Switch Gigabit Ethernet 24 PoE+ ports with 2 SFP ports
- Power cable
- Instructions
- Rack mounting brackets 19
