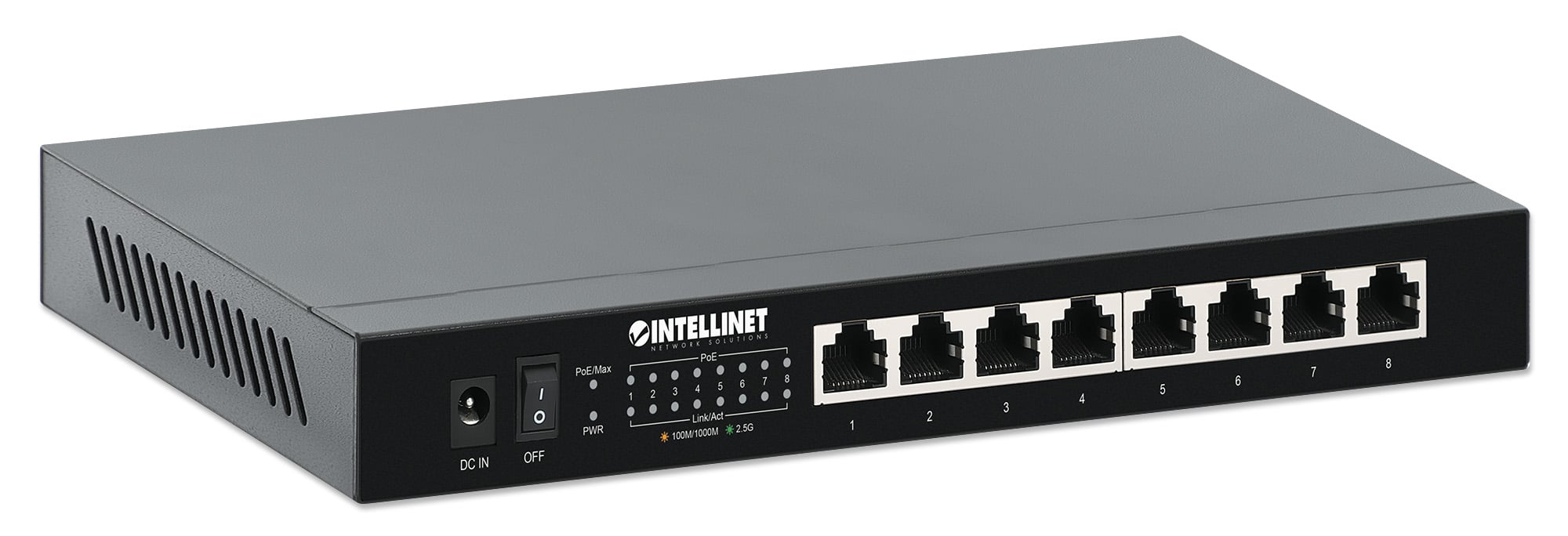

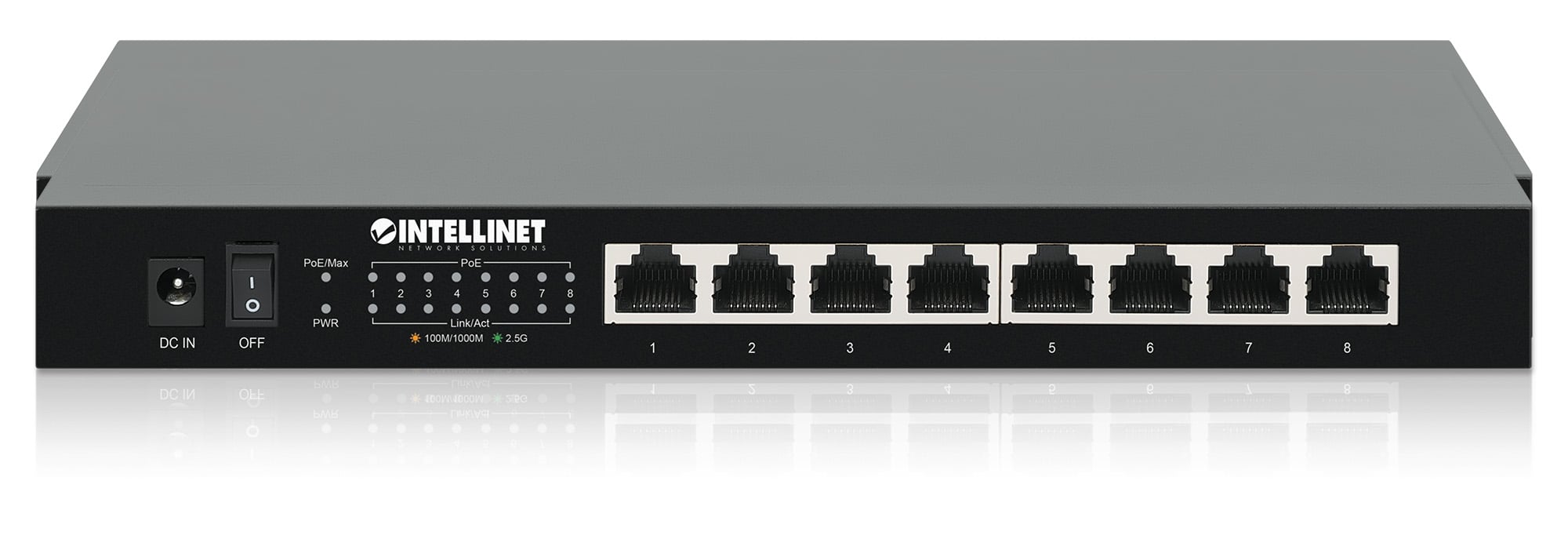

Ethernet Switch POE+ 8 Ports 2.5G - Intellinet I-SWHUB POE-938

• Connect up to eight PoE network devices with power and data
• Ultra-fast RJ45 2.5GBASE-T Ethernet ports, IEEE 802.3bz compliant
• PoE power budget of 100 W
• Output power up to 30 watts per port
• 10/100/1000/2500 Mbps auto-sensing ports that automatically detect the optimal network speed
• 40 Gbps switch fabric
• Backward compatible with 10/100/1000 Mbps devices
• Saves installation costs by providing data and power over existing network cables
• Supports PoE devices compatible with IEEE 802.3at and IEEE 802.3af (e.g., wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and protection against short circuit, overload, and high voltage
• Supports Auto-MDIX and NWay auto-negotiation on all RJ45 ports
• Supports jumbo frames up to 12 kbyte
• Store and forward switching architecture
• IEEE 802.3x flow control for full duplex
• Supports 16k MAC address with Auto-learning and Auto-aging
• Buffer memory of 12 MBits
• Compact desktop form factor with robust metal housing
• Designed without a fan for silent operation
• Desktop metal housing

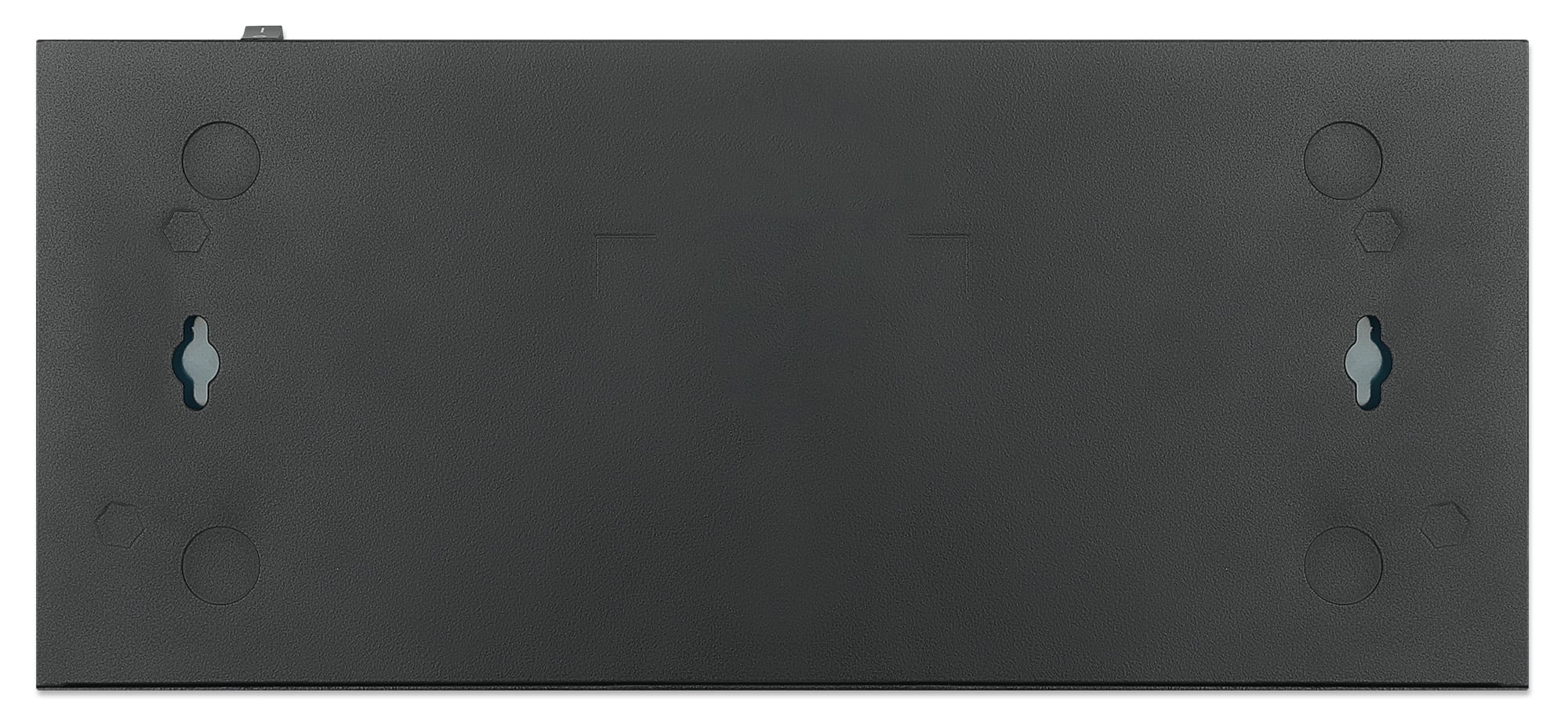

• Wall-mountable for greater installation flexibility

Standard

• IEEE 802.3 (Ethernet 10Base-T)
• IEEE 802.3ab (Gigabit Ethernet Twisted Pair)
• IEEE 802.3af (Power over Ethernet 802.3at type 1)
• IEEE 802.3at (Power over Ethernet 802.3at type 2)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control for full duplex mode)
• IEEE 802.3bz (2.5GBASE-T Ethernet)

General information

• Media support:

- 10Base-T Cat5e UTP/STP RJ45, 8 pin

- 100Base-TX Cat5e UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

- 2.5GBASE-T UTP/STP RJ45, 8 pin

• MAC address table: 16k
• Buffer memory: 12 Mbits
• Forwarding rate: 29.76 Mbps
• Backplane / switch fabric speed: 40 Gbps
• Switch architecture: store and forward
• Certifications: FCC Class A, CE, RoHS

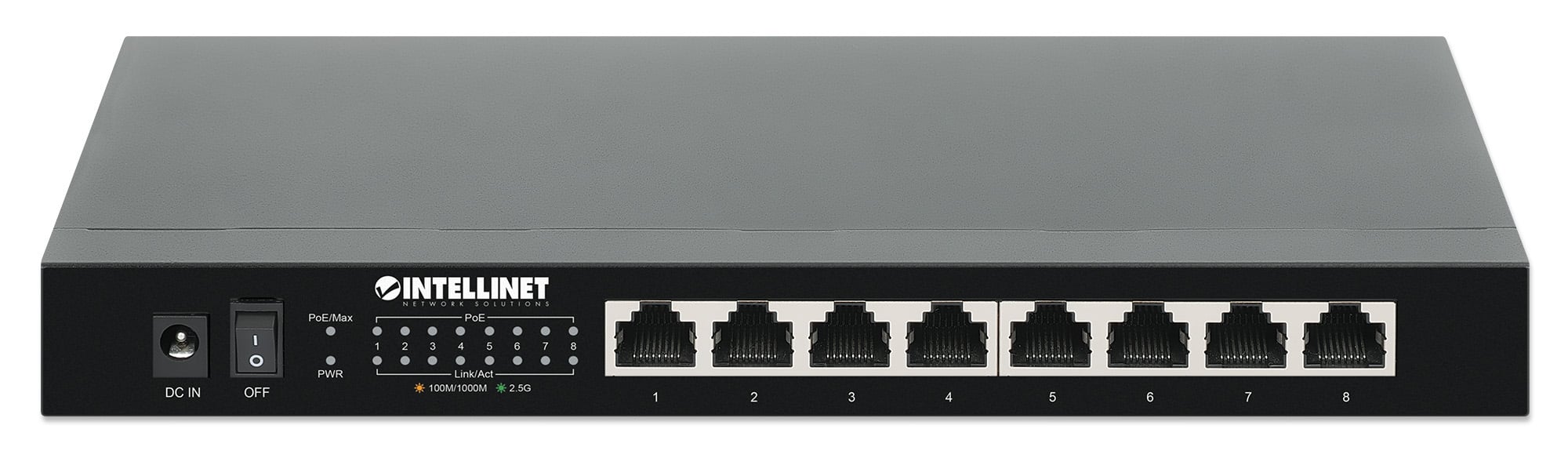

LED

• Power
• Link/Activity
• PoE
• PoE max

Output port pinout RJ45

- Pin 1: CC (+)

- Pin 2: CC (+)

- Pin 3: CC (-)

- Pin 6: CC (-)



Power

• Power supply included:

- Input: 100.0 - 240.0 VAC, 50 - 60 Hz, 2.0 A

- Output: DC, 55.0 V, 2.22 A

- PoE budget: 100.0 watt (maximum)

- Consumption: 105.0 watt (maximum)



Physical information

• Metal housing
• Dimensions (P x L x A): 105 x 240 x 27 mm
• Net weight: 690 g
• Gross weight: 1.46 kg
• Operating temperature: from 0 to 40°C
• Storage temperature: -⁠40 to 70°C
• Operating humidity: 10 - 90% RH, non-condensing
• Storage humidity: 5 - 90% RH, non-condensing

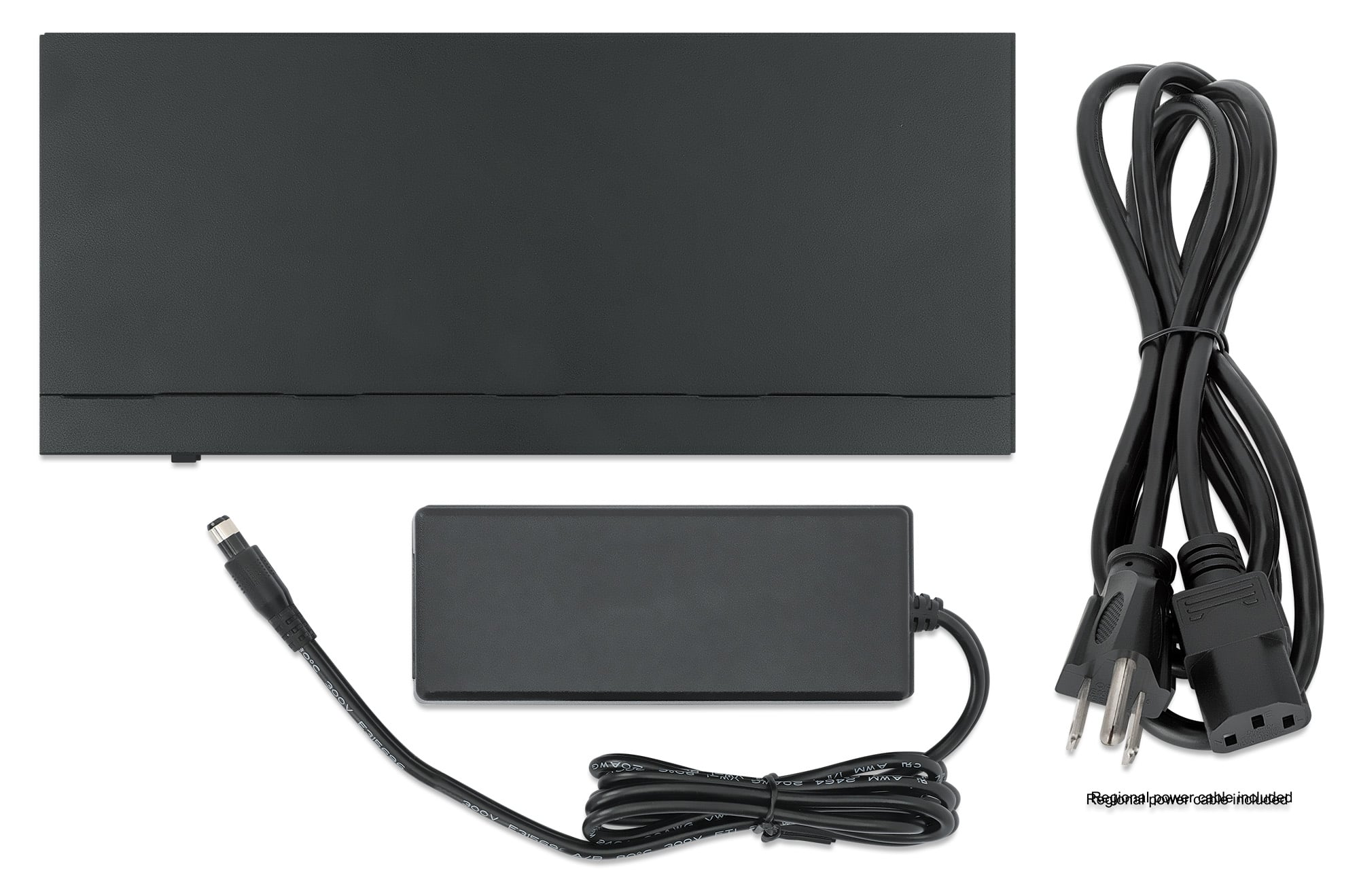

Package contents

• Ethernet Switch POE+ 8 ports 2.5G
• Power supply
• Power cable, 1.5 m
• Instructions
