Ultra PoE Extender Gigabit 4 Ports 90W - Intellinet I-SWHUB 60W4POE

€70.48
Tax included €57.80 excl. VAT

PoE extender Gigabit with 4 ports that extends the distance up to 200 m. Provides up to 90W total (30W per port). Compatible IEEE 802.3at/af. Switch fabric 10 Gbps, jumbo frame 9k. Powered directly by PoE.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Doubles the maximum connection distance between the PoE source and the device from 100 m to 200 m

  • Connects and powers four PoE devices such as network cameras, wireless access points or VoIP phones, from a PoE injector or PoE switch with PSE port

  • Provides up to 90 W to four connected PoE devices with 30 W per port

  • Supports data transfer at 10/100/1000 Mbps

  • Total PoE budget of 90 watts

  • Saves time and money by providing data and power over existing network cables

  • The PoE technology ensures that power is sent only to IEEE 802.3at/af compliant devices; non-PoE devices receive only data

  • Protection against overload, overcurrent, and high voltage

  • Grounding point to protect equipment from external electrical surges

  • Does not require additional power; powered directly from the PoE input

  • Compatible with IEEE 802.3bt/at/af compliant PoE injectors and PoE switches (PSE)

  • Compatible with IEEE 802.3at/af compliant powered devices (PD)

  • Functions as a Gigabit 5-port PoE-powered switch with pass-through PoE

  • Switch fabric of 10 Gbps

  • Supports jumbo frames up to 9 kBytes

  • Supports 2048 MAC addresses

  • LED for PoE and data

  • Fanless design ideal for silent operation

  • Compact metal housing



Standards

  • IEEE 802.3af (Power over Ethernet)

  • IEEE 802.3at (ad alta potenza PoE+ Power over Ethernet)

  • IEEE 802.3bt (Ultra PoE Power over Ethernet)

  • IEEE 802.3 (10Base-T Ethernet)

  • IEEE 802.3ab (Gigabit Ethernet)

  • IEEE 802.3x (Full duplex and flow control)

  • IEEE 802.3u (100Base-TX Fast Ethernet)



General information

  • Supports:


- 10Base-T Cat5e UTP/STP RJ45, 8 pin

- 100Base-TX Cat5e UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

  • Ports:


- One RJ45 10/100/1000 Mbps input port

- Four output ports RJ45 10/100/1000 Mbps

  • MAC table: 2048 addresses

  • Memory buffer: 256 kB

  • Backplane speed: 10 Gbps

  • Switch architecture: store and forward

  • Certifications: FCC Class A, CE, RoHS



LED

  • PoE

  • Activity/Connection



PoE pinout

  • Pin 1: DC (+)

  • Pin 2: DC (+)

  • Pin 3: DC (-)

  • Pin 6: DC (-)



Power

  • Maximum PD output power: 30 W per port, 44 - 57 VDC

  • Power input: IEEE 802.2bt/at/af compliant PSE, 90 W max, 50 - 57 VDC



Physical information

  • Metal housing

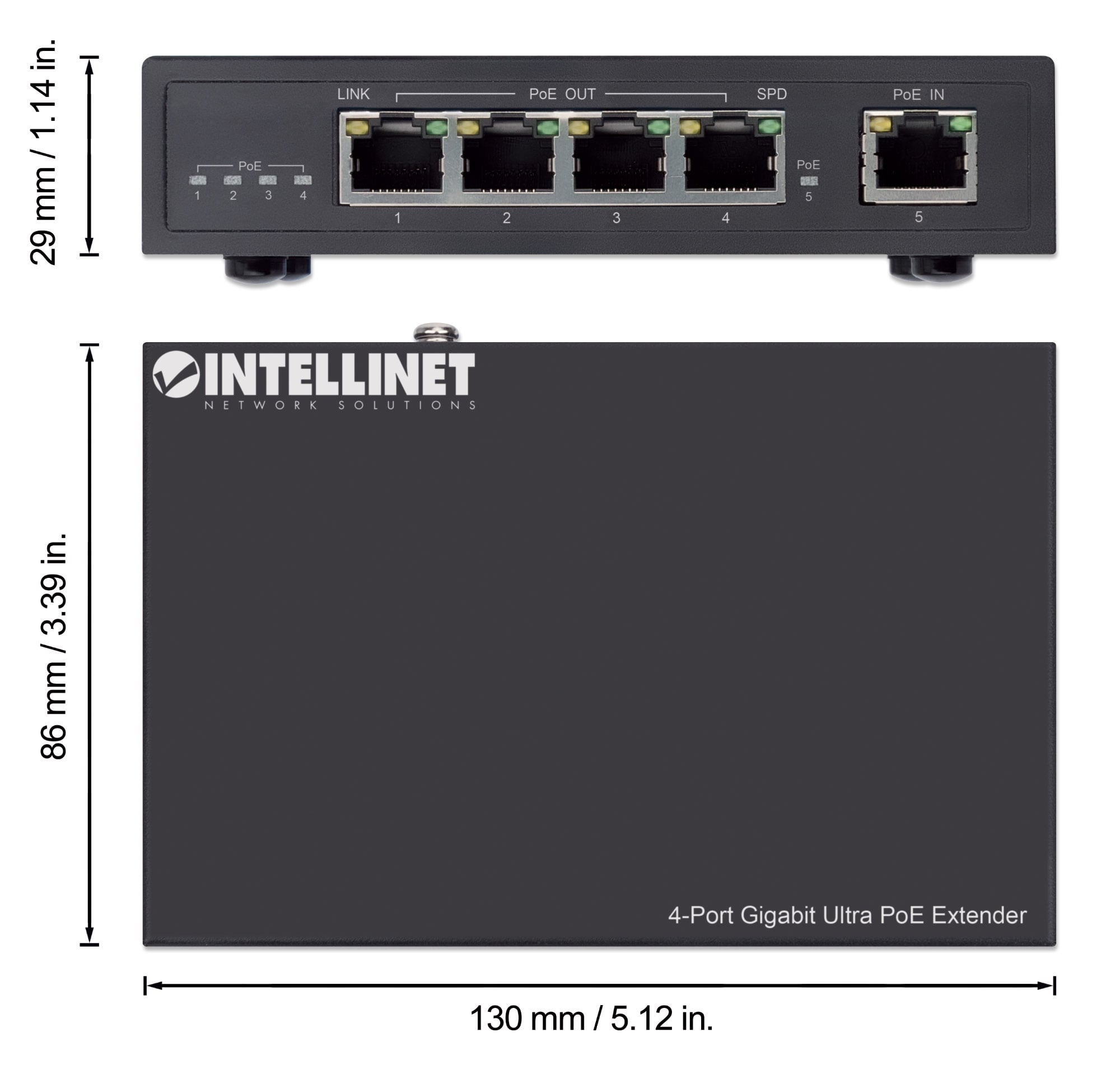

  • Dimensions: 130 x 86 x 29 mm

  • Weight: 337 g

  • Operating temperature: 0 - 40°C

  • Storage temperature: -10°C - 70°C

  • Operating humidity: 20 - 85% RH, non-condensing



Package contents

  • Ultra PoE Extender Gigabit 4 ports

  • Four rubber feet

  • Instructions

  • Brand
  • Reference
    I-SWHUB 60W4POE
  • In stock
    71 Items
  • EAN13
    0766623561617
