Switch matrix presentations True 4 K 4 x 2 with HDBaseT-Lite - Aten IDATA VP- 1421

€1,220.01
Tax included €1,000.00 excl. VAT

Switch matrix presentations Aten VP- 1421 with scaler True 4 K, HDBaseT-Lite and audio DSP. 4 inputs (1 HDBaseT, 2 HDMI, 1 VGA), 2 outputs. It transmits AV, power and control up to 140 m on Cat 6 / 6 a. Microphone input with power supply Phantom 48 V.



Return policy



Delivery policy



Direct contact for info



Secure Payment

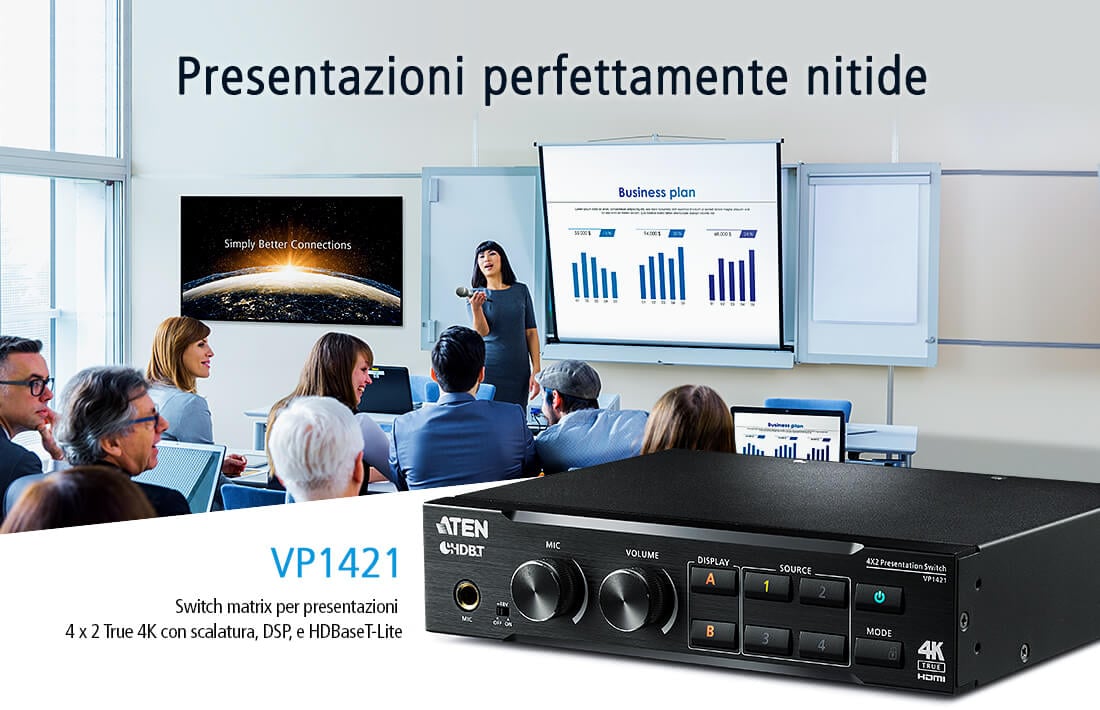

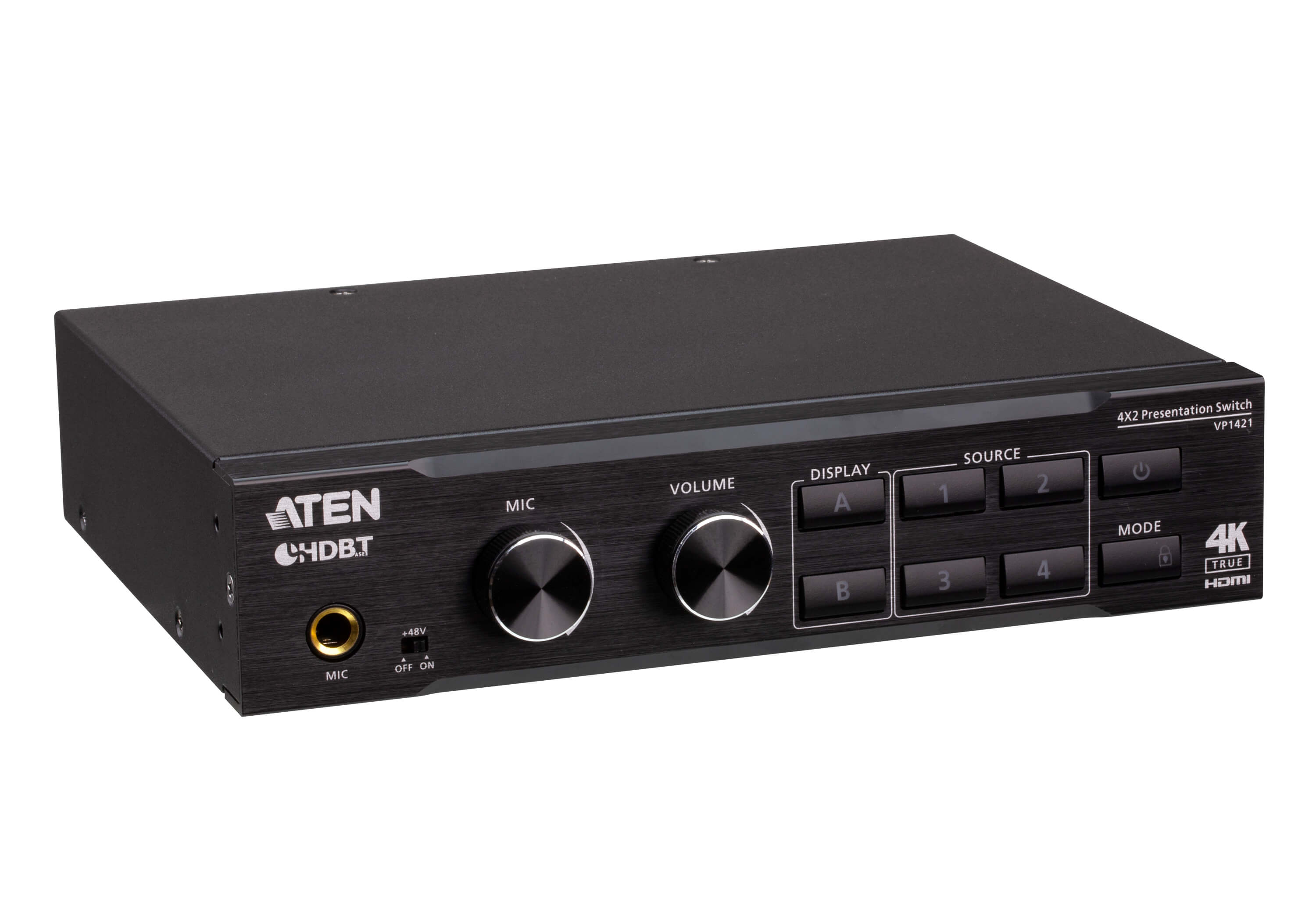

IDATA VP- 1421 è a complete switch for presentations that integrates a video matrix, true 4 K scaler, HDBaseT extender, audio DSP, and conversion functions from analog to digital into a single compact housing, ideal for meeting rooms and teaching spaces.

Supports resolutions up to 4096 x 2160 at 60 Hz (4: 4: 4) with HDR to offer vivid content in each presentation.

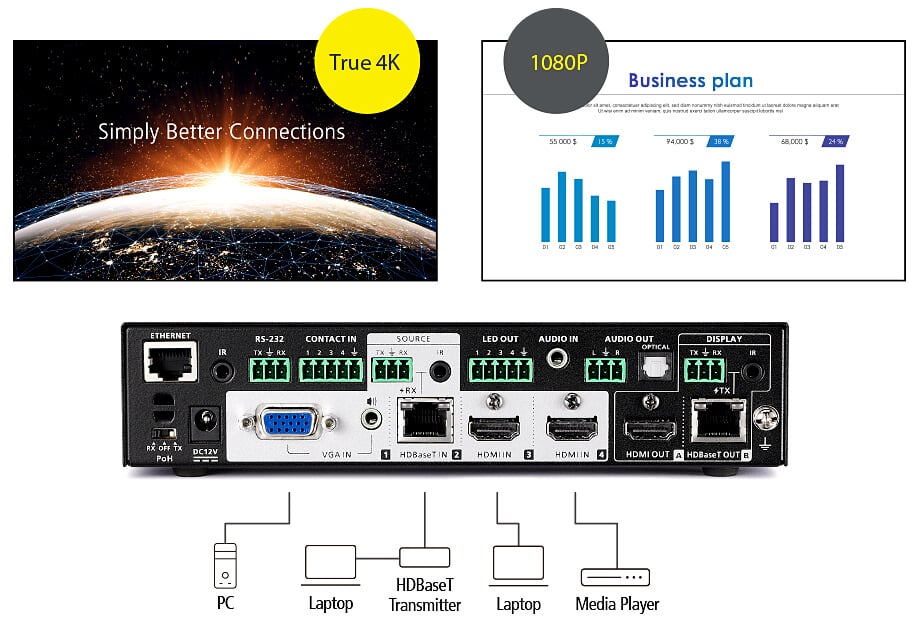

Connect up to 4 sources (1 HDBaseT, 2 HDMI, 1 VGA) and switch seamlessly from one to the other and view the contents climbed to perfection simultaneously on True 4 K and 1080 p.

Simplifies wiring and transmits AV, power and control signals RS- 232 and IR bidirectional up to 140 m via a Cat cable 6 / 6 to or ATEN 2 L- 2910 Cat 6 (insecting them into the HDBaseT input and output ports).

Supports microphone input with selectable 48 V Phantom power supply as well as allowing mixing of microphone input with program audio and integrated into display output while reducing program audio to improve hearingà dialogues.

Supports stereo audio integration into HDMI output or separation into audio line output and optical audio output. Extract HDMI and HDBaseT audio to different audio outputs as well as easily adapt it to your preferred audio configuration.

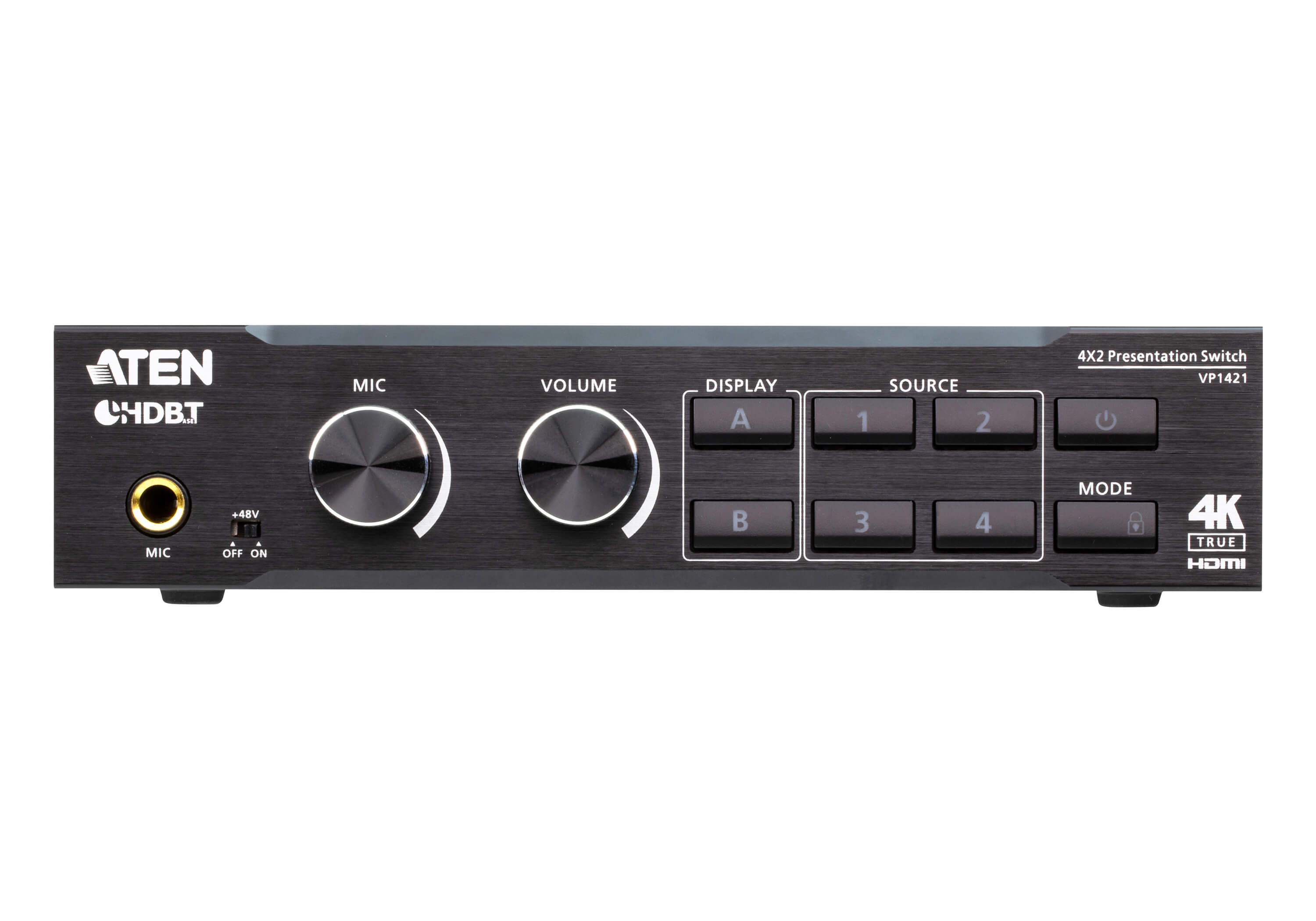

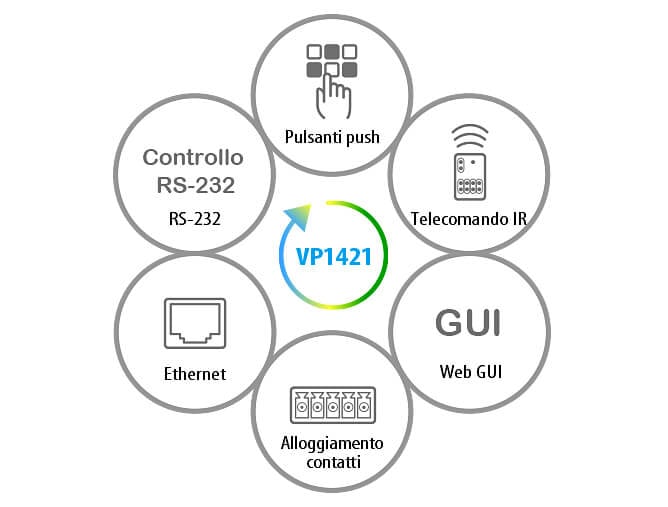

Control via the push buttons of the front panel, IR remote control, web user interface and any RS- 232 control interface, Ethernet and Housing contacts to simplify operations.



Features

  • Supports 4 multi-format inputs: 2 HDMI inputs, 1 HDBaseT and 1 VGA

  • 1 output HDMI and 1 HDBaseT

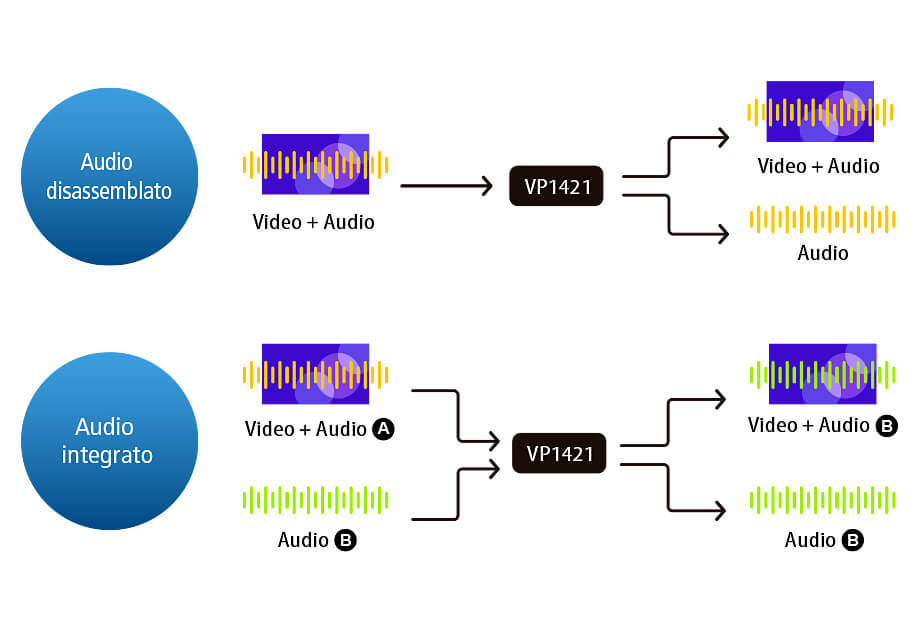

  • Integrated audio: stereo audio can be integrated in display output or separated on stereo and optical audio outputs

  • Disassembled Audio: HDMI/HDBaseT audio can be extracted on stereo output

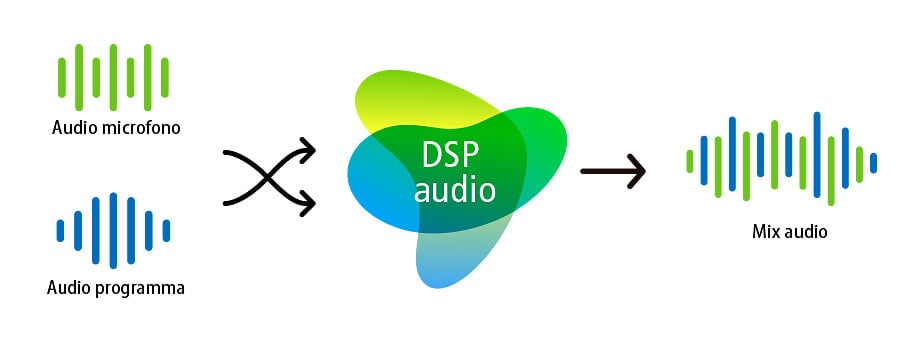

  • Integrated audio DSP: supports microphone input with selectable 48 V Phantom power supply; it also allows you to mix the microphone input with an audio program and integrate it into the display output

  • Automatically reduces program audio when the microphone signal is detected

  • Automatic Switching: automatically detects and switches to a new source as soon as connected

  • Quality à higher video: True 4 K resolutions up to 4096 x 2160 at 60 Hz (4: 4: 4 ) (HDMI)/ 4096 x 2160 at 60 Hz (4: 2: 0 ) (HDBaseT)

  • Supports 4 K HDR

  • Scaler: supports 4 K video upscaling for display A and downscaling at 1080 p for display B

  • EDID Expert™: automatically selects optimal EDID settings for trouble-free ignition, high quality visualization and use of best video resolution between connected devices

  • HDMI 2.0 (3 D, Deep Color, 4 K); HDCP 2.2 compatible

  • Multiple control methods: flexible control via push buttons on the front panel, IR remote control, RS- 232 and web user interface via Ethernet

  • RS- 232 and two-way IR channel: allows control of the AV device via HDBaseT connection without further wiring

  • Supports modeà standby for energy saving and rapid reactivation

  • Consumer Electronics Control (CEC) Support

  • Integrated contact input and LED output for keypad control via remote pad IDATA VPK- 104 contacts housing

  • Long-distance transmission: transmit digital AV signal, two-way RS- 232 and IR control signals up to 140 m* via Cat 6 / 6 a

  • Power over HDBaseT (POH): Remote power supply via external communication cable with selectable power supply device


*Note: can be obtained using both HDBaseT input ports and HDBaseT output on IDATA VP- 1421 , each extends the transmission up to 70 m.



Specifications

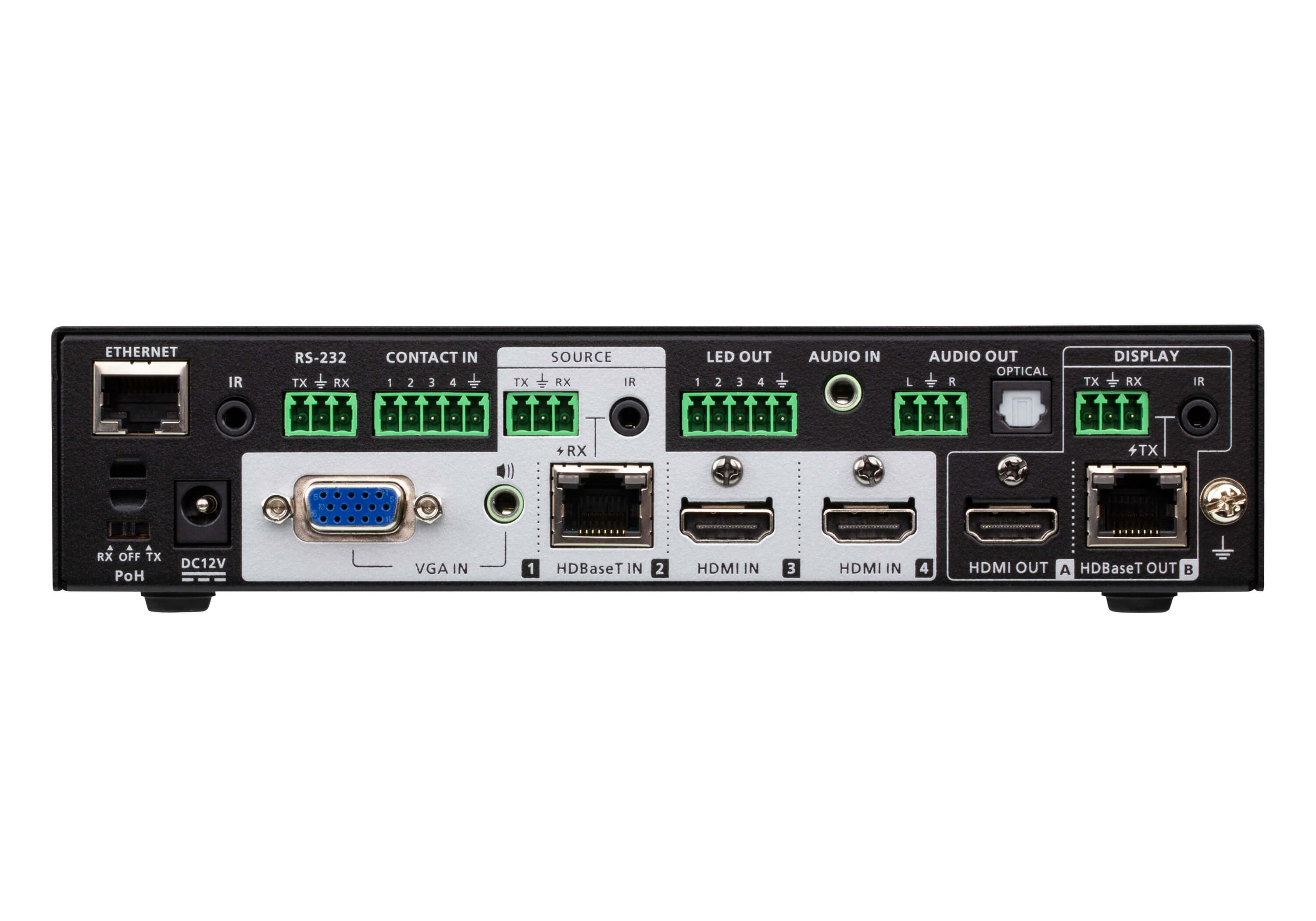

  • VIDEO ENGRESS: 2 HDMI interfaces type A female (black), 1 VGA (HDB- 15) female (blue) and 1 HDBaseT (RJ- 45) female (Silver) with PoH selectable.

  • Max. distance HDMI: 4 K to 60 Hz (4 : 4 : 4 ) to 3 m; 4 K to 30 Hz to 10 m; 1080 p to 60 Hz to 15 m

  • Max. VGA distance: 1920 x 1200 at 60 Hz at 15 m

  • Max. distance HDBaseT: 4 K to 30 Hz to 35 m (Cat 5 and/ 6) / 40 m (Cat 6 to/ATEN 2 L- 2910 Cat 6 ); 1080 p a 60 Hz to 60 m (Cat 5 and/ 6 ) / 70 m (Cat 6 to/ATEN 2 L- 2910 Cat 6 )



  • VIDEO: 1 HDMI female (black) and 1 HDBaseT (RJ- 45) female (Silver) interface with PoH selectable

  • Max. distance HDMI: 4 K to 60 Hz (4 : 4 : 4 ) to 3 m; 4 K to 30 Hz to 10 m; 1080 p to 60 Hz to 15 m

  • Max. distance HDBaseT: 4 K to 30 Hz to 35 m (Cat 5 and/ 6) / 40 m (Cat 6 to/ATEN 2 L- 2910 Cat 6 ); 1080 p a 60 Hz to 60 m (Cat 5 and/ 6 ) / 70 m (Cat 6 to/ATEN 2 L- 2910 Cat 6 )



  • Max. HDMI video resolution: up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4: 4: 4 )

  • Max. video resolution VGA: up to 1920 x 1200 at 60 Hz

  • Max. video resolution HDBaseT: up to 4096 x 2160 / 3840 x 2160 to 60 Hz (4 : 2 : 0 ); up to 4096 x 2160 / 3840 x 2160 to 30 Hz (4: 4: 4 )

  • Conformità: HDMI 2.0 (3 D, Deep Color, 4 K); 4 K HDR; HDCP 2.2 compatible; CEC (Consumer Electronics Control)

  • Audio output: line output (unbalanced) 1 captive screw connector, 3 poles - Optical audio: 1 Toslink (black)

  • Audio input: HDMI/HDBT stereo audio: 1 mini female stereo connector (green); VGA stereo audio: 1 mini female stereo connector (green); microphone: 1 jack connector from 6,3 mm (with phantom power selectable)

  • RS- 232 control: 1 captive screw connector, 3 poles

  • IR control:  1 mini female stereo connector (black)

  • Ethernet control: 1 RJ- 45 female (silver)

  • IR Channel Control: HDBaseT input 1 mini female stereo connector (black); HDBaseT output 1 mini female stereo connector (black)

  • RS- 232 Channel Control: HDBaseT input 1 captive screw connector, 3 poles; HDBaseT output 1 captive screw connector, 3 poles

  • Modelità EDID: Default / Port 1 / Remix

  • 1 DC connector (black) for power supply 

  • Consumption: 12 V CC, 14,93 W, 110 BTU

  • Power switch: 1 push button (LED: green / orange); 1 sliding support (Phantom power supply 48 V); 1 sliding support (PoH)

  • Video input door selection switch: 4 push buttons (LED: green)

  • Video output port selection switch: 2 push buttons (LED: orange)

  • Switch Selection: 1 knob microphone; 1 knob volume; 1 push button Modelità / Unlock



Environmental information

  • Operating temperature: 0 - 40 °C

  • Storage temperature: - 20 - 60 °C

  • Humidità: 0 - 80% relative humidityà without condensation



Package contents

  • True 4 K 4 x 2 VP 1421 slideshow switch

  • IR Receiver

  • IR remote control

  • 4 3 pole terminal blocks

  • 2 5 pole terminal blocks

  • Power supply

  • User instructions

  • Brand
  • Reference
    IDATA VP-1421
  • EAN13
    4719264649158
