Switch matrix presentations with quadruple multistreaming view - Aten IDATA VP- 2120

IDATA VP- 2120 è a simplified presentation switch that integrates video matrix, quadruple view multistreaming, audio DSP functions, and a platform for sharing ideas in a compact device. Thanks to the simplified switching between streaming sources, online ideas exchange functions, and the network function that allows wireless connection for mobile devices, IDATA VP- 2120 and the ATEN* video slideshow control application improves the wireless BYOD collaboration when è requires a short recovery, quick reunion, instant brainstorming, a waiting call or an ad hoc call.

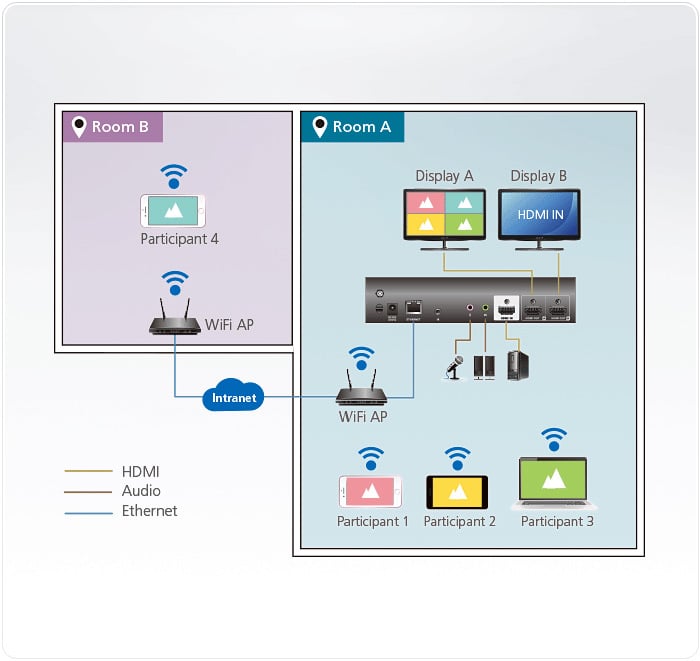

Designed for spontaneous and flexible team collaboration, the IDATA VP-2120 together with the ATEN video performance control application makes BYOD meetings simpler thanks to a simple user interface that offers users quick and streamlined access to any meeting. Meeting participation is simple and secure. Participants can use their own devices and use the private QR code or room code, or perform automatic scan of the local network to get the list of available rooms for access, even when they are not physically in the same area. IDATA VP-2120 enables bidirectional content streaming for up to 4 participants simultaneously. Thanks to the built-in multi-view mode, streaming sources can be displayed on the same screen, whose layout changes dynamically to adapt to the number of available sources. Participants can also focus on a streaming input to view it full screen or view a live screen for synchronization. Additionally, the built-in audio DSP allows remote participants to transmit to meeting members using their own devices, with audio mixed with the program audio.



*Free application Aten

IDATA VP- 2120 together with ATEN's video slideshow control application also offers several advanced ideas sharing functions: The board allows real-time annotation for ideas exchange and synchronization; the Chat room function improves interaction between participants; File sharing allows data sharing and monitoring; while Video acquisition records the meeting for future tracking. This collaborative slideshow solution makes it easier for small groups to discuss by offering an immediate improvement to team work.



Features

• One HDMI input and two HDMI outputs as well as bidirectional 4 streaming with Matrix display support


• Seamless Switching between streaming resources for the quick exchange of ideas


• Audio DSPs: microphone input mix, HDMI input and the latest streaming output for HDMI or audio output


• Support for HDMI disassembled audio


• Starts wireless BYOD collaboration through the web user interface and mobile application in an agile and fast way


• It offers quick and easy access to the meeting via more ù methods: start automatic scanning and select a room number from the list; scan the QR code shown on the OSD of IDATA VP- 2120; load a pre-saved QR code; enter the IP address and room code shown in the OSD

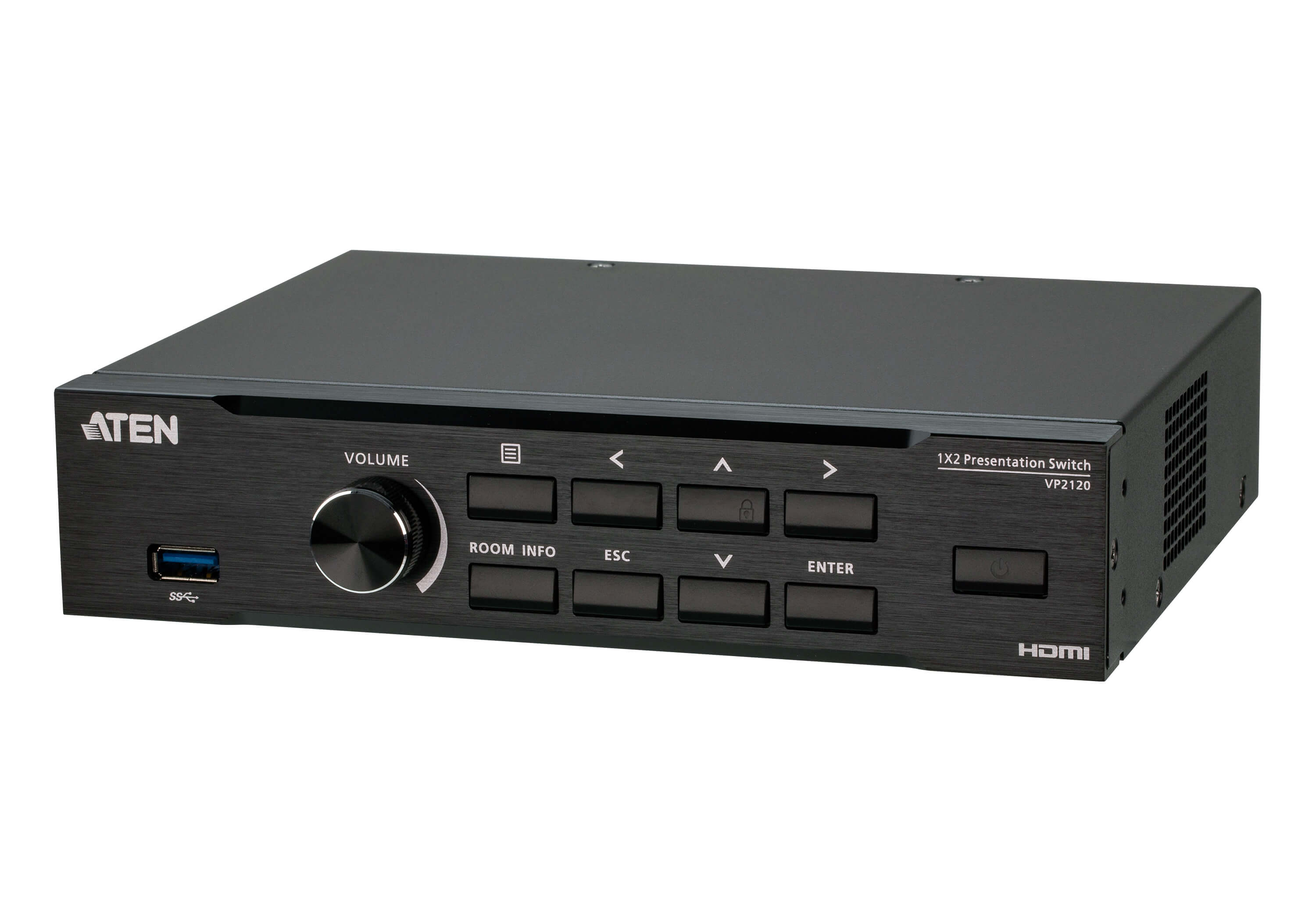

• Multiple control methods using push buttons on the front panel, web user interface, OSD, IR remote control and mobile application


• Input Streaming: simultaneously display up to 4 streaming content for real-time syncing


• Streaming output: allow access to attendees to view live content on personal devices


• Multi view with automatic layout: dynamically adjusts the layout to fit the number of streaming sources available


• Blackboard allows real-time annotation for exchange and synchronization of ideas


• The chat room function improves text interactions and information sharing


• Video acquisition records meeting for future tracking


• File sharing allows further data sharing and monitoring


• Qualityà higher video up to 1920 x 1080 with a single streaming input and 854 x 480 with four streaming inputs


• EDID Expert™: automatically selects optimal EDID settings for trouble-free ignition, high quality visualization and use of best video resolution between connected devices


• HDMI (1080 p); CEC (Consumer Electronics Control); HDCP 1.4 compliant



Specifications

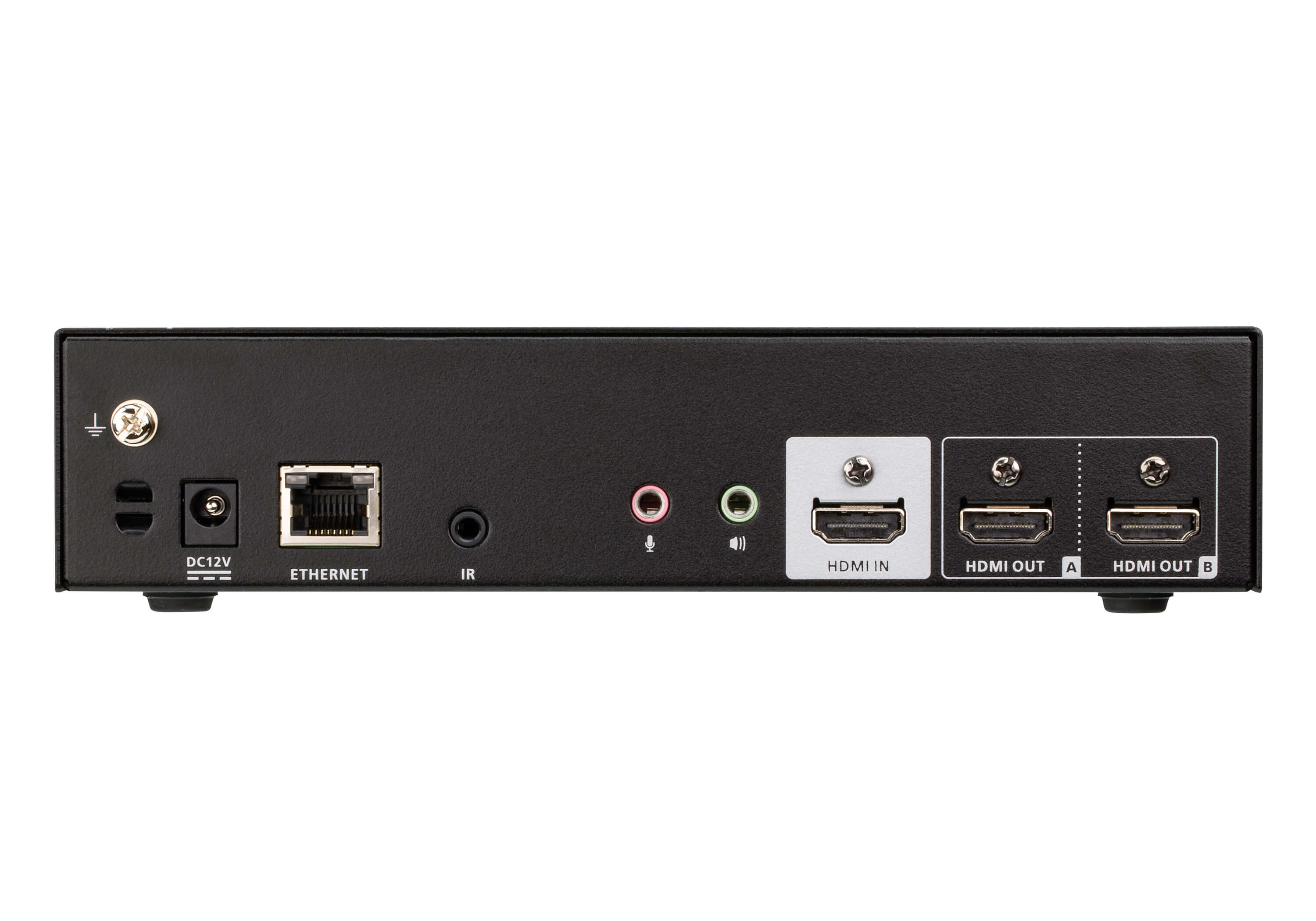

• Video input: 1 HDMI female type A interface (black)


• Video output: 2 HDMI female type A interfaces (black); max. HDMI distance: up to 15 m


• Video: max resolution: HDMI up to 1080 p at 60 Hz; conformità HDMI: HDCP 1.4 compatible; Consumer Electronics Control (CEC)


• Audio: microphone input: 1 mini female stereo connector (pink); microphone output: stereo audio 1 mini female stereo connector (green)


• Connectors: 1 USB 3.0 type A female (blue) and 1 DC connector (black) for power supply


• IR control:  1 mini female stereo connector (black)


• Ethernet control: 1 RJ- 45 female (silver)


• Power switch: 1 push button (LED: green)

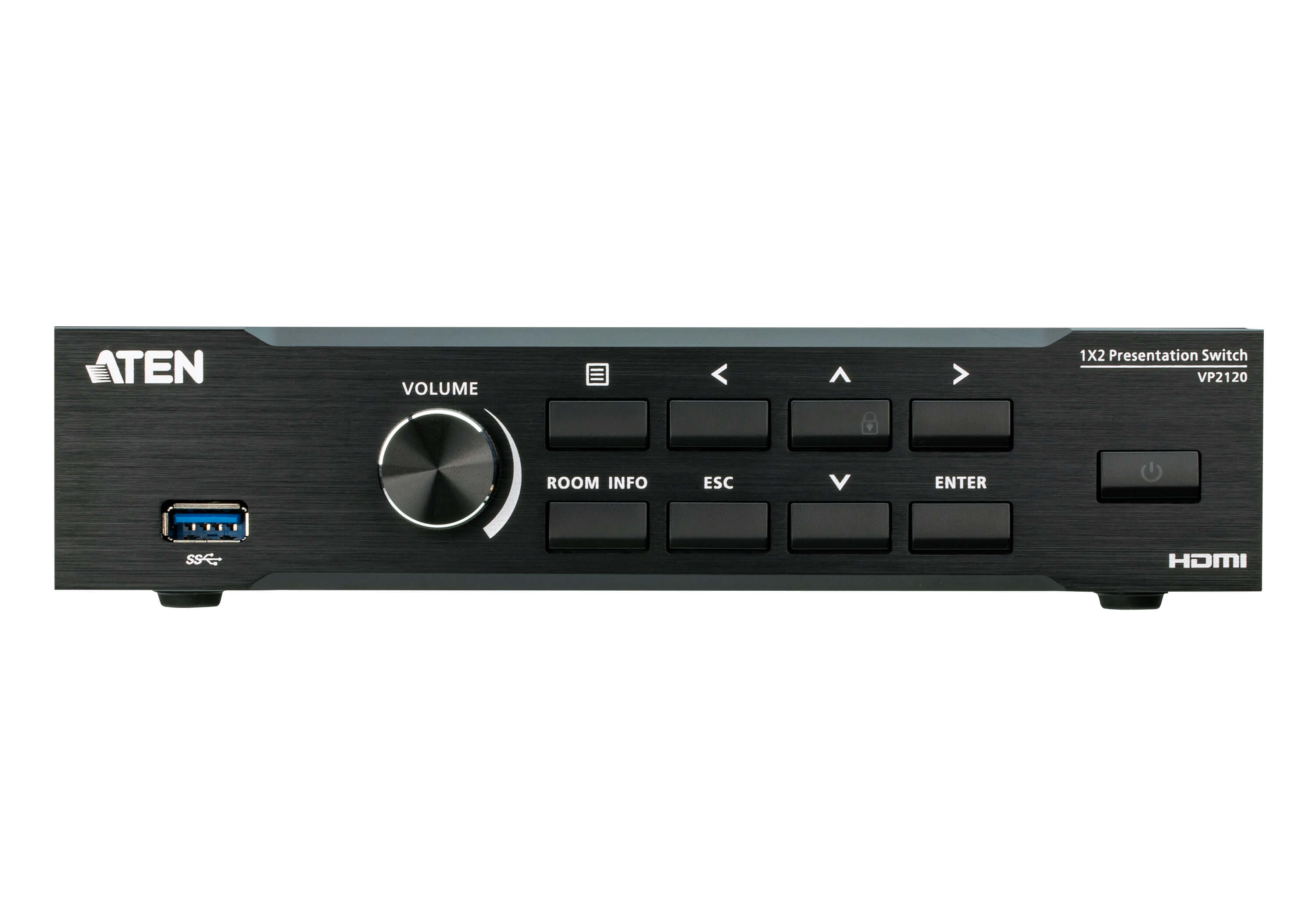

• Selection switches: push buttons for Room Info / Menu / Left / Right / Giù / Up / Unlock / Volume / Send / ESC


• Modelità EDID: Default ATEN / Display A


• Consumption: 12 V CC, 14,46 W, 87 BTU



Environmental information

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Package contents

• Switch for simplified presentations IDATA VP- 2120


• 2 XRT- 0003 G IR receiver


• 2 XRT- 0112 G IR remote control


• 0 AD 8 - 8012 - 33 MG power supply


• User instructions
