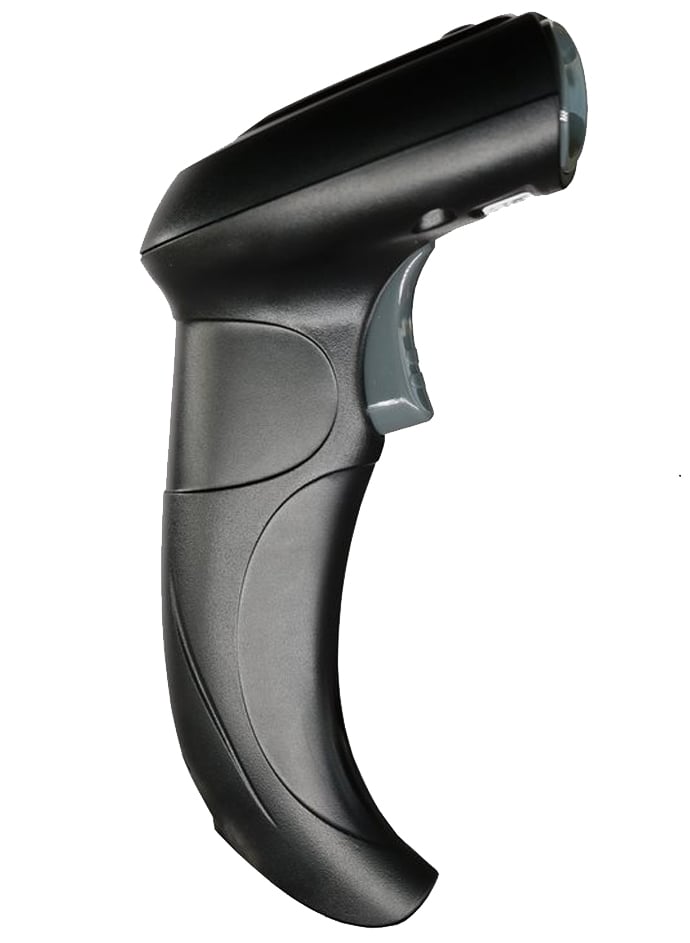

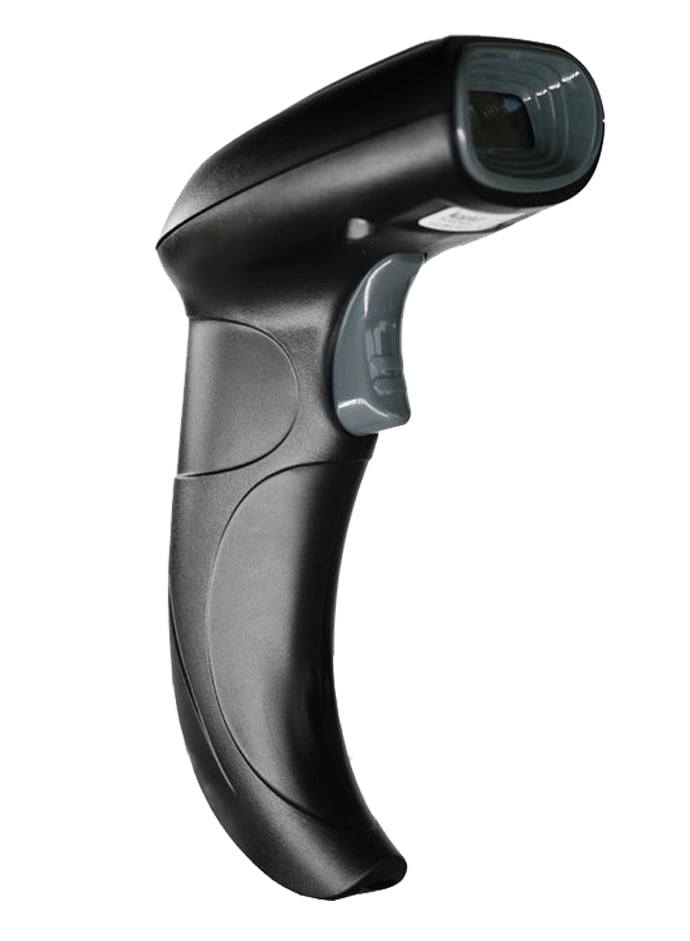

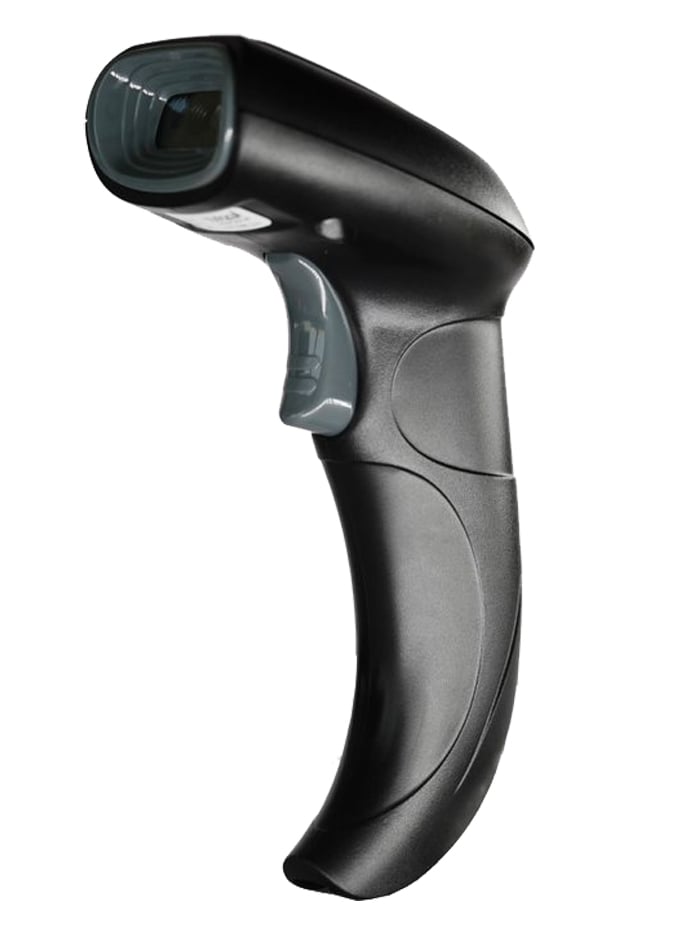

Barcode Scanner Imager 2D IP52 Wireless Reader - Kaptur IC-KP2230

The Barcode Imager 2D WirelessIC-KP2230 reader offers an economical data capture solution that allows using the features of a 2D barcode scanner at the price of a 1D scanner. The Imager technology enables fast and accurate barcode reading even if the barcode is slightly damaged.

With a powerful and reliable RF connection up to 50 meters from its host, IC-KP2230 allows you to move around a room or store without any constraints; it's the ideal solution for applications such as product traceability, sales-purchase inventory, office management and automation. It is suitable for receipt lottery, it also reads codes from smartphones.



Technical specifications

• Material: ABS + TPU


• LED indication and audible indicator


• Interface: USB (cable) and Wireless with included dongle


• Wireless connection 2.4GHz up to 100m in open spaces


• Rechargeable lithium battery 1600mAh


• Charging via MicroUSB connection


• Full charging time: 4.5 hours


• Operating time: 8.5 hours


• Protection rating IP52


• Activation button, automatic detection


• Input voltage: 5V DC


• Image dimensions: 640 x 480, 256 gray levels


• Scan angle: +/- 75°, +/- 65°, 360°



Supported codes

• 1D:



UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended

Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code

32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI,

Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

• 2D:



PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQR Code



Environmental features

• Operating temperature: -5 / 65 °C


• Storage temperature: -20 / 70 °C


• Humidity without condensation: 5% - 90%



Dimensions

• Width: 60 mm


• Depth: 170 mm


• Height: 95 mm


• USB charging cable length: 80 cm



Package contents

• Barcode Imager 2D IP52 Wireless


• USB A - micro B charging cable


• USB flash drive


• User manual
