Physical characteristics- Dimensions Height 99 mm, Width 60 mm, Depthà 170 mm
- Weight 229 grams
- Straight cable 1,5 m
- ABS+PC material
- Audio signal, LED
- Degree of protection IP 52
Supported interfaces- USB Keyboard,
- USB virtual COM
- RS 232 (optional)
Performance- Modelità manual operation, activation button
- Manual programming method (special barcode reading)
- Input voltage USB 5 ± 0,25 V DC
- Current standby: 42 mA
- Scanning: 142 mA
- Sensor area image (640 x 480 pixel array 256 gray levels)
- Scan angle ± 75 °, ± 65 °, ± 360 ° (inclination, inclination, roll)
- Print contrast: minimum 30 reflect difference %.
- Light source lighting: 6500 K white LED
- Red pointing LED (617 nm ± 10 nm)
- Depth à decode
- Minimum bar code width 60 - 360 mm / 13 mil
Data collectionCodabar, Code 11 , Code 39 , Code 32 Interleaded 2 of 5 , Industrial 2 of 5 , Matrix 2 of 5 , Code 93 ,
Code 128 , GS 1 - 128 , UPC-A, UPC-E, EAN 8 , EAN 13 , GS 1 Databar (RSS 14 ),
GS 1 DataBar Limited, GS 1 DataBar Expanded, etc.
PDF 417 , MicroPDF 417 , QR Code, DataMatrix, MicroQR Code, Aztec Code
Environmental features- Operation from - 10 ° to + 50 °C
- Storage from - 20 ° to + 70 °C
- Humidità 5 % to 95 % (without condensation)
Security- EMC: EN 55022 , EN 55024
- Electrical Safety: EN 62471
- RF Immunity: IEC 61000 - 4 - 3 , 10 V/m

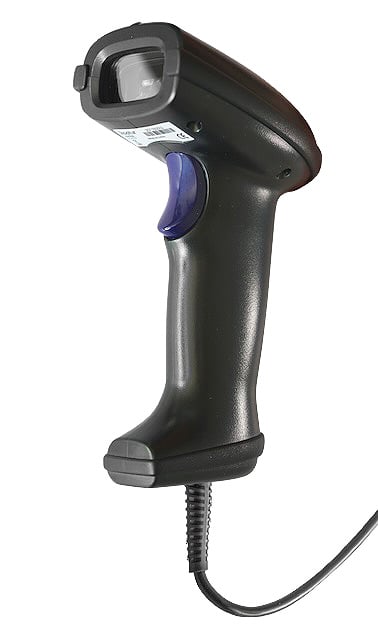

Package contents- Barcode 1 D and 2 D IC-KP 5200
- User manual
