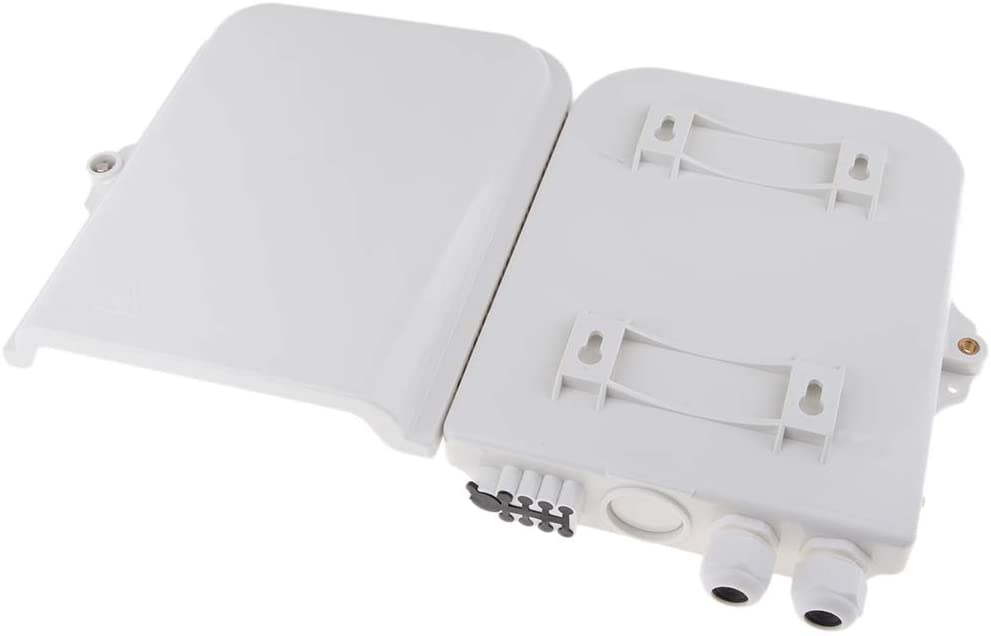

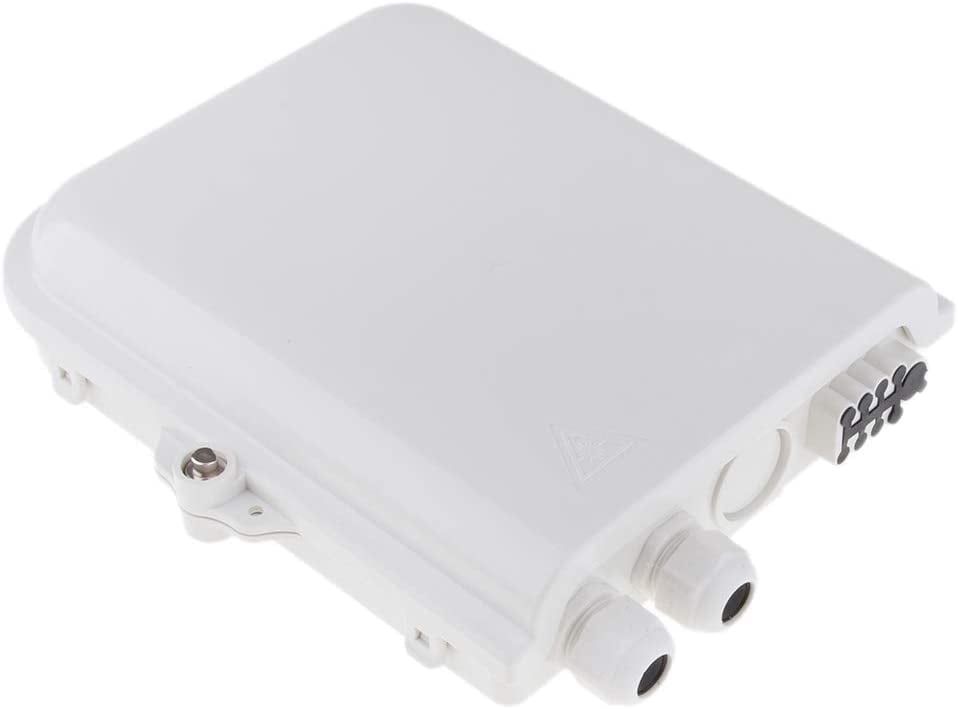

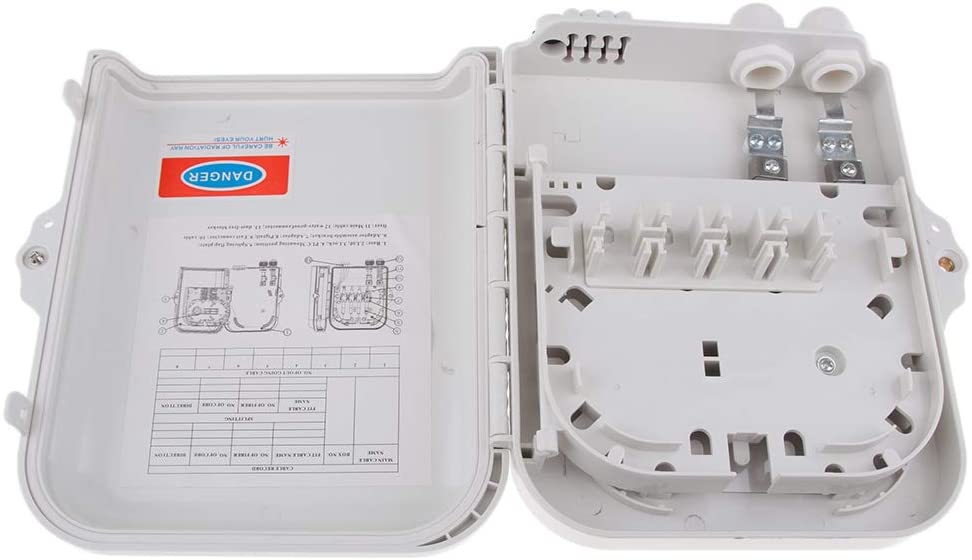

The fiber optic head terminal can support up to 8 terminations. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates splicing, splitting, distribution, storage and connection of fiber cables in a robust protective box.
Technical specifications- Waterproof design with protection level IP65 and security key
- Manages fibers with the correct bend radius
- Includes splice tray
- Fiber bend radius control greater than 40 mm
- Suitable for fusion splicing or mechanical splicing
- Supports input up to 8 fibers
- Adapter connections: SC, LC
- Can hold 8 SC Simplex or LC Duplex adapters
- Includes two cable glands PG13,5 in the supply
- Material: PC and ABS
- Color: white
Dimensions- Width: 227 mm
- Depth: 181 mm
- Height: 54.5 mm
Package contents- FTTH Fiber Optic Head Terminal IP65 8 SC LC Ports
- Wall mounting screws and cable ties and material for internal cable management
