- Automatic speed detection of ports 10/100/1000 Mbps
- Manual VLAN mode to isolate ports from 1 to 14 from each other and allow them to communicate with ports 15 and 16
- Manual Extend mode to achieve transmission distance up to 250 m at a reduced speed of 10 Mbps
- Switch fabric 32 Gbps
- Energy-saving technology allows unused ports to be disabled and adjusts power levels according to cable length
- Supports jumbo frames up to 9 kBytes
- Manual flow control disable mode to disable the flow control function of the Gigabit Ethernet switch
- All RJ45 ports support Auto-MDIX (auto uplink)
- Store and forward switching architecture
- Supports flow control 802.3x for full duplex mode and backpressure collision-based for half duplex mode
- Supports 8k MAC addresses
- 512 kBytes memory buffer
- Compact desktop form factor with robust metal housing
- Grounding point to protect equipment from external electrical surges
- Non-slip rubber feet for desktop use
- Fanless design for silent operation
- Includes 19 rack mounting brackets
Standard- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3az (Energy Efficient Ethernet EEE)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (flow control, for full duplex mode)
General information:- 10Base-T Cat3/4/5 UTP/STP RJ45, 8 pin
- 100Base-TX Cat5/5e UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e/6/6a UTP/STP RJ45, 8 pin
- Packet filter / forwarding rate:
- 1.488.000 pps (1000 Mbps)
- 148.800 pps (100 Mbps)
- 14.880 pps (10 Mbps)
- MAC address table: 8192 entries
- Backplane speed / switching capacity: 32 Gbps
- Switching architecture: store and forward

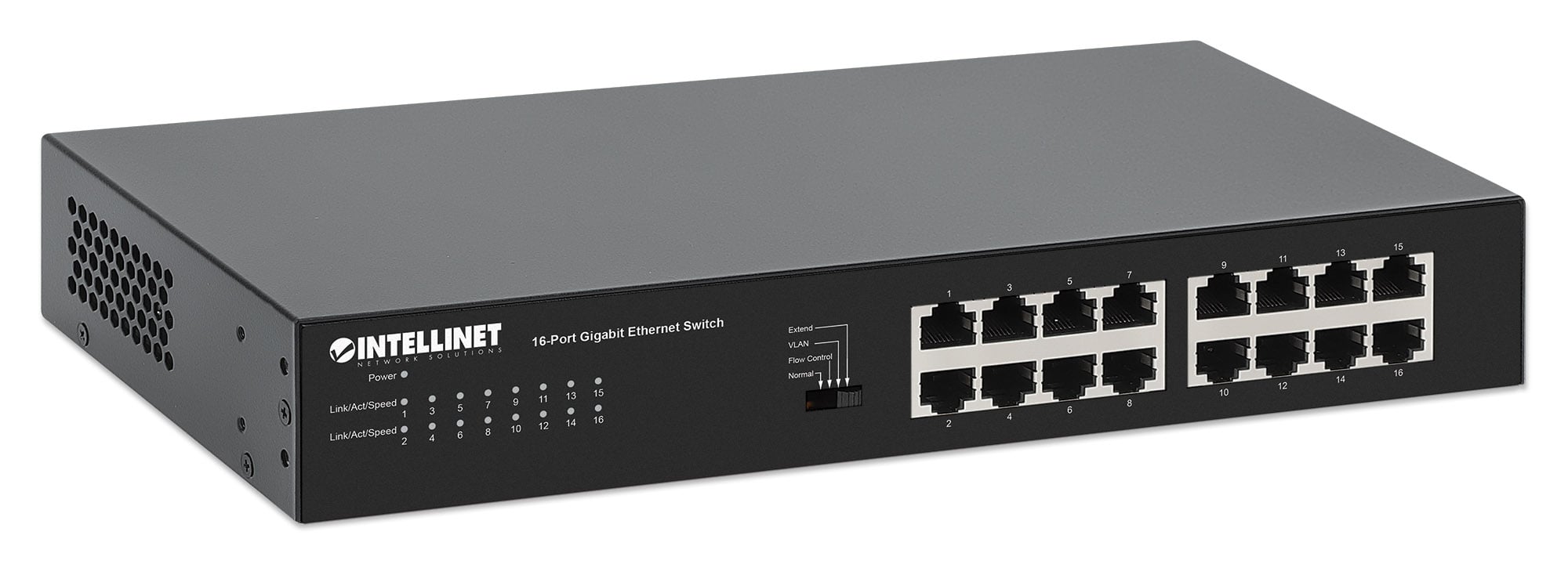

- 16 RJ45 Gigabit Ethernet ports

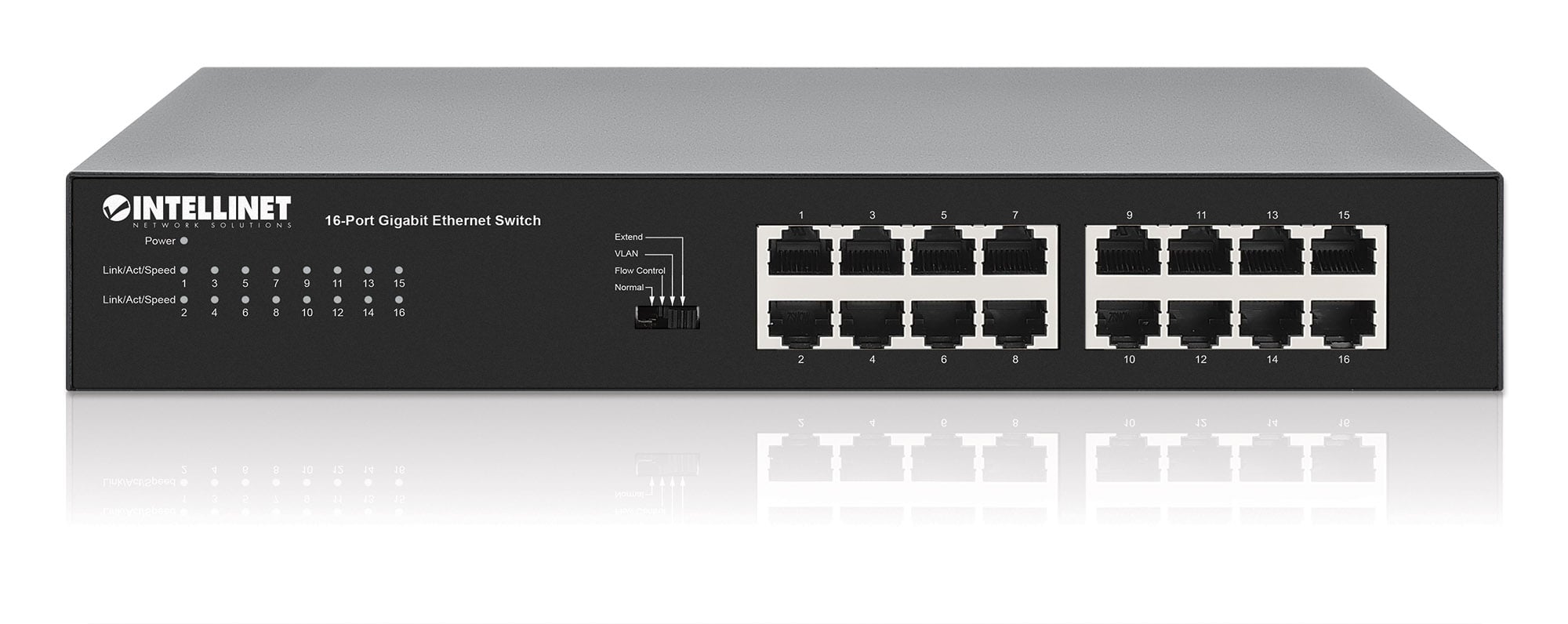

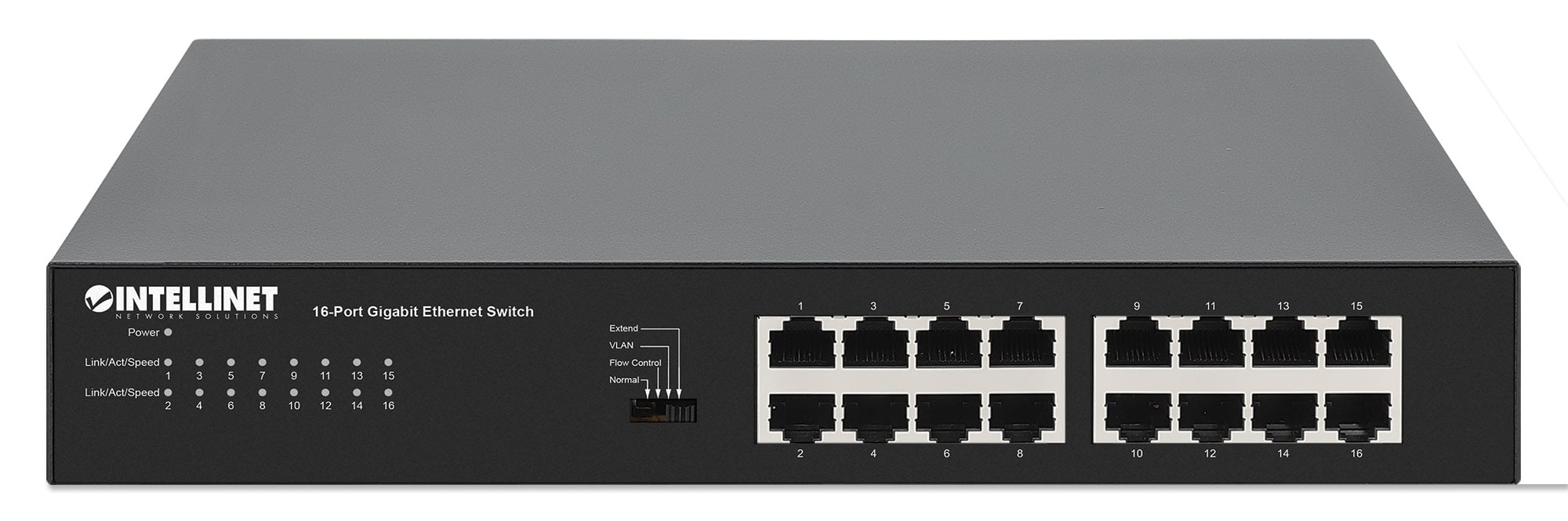

CertificationsMode (selectable via sliding switch on the front panel) - Normal
- Disable flow control
- VLAN (port isolation)
- Network extension

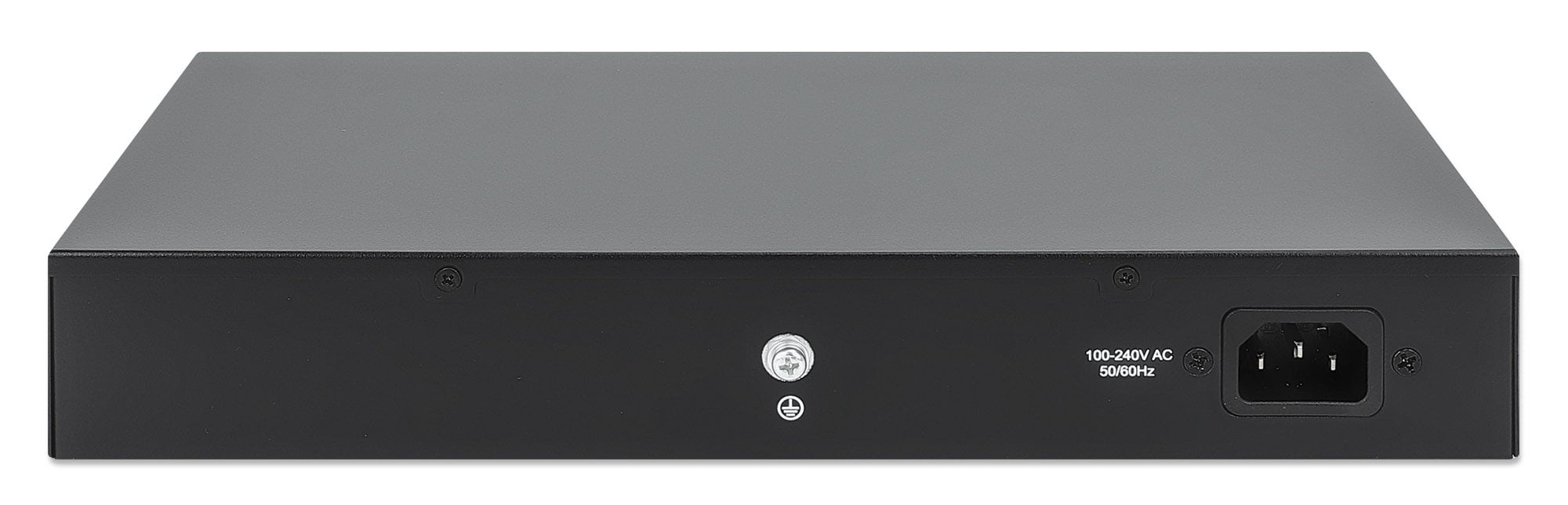

LEDPower- Internal power supply: 100.0 - 240.0 VAC, 50/60 Hz
- Power consumption: 10.1 watt (maximum)
Physical information- Metal chassis
- Dimensions (D x W x H): 126 x 280 x 44 mm
- Net weight: 1.1 kg
- Gross weight: 1.6 kg
- Operating temperature: from 0 to 40°C
- Storage temperature: -40 to 70°C
- Operating humidity: 5 - 90% RH, non-condensing

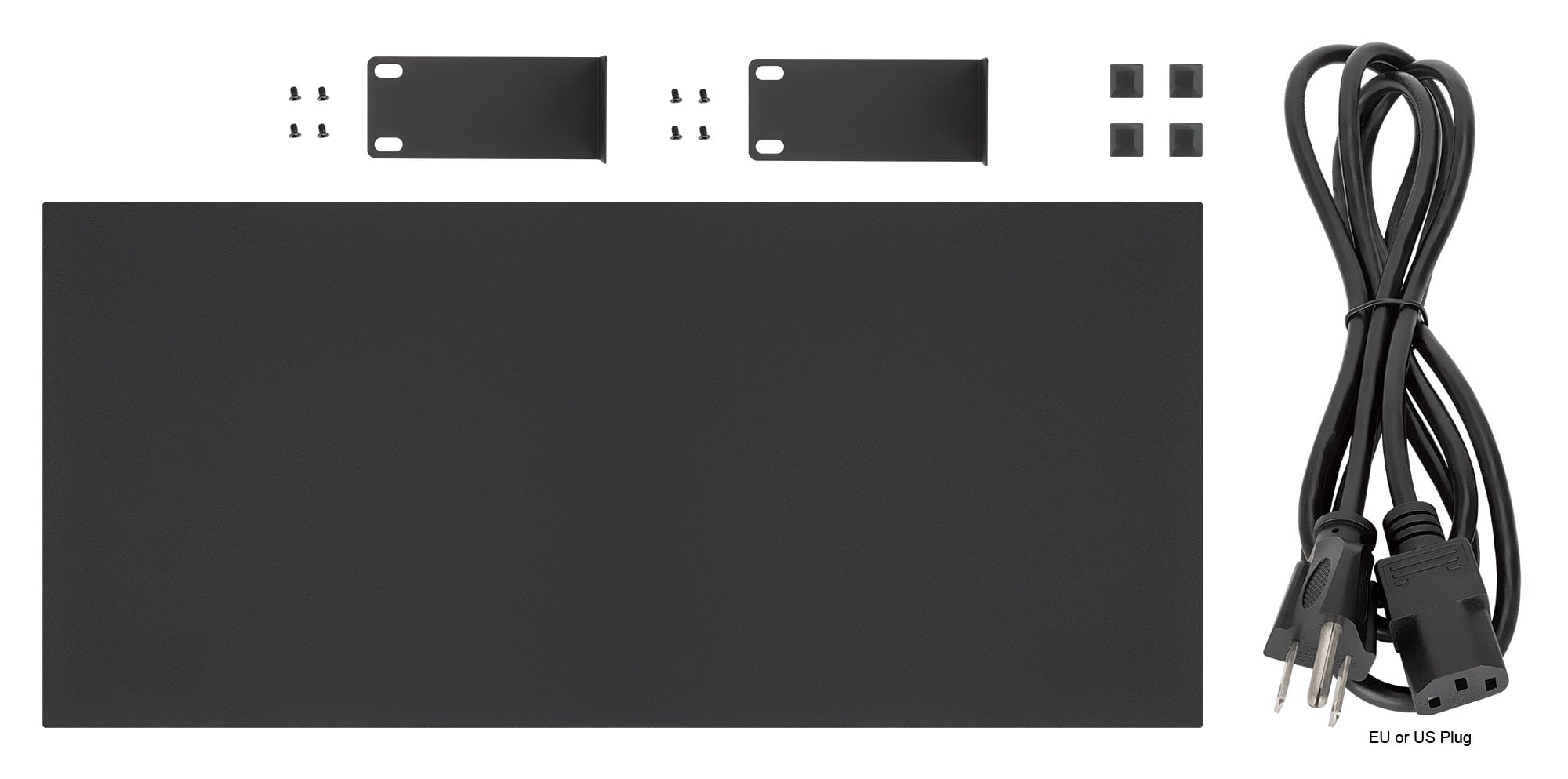

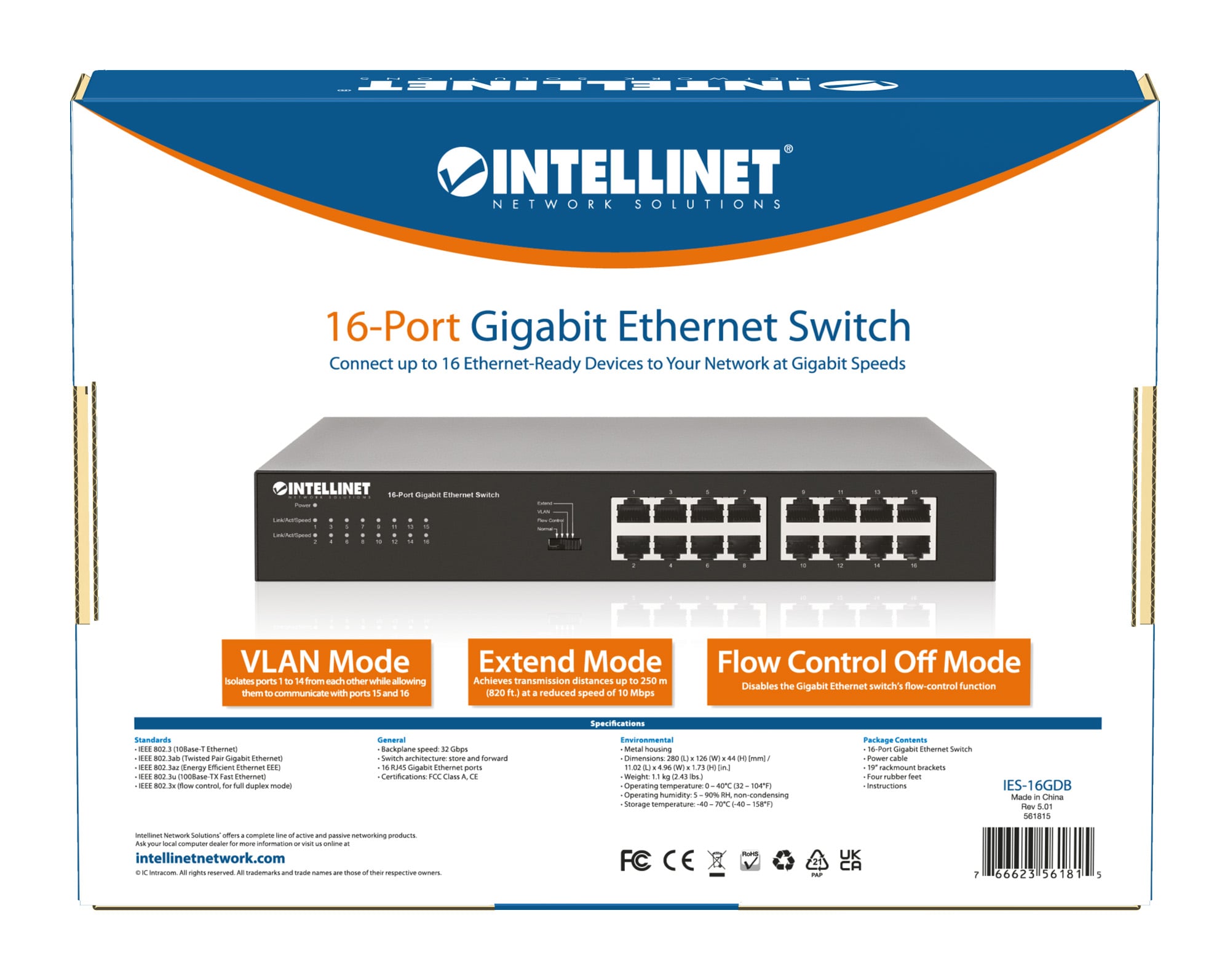

Package contents- Network Switch 16 Gigabit Ports
- Power cable
- Rack mounting brackets 19
- Four rubber feet
- User manual
