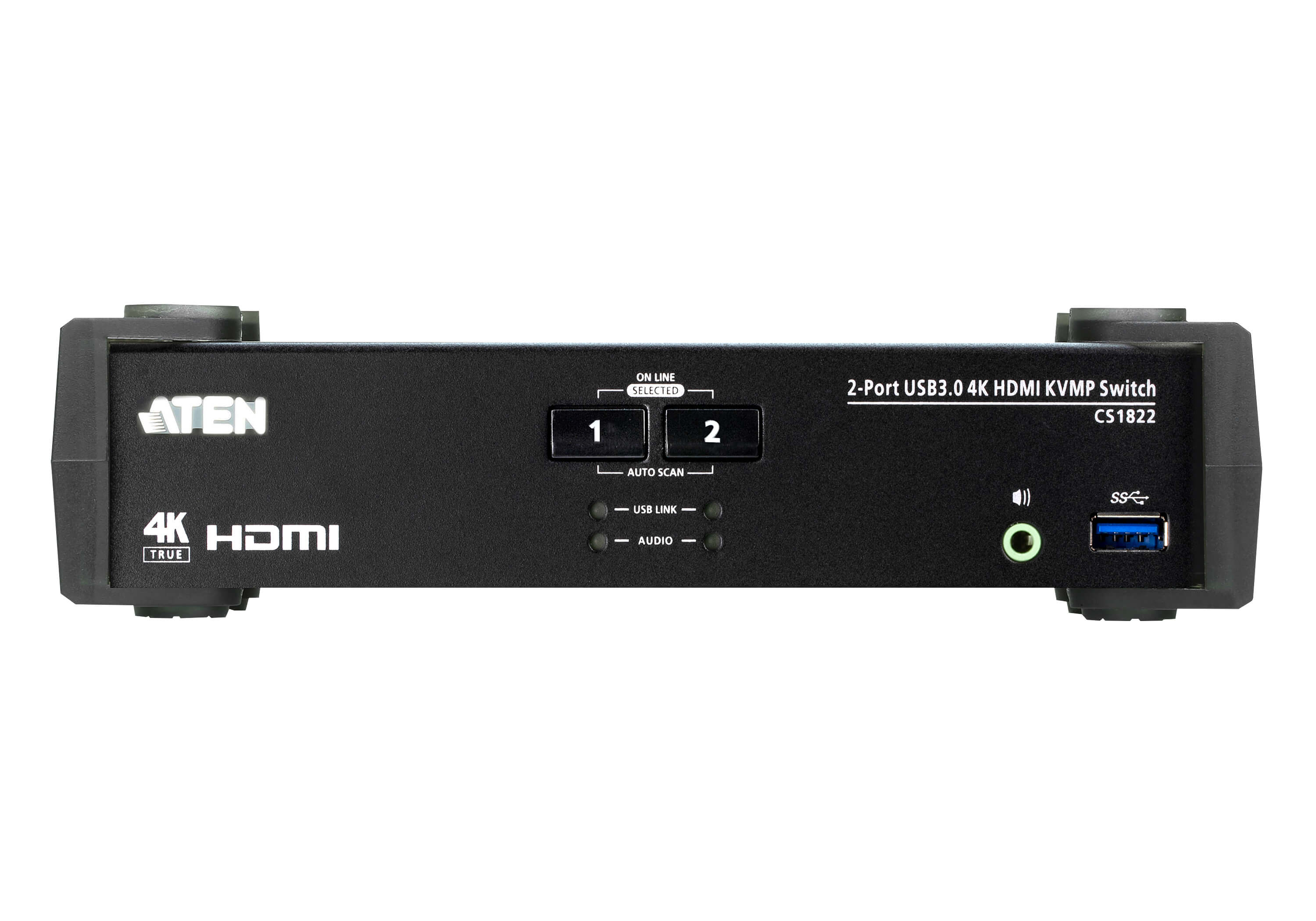

USB 3.2 4 K HDMI KVMP 2 ports with Audio Mixer Mode - Aten IDATA CS- 1822

ATEN's KVMP™ IDATA CS- 1822 switch offers simplified management of two computers with HDMI interface from a single USB keyboard, mouse and HDMI monitor. It can support qualityà higher videos up to 4 K DCI (4096 x 2160 at 60 Hz), the CS 1822 optimizes user multitasking experience.



Thanks to ATEN's patented technology, Video DynaSync™, users can take advantage of the best visualization resolution and rapid exchange between systems. So more, è available default modeà EDID that allows trouble-free ignition, high quality à display as well as eliminating problems related to the monitor's compatibilityà.



In addition, CS 1822 has Modelità audio mixer that mixes audio sources from two computers connected as audio output, so that users receive notifications so that they don't miss some system warning even when the KVM è attention set on other computers. Thanks to the built-in 3.2 Gen 1 USB hub, CS 1822 offers speed à data transfer up to 5 Gbps, allowing you to accelerate multimedia operations and easily share USB peripherals.



The integration of these advanced features allows CS 1822 to offer great advantages for those working in the field of CGI, graphic design, post-production video, etc., using multitasking in a simple way.

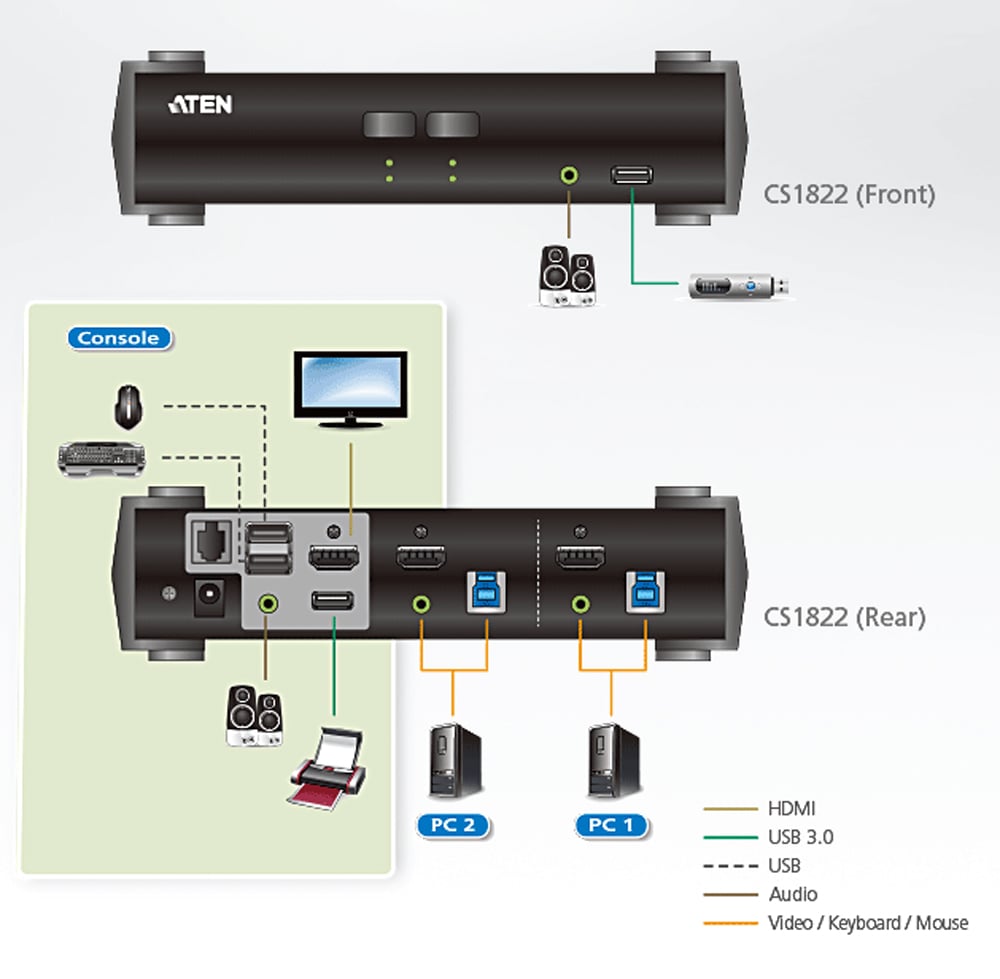

• A USB keyboard/mouse and an HDMI monitor control two computers and share two USB devices

• Supports quality à higher video: 4 K UHD (3840 x 2160 at 60 Hz) and 4 K DCI (4096 x 2160 at 60 Hz)

• DynaSync & trade; Video: ATEN exclusive technology that eliminates screen boot problems and optimizes resolution when switching between different sources

• Hub USB 3.2 Gen 1 to 2 integrated ports with speed à SuperSpeed 5 Gbps data transfer

• Modelità audio mixer: mixes two audio sources as audio output

• Computer selection via push buttons, quick keys, mouse (1) and RS- 232 commands

• Modelità Default EDID of ATEN: trouble-free ignition, di alta qualità display à and resolution optimization to eliminate compatibility à problems

• Independent switching of KVM, USB devices and stereo audio focus (2)

• HDMI 2.0 conformance; HDCP 2.2 conformance

• Supports HD audio (2)

• Initiating detection

• Modelità automatic scanning for monitoring all computers

• Updated Firmware


Note:

1 . Switching the è mouse port supported only in mode à emulation mouse and USB mouse with wheel and 3 keys.

2 . Can't è independently switch HD audio via the HDMI channel



Technical specifications

• Computer connections: 2

• Select port: shortcut, push button, mouse, RS- 232 commands

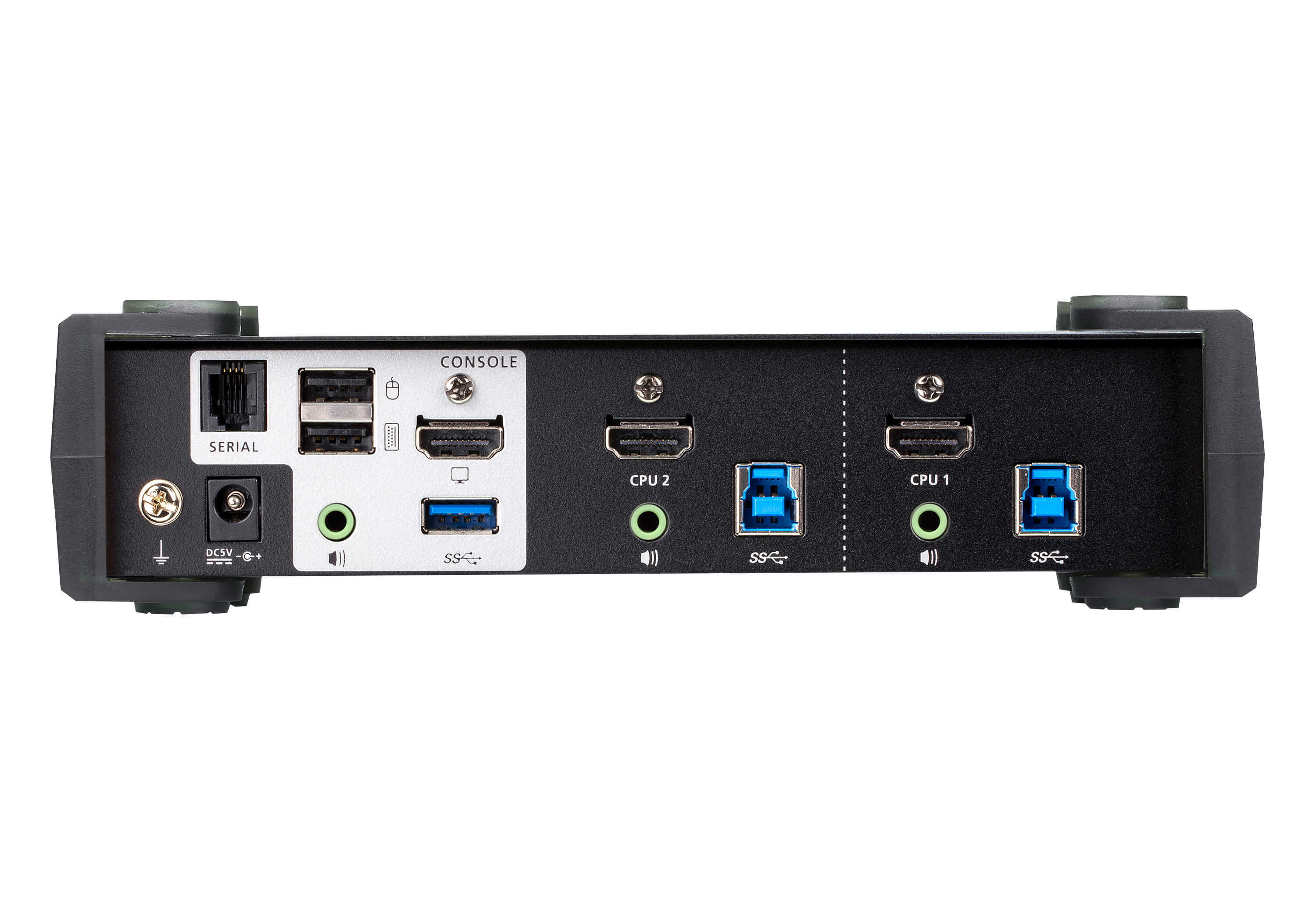

• Connectors:


- Console doors  

2 x USB type A female

1 x female HDMI (black)

2 x 3,5 female audio connector (green; 1 x front, 1 x rear)

- KVM ports (computer) 

2 x USB 3.2 Gen 1 female type B (blue)

2 x female HDMI (black)

2 x Female audio connector from 3,5 mm (green)

• Serial: 1 x RJ- 11 female

• Power supply: 1 x DC connector

• USB Hub: 2 x USB 3.2 Gen 1 type A female (blue; 1 x front; 1 x rear)

• Switches: selected, 2 x Push button

• Keyboard emulation / USB mouse

• Video resolution 4096 x 2160 at 60 Hz

• Consumption: DC 5 V: 1.78 W: 50.97 BTU


LED

• Online / selected:  2 (orange)

• USB connection: 2 (green)

• Audio: 2 (green)


Environmental features

• Operating temperature: 0 - 40 °C

• Storage temperature: - 20 - 60 °C

• Humidità: 0 - 80% relative humidityà without condensation


Dimensions

• Width: 21.00 cm

• Depthà: 8.80 cm

• Height: 5.55 cm


Package contents

• 1 x Switch KVMP™ USB 3.2 4 K HDMI to 2 ports CS 1822

• 2 x LIN 6 - 19 V 1 -V 18 G cables HDMI 2.0

• 2 x LIN 6 - 11 C 1 -E 12 G USB cables 3.2

• 2 x LIN 5 - 0205 - 21 CG audio cables

• 1 x 0 AD 8 - 8005 - 40 MG adapter

• 1 x LIN 2 - 418 K-E 12 G power cord

• 1x User instructions
