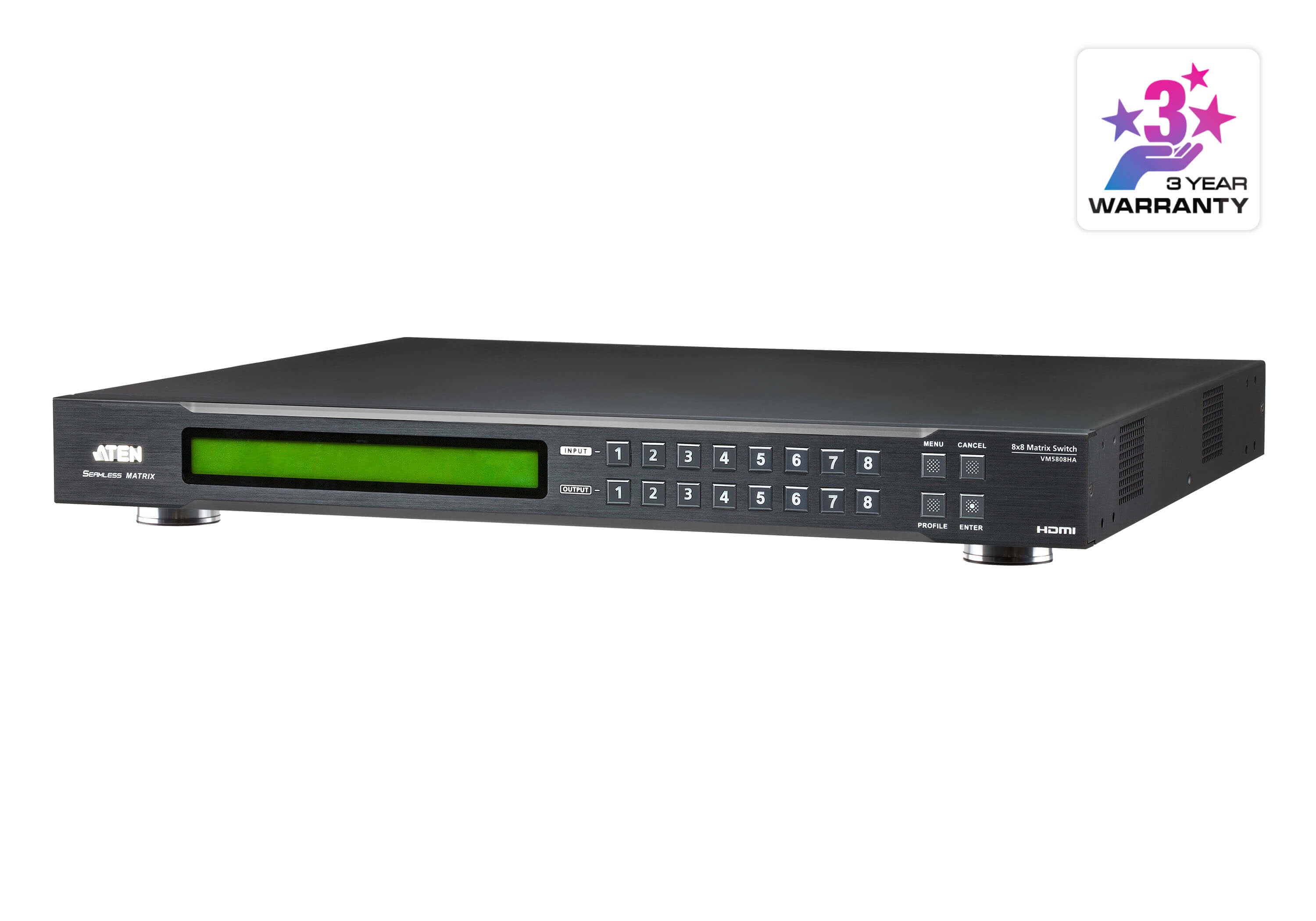

Matrix HDMI 8 x 8 with Videowall and Scaler - Aten IDATA VM- 5808 HA

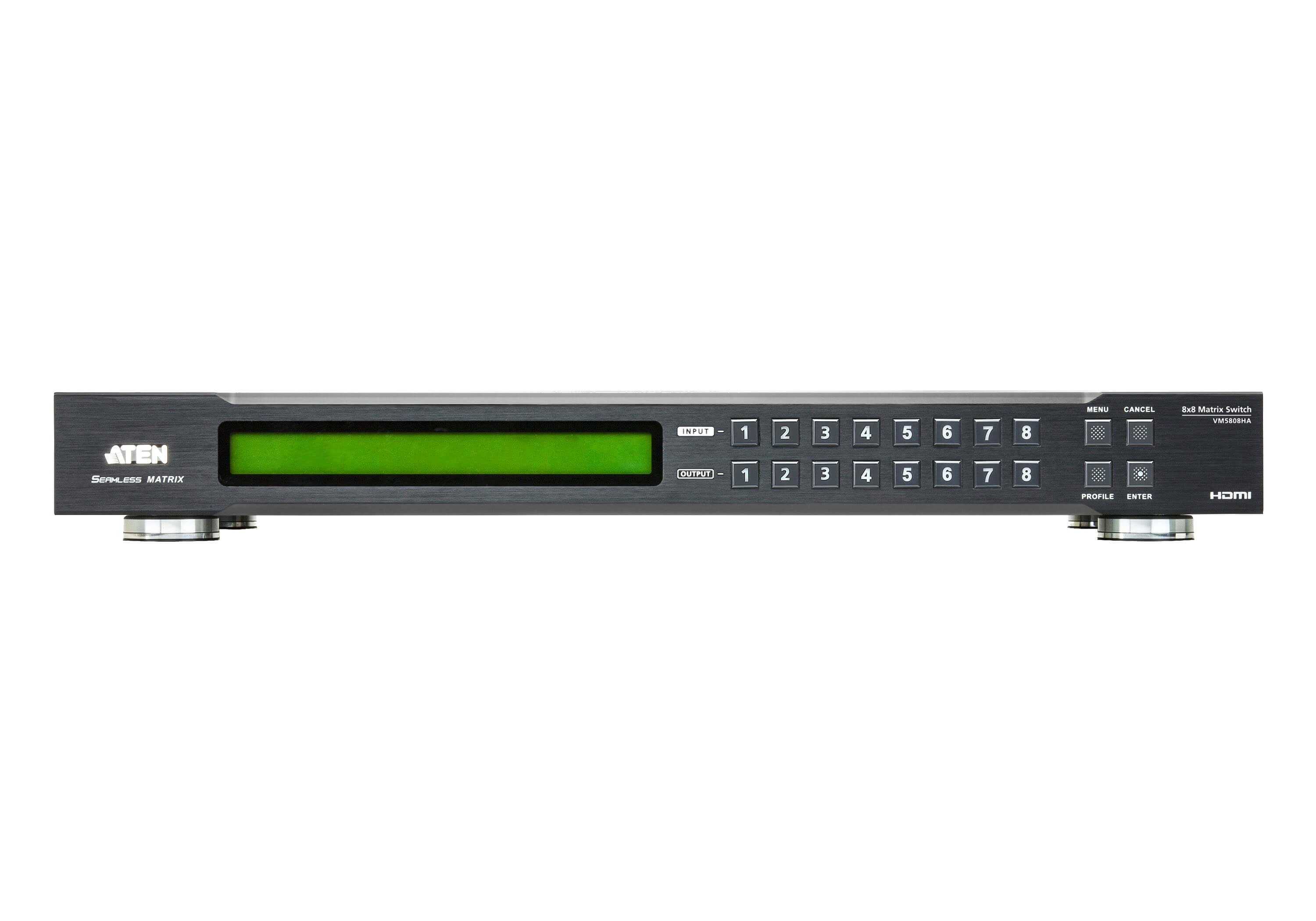

The HDMI 8 x 8 matrix allows you to direct any of the 8 HDMI input signals to any of the 8 HDMI output channels without compromise in terms of flexibilityà. Different methods are available for device control, such as front panel buttons, RS- 232 and Ethernet connections (Telnet/GUI Web). In addition, the VM 5808 HA supports the ATEN video matrix control app for display and control of the device status. It can also be integrated with the ATEN Control System, a platform where the ATEN video plates based on Ethernet and third-party devices (such as projectors, lights, AV devices) are centrally monitored, managed and controlled. Signal management & grave; efficient from the LCD screen of the front panel, which provides users with a quick viewing of all port connections. In addition, the local HDMI output port allows real-time monitoring of more ù sources on a single screen, exactly where the matrix is located.



As a definitive videowall solution, the VM 5808 HA based on FPGA è equipped with the exclusive ATEN instant switching technology, which guarantees uninterrupted video streams, real-time control and stable signal transmission. The integrated scaler automatically resizes any input video signal to fit the native resolution of the output screen, to achieve the best quality à of videos and images. To avoid screen tearing, the VM 5808 HA adopts FrameSync technology to synchronize the output frame rates of the scaler with the input signal frames rates, thus ensuring that the videowall tie-free is guaranteed.

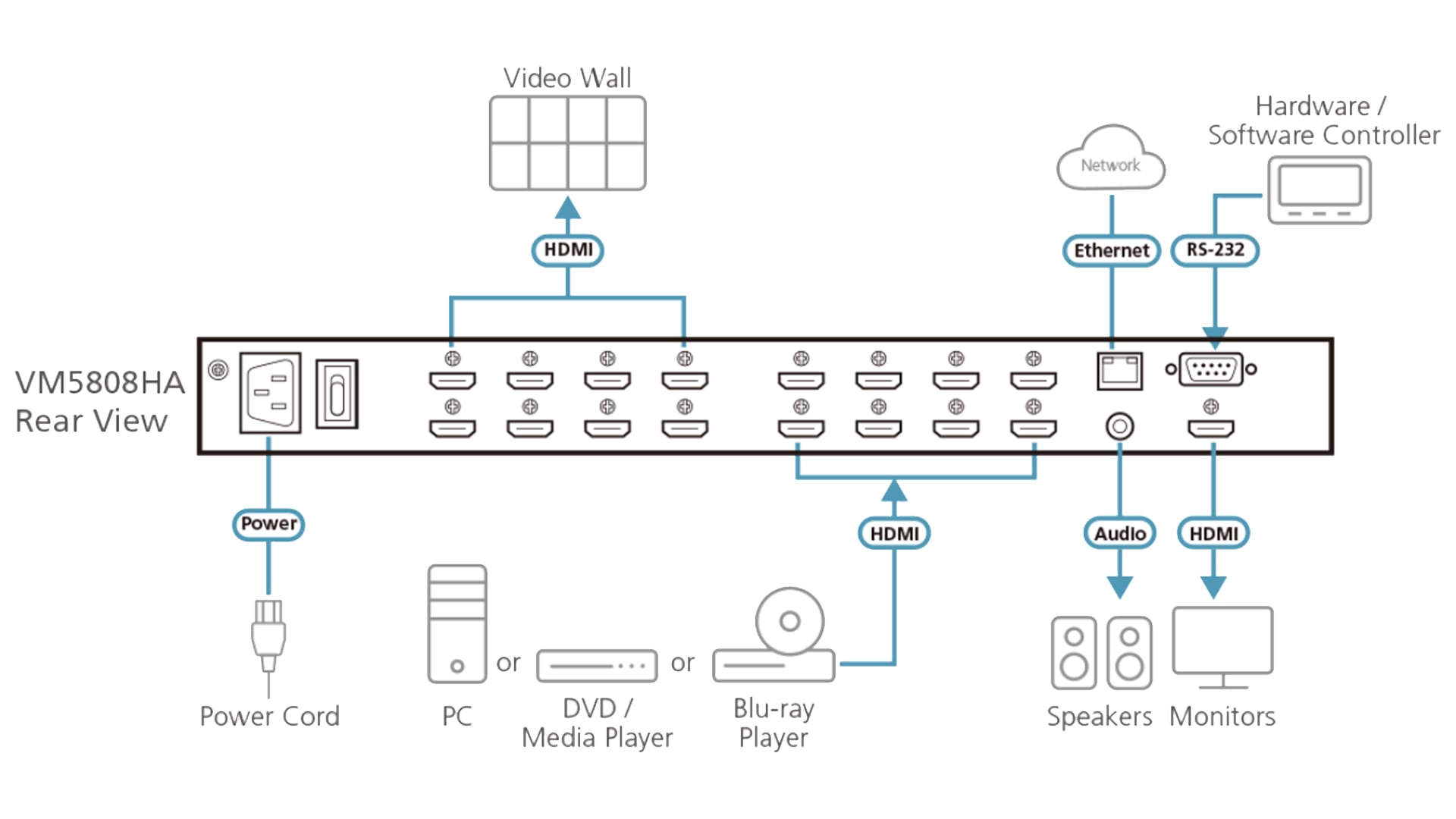

With regard to audio functionality, the è matrix equipped with audio de-embedding, which allows you to assign digital audio from any HDMI input to stereo output for greater flexibility à installation. The VM 5808 HA è an ideal HDMI video routing solution for scenarios where è requires real-time and customizable AV signal transport from more ù sources to one or more; destinations, from control centres, server rooms, to any type of video wall application.



Features

• Route any of the 8 HDMI sources to any of the 8 HDMI screens


• Local HDMI output – allows you to preview up to 8 video sources in a multi-view window


• Multiple system configuration methods, including front panel buttons, RS- 232 /Ethernet connections (Telnet/GUI Web) Video matrix control app and ATEN control system


• Device status can be displayed and controlled via the ATEN Video Matrix Control App


• The functionality à videowall via an intuitive Web GUI* allows you to customize up to 16 layout for any type of videowall


• The built-in scaler automatically converts input resolutions for optimal display on screen


• FrameSync – prevents image tiaring by synchronizing the scaler output frame rate with the input signal frame rate


• Instant Switching Technology ATEN* – adopts FPGA to unify video formats to provide continuous video streams, real-time switching and stable signal transmission


• EDID Expert – selects the optimal EDID settings for smooth ignition, di alta qualità à display and use of best resolution on different screens


• Audio enabled; HDMI audio can ò be extracted in stereo audio


• HDMI (3 D, Deep color); HDCP 1.4


• Supports Dolby True HD and DTS HD Master Audio


• Supports Consumer Electronics Control (CEC)


• ESD protection for HDMI


• Firmware Update


• Installed on rack (design 1 U)



*Note:

1 . If è enabled instant switching function, the video output does not display à resolutions 3 D, Deep Color or interlaced (cioè 1080 i). To make these functions available, è need to disable the instant switching function.

2 . Videos may not be displayed within the range of action when è enabled instant switching function or videowall; in such case, change the display settings on the device.



Video Input

• Interfaces: 8 x HDMI Type A female (Black)


• Impedance: 100 Ω


• Max. distance: 5,0 m

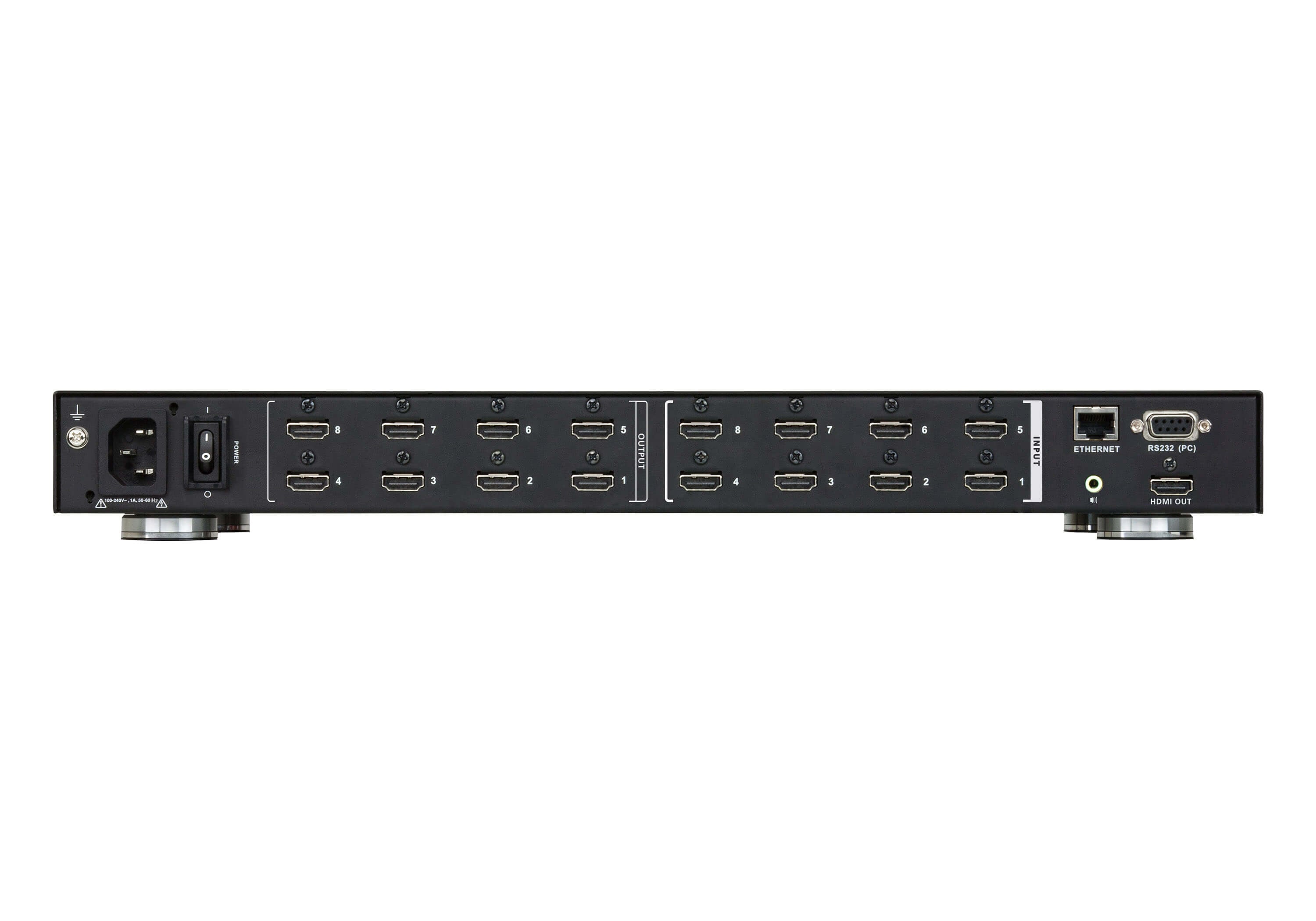

Video output

• Interfaces: 8 x HDMI Type A female (Black)


• (Modalità array): 1 x HDMI Type A female (Black)


• Impedance: 100 Ω


• Max. distance: 15 m



Video

• Max. frequency data  6,75 Gbps (2,25 Gbps per channel)


• Pixel clock max. 225 MHz


• conformità HDMI (3 D, Deep Color)


• Compatible with HDCP 1.4


• Consumer Electronics Control (CEC)


• Maximum resolution up to 1080 p


• Max. distance to 15 m



Audio

• Output: 1 x Mini stereo jack female (Green)



Monitoring

• RS- 232  Connector: 1 x DB- 9 female (Black)



Velocità transmission and protocol:

Velocità transmission: 19200 , data bit: 8 , stop bit: 1 , parità: No, flow control: No

• Ethernet: 1 x RJ- 45 female



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % RH, without condensation



Dimensions

• Width: 43,24 cm


• Depthà: 37,82 cm


• Height: 4,40 cm



Package contents

• 1 x HDMI Matrix with video wall and scaler


• 1x power cable


• 1 x mounting kit


• 1 x user instructions
